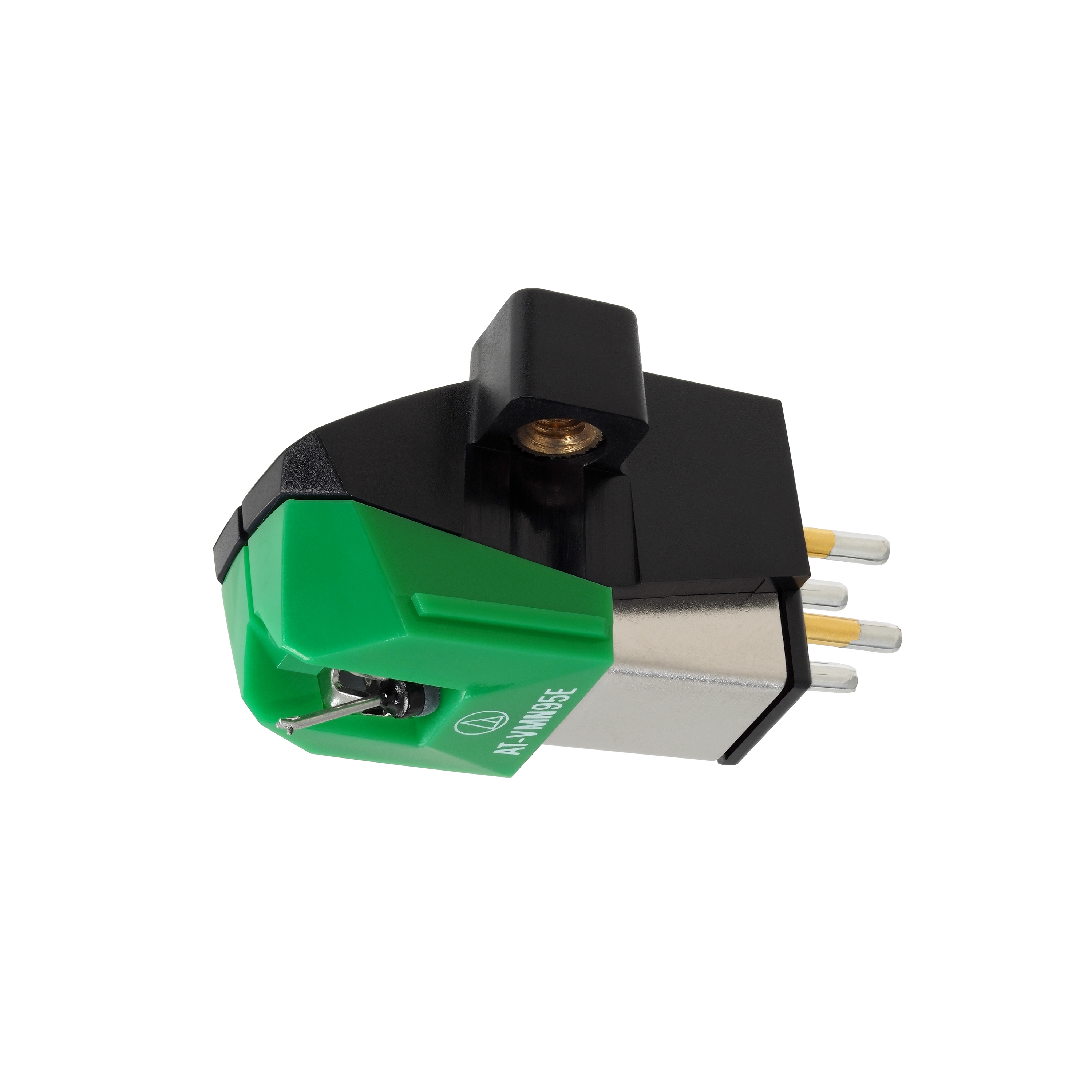

Audio Technica AT-VM95E Dual Moving Magnet Cartridge
Model: AT-VM95E
About: Audio Technica AT-VM95E Dual Moving Magnet Cartridge
This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
- VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
- Aluminum cantilever
- Specially wound coils increase output voltage
- Durable low-resonance polymer housing
- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
- Compatible with any AT-VMN95 replacement stylus
Specifications
- Frequency Response: 20-22,000 Hz
- Channel Separation: 20 (dB at 1 kHz)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 3.3 k ohms (1 kHz)
- DC Resistance: 485 ohms
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 4.0 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 2.0 dB (1 kHz)

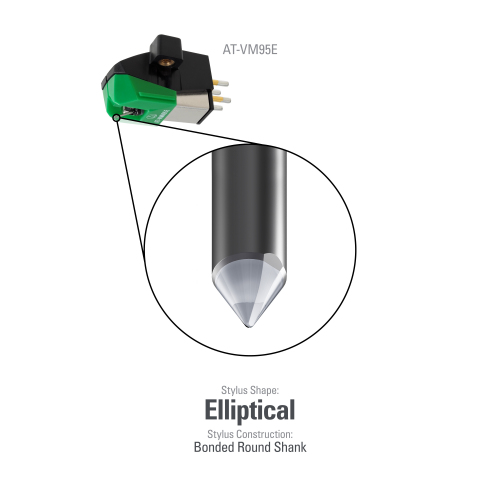

- Stylus Shape: 0.3 x 0.7 mil elliptical
- Cantilever: Aluminum pipe
- Static Compliance: 17 x 10 – 6 cm / dyne
- Dynamic Compliance: 7 x 10 – 6 cm / dyne (100 Hz)
- Mounting: Half-inch
- Cartridge Weight: 6.1g
- Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
- Mounting Feature: Half-inch mount
- Recommended Load Capacitance: 100 to 200 pF
- Stylus Size: 0.3 x 0.7 mil
- Type: VM Stereo Dual Magnet
- Weight: 6.1 g (0.22 oz)
- Wire Used for Coil: T.P. Copper

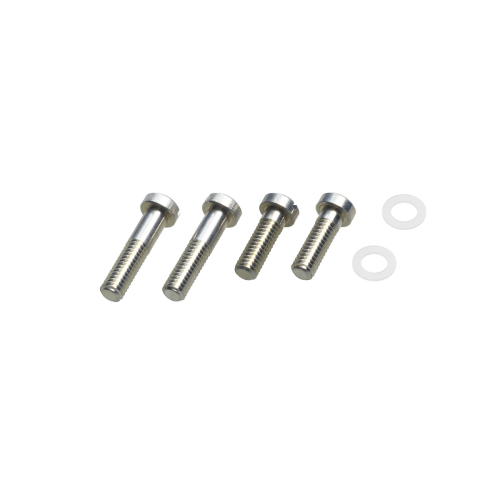

- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers
