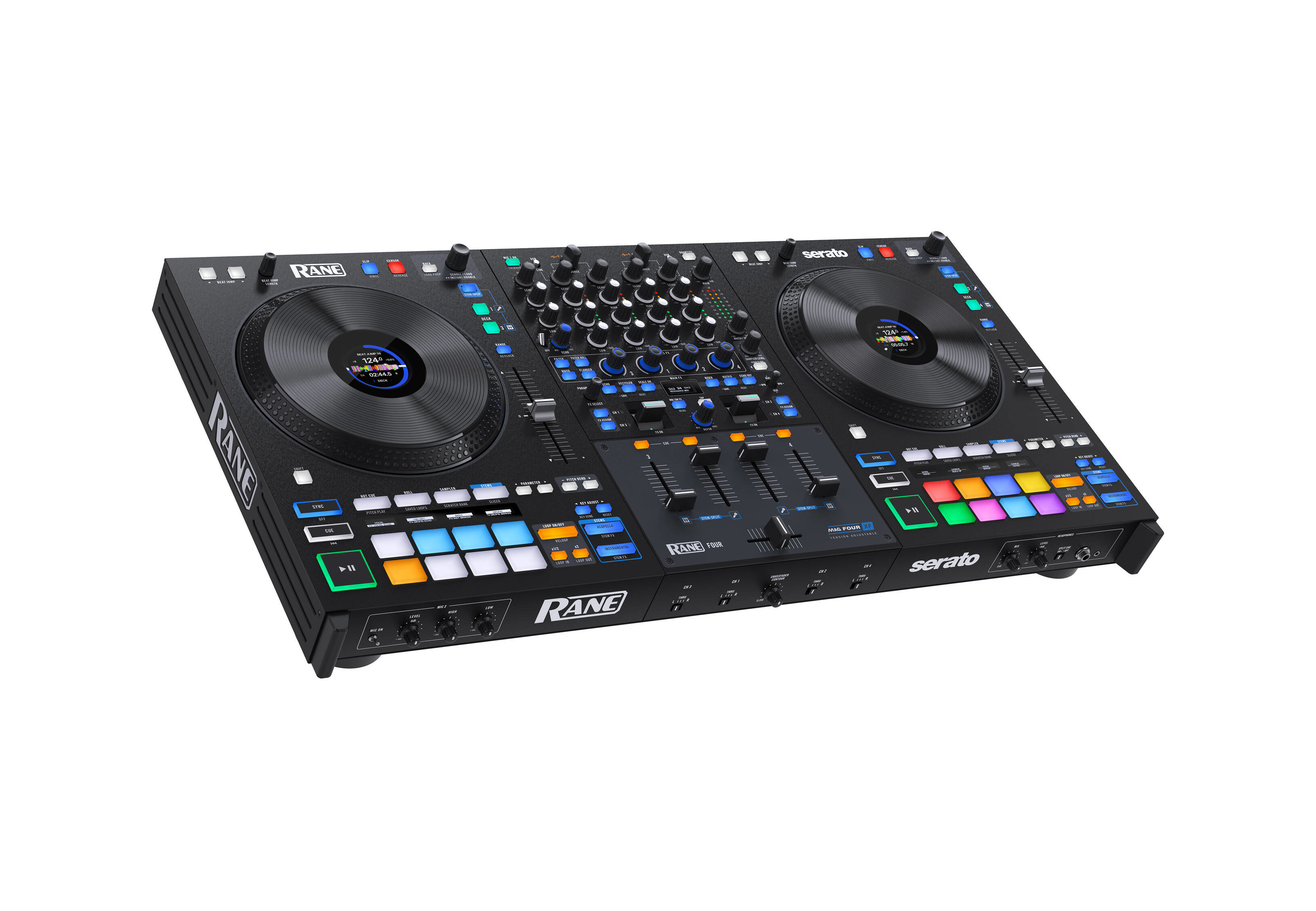

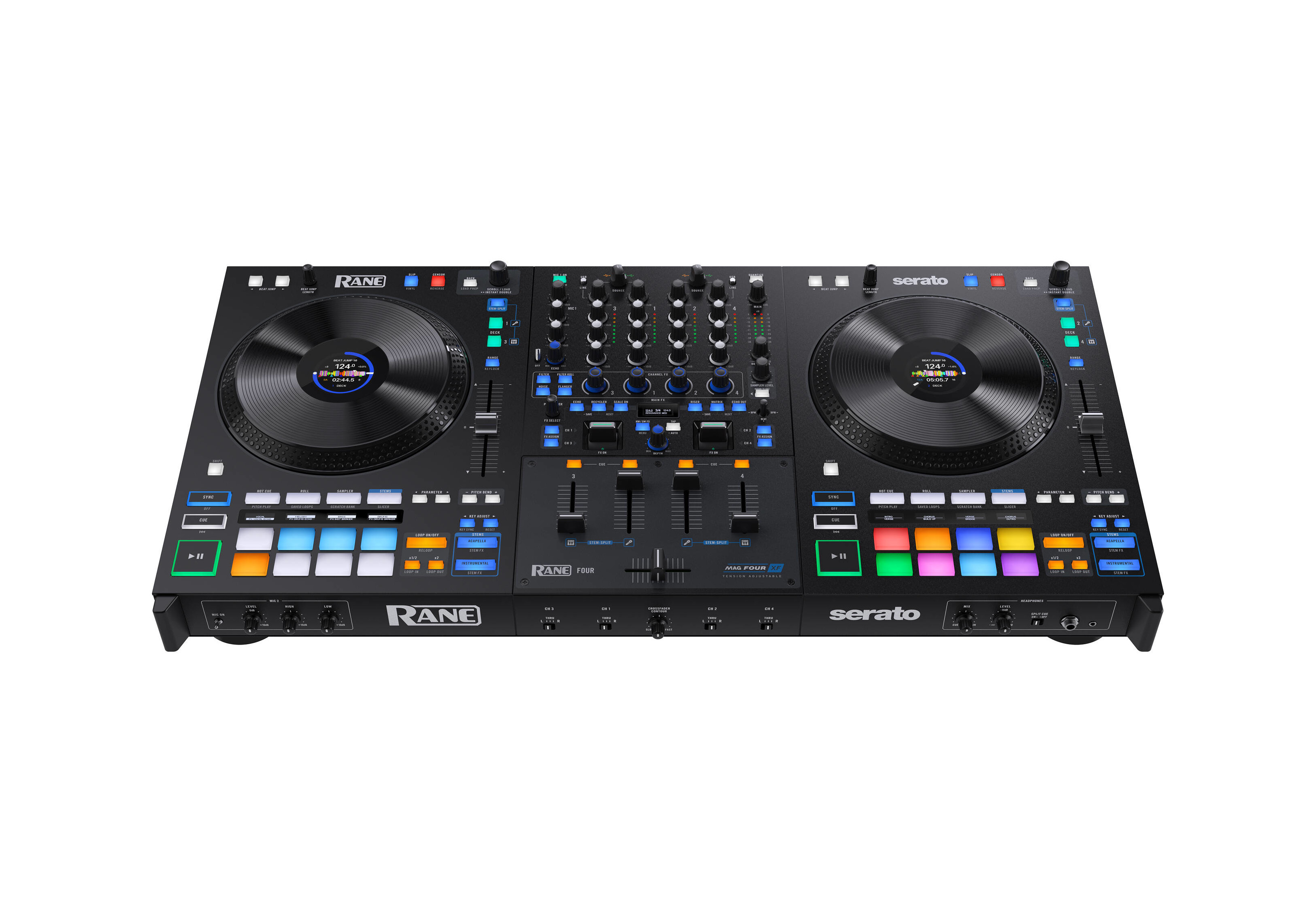

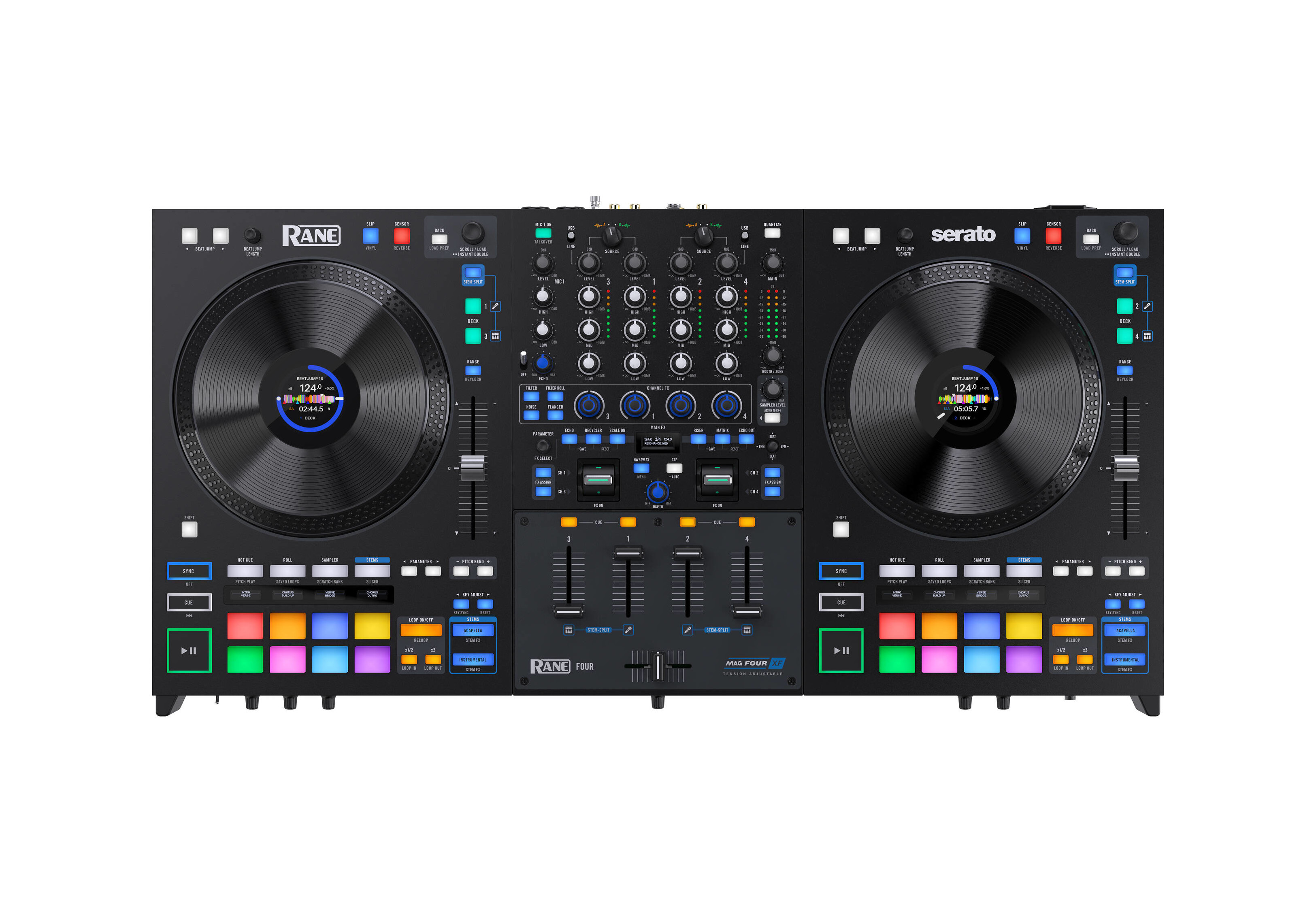

Rane FOUR 4-Channel STEMS DJ Controller

Model: FOUR

Rane FOUR 4-Channel STEMS DJ Controller
Rane FOUR 4-Channel STEMS DJ Controller
Rane FOUR 4-Channel STEMS DJ Controller
Rane FOUR 4-Channel STEMS DJ Controller
Rane FOUR 4-Channel STEMS DJ Controller
  • Free Shipping!
  •  In Stock - Ship or Pick-up
  • Not yet reviewed



About: Rane FOUR 4-Channel STEMS DJ Controller

The RANE FOUR brilliantly combines the latest in performance-focused DJ technology with RANE’s tried-and-true build and industry-leading sound quality. The result is a bulletproof, great sounding, feature-packed DJ controller that will unleash exciting new levels of creativity in your DJ sets and livestreams. With never-before-seen features like STEM-SPLIT, Performance Pad OLED displays, and a new dynamic internal FX engine, the FOUR is the world’s most advanced 4-channel Stems DJ controller.

HARNESS THE POWER OF SERATO STEMS
RANE and Serato have a long history of creating groundbreaking DJ products together, dating back to the RANE SL1 box in 2004. The RANE FOUR takes this partnership to the next level by melding the industrial-grade build and sound quality of RANE hardware with the powerful new Stems capabilities of Serato DJ software. The result is a next-level DJ controller with unprecedented Serato Stems control. A dedicated Stems Pad Mode, Instrumental and Acapella buttons, and RANE’s exclusive STEM-SPLIT feature provide you with the ultimate Stems workflow and experience to fully elevate your creativity as a DJ.

NEW LEVELS OF CREATIVE FX
The newly designed internal FX suite features 22 paddle-triggered, fully customizable Main FX and 4 knob-controlled Channel FX for adding flavor and personality to individual Stems elements and tracks. This robust FX suite features traditional FX classics like Reverb and Echo and exhilarating new additions including Scale Down, Recycler, Riser, and more. The Channel FX section offers dynamic, hands-on manipulation of 4 knob-controlled FX including Filter, Filter Roll, Noise, and Flanger. The RANE FOUR also allows you to switch seamless back and forth between the built-in hardware FX and Serato’s software FX, providing limitless options for any style of DJing.

FOUR CHANNELS OF PERFORMANCE POSSIBILITY
The 4-channel mixer section features full EQ control and intuitive FX assignment options, plus 2 external Line/Phono inputs for external turntables or decks. The FOUR is DVS-enabled and unlocks both Serato DJ Pro and Serato Pitch ‘n Time when connected to laptop running the latest version of Serato. Enhanced Sampler routing options allow you to control the Sampler volume via a dedicated knob, or assign the audio to Channel 4 so that you can layer FX on top of your DJ drops, instruments, and other samples. The quick-access deck selection buttons allow for swiftly switching platter control between software decks, and the FOUR also supports external modular decks like the RANE TWELVE MKII and the Denon DJ LC6000 for a full physical 4-deck mixing experience.

FOCUS ON YOUR PERFORMANCE, NOT YOUR LAPTOP
The 8 OLED displays above the Performance Pads on each deck offer visual feedback for all pad modes, making it easier than ever to see the function of each pad without having to look at the computer. See Cue, Loop, and Sample names as well as Roll and Loop lengths, beat divisions, Pitch Play tuning, and Stem elements and FX.

THE BEST STATIC PLATTERS..EVER
The 8.5” capacitive jog wheels were designed to be the smoothest and most accurate static jog wheels available on a DJ controller. A central color display indicates play head position, BPM, pitch percentage, pitch range, overview waveform with Hot Cue markers, song key, time, loop size, deck selection, Beat Jump length and more.

TRUSTED RANE QUALITY
The RANE FOUR is the only 4-channel DJ controller built to RANE’s rigorous standards. Solid, bulletproof construction, MAG-FOUR crossfader with curve adjustment and channel assignment switches, aluminum FX toggles, and industry leading sound quality and connections ensure that the RANE FOUR will always perform like a champ, no matter what.

Features:

  • The world’s most advanced Serato Stems DJ controller with dedicated Stems pad mode, independent Acapella/Instrumental buttons, and exclusive STEM-SPLIT feature
  • Dynamic internal FX engine with 22 MAIN FX, 4 knob-controlled CHANNEL FX, and access to Serato DJ software FX
  • 16 Performance Pads with dedicated OLED Pad Mode displays for visual feedback
  • Full size, 8.5” high-resolution capacitive static platters with full-color center display
  • 4-channel mixer section and deck selection buttons for mixing with up to 4 software decks
  • 2 Line/Phono inputs for turntables or external decks
  • Tension-adjustable MAG FOUR crossfader
  • Dual-USB for seamless DJ transitions
  • XLR & RCA Main out, 1/4” Booth/Zone out, (2) stereo RCA line/phono inputs, and (2) XLR 1/4” combo jack microphone inputs
  • Trusted RANE build and no-compromise sound quality

Technical Specifications

Digital Audio

  • Converters: Cirrus Logic, 24-bit PCM, 48 kHz
  • Digital Signal Processing: 32-bit, Floating Point, Double precision
  • Dynamic Range (A-weighted, unity gain): ADC: 113 dB
  • DAC: 113 dB
  • CD Input to Analog Output: 110 dB
  • CD Input to USB Output: 113 dB USB Input to Analog Output: 113 dB

Connections

  • (2) XLR outputs (Main)
  • (2) 1/4” outputs (Booth)
  • (1) RCA stereo output pair (Main)
  • (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2) (2) RCA stereo input pairs (Deck 3-4)
  • (1) 1/4” (6.35 mm) TRS output (Headphones) (1) 1/8” (3.5 mm) TRS output (Headphones) (2) USB Type-B ports
  • (1) IEC power cable input

Audio Outputs

  • Main Outputs (XLR):
    • Gain Trim: Off to 0 dB
    • Maximum Output: 8 Vrms
    • THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat - 20-20kHz
  • Main Outputs (RCA stereo pair): Maximum Output: 4 Vrms
    • THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat - 20-20kHz
  • Booth Outputs (1/4”):
    • Gain Trim: Off to 0 dB
    • Maximum Output: 8 Vrms
    • THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat - 20-20kHz
  • Headphone Outputs (1/4”/6.35 mm and 1/8”/3.5 mm TRS): Maximum Output: 4 Vrms Voltage: (no load)
    • Output Power: 50 mW (50 ohms)
    • Dynamic Range (A-weighted): 108 dB

Audio Inputs

  • Microphone 1/2 (Combo XLR/1/4” [6.35 mm] TRS): Analog Gain: 25 dB
    • Maximum Input: 110 mV
    • Gain Trim: Off to +26 dB (unity at center)
    • Tone Control: 2-band
  • Line/Phono Inputs 3/4 (RCA stereo pairs, switchable):
  • Line: Line
    • Maximum Input: 4 Vrms
    • Gain Trim: Off to +12 dB
    • Tone Control: 3-band, full-cut to +10 dB THD+N (20 kHz BW @ 1 kHz: 0.004%
  • Phono: RIAA
    • RIAA Curve: +/-0.25 dB
    • Gain (@ 1 kHz): 31.5 dB
    • Maximum Input (@ 1 kHz): 106 mV Dynamic Range (A-weighted): 102 dB

Pads

  • (16) on/off multi-color back-lit pads (8 per deck, 9 modes each

Wheel Displays

  • (2) 320 x 240 Color LCD’s

Pad & FX Displays

  • (9) 128 x 32 Monochrome OLED’s

Faders

  • (1) MAG FOUR tension-adjustable crossfader with contour
  • (4) Standard channel faders

Power

  • Connection: IEC
  • Voltage: 100–240 V, 50/60 Hz Consumption: 20 W

Dimensions (width x depth x height): 30.8” x 15.9” x 4.2” / 782.32 x 403.8 x 106.6 mm

Weight: 18.25 lbs. 8.27 kg


UPC: 0694318025925

Videos: Rane FOUR 4-Channel STEMS DJ Controller

Reviews: Rane FOUR 4-Channel STEMS DJ Controller

There are currently no product reviews.


Warranty: Rane FOUR 4-Channel STEMS DJ Controller

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

1 year warranty

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
