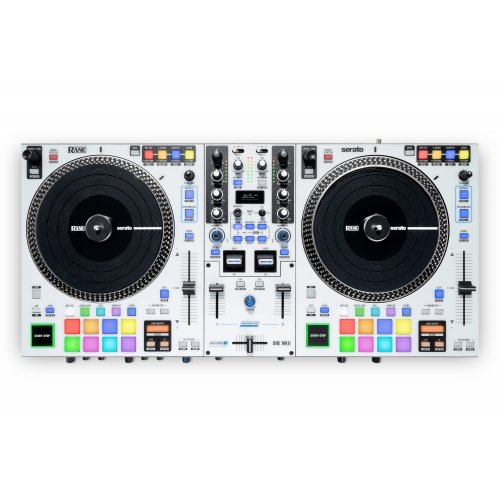

Rane ONE MKII Motorized DJ Controller

About: Rane ONE MKII Motorized DJ Controller

The RANE ONE MKII is a performance-ready motorized DJ controller designed to give professional DJs complete creative freedom during any live set.

Flexible and adaptable for open-format workflows, the RANE ONE MKII offers motorized, high-torque platters that deliver the tactile response professional DJs need while maintaining technical precision with digital controls. The system also features Fader FX, for utilizing the volume faders as linear controls for Pitch, Filter, Roll, and Ring Modulator FX, as well as four different tone generators.

With 29 internal hardware effects and a dedicated display, the MKII opens up a world of creative possibilities, ensuring smooth transitions and dynamic mixes for club, bar, and other high-energy live event settings. The controller’s professional-grade sound quality, combined with a range of connectivity options, ensures seamless integration into any setup, allowing DJs to focus fully on their performance.

Building on RANE ONE’s wide adoption in the professional DJ community, the new MKII introduces Stems controls for greater creative flexibility, making it easier than ever to mix and modify tracks live. RANE ONE MKII unlocks the powerful Serato DJ Pro software, effortlessly expanding how Stems can be incorporated into a live set—from isolating or removing acapellas and instrumentals to adding FX or Rolls to the vocals, melody, bass, or drums of a track.

The ONE MKII’s customizable pad modes, dedicated sampler knob, tension-adjustable PRECISION FEEL channel faders, and MAG FOUR crossfader allow DJs to tailor the controller to their individual style, offering accurate mixing with every move. The MKII comes in a sleek, white finish, making it a clean, modern centerpiece of any DJ setup while improving control surface visibility.

Versatile, portable, and built to last, the RANE ONE MKII is the ultimate performance tool to empower and inspire any professional DJ.

New Key Features

• Dynamic Internal FX Suite
  • 29 meticulously crafted internal effects, offering DJs an extensive palette of sonic possibilities. From subtle enhancements to transformative soundscapes and even fader-controlled transition FX, elevating the creative potential of every performance.
• Stems Controls for Creative Flexibility
  • Acapella and Instrumental Buttons: Effortlessly isolate vocals or instrumentals for unique transitions and remixes in real time.
  • Stems Level Control: Seamlessly adjust the balance of individual audio elements with the EQ knobs.
  • Stems Pad Mode: Quickly mute and apply FX to individual stem parts.
  • Stems Roll Pad Mode: Stem Roll pad mode is a new performance pad mode that allows the user to apply loop rolls to individual or multiple stem parts.
  • Stems FX Pad Mode: Stem FX pad mode is a new performance pad mode that allows users to apply Echo Out, Roll Out, Brake, or Delay FX to individual or multiple stem parts.
• Secondary Pad Buttons
  • Access multiple pad modes simultaneously with dedicated secondary buttons above the platter, streamlining performance workflows and unlocking greater creative freedom without sacrificing simplicity.
• Channel FX
  • The Filter knob on each deck can access four different Channel FX, providing hands-on control of the Filter, Filter Roll, Flanger, and Noise FX.
• PRECISION FEEL
  • Channel Faders Experience a new level of tactile precision with ultra-smooth, accurate, and tension-adjustable control that empowers intricate and dynamic mixing.
• Stunning White Colorway
  • The MKII introduces a stylish white finish, combining aesthetics with function. This makes it an eye-catching centerpiece of any DJ setup while improving control surface visibility.

Changes from Current Model

• Added DSP, OLED, joystick, and HW/SW button for FX control
• Add Channel FX buttons to enable/disable Channel FX and select the FX
• Touch strips replaced with 4 buttons to access multiple pad modes simultaneously—performance pads beneath the platters can also be split to access 2 pad modes, so users can access 3 different pad modes on each deck
• Added a mode button for the secondary pad group
• Repurposed the Slip button for Acapella
• Repurposed the Censor button for Instrumental
• Repurposed the Range/Keylock button for Slip
• Replaced the standard channel/up faders with PRECISION FEEL faders
• Added dedicated Sampler volume knob on front panel
• Colorway: White

Specifications

• Digital Audio
  • Converters: Cirrus Logic, 24-bit PCM, 48 kHz
  • Digital Signal Processing: 32-bit, floating point, double precision
  • Dynamic Range (A-weighted, unity gain):
    • ADC: 113 dB
    • DAC: 113 dB
    • CD Input to Analog Output: 110 dB
    • CD Input to USB Output: 113 dB
    • USB Input to Analog Output: 113 dB
• Inputs
  • Microphone 1/2 (Combo XLR/1/4” [6.35 mm] TRS, Mic/Line switchable)
    • Analog Gain: 25 dB
    • Maximum Input: 110 mV
    • Gain Trim: Off to +26 dB (unity at center)
    • Tone Control: 2-band
  • Aux Input (RCA stereo pair)
    • Maximum Input: 4 Vrms
    • Dynamic Range (A-weighted): 114 dB
    • Gain Trim: Off to +12 dB
    • Tone Control: 2-band
  • CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)
    • CD
      • Maximum Input: 4 Vrms
      • Gain Trim: Off to +12 dB
      • Tone Control: 3-band, full-cut to +10 dB
      • THD+N (20 kHz BW @ 1 kHz): 0.004%
    •  Phono
      • RIAA Curve: +/- 0.25 dB
      • Gain (@ 1 kHz): 31.5 dB
      • Maximum Input (@ 1 kHz): 106 mV
      • Dynamic Range (A-weighted): 102 dB
• Outputs
  • Main Outputs (XLR)
    • Gain Trim: Off to 0 dB
    • Maximum Output: 8 Vrms
    • THD+N (20 kHz BW @ 1 kHz): 0.004%
    • Frequency Response: Flat
  • Booth Outputs (XLR)
    • Gain Trim: Off to 0 dB
    • Maximum Output: 8 Vrms
    • THD+N (20 kHz BW @ 1 kHz): 0.004%
    • Frequency Response: Flat
  • Master Outputs (RCA stereo pair)
    • Maximum Output: 4 Vrms
    • THD+N (20 kHz BW @ 1 kHz): 0.004%
    • Frequency Response: Flat
  • Headphone Outputs (1/4”/6.35 mm and 1/8”/3.5 mm TRS)
    • Maximum Output Voltage: 4 Vrms (no load)
    • Output Power: 50 mW (50 ohms)
    • Dynamic Range (A-weighted): 108 dB
• Pads
  • 16x multi-color back-lit pads (8 per deck, 10 modes each)
  • Secondary performance pad buttons with 8 pad modes
• Faders
  • (1) MAG FOUR tension-adjustable crossfader with independent Contour and Reverse controls
  • (2) PRECISION FEEL tension-adjustable faders with Contour knob and Reversal switches

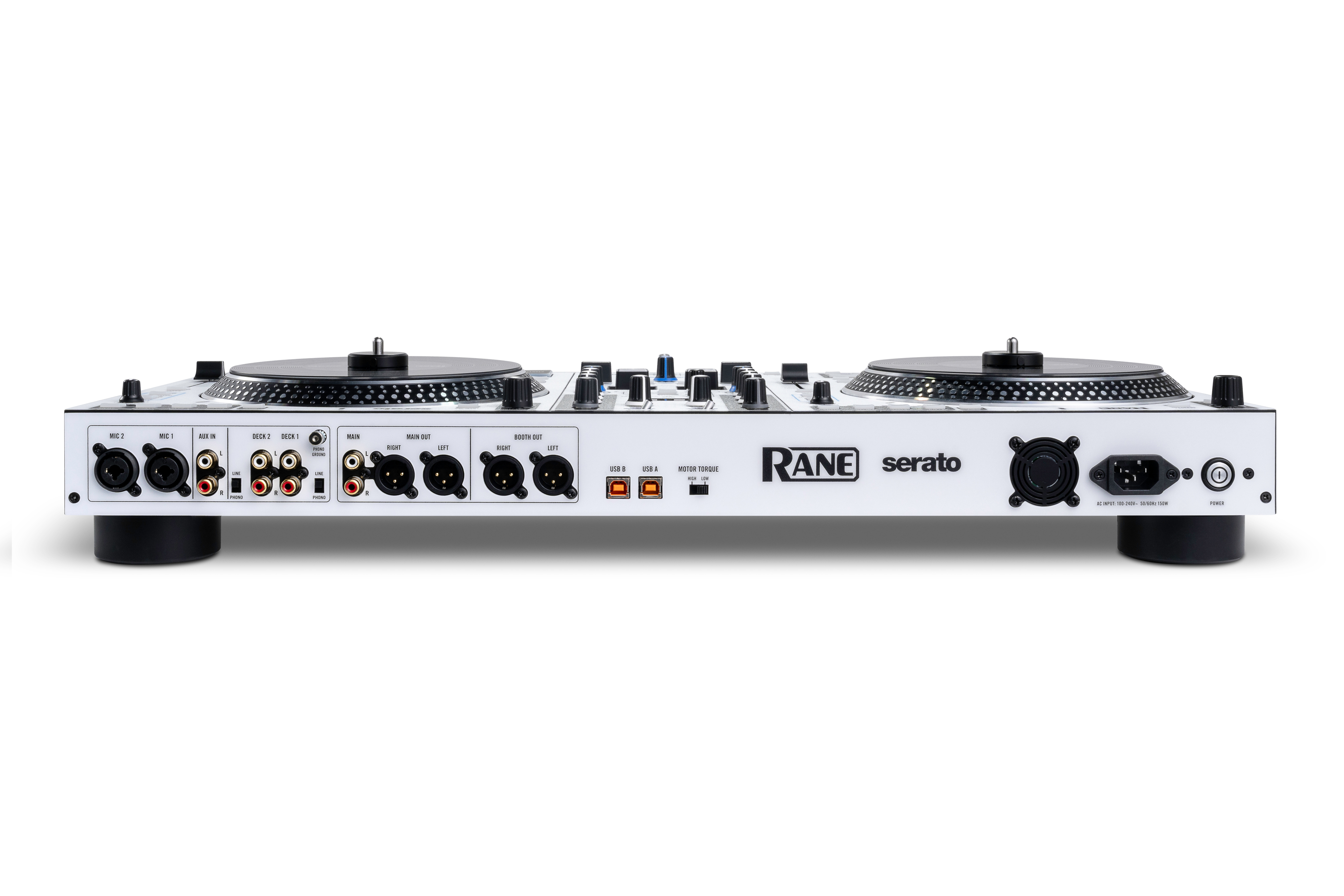

• Connectors
  • (2) XLR outputs (Main)
  • (2) XLR outputs (Booth)
  • (1) RCA stereo output pair (Master)
  • (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1-2)
  • (2) RCA stereo input pairs (Deck 1-2)
  • (1) RCA stereo input pair (Aux)
  • (1) 1/4” (6.35 mm) TRS output (Headphones)
  • (1) 1/8” (3.5 mm) TRS output (Headphones)
  • (2) USB Type-B ports
  • (1) IEC power cable input
• Power
  • Connection: IEC
  • Voltage: 100–240V, 50/60 Hz
  • Consumption: 50 W
• Dimensions (WxDxH): 26.5 x 13.6 x 4.9 inch (674 x 345 x 124.3 mm)
• Weight: 24.56 lbs. (11.14 kg)
