Core SWX Battery Plate for Sony PXW-FX9 (V-Mount)
Model: CXV-FX9
About: Core SWX Battery Plate for Sony PXW-FX9 (V-Mount)
Core SWX CXV-FX9 Overview:

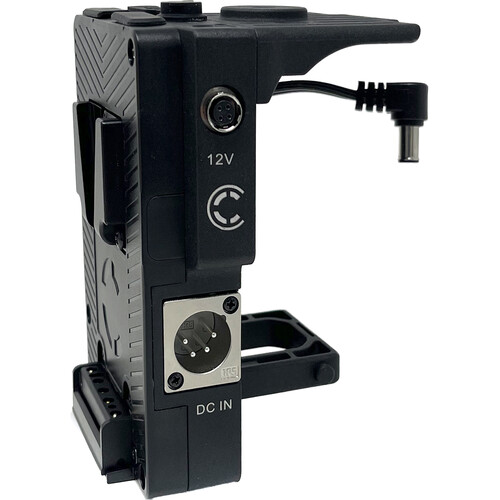

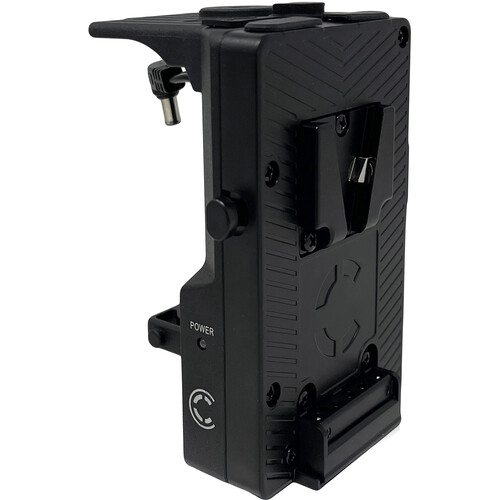

The Gold mount Core SWX Battery Plate for Sony PXW-FX9 attaches directly to the rear of the camera and connects via a DC output cable. It also provides a 4-pin XLR input to allow for hot-swapping. Plug in a 4-pin XLR external power source and you can swap out your V-mount battery. The plate secures to the camera using screws provided on the back of the camera, under the removable cover plate on the rounded corner. At the same time, a protruding U-shaped component on the bottom of the unit inserts into the camera's battery slot.
The DC cable provides a 19.5V output that's compatible with the camera. An LED on the side of the plate provides warning of low battery status. When the plate is not in use, the DC cable can be kept inside a dedicated compartment that's on the interior side of the plate.
There are also two D-Tap outputs for powering accessories. A USB port is also available for firmware updates. The plate is made of durable aluminum.
Key Features
- Attaches to the rear of the camera and connects via a 19.5 VDC output cable
- 4-pin XLR input for hot-swapping
- Low battery warning LED
- Two D-Tap outputs
- Aluminum construction
UPC: 184323005185
Reviews: Core SWX Battery Plate for Sony PXW-FX9 (V-Mount)
Warranty: Core SWX Battery Plate for Sony PXW-FX9 (V-Mount)
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Powerbase 70 and Edge: 1 Year Warranty
Nano-M and Nano Slim Batteries: 1 Year Warranty
Nano Micro Batteries: 2 Year Warranty
HyperCore and Hypercore NEO Batteries: 2 Year Warranty
Helix and Helix Max Batteries: 2 Year Warranty
Maverick: 3 Year Warranty
Renegade and Renegade XL: 2 Year Warranty
Quad and Dual Chargers: 3 year Warranty
PB70C15 and PB70C15US: 1 Year Warranty
Electronic Regulation Cables(XP) and Accessories: 1 Year Warranty
Non-regulation cables(PT): Lifetime Warranty
TorchLED Bolt: 1 Year Warranty
NP Batteries: 1 Year Warranty
XP batteries: 1.5 Year Warranty; 1 Year on RED Products
Hypercore Slim 7 & 8: 1 Year Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Core SWX do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
