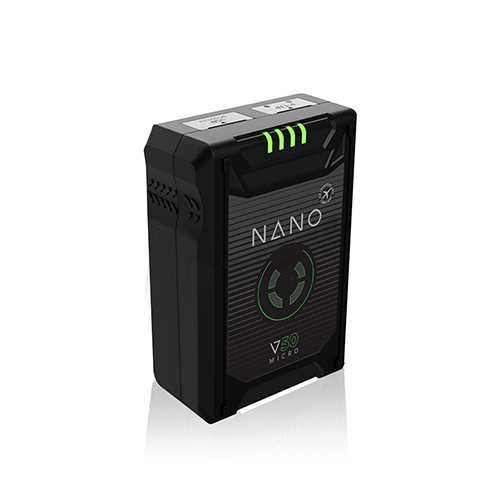

CoreSWX NANO Micro 50 Lithium-Ion Battery (V-Mount)
Model: NANO-V50
About: CoreSWX NANO Micro 50 Lithium-Ion Battery (V-Mount)

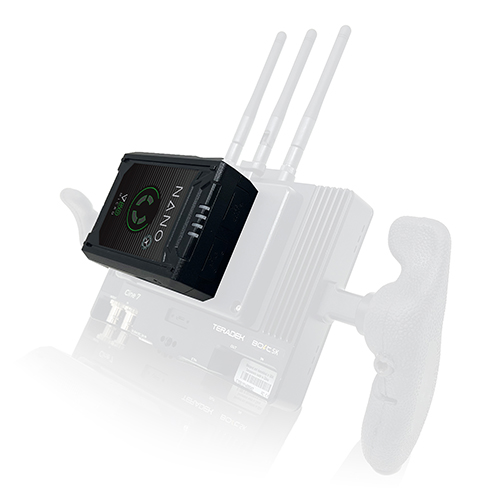

The Nano Micro 50 is quite possibly the smallest style pack on the market today. Measuring in at less than 4″ in height and 1.5″ in depth, while weighing a feathery 0.8 lbs., the NANO-G50 is the perfect “grab and go” pack for powering on-board monitors, recorders, wireless tx/rx, etc., while still being able to handle lighter camera powering applications like RED Komodo and Canon Cinema builds when utilizing the proper mount plate.
The 14.8v, 49wh capacity allows for the packs to be transported carry-on without restrictions under IATA, ICAO, and UN regulations. The packs have been UN tested and certified, passing UN38.3 certification.
The Core Nano Micro packs feature an on-board unregulated p-tap which can be used to power most 12vdc devices, as well as doubling as a charge input port. The packs also include a 5V, 3A USB for powering/charging mobile devices, and a 4-stage LED gauge to view remaining power.
Specifications
- Capacity: 49Wh(14.8v, 3.3Ah)
- Operational Voltage: DC 12v-16.8v
- Size: 2.82″ x 3.93″x 1.49″
- Weight: 0.8lbs.
- Normal Runtime: (25w) 1.8hrs.
- Load: 6A
UPC: 184323006007
Reviews: CoreSWX NANO Micro 50 Lithium-Ion Battery (V-Mount)
Warranty: CoreSWX NANO Micro 50 Lithium-Ion Battery (V-Mount)
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Powerbase 70 and Edge: 1 Year Warranty
Nano-M and Nano Slim Batteries: 1 Year Warranty
Nano Micro Batteries: 2 Year Warranty
HyperCore and Hypercore NEO Batteries: 2 Year Warranty
Helix and Helix Max Batteries: 2 Year Warranty
Maverick: 3 Year Warranty
Renegade and Renegade XL: 2 Year Warranty
Quad and Dual Chargers: 3 year Warranty
PB70C15 and PB70C15US: 1 Year Warranty
Electronic Regulation Cables(XP) and Accessories: 1 Year Warranty
Non-regulation cables(PT): Lifetime Warranty
TorchLED Bolt: 1 Year Warranty
NP Batteries: 1 Year Warranty
XP batteries: 1.5 Year Warranty; 1 Year on RED Products
Hypercore Slim 7 & 8: 1 Year Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
