Shape Hot Swap Gold Mount Power Box Battery 14.4V 36Wh
Model: HSPGM
About: Shape Hot Swap Gold Mount Power Box Battery 14.4V 36Wh
SHAPE is adding one more Full Play Gold Mount Battery model to its family. The new Hot Swap Gold Mount Power Box battery, designed for uninterrupted power supply. Its main goal is to maintain power to the camera, during a battery switch. It will prioritize external batteries for power supply while simultaneously charging the internal battery.
Featuring high-precision monitoring, it includes a built-in high-precision voltage detection circuits and delay circuits to monitor voltage, current and temperature, ensuring the safety of the battery pack and extending its lifespan. To ensure the consistency of its cell voltages, SHAPE designed an integrated balancing switch. To enhance its system safety, a low temperature charging protection and under-voltage load lock functions are included.

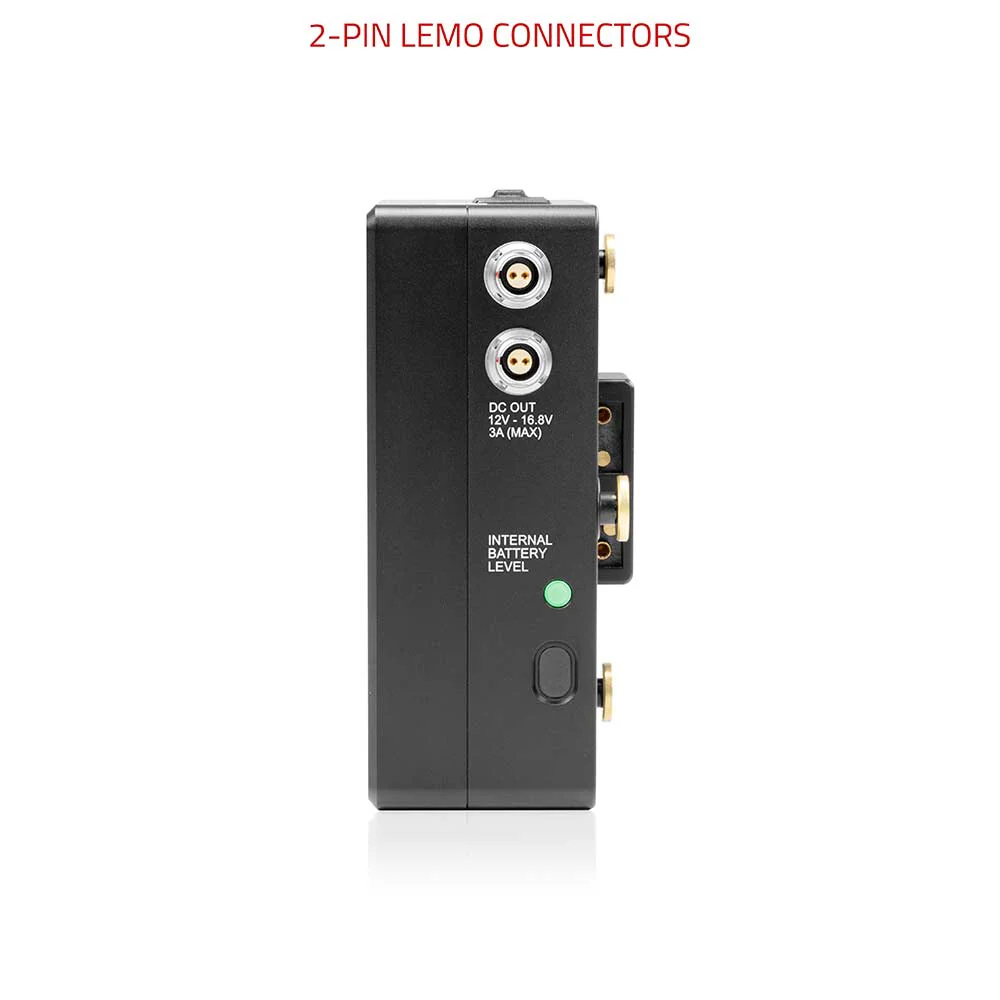

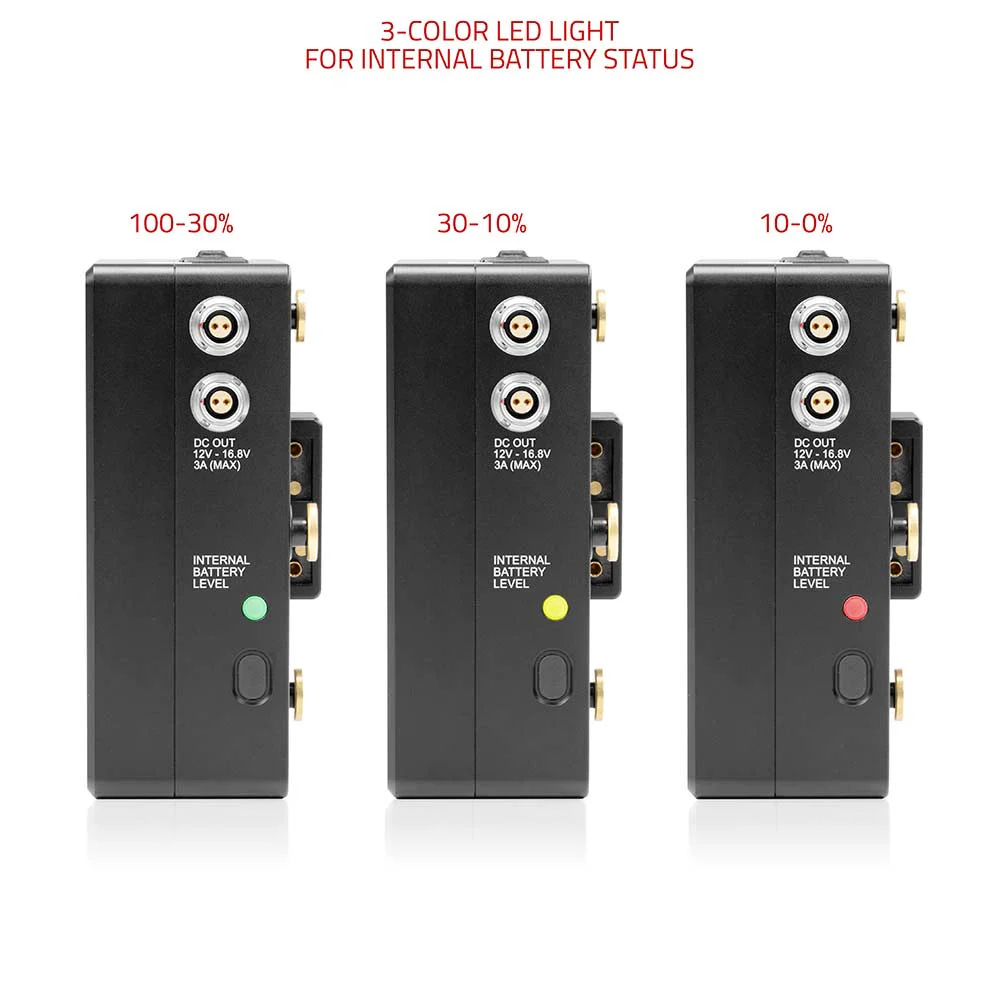

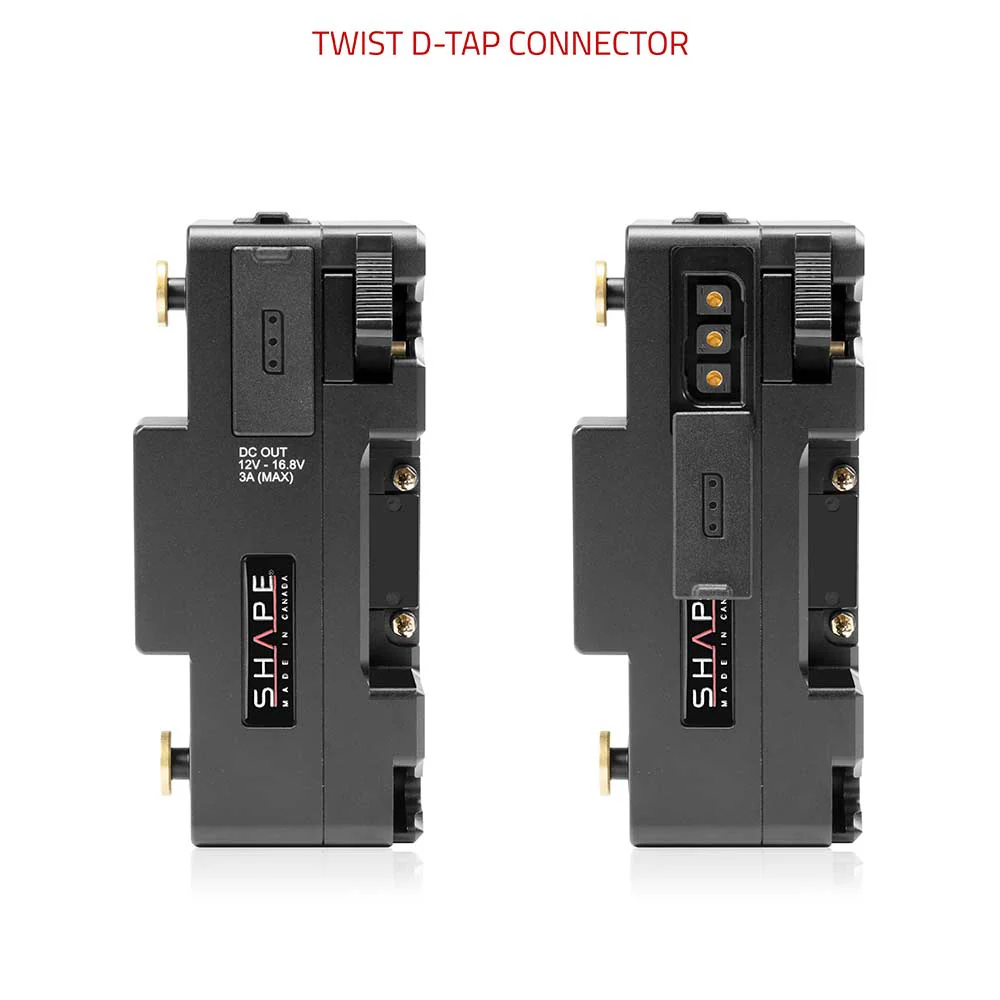

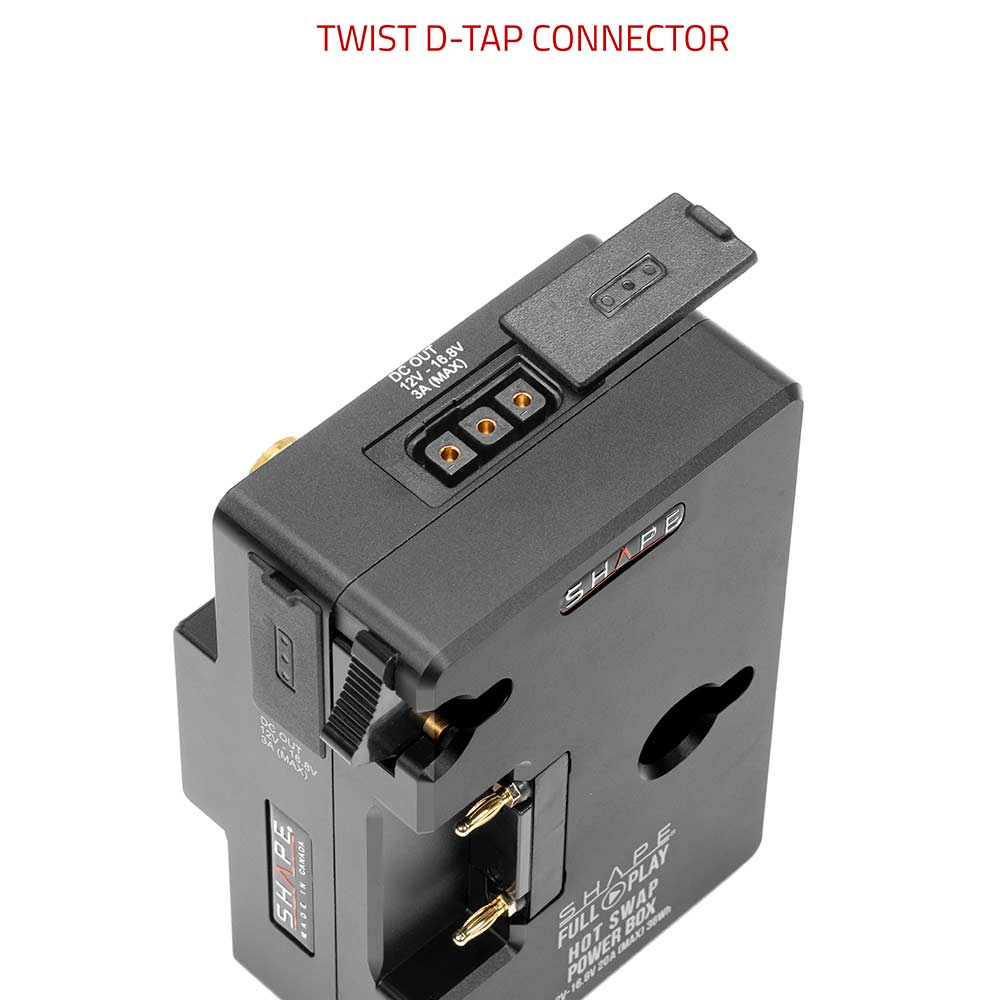

This Hot Swap Power Box includes two Twist D-tap and two LEMO 2-pin ports to provide power to additional accessories. To see its internal battery level, a 3-color LED light system will show you a red, yellow or green light. SHAPE’s Hot Swap Power Box has a 2-year limited warranty against all manufacturer defects.
Compatible with
- Gold Mount batteries & plates
Specifications
- Rated Capacity: 2500 mAh, 36Wh
- Nominal Voltage: 14.4V
- Voltage Range: 12-16.8V
- Charging Voltage: 16.8V
- Charging Current: 3.5A (Max)
- Discharge Current: 20A (Max)(Total)
- Main BP Output: 12-16.8V, 20A (Max)
- Twist D-tap Output: 12-16.8V, 3A (Max)
- LEMO 2-pin Output: 12-16.8V, 3A (Max)
- Operating Temperature: -40°~50°C
- Storage Temperature: -20°C~45°C
- Operating Humidity: 90-95% (Max)
- Storage Humidity: <70%
- Weight: 1.25 lbs (0.57kg)
- Dimensions: 4.75 x 3.07 x 2.12 in (120.7 x 78 x 53.8 mm)
UPC: 629266104484
Videos: Shape Hot Swap Gold Mount Power Box Battery 14.4V 36Wh
Reviews: Shape Hot Swap Gold Mount Power Box Battery 14.4V 36Wh
Warranty: Shape Hot Swap Gold Mount Power Box Battery 14.4V 36Wh
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
LIFETIME MANUFACTURER WARRANTY
All SHAPE products and accessories are covered by a manufacturer's warranty solely on CNC machined parts.
All calls for service or repairs should be referred and sent directly to SHAPE. For an out of box failure, you may contact SHAPE by email [email protected] or call 1-888-968-9810 (Canada/U.S.) or 1-450-447-4444.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Shape do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
