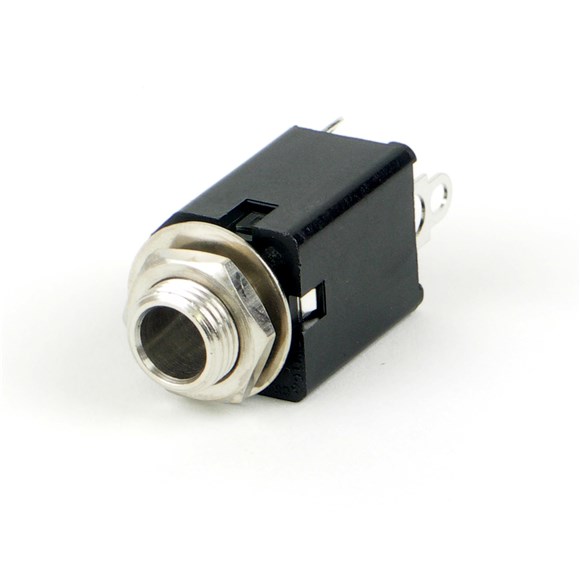

Switchcraft 112B 1/4in Chassis / Board Jack
Model: 112B
About: Switchcraft 112B 1/4in Chassis / Board Jack
Hi-D Jax enclosed 1/4" phone jacks are ideal for panel/chassis and PC board mounting. Unitized molded housing protects springs, provides mechanical and electrical reliability, minimizes leakage and provides low capacity between springs. Mounts on .625" minimum centers in rows or arrays in a single .375" diameter hole.
Formed shoulders on each terminal provide stable stand-off mount. Threaded bushing permits mechanical connection to equipment panel. Mounting hardware is supplied.
Configuration
- Number of Conductors: 3
- Product Line: Littel Jacks
- Mounting Type: Panel
- Termination Style: Solder
- Contact Plating: Tin
- Locking: Locking
- Sealed: Not Sealed
- Packaging Type: Bulk
- Standard Connector Type: 1/4" Phone Jacks & Plugs
- Jack-Plug Type: Jack
Electrical
- Contact Resistance: 0.02 Ohms
- Dielectric Withstanding Voltage: 500 Volts
- Insulation Resistance: 10000 MOhms
- Circuit-Schematic: Double Open
Mechanical
- Life Cycle: 10000 Cycles
- Operating Force: 2 lbs
- Coupling Locking Style: Threaded
- Panel Thickness: 0.156 in
Environmental
- Temperature Range: -20C to +65C
- Flame Rating: UL 94V-0
- Humidity Rating: MIL-STD-202 Method 106
- Salt Spray: MIL-STD-202 Method 101
- Mechanical Shock: MIL-STD-202 Method 107
- Minimum Temperature: -20 C
- Maxiumum Temperature: 65 C
Compliance
- RoHS Compliant: Compliant
- REACH Compliant: Compliant
- Brand: Switchcraft
Material
- Body Material: Copper Alloy
- Body Plating: Nickel
- Spring Material: Copper Alloy
- Sleeve Material: Steel
