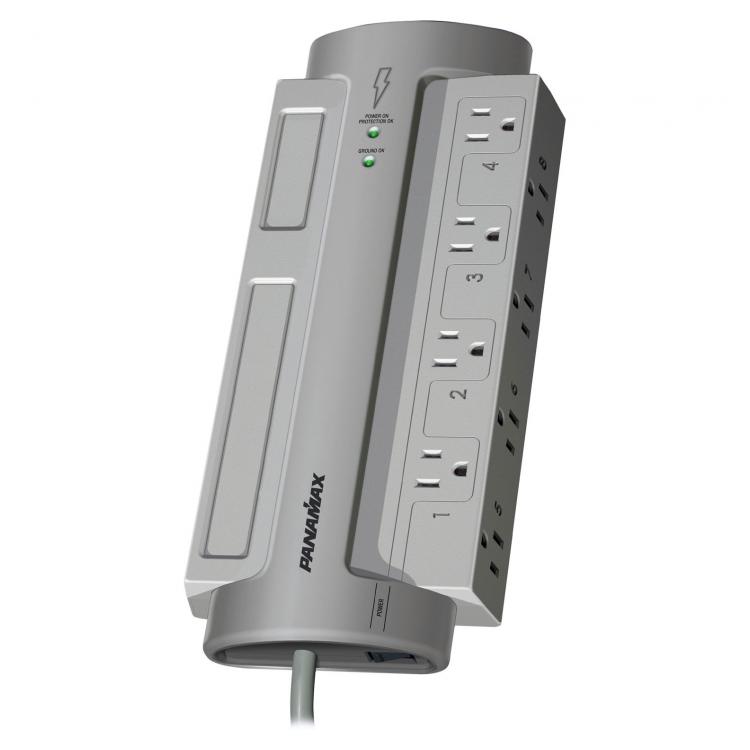

Panamax PM8-EX Surge Protector
Model: PM8-EX
About: Panamax PM8-EX Surge Protector
Provides Clean & Safe Power For All Home / Office Equipment.
Noise Filtration/Surge Protection for All Home/Office Equipment
- Eight AC Outlets with Transformer Spacing
- Accepts Add-on Signal Line Modules to Accommodate System Expansion
Specifications:
- Line Voltage: 120 (Volts)
- Number of Outlets: 8
- Outlet Descriptions: All 8 outlets filtered and surge protected
- Control: On/Off control to all outlets through power switch.
- Compliance: UL 1449 3rd Edition, 3000A
- USB Charging: N/A
- Low Voltage Trigger: N/A
- AC Power Cord: 6 ft. captive cord
- Dimensions: 12" L x 5" W x 1.75" H (12.5" L Including brackets)
- Weight: 3.5 lbs
AC Protection
- AC Protection Technology: Protect or Disconnect
- L-N, L-G, N-G Protection Modes
- Thermal Fusing
- Maximum Current Rating: 15 (Amps)
- Initial Clamping Level: 200V Peak
Filtration
- Filtration Technology: RFI/EMI Filtration
- Filtration Rating: 45dB @ 100kHz - 1 MHz
- Signal Line Protection: No
UPC: 050616007559
