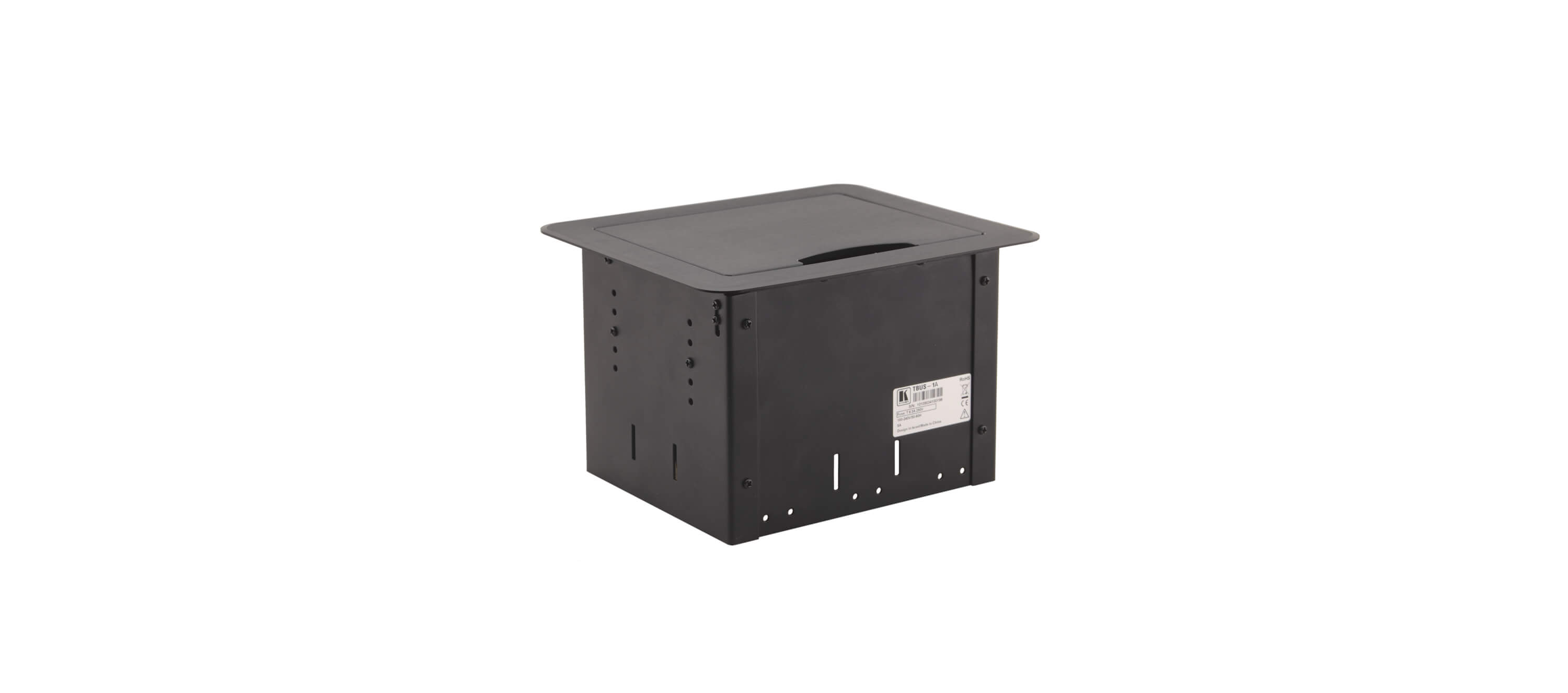

Kramer Table Mount Modular Multi−Connection Solution − Tilt−Up Lid
Model: TBUS-1Axl(B)
About: Kramer Table Mount Modular Multi−Connection Solution − Tilt−Up Lid
The TBUS−1Axl is the enclosure of a new modular system with a tilt−up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.
NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.
- Cover - Manually opens & closes.
- Inner Frame - 6 different "TIAF" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass−through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
- Power Sockets - 8 different "TS" single and 8 dual power socket options are available to accommodate the power requirements worldwide.
- Power Cord - 8 different "C−AC" single power cords (and 3 "Y" power cords) for each power socket.
- Optional Accessories - TBUS Brackets, K−Able Box Cable Reels, Step−In Modules and Controllers are available.
- UL and CE Qualified.
- Connector Depth - Adjustable.
- Installation Requirement - Table cutout of 19.1cm x 15.2cm (7.51in x 5.98in).
- Dimensions - 20.5cm x 17cm x 13.2cm (8.1" x 6.7" x 5.2") W, D, H.
- Weight - TBUS−1Axl: 1.5kg (3.3lbs) approx.; table clamps: 0.26kg (0.57lbs); metal template: 0.125kg (0.28lbs).
Quick Facts
- Rectangular
- Tilt−Up Lid
- Modular Design
- Size - T-BUS®
- Direct replacement for the TBUS-1
UPC: 7291063018603
Reviews: Kramer Table Mount Modular Multi−Connection Solution − Tilt−Up Lid
Warranty: Kramer Table Mount Modular Multi−Connection Solution − Tilt−Up Lid
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Limited warranty for seven (7) years from date of original purchase.
Fiber Optic cables have a one (1) year warranty, and Cobra products have a three (3) year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Kramer Electronics do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
