Kramer Table Mount Modular Multi-Connection Solution - Manually Retracting Lid
Model: TBUS-6xl(B)
About: Kramer Table Mount Modular Multi-Connection Solution - Manually Retracting Lid

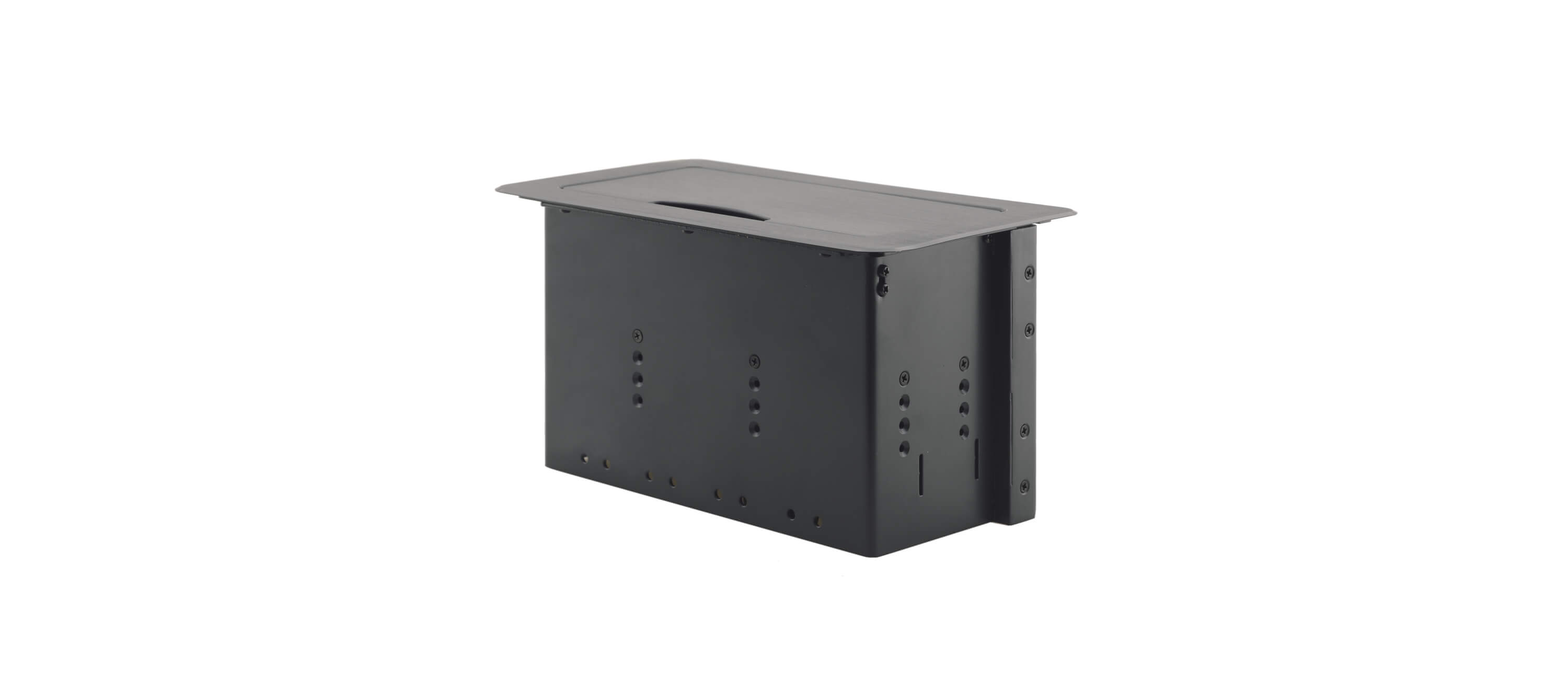

The TBUS-6xl is the enclosure of a new modular system with a tilt-up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.
NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.
- Inner Frame - 3 different "T3F" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass−through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
- Power Sockets - 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
- Power Cord - 8 different "C−AC" single power cords (and 3 "Y" power cords) for each power socket.
- Optional Accessories - TBUS Brackets, K−Able Box Cable Reels, Step−In Modules and Controllers are available.
- Retractable Lid - Manually slides into unit.
- Connector Depth - Adjustable.
- Installation Requirement - Table cutout of 225mm x 123mm (8.87" x 4.85").
- Dimensions - Top plate: 24.3cm x 14.0cm (9.6" x 5.5") W, D; Enclosure: 22.1cm x 10.2cm x 13.0cm (8.7" x 4.0" x 5.1") W, D, H.
- Weight - 1.35 kg (2.8 lbs) approx.; table clamps: 0.25 kg (0.6 lbs) approx.
Applications:
- Boardrooms.
- Conference rooms.
- Classrooms.
- Training facilities.
- Lab tables.
- Lecterns.
Quick Facts
- Rectangular
- Retractable Lid
- Modular Design
- Size - T-BUS
UPC: 7291063019051
