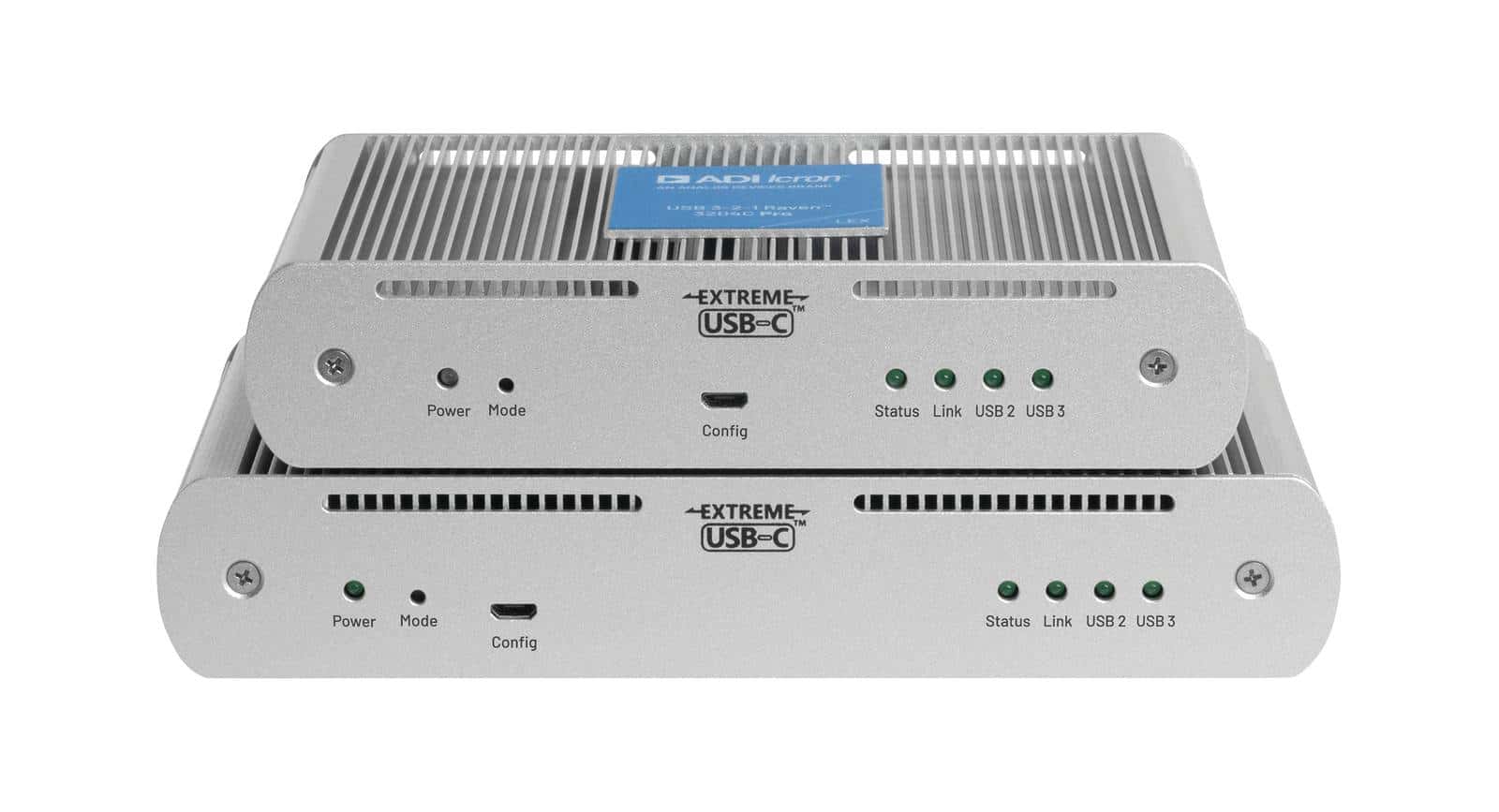

Icron Raven 3204C Pro 4-Port USB 3.2 Extender

About: Icron Raven 3204C Pro 4-Port USB 3.2 Extender

The Icron Raven™ 3204C Pro is a revolutionary USB 3-2-1 extender that provides exceptional performance and flexibility in USB device extension. Ideal for extending USB devices across boardrooms, lecture halls, or IT closets, it supports simultaneous extension of USB 3.2 Gen 1, 2.0, and 1.1 devices. This extender system is easy to install with a plug-and-play design and requires no software drivers. Its USB-C connectivity enhances compatibility with modern peripherals and its Firmware Upgrade over Network feature simplifies system maintenance.

Applications

• Remote Storage
• Security & Monitoring
• Video Matrix Systems
• Conferencing Cameras
• Medical Device Connectivity

Features

• World’s First USB 3-2-1 LAN Extender: Extends USB 3-2-1 devices over a 10GbE LAN or CAT 6a/7 cable.
• Unrivaled Interoperability: Supports all USB 3-2-1 devices up to 5Gbps.
• Isochronous Support: Optimized for high-performance camera and video capture.
• Extended Range: Up to 200 meters over 10GbE LAN or 100 meters via CAT 6a/7.
• USB-C Ports: For host and remote devices, accommodating a wide range of USB peripherals perfect for Pro AV applications.
• Firmware Upgrade Over Network: Simplifies updates and reduces maintenance costs.
• 1Gb Ethernet Pass-Through: Reduces additional cable runs and installation complexity.
• ExtremeUSB-C™ Technology: Transparent USB 3-2-1 extension, supports all USB transaction types and devices..
• Plug and Play: No software drivers required, compatible with all major operating systems.

Specifications
Range

• Network Connect: Up to 200m (656 ft) across a single 10GBASE-T Switch (Layer 2)
• Point-to-Point: Up to 100m (328 ft) over CAT 6a/7 cable

USB Device Support

• USB Bandwidth: Up to 5Gbps
• Device Compatibility: All Devices Types and Classes (Control, Interrupt, Bulk, Isochronous)
• Host Compatibility: OHCI, UHCI, EHCI, xHCI
• Maximum Devices: Supports up to 30 devices

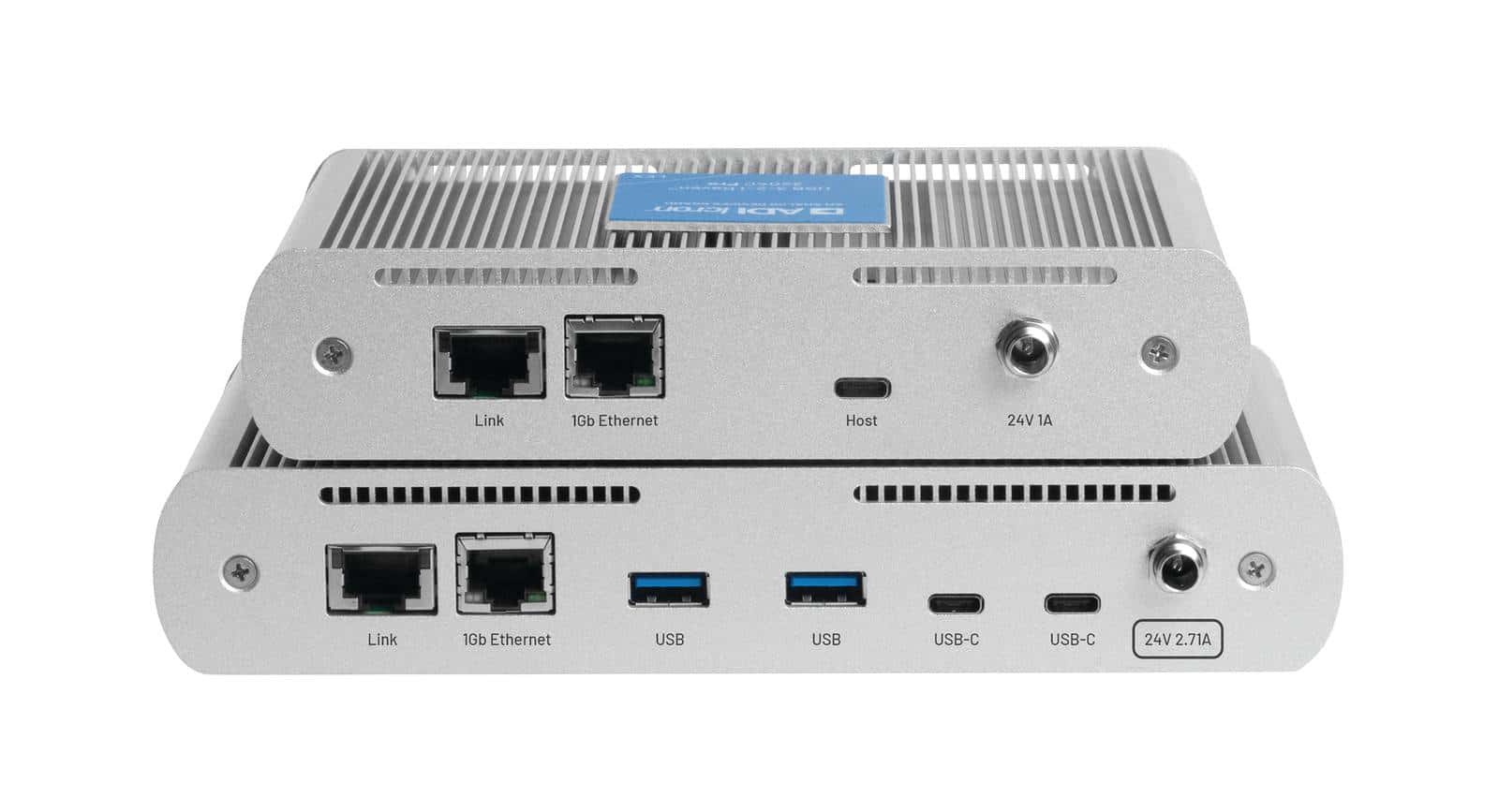

Local Extender (LEX)

• USB Connector: 1x USB-C Port
• 1GbE Pass-Through: 1x RJ45 Ethernet 100/1000 Port
• Link Connector: 1x RJ45 Ethernet Link Port
• Power Supply: 24V 1A DC Locking Jack
• Dimensions: 165.0mm x 100.0mm x 35.0mm (6.50″ x 4.00″ x 1.38″)
• Weight: 572 g (1.26 lbs.)
• Enclosure Material: Silver Anodized Aluminum

Remote Extender (REX)

• USB connector: 2x USB-C Ports, 2 USB-A Ports
• 1GbE Pass-Through: 1x RJ45 Ethernet 100/1000 Port
• Link Connector: 1x RJ45 Ethernet Link Port
• Power Supply: 24V 2.71A DC Locking Jack
• Available Current: 3A (15W) per USB-C Port and 1.2A (6W) per USB-A Port
• Dimensions: 197.0mm x 100.0mm x 35.0mm (7.75″ x 4.00″ x 1.38″)
• Weight: 697 g (1.54 lbs.)
• Enclosure Material: Silver Anodized Aluminum
• Hub Tiers Used: 2

Environmental

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)

Compliance

• FCC, CE, RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1, NRTL, RCM, and UKCA
