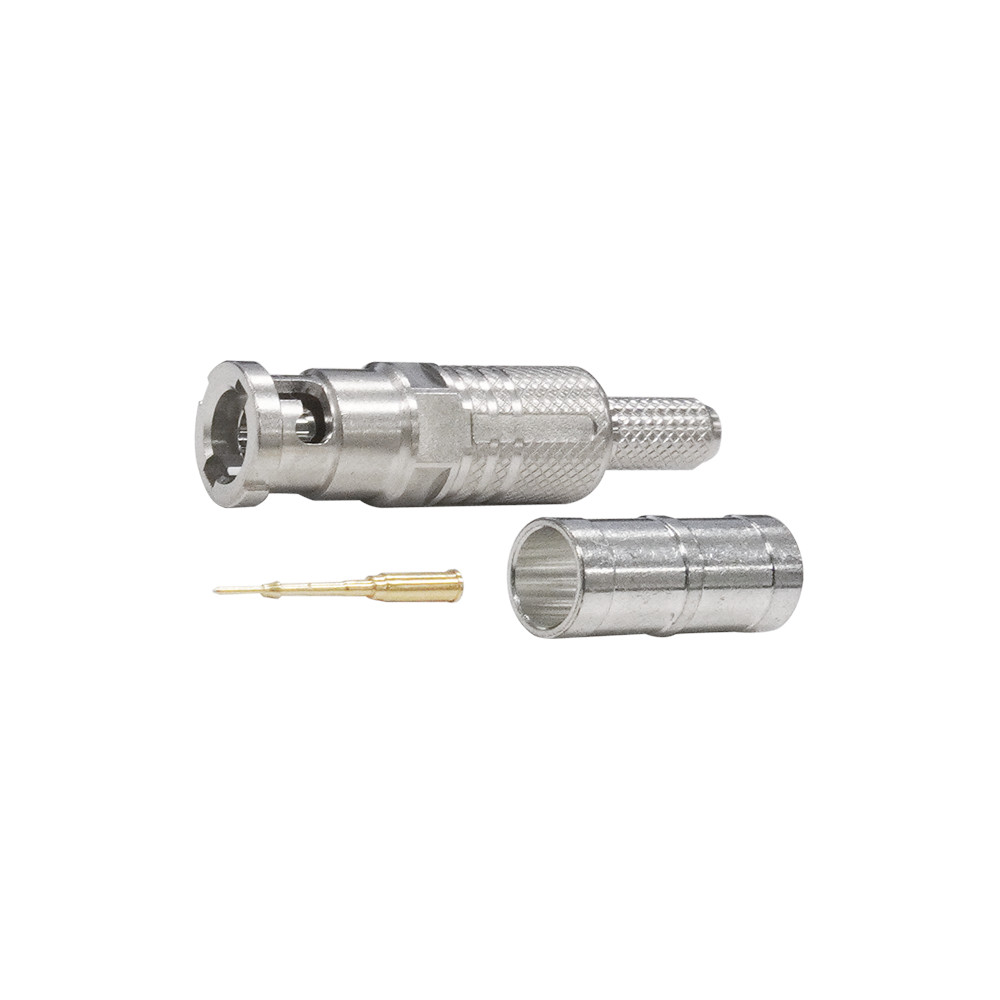

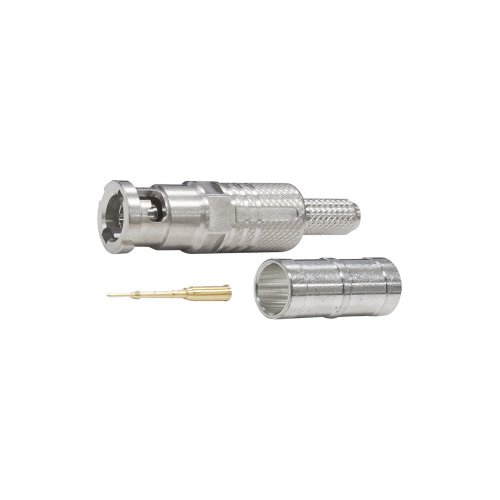

Canare HBCP-D25HDA 12G-SDI Micro BNC Connector (L-2.5CHD / 1855A)
Model: HBCP-D25HDA
About: Canare HBCP-D25HDA 12G-SDI Micro BNC Connector (L-2.5CHD / 1855A)
75 ohm Micro BNC Connectors
Micro BNC connectors supporting 12G-SDI. The micro BNC is about half the size of standard BNC and is ideal for high-density mounting.
- Lock mechanism used on insulation improves reliability by preventing shifting or detaching of the center pin.
- Compatible with Amphenol HD-BNCs
- SMPTE ST 2082-1 compliant
- Canare crimp design ensure quick and reliable installation
- Gold plated "snap lock" center pin
- Beryllium copper out contact
- Specially designed insertion and removal tool available (BET-D/H)
- Half the size of a standard BNC
- Ideal for high density mounting
Specifications
- Suitable Cable
- Canare
- L-2.5CHD
- L-2.5CHLT
- Others
- 1855A
- Canare
- Boot: N/A
- Center Pin: BN1198
- Sleeve: BN7155
- Die Set: TCD-D253F
- Extraction Tools
- BET-D/H
- BET-HBNC
- Common Tool
