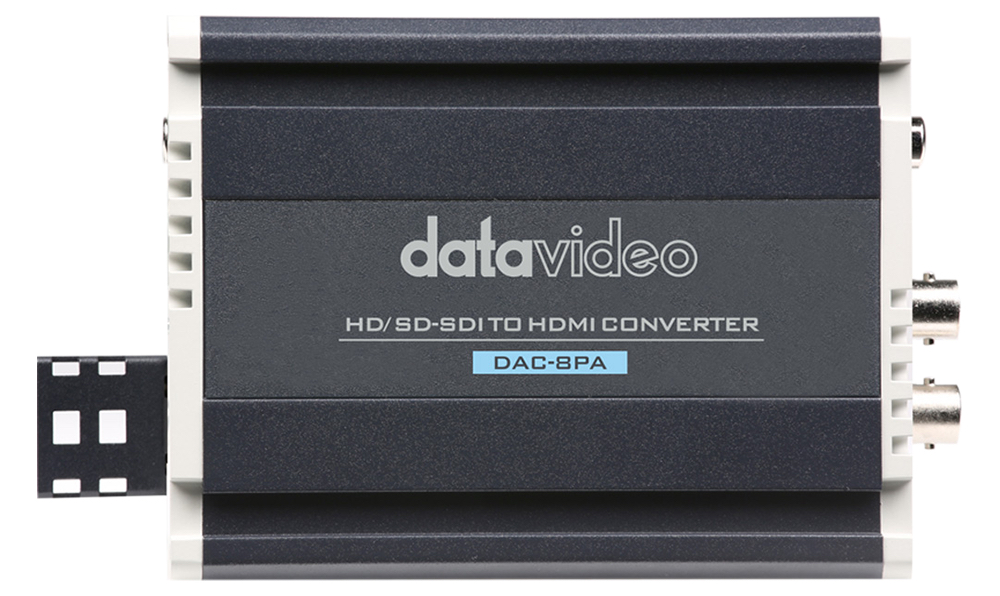

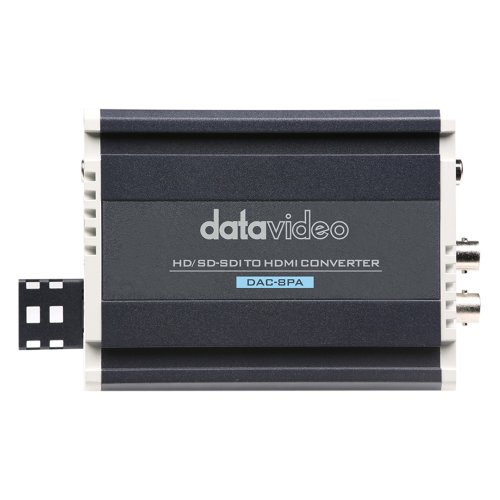

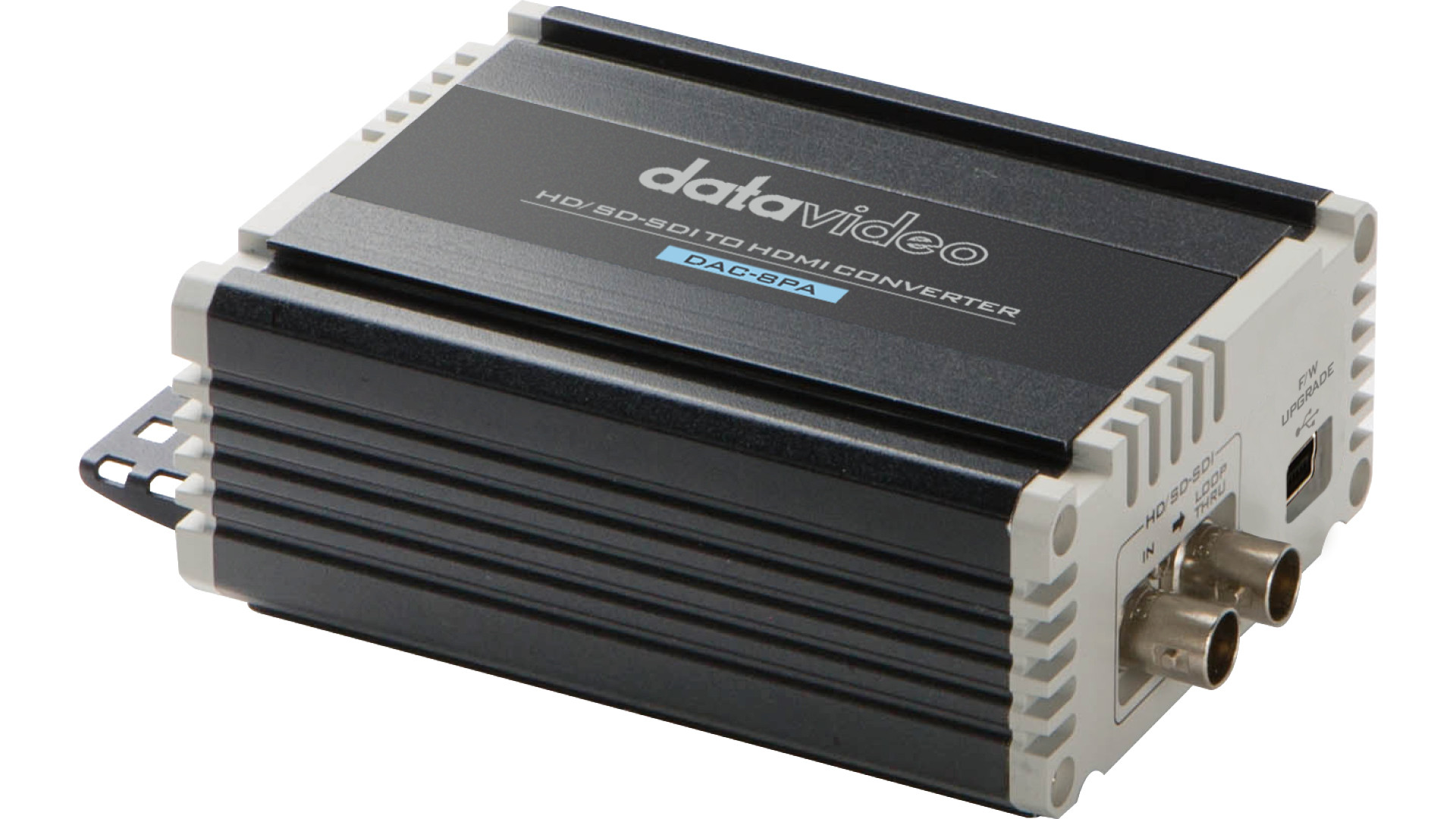

Datavideo DAC-8PA SDI to HDMI Converter
Model: DAC8PA
About: Datavideo DAC-8PA SDI to HDMI Converter
Convert SDI to HDMI with audio de-embedding options
The DAC-8PA allows you to convert an SDI signal (up to 1080p60) to HDMI. It includes the option to de-embed audio to a stereo RCA output.
Supports 1080p 50/60
Automatic input signal and color depth detection with support for Deep Color.

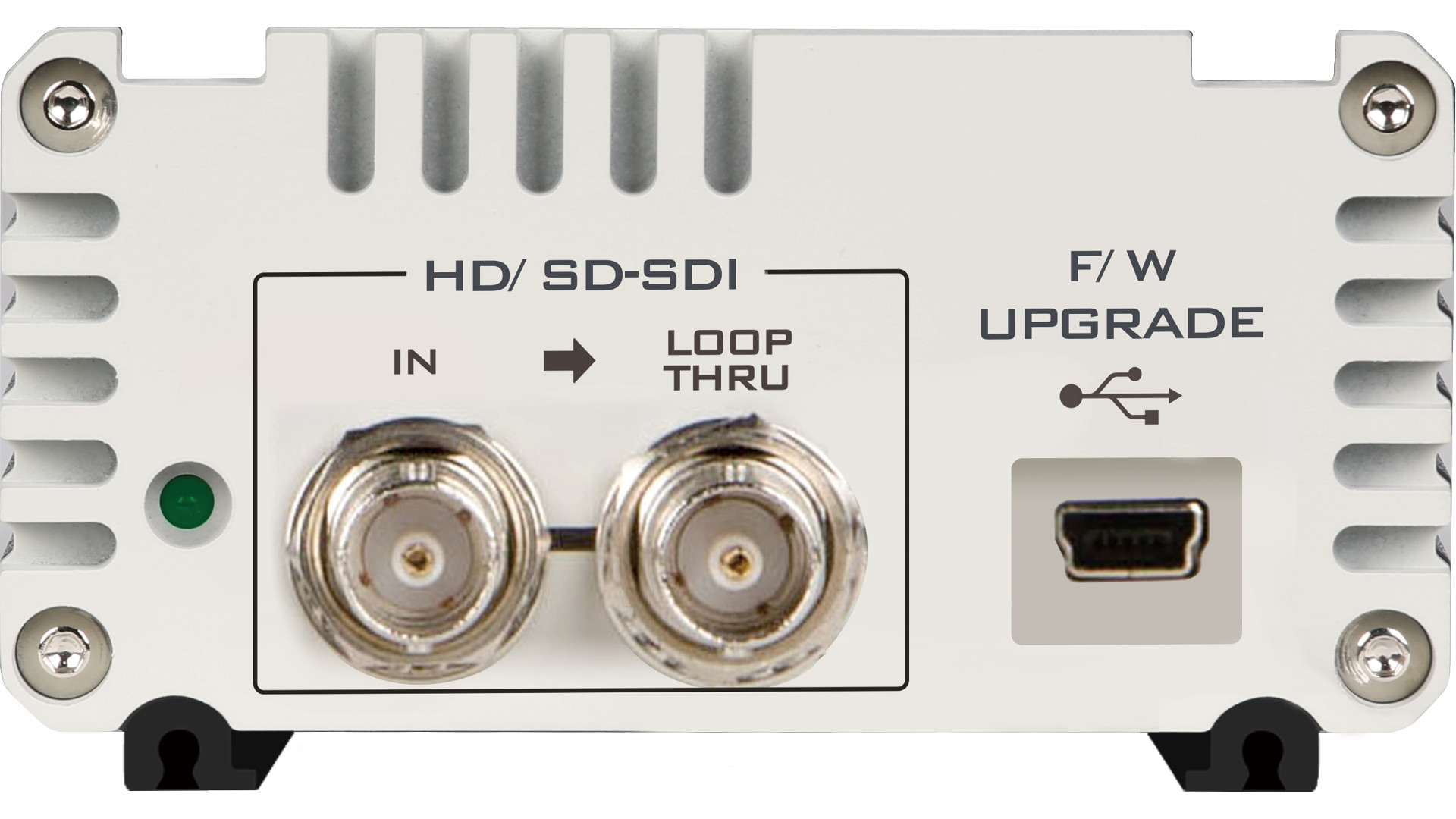

Supports SDI Loop-Through Output
Simultaneous SDI loop-through with HDMI output
Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. The DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
Specifications
- Conversion - 3G/ HD/SD-SDI para HDMI
- Video Inputs - 1x 3G/HD/SD-SDI
- Loop Through - 1

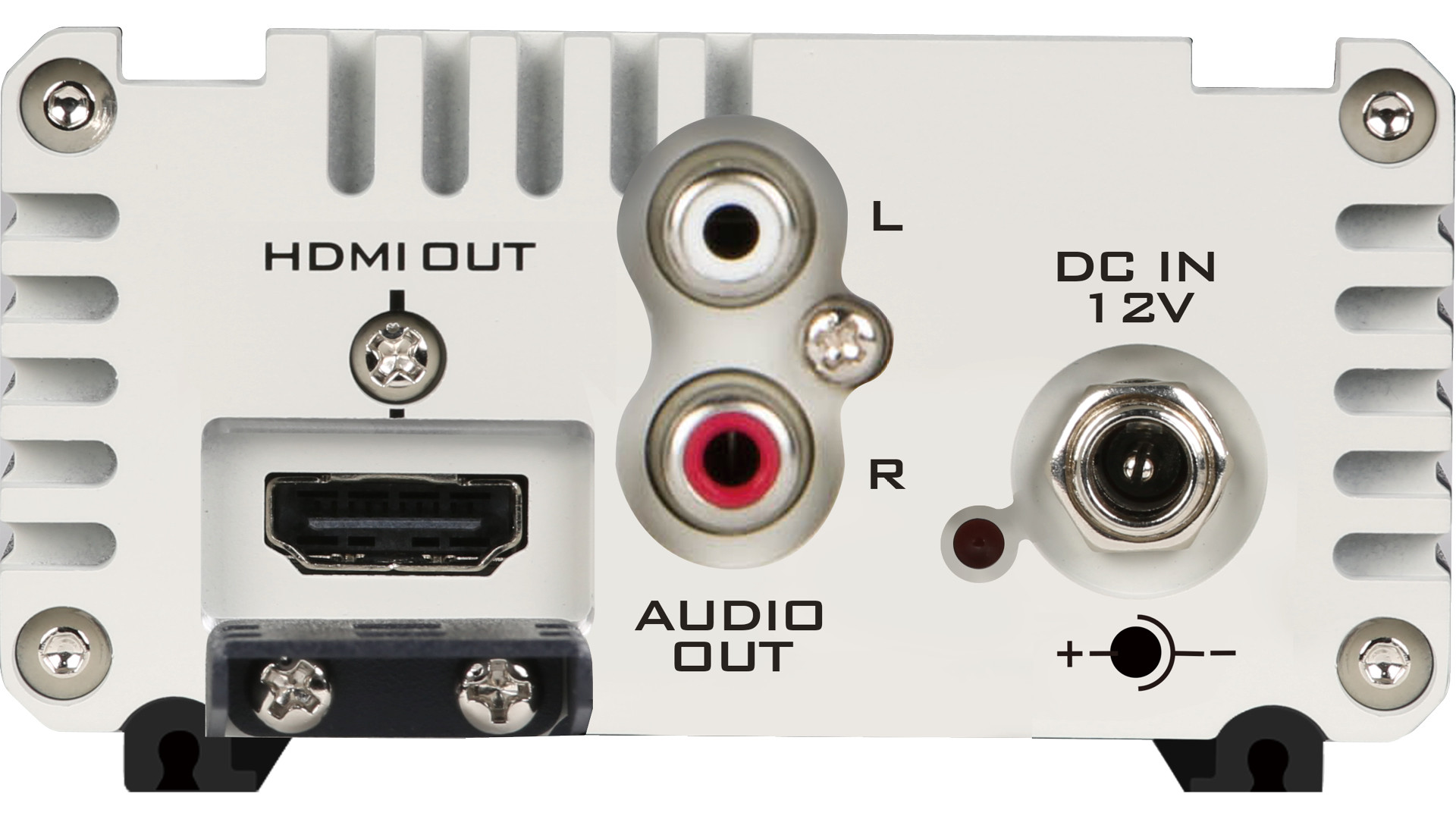

- Video Outputs
- 1x HDMI
- Audio embedded
- Audio Inputs - 2x SDI Áudio embedded
- Audio Outputs - 2x RCA (Esteréo)
- Audio Format Selection - ----
- Audio Gain - ----
- Supported Video Input Formats
- 1080p (23.98/24/25/29.97/30/50/59.94/60Hz),
- 1080i (50/59.94/60Hz),
- 720p (50/59.94/60Hz),
- 625i 50 (PAL), 525i 59.94 (NTSC)
- Output Resolutions - Combina automaticamente a entrada de vídeo SD, HD e 3G SDI
- Equalizer - Sim
- Reclock - Sim
- SDI Cable Drive - Sim
- Updates and Configuration - 1x Mini USB
- Operating Temp. Range - 0~40 °C
- Power - DC 12V, 4W
- Dimension (LxWxH) - 4.41 x 3.35 x 1.77 in (112 x 85 x 45 mm)
- Weight - 0.88 lb (0.4 kg)
What's in the Box
- 1x DAC-8PA product
- 1x AD Switch DC 12V
