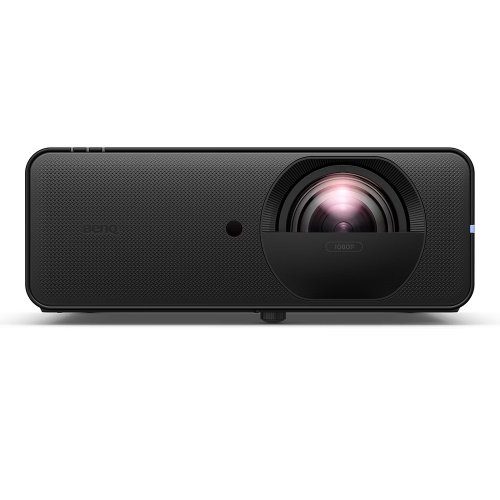

BenQ LH860ST 5000 ANSI Lumen 1080P Laser Simulation Projector

About: BenQ LH860ST 5000 ANSI Lumen 1080P Laser Simulation Projector

• 0.5 short throw ratio for large image from short distance.
• One-click preset configurations to prepare multi-projectors for blending.
• IP6X sealed engine with optional filter for optimal dust resistance and protection.
• Supports firmware updates via LAN to keep all devices up to date without physical access.
• Laser high visual 5000 ANSI lumen brightness

Immersive Entertainment - Ready for demanding interactive projection projects

• Blending Ready Mode
  • * Preset configuration. Automatic edge blending software not included. Additional software or hardware solutions are required to complete edge blending.
• 360° degree Installation
• BenQ WBA
• 5000lm High Brightness
• 6ms Input Lag
  • * Without digital image scaling.
• TR0.5 Short Throw
• 105% Offset
• Compact Size
• Remote Device

Installer Ready - Simulation-grade visual system, factory-tuned for accuracy

• Blending Ready Mode: One-click preset in the OSD that applies key settings to prepare images for multi-projector blending.
  • * Preset configuration. Automatic edge blending software not included. Additional software or hardware is required to complete edge blending.
•  Brilliant visuals with accurate colour and stable performance: The LH860ST delivers brilliant image clarity and stable performance across every detail—from vivid Rec.709 colour and high contrast to 5000-lumen brightness and 20,000-hour laser life.
• BenQ WBA for Seamless Multi-Projector White Calibration: BenQ’s factory white balance adjustment (WBA) reduce variables between images projected from different projectors, significantly reducing manual calibration effort. It can save up to a full day of setup time in large-scale installations while ensuring seamless multi-projector alignment for edge blending.

Full Flexibility for Ceilings, Walls and Floors - Design for Compact Setups and Ceilings

• Up to 200-Inch Display
• 6 Selectable Screen Fill
• 360 Degree
• Portrait Projection
• Compact Size
• Dust Protection and Easy Maintenance
  1. IP6X Sealed Engine Design: Shields the projector’s optical engine from dust intrusion, ensuring long-term stability and reliable performance.

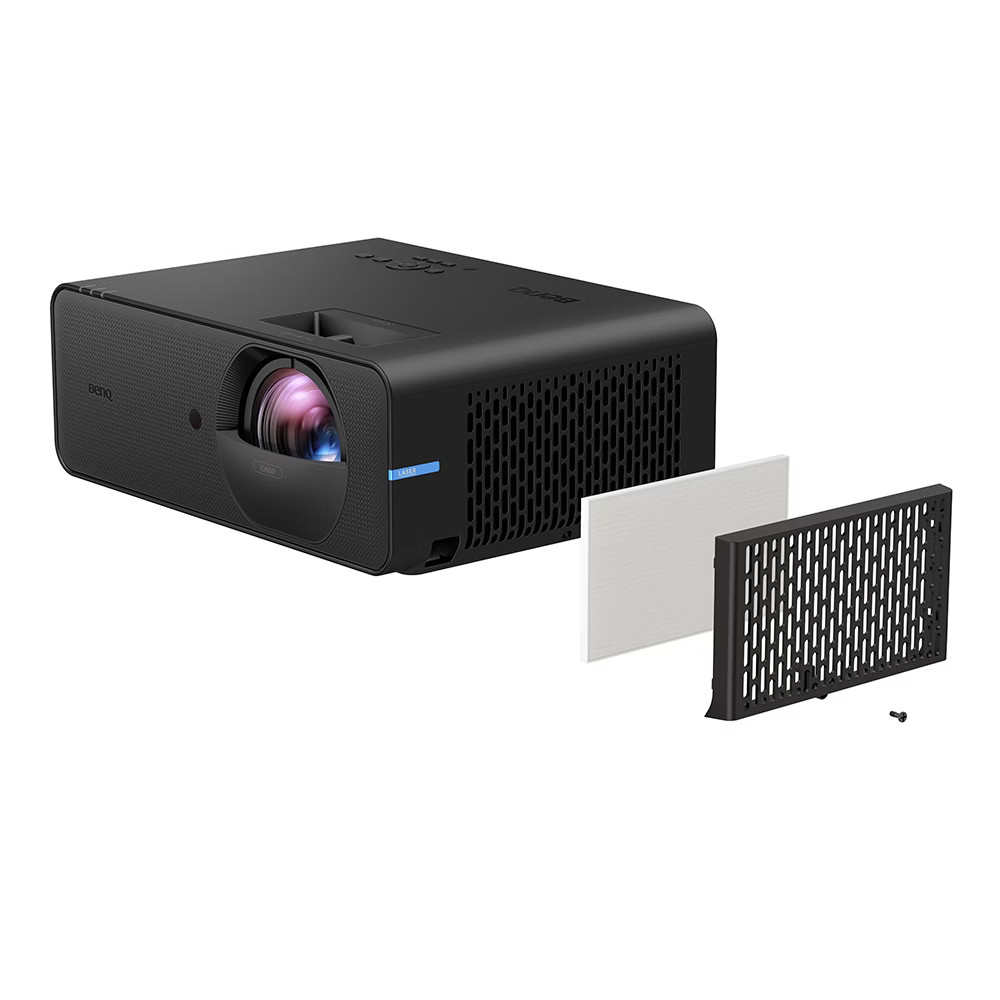

  2. Optional Air Filter for Extra Protection: Provides added protection in dusty environments and helps extend projector life.
  3. Auto Reset Mechanism: Automatically tracks filter usage and resets the timer when a new filter is installed, without any manual setup.

IT Takes Control - Streamlined Device Management

• Remote Monitoring and Diagnostics: Easily track projector status and diagnose issues remotely, eliminating frequent on-site visits.
• Firmware Management Over Network: Easily update all projectors via LAN to keep firmware current without physical access.
• Reliable Performance, Less Maintenance: Ensure long-term stability, freeing SI teams to focus on creative installations rather than routine upkeep.

Specifications

• Display
  • Brightness (ANSI lumens): 5000
  • Resolution: 1080P (1920x1080)
  • Native Aspect Ratio: 16:9
  • Contrast Ratio (FOFO): 3,000,000:1
  • Display Color: 30-bit (1.07 billion colors)
  • Light Source: Laser
  • Light Source Life: a. Normal 20000 hrs, b. ECO 30000 hrs
• Optical
  • Throw Ratio: T/R 0.5
  • Zoom Ratio: Fixed
  • Lens: F 2.0, f=5.28 mm
  • Projection Offset (Full-Height): 105%
  • Keystone Adjustment: 1D, (Auto) Vertical ± 30 degrees
• Picture
  • Rec. 709 Coverage: 93%
  • Picture Modes: Simulation, 3D, Bright, HDR10, HLG, Presentation, sRGB, User 1, User 2, Vivid
• Compatibility
  • Input Lag: 6 ms (1080P 240Hz), 8.4 ms (1080P 120Hz), 16.7 ms (1080P 60Hz)
  • Resolution Support: VGA(640 x 480) to Full HD(1920 x 1080)
  • Horizontal Frequency: 15K~135KHz
  • Vertical Scan Rate: 23~240Hz
• I/O Interface
  • HDMI in: (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
  • Display Port: (x1)
  • LAN (RJ45): (x1)
  • 3D Sync out: (x1), VESA
  • USB Type A: (x2), USB Type A-1 (2.0/Power Supply1.5A/Service), USB Type A-2 (2.0/Power Supply1.5A)
  • RS232 in (DB-9pin): (x1)
  • DC 12V Trigger (3.5mm Jack): (x1)
• Audio
  • Speaker: (x1), 10W
  • Audio out (3.5mm Mini Jack): : (x1)
• Environment
  • Operating Temperature: 0~40℃
  • Power Supply: AC 100 to 240 V, 50/60 Hz
  • Typical Power Consumption (110V): 281 W @100VAC
  • Stand-by Power Consumption: <0.5W
  • Network Stand-by Power Consumption: <0.5W
  • Acoustic Noise (Typ./Eco.)(dB): 36 / 31
• Projection System: DLP
• Dimensions (WxHxD): 13.54 x 5.35 x 10.45 inch (343.8 x 136.0 x 265.5mm)
• Weight: 11.46 ± 0.22 lbs (5.2 kg+/- 100g)

What's Included

• Remote Control w/ Battery
• Power Cord
• Installation Guide
• Warranty Card
