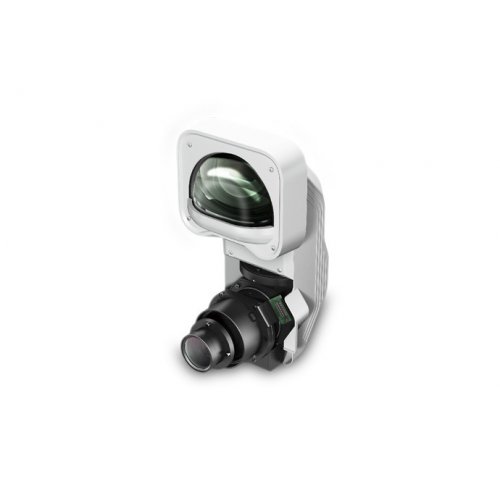

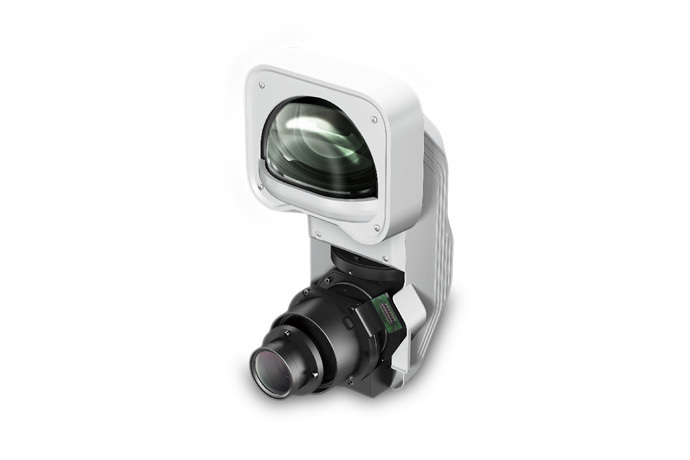

Epson ELPLX01WS Ultra Short-Throw Lens for Select Pro Series Projectors - White

About: Epson ELPLX01WS Ultra Short-Throw Lens for Select Pro Series Projectors - White

The ELPLX01WS is a flexible ultra short-throw lens for Epson interchangeable lens projectors up to 8,500 lumens.

Project supersized images at a short distance with the ELPLX01WS ultra short-throw lens. Designed for use with Epson Pro Series projectors up to 8,500 lumens, this convenient lens makes it easy to display bright, larger-than-life images up to 300" in narrow or space-constrained environments. Featuring a .35 throw ratio, wide lens shift and unique zero offset design, the ELPLX01WS offers incredible flexibility to accommodate a variety of projection installations, including low-ceiling, rear-projection and stealth applications. And, with an integrated mount point for Epson's optional ELPEC01 external camera, you can access powerful automated tools to simplify and speed up setup, such as auto colour calibration, screen matching of multiple projectors, tiling assist for edge blends, a stacking assist function and more.

• Project large images at a short distance — lens makes it easy to display larger-than-life images while minimizing shadows and light path obstructions
• Flexible installation — .35 throw ratio, wide lens shift and zero offset for enhanced convenience
• Perfect for space-constrained environments — ideal for narrow spaces and rear-projection applications; unique zero offset design maximizes display size in areas with low ceilings
• Engineered for versatility — bring bright, bold projection to locations where you previously could not utilize a projector
• Mount point for optional ELPEC01 external camera — access powerful tools such as auto colour calibration, screen matching of multiple projectors, tiling assist for edge blends and a stacking assist function
• Compatible with Epson Pro Series projectors — works with Epson interchangeable lens projectors up to 8,500 lumens (Click Here for compatibility chart)
• Large screen size — project 100" to 300"; F-number: 1.9; Focal Length: 5.8mm
• WUXGA/WXGA throw ratio — .35 Lens Shift: Vertical: +50% to +67% (H Center) Horizontal: -10% to +10% (Vertical +50%)
• Designed for stealth installations — mount in the ceiling with just the lens protruding for a discreet installation
• XGA throw ratio — .36 Lens Shift: Vertical: +50% to +57% (H Center) Horizontal: -8% to +8% (Vertical +50%)

Eco Features

• Recyclable product
• RoHS compliant
• Epson America, Inc. is a SmartWay Transport Partner

Specifications

• Type: Powered: focus/distortion
• F-Number: 1.9
• Focal Length: 5.8 mm
• Connector: 24-Pin
• Screen Size (Projected Distance): 100" to 300"
• Throw ratio: 0.35
• Lens Shift Range
  • Vertical: +50% to +67% (H Center) (Powered)
  • Horizontal: -10% to +10% (V Center+50%) (Powered)
• Operating Temperature 32˚ to 113˚F (0˚ to 45˚C)
• Dimensions (WxDxH): 8.74 x 12.64 x 6.46 inch
• Weight: 7.7 lb
