Dracast Pro Series Bi-Color 4-Light ENG Kit with V-Mount Battery Plates

Model: DRDRENGKBV

Dracast Pro Series Bi-Color 4-Light ENG Kit with V-Mount Battery Plates
Dracast Pro Series Bi-Color 4-Light ENG Kit with V-Mount Battery Plates
  • Shipping Charges Apply
  • Usually Ships in 7-10 Days
  • Not yet reviewed




About: Dracast Pro Series Bi-Color 4-Light ENG Kit with V-Mount Battery Plates

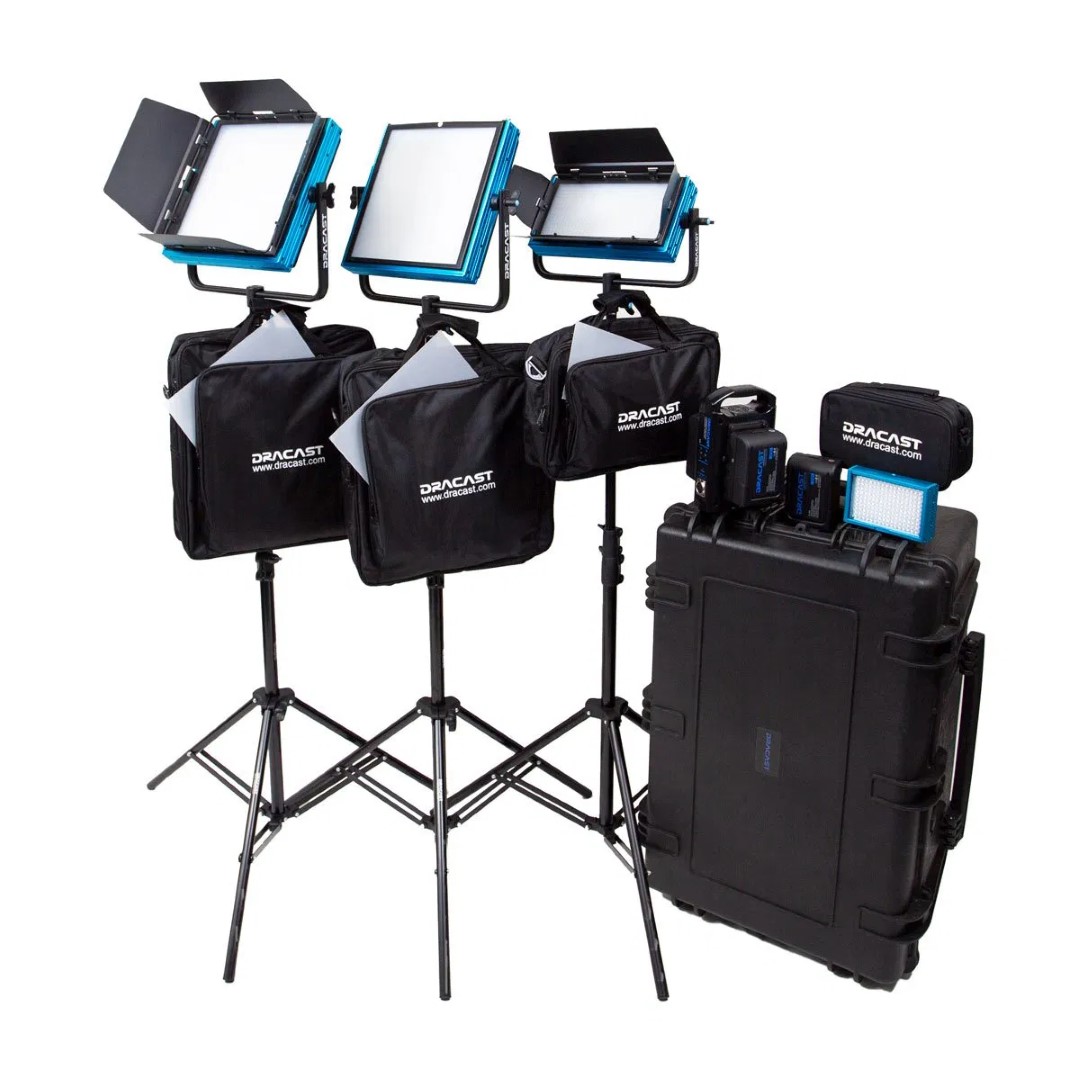

Designed as a powerful, yet portable lighting solution, the Dracast Pro Series Bi-Color 4-Light ENG Kit with V-Mount Battery Plates includes a variety of different bi-color LED lights and accessories. This includes two LED1000 lights, an LED500 light, and an LED160 light, three different sizes with multiple power options for maximum versatility. It comes with three DR-90S batteries, a dual battery charger, and a Sony L-series battery with charger for portable power. Other accessories are included in this kit, such as three barndoors, three filter frames, three diffusion filter sets, and three light stands.

LED1000 Pro Bi-Color LED Light with V-Mount Battery Plate

At 5.5 lb the LED1000 Pro Bi-Color LED Light with V-Mount Battery Plate from Dracast is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. Variable color temperature from 3200-5600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 100-0% with negligible color shift. The low electrical draw of just 60W means a timely return on your investment.

The durable aluminum frame is supported by a sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8″ receiver. The LED1000 can be used worldwide, powered by the included 100-240 VAC adapter or by optional V-Mount 14.8V batteries. Accessories include optional 4-way barndoors for contouring and control of the LED1000’s 45 degree beam angle. A carry case is included.

Photometrics

  • At 3200K
    • 3800 lux/353 fc at 3.0′ / 0.9 m
    • 1150 lux/107 fc at 6.0′ / 1.8 m
    • 530 lux/49 fc at 9.0′ / 2.7 m
    • 300 lux/28 fc at 12′ / 3.6 m
  • At 4400K
    • 7200 lux/669 fc at 3.0′ / 0.9 m
    • 2050 lux/190 fc at 6.0′ / 1.8 m
    • 950 lux/88 fc at 9.0′ / 2.7 m
    • 560 lux/52 fc at 12′ / 3.6 m
  • At 5600K
    • 4200 lux/390 fc at 3.0′ / 0.9 m
    • 1200 lux/111 fc at 6.0′ / 1.8 m
    • 530 lux/49 fc at 9.0′ / 2.7 m
    • 300 lux/28 fc at 12′ / 3.6 m

LED500 Pro Bi-Color LED Light with V-Mount Battery Plate

At just 4.0 lb the LED500 Pro Bi-Color LED Light from Dracast is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. Variable color temperature from 3200K-5600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 100-0% with negligible color shift. The low electrical draw of just 30W means a timely return on your investment.

The durable anodized aluminum frame is supported by an oversized, U-shaped yoke with locking knobs on each side and a standard 5/8″ receiver. The LED500 can be used worldwide, powered by the included 100-240 VAC adapter in the studio, or by V-Mount batteries in the field. Four-way barndoors for contouring and control of the LED500’s 45-degree beam angle are available separately. For protection during transport and storage, a carry case is included.

Photometrics

  • 2,700 lux/ 251 fc @ 3.0′ (0.9m) and 3220K
  • 750 lux/ 70 fc @ 6.0′ (1.8m) and 3220K
  • 350 lux/ 33 fc @ 9.0′ (2.7m) and 3220K
  • 200 lux/ 19 fc @ 12′ (3.6m) and 3220K
  • 4,400 lux/ 409 fc @ 3.0′ (0.9m) and 4400K
  • 1250 lux/ 116 fc @ 6.0′ (1.8m) and 4400K
  • 600 lux/ 56 fc @ 9.0′ (2.7m) and 4400K
  • 350 lux/ 33 fc @ 12′ (3.6m) and 4400K
  • 1950 lux/ 181 fc @ 3.0′ (0.9m) and 5600K
  • 530 lux/ 49 fc @ 6.0′ (1.8m) and 5600K
  • 265 lux/ 25 fc @ 9.0′ (2.7m) and 5600K
  • 150 lux/ 14 fc @ 12′ (3.6m) and 5600K

LED160 3200-5600K Variable Color On-Camera Light (Aluminum, Blue)

This is a 3200-5600K variable-color Dracast LED160 On-Camera Light, housed in an aluminum, blue case and measures a compact 6 x 4″. It features a high, 160W equivalent light output with a 45° flood beam angle. It’ll give you approximately 20 ft effective distance.

  • 3200-5600K variable-color LED light
  • 160W equivalent light output
  • 45° flood beam angle
  • Approximately 20 ft effective distance
  • >95 CRI
  • Brightness dimmer dial on the rear
  • Integrated L-series battery plate
  • 4-LED indicator on the rear

DR-CH2V Dual V-Mount Battery Charger

The portable DR-CH2V Dual V-Mount Battery Charger from Dracast allows you to simultaneously charge two V-Mount batteries (or a single battery) from 90 to 240 VAC sources. It features a top handle for easy transport and built-in capacity management system to ensure fast charging. The charger will automatically shutdown once the batteries reach their full charge. Additionally, the charger can function as a portable AC to DC power adapter, taking the AC power input and outputting 15 VDC at 4A via a 4-pin XLR connector. The output is only active when no batteries are attached.

Barndoors for LED1000

These Barndoors from Dracast are made for the LED1000, and slide into a slot on the front of the LED light. They are used to control the spread of the light and prevent unwanted light spill and they feature a filter holder.

Barndoors for LED500

These Barndoors from Dracast are made for the LED500, and slide into a slot on the front of the LED light. They are used to control the spread of the light and prevent unwanted light spill and they feature a filter holder.

Filter Frame for LED1000 Light

The Dracast Filter Frame for LED1000 allows the use of Dracast or other brand diffusion, CTO, CTB or effects filters with the fixture. Constructed of lightweight aluminum, the frame drops into the fixture’s accessory channel. It has a frame lock to prevent filter slippage.

Filter Frame for LED500 Light

The Dracast Filter Frame for LED500 allows the use of Dracast or other brand diffusion, CTO, CTB or effects filters with the fixture. Constructed of lightweight aluminum, the frame drops into the fixture’s accessory channel. It has a frame lock to prevent filter slippage.

Diffusion Filter Set for LED1000 Panel

This Dracast Diffusion Filter Set for the LED1000 Panel is comprised of two rigid drop-in modifiers that soften and diffuse the light’s output. The set includes a 1/2 diffusion and an opal frost filter. They measure approximately 12 x 12″ each. These filters need a filter frame or barndoors (both sold separately) to fit onto the Dracast LED1000.

Diffusion Filter Set for LED500 Panel

This Dracast Diffusion Filter Set for the LED500 Panel is comprised of two rigid drop-in modifiers that soften and diffuse the light’s output. The set includes a 1/2 diffusion and an opal frost filter. They measure approximately 10 x 5.5″ each. These filters need a filter frame or barndoors (both sold separately) to fit onto the Dracast LED500.

In the Box

  • 2 x LED1000 Pro Bi-Color LED Light with V-Mount Battery Plate
  • LED1000 Carry Case
  • AC Power Adapter for LED1000 Light
  • LED500 Pro Bi-Color LED Light with V-Mount Battery Plate
  • LED500 Carry Case
  • AC Power Adapter for LED500 Light
  • LED160 3200-5600K Variable Color On-Camera Light (Aluminum, Blue)
    • Nylon Soft Case
    • Shoulder Strap
    • Hot-Shoe Mount
    • P-Tap to DC Connector Cable
    • Power Supply 2-Prong U.S.
  • DR-CH2V Dual V-Mount Battery Charger
  • 2 x Barndoors for LED1000
  • Barndoors for LED500
  • 2 x Filter Frame for LED1000 Light
  • Filter Frame for LED500 Light
  • Opal Frost Filters
  • Half Diffusion Filters
  • 3 x DR-90S Batteries
  • Sony L-Series Battery
  • Sony Battery Charger
  • 3 x Light Stands
  • Limited 1-Year Warranty
