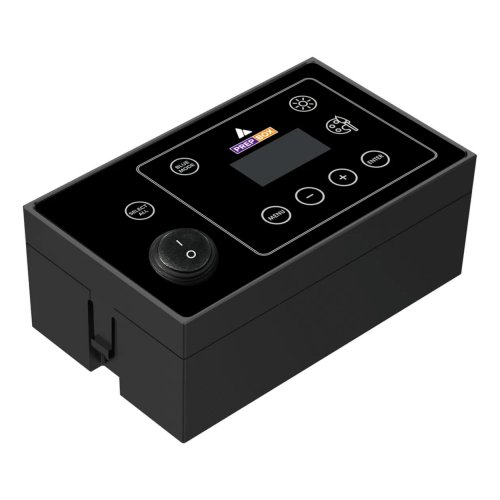

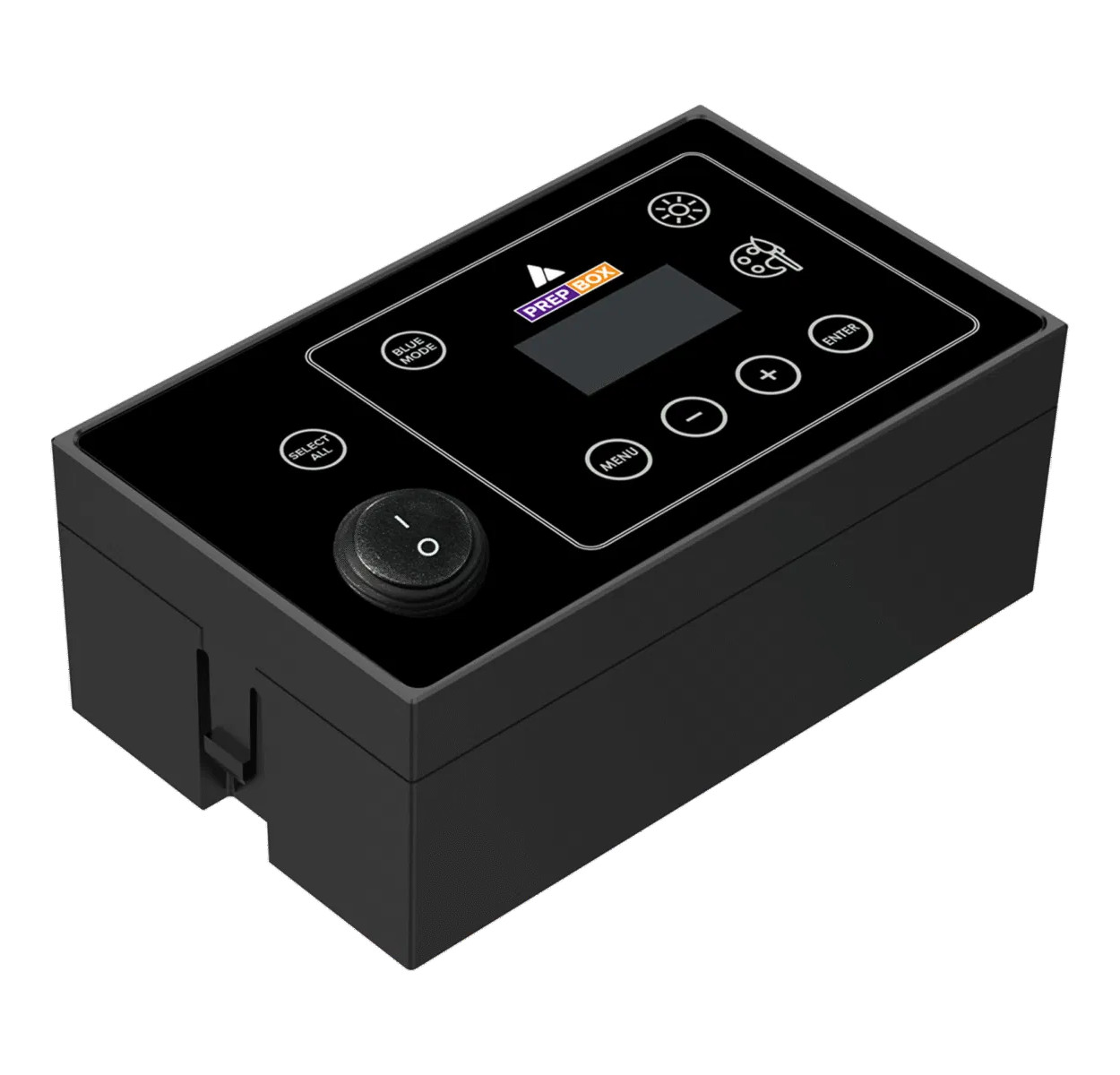

Astera PrepBox Setup Box for QuikSpot ChargingPlate

About: Astera PrepBox Setup Box for QuikSpot ChargingPlate

The combination of PrepBox and ChargingPlate are the ideal setup and charging tools for prepping up to 8 QuikSpots at the same time. Specifically designed for flight-case integration, allow for any software adjustment or App pairing in 10 seconds.

Save time and effort

Time is always of the essence. With the PrepBox having a built-in battery, you don’t need to worry about when and where you prep your QuikSpots, because that can be done anytime whether it’s for Standalone, App or DMX control. One display can rule them all.

Configure QuikSpots

Prepare your color temperature, color, or brightness level settings directly, without the need of AC sockets nor App pairing. The interface is so easy that any freelancer can operate it without training. If you want to control via DMX, then you can decide which DMX address you want to start with and all QuikSpots in the ChargingPlate will receive the same or subsequent DMX addresses.

BlueMode Lights

With two button presses, you can have all 8 QuikSpots in BlueMode, being ready to be paired with the AsteraApp. We added a BlueMode button on the PrepBox to speed up the process when the desire is to control the QuikSpots with the AsteraApp.

Specifications

• Battery Runtime: 9.5 hours
• Battery Lifetime: 70 % after 400 cycles
• Charging Time (nominal): 8 hours
• DC Input: 25.5 VDC – 0.2 A
• DC Connector: 7 Pin Connector
• Power Consumption (max.): 2.3 W
• BluetoothBridge BTB: Built-in
• Wireless Protocols: UHF, Bluetooth, WiFi
• Wireless Range: UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
• IP Rating unwired: IP20
• IP Rating wired: IP65
• Ambient Operating Temperature: 0 – 40 °C / 32 – 104 °F
• Mounting Options: Rail for HoldingBracket for PrepBox
• Weight: 0.661 lbs (300 g)
• Dimensions (LxWxD): 5.1 x 3.05 x 2.17 inch (129.5 x 77.5 x 55 mm)

What's Included

• PrepBox
• PrepBox Cable
