Chief Suspended Ceiling Storage Box with Column Drop 1x2
Model: CMS491C
About: Chief Suspended Ceiling Storage Box with Column Drop 1x2

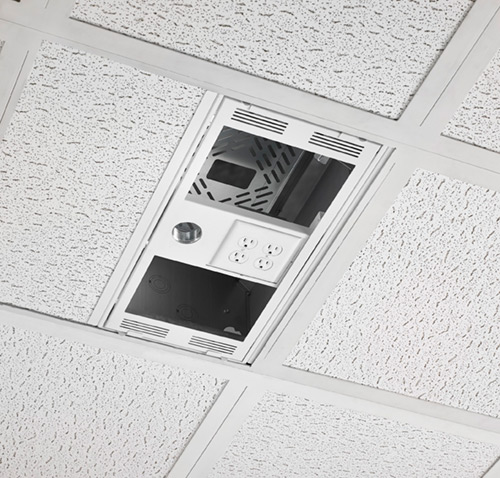

The CMS491C conceals AV equipment above a 2' X 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.
Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality
Drop carriage door improves accessibility and serviceability providing full access to equipment
Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
Inside the box or facing the room
- Up to 2 single gang or 1 dual gang outlet
- 4 nested knockouts for 1-1/4", 1", & ½" diameter conduit
- Built in ventilation
- AV tray supports a variety of AV components
- Ships with 1 shelf, 2nd shelf sold separately see CMSUNV1
- Overall weight capacity 100 lbs (45 kg)
- 50 lbs (22 kg) for projector ceiling plate
- 25 lbs (11 kg) per shelf location
- Ships with speed connect installation hardware
- Lightweight construction, one man installation
- UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
- TAA Compliant
- Max Equip Size H x W x D 7.61" x 19.25" x 12" (193 x 489 x 305 mm)
- Overall Dimensions (H x W x D) 8" x 12.97" x 23.67" (203 x 329 x 601 mm)
- Shipping Weight 31.9 lbs (14.47 kg)
- Weight Capacity 100 lbs (45.4 kg)
UPC: 841872162881
Reviews: Chief Suspended Ceiling Storage Box with Column Drop 1x2
Warranty: Chief Suspended Ceiling Storage Box with Column Drop 1x2
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years.
Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
