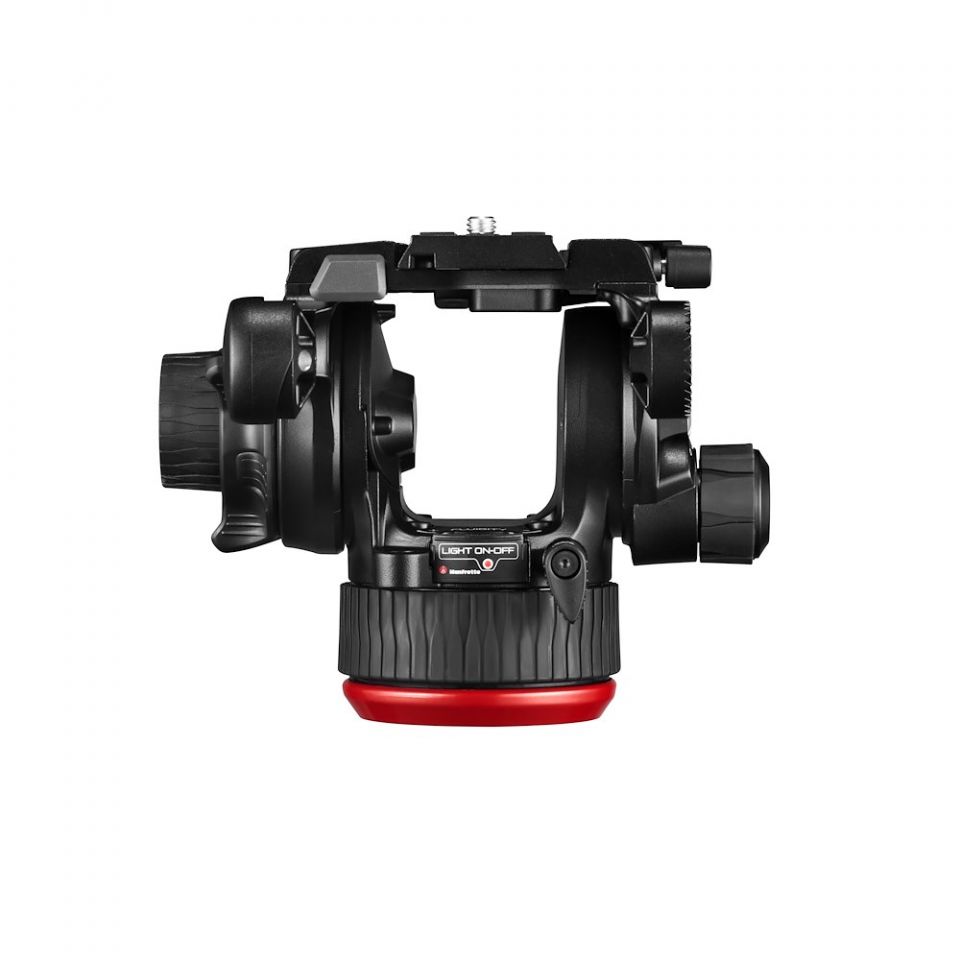

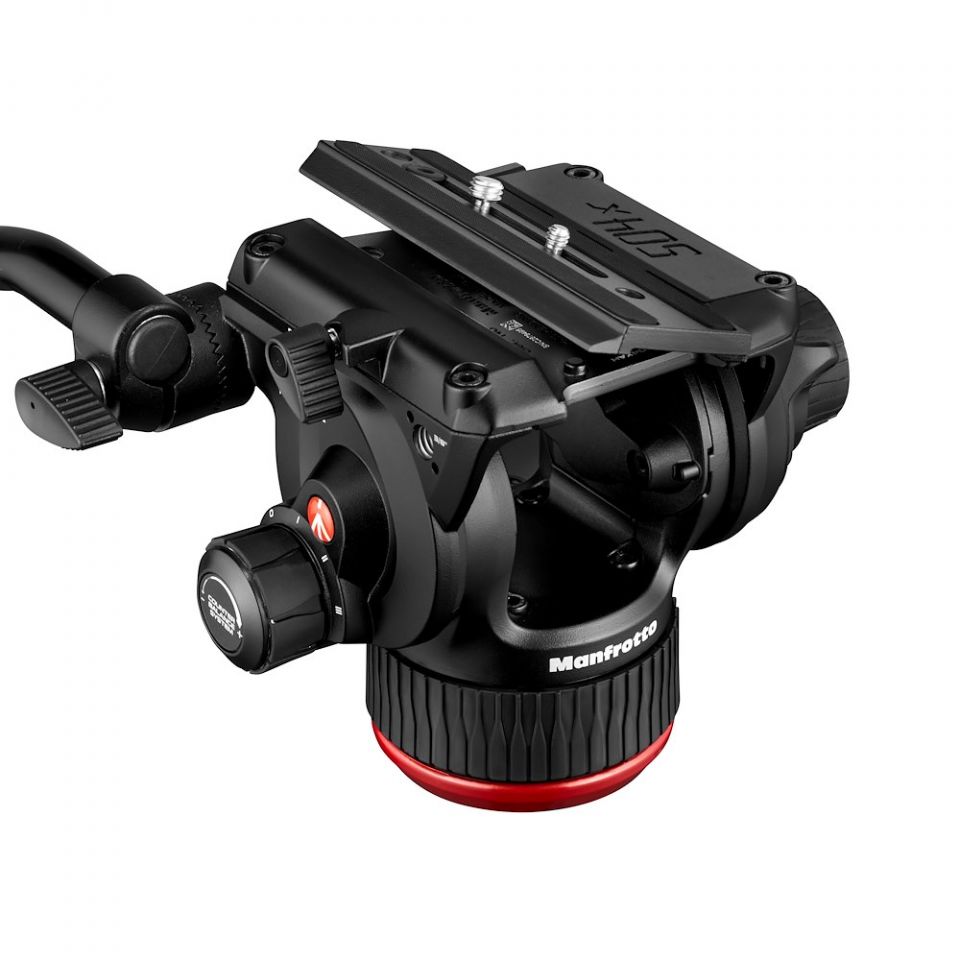

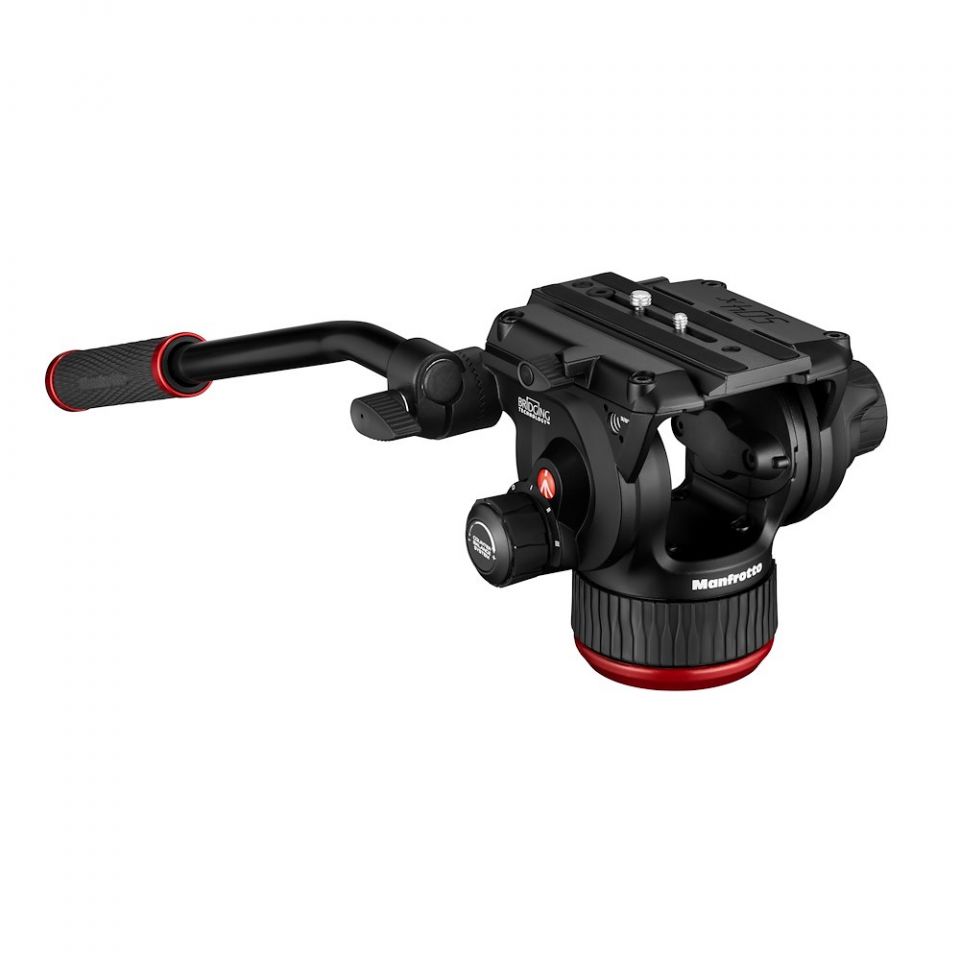

Manfrotto 504X Fluid Video Head

Model: MVH504XAH

Manfrotto 504X Fluid Video Head
Manfrotto 504X Fluid Video Head
Manfrotto 504X Fluid Video Head
Manfrotto 504X Fluid Video Head
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed

About: Manfrotto 504X Fluid Video Head

The Manfrotto 504X fluid video head is the evolution of the hugely successful 504HD.
It's a more compact and lighter version that finally comes with flat base (base diameter 75 mm), developed to meet the needs of the most demanding videographers.

The head is made from a brand-new catching aluminium design, and has a maximum payload of 26.4 lbs.

Utilising Manfrotto’s new fluid technology, the camera head allows you to capture judder-free smooth motion pans and tilts. It's never been easier for the operator to create premium-quality video capture, thanks to a 4-step counterbalance system which can carry payloads of up to 14.3 lbs at 55mm C.0.G. That makes using a wide range of different cameras easier and more practical.

Two easy link 3/8'' thread connections allow an external monitor or other accessory equipment to be fitted on the head side. On the left side there is a cap cover on the 3/8” easy link connector to avoid cutting during usage.

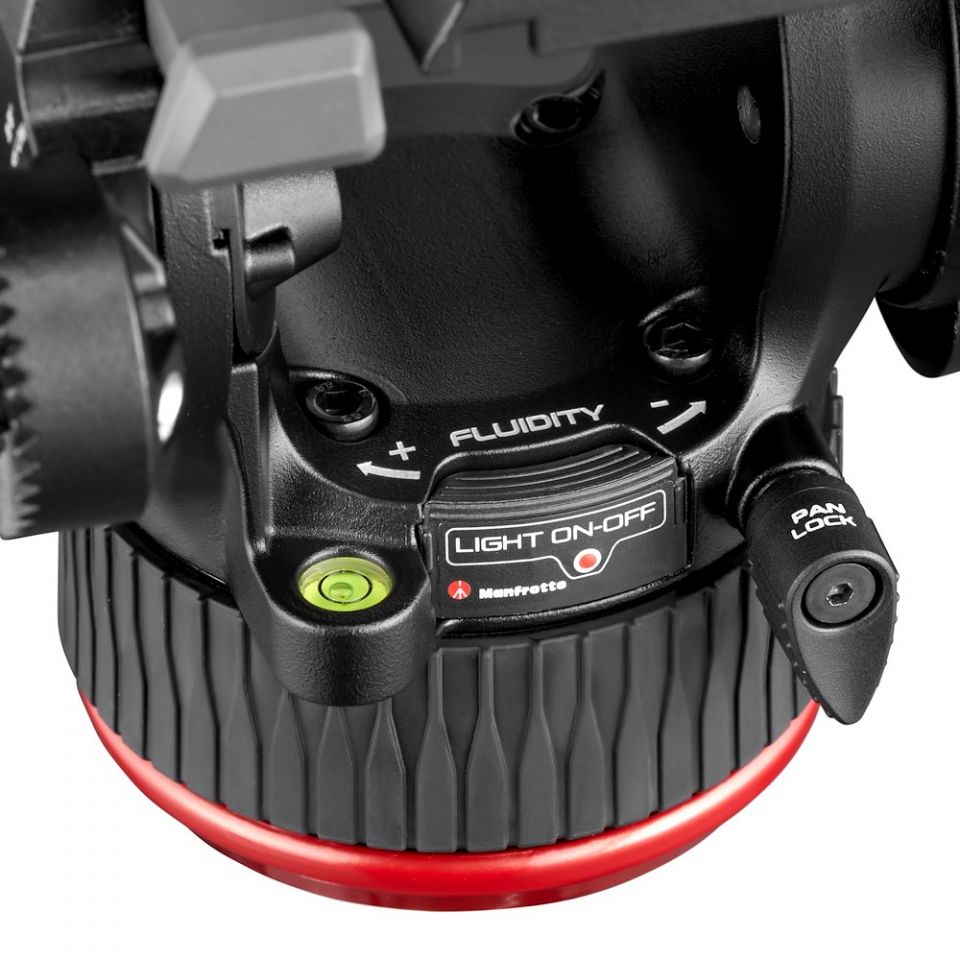

The sliding-plate side-lock attachment enables quicker set up of the camera, keeping video equipment stable and balanced. Head leveling is simple thanks to the clever backlit levelling bubble.


  • Weight: 2 kg
  • Top Attachment: 1/4″ screw, 3/8″ screw
  • Ball Flat: Flat
  • Safety Payload Weight: 12 kg
  • Counterbalance System: Variable Steps
  • Powered by (batteries): Lithium
  • Base Diameter: 75 mm
  • Counterbalance Weight: 2.2, 4.4, 6.5 kg
  • Bubble Spirit Level (No.): 1
  • Center of gravity: 55 mm
  • Certifications: WEEE; RoHS
  • Color: Black
  • Easy Link: Yes
  • Front Tilt: -70° / +90°
  • Head Type: Video/Fluid Head
  • Material: Aluminum
  • Maximum Working Temperature: 60 °C
  • Minimum Working Temperature: -30 °C
  • Pan Bar Included: Yes
  • Pan Drag: continuously adjustable from 0 to max level
  • Panoramic Rotation: 360 °
  • Plate Type: 504PLONGR-1
  • Quick Release: Yes
  • Tilt Drag: continuously adjustable from 0 to max level
  • Working Height: 14.9 cm
  • Accessory Compatibility: MVAPANBARM; MVAPANBARL

UPC: 719821444824

Reviews: Manfrotto 504X Fluid Video Head

There are currently no product reviews.

Warranty: Manfrotto 504X Fluid Video Head Warranty:

30 Days

Manufacturer's Warranty:

Up to 5 year warranty extension upon registration
