SmallRig Multifunctional Modular Matte Box (Φ114mm) Basic Kit

About: SmallRig Multifunctional Modular Matte Box (Φ114mm) Basic Kit

As one of the Revo-Arcane series matte box, the SmallRig Multifunctional Modular Matte Box (Φ114mm) Basic Kit is designed for mirrorless cameras and cine lens to prevent sunlight or other light from causing glare and flare and to control images on the screen. It comes standard with five threaded adapter rings (Φ67-114mm / Φ72-114mm / Φ77-114mm / Φ82-114mm / Φ86-114mm) for common DSLR lens and circular filters like VND, GND, CPL or you can separately purchase Clamp-On Ring Kit (Φ80-114mm / Φ85-114mm / Φ95-114mm / Φ110-114mm) 3408 or Silicone Donut 3409 for more cine lenses. The kit also includes a filter frame (4x5.65") featuring aluminum alloy frame and anti-off design, which can be quickly installed without leaving fingerprints. For attaching 4x4" filter, please purchase Filter Frame 3648; for holding multiple slid-in filters at the same time in complex environment, please purchase Filter Frame Kit (4x5.65") 3649. Thanks to the formfitting filter system, ultra-wide angle shot using ≥14mm focal length becomes possible. Among other accessories, the lens hood features magnetic installation and quick release design, the carbon fiber top flag opens 180° with side wings extending 38°and the side flags open 180°. Dual Rod Support 3652 supports and protects lens. Our Revo-Arcane series matte box use plenty of lighter magnesium alloy and carbon fiber to provide lightweight shooting solutions.

Features

• Modular design for quick disassembly in seconds
• Supports ≥14mm focal length, no vignetting
• All-round light blocking

Compatibility

• Φ114mm cine lens
• Any brand of 4 x 5.65", 4mm thick slide-in filter
• Any Φ67mm-Φ72mm-Φ77mm-Φ82mm VND, GDN, CPL, ND filter (max outside diameter: 100mm)
• Any Φ67mm-Φ72mm-Φ77mm-Φ82mm DSLR lens
• Dual Φ15mm rod

Specifications

• Product Dimensions: 254 x 174 x 59 mm
• Product Weight: 675g±5g
• Material: Nylon with Fiberglass, Carbon Fiber, Magnesium Alloy, Aluminum Alloy

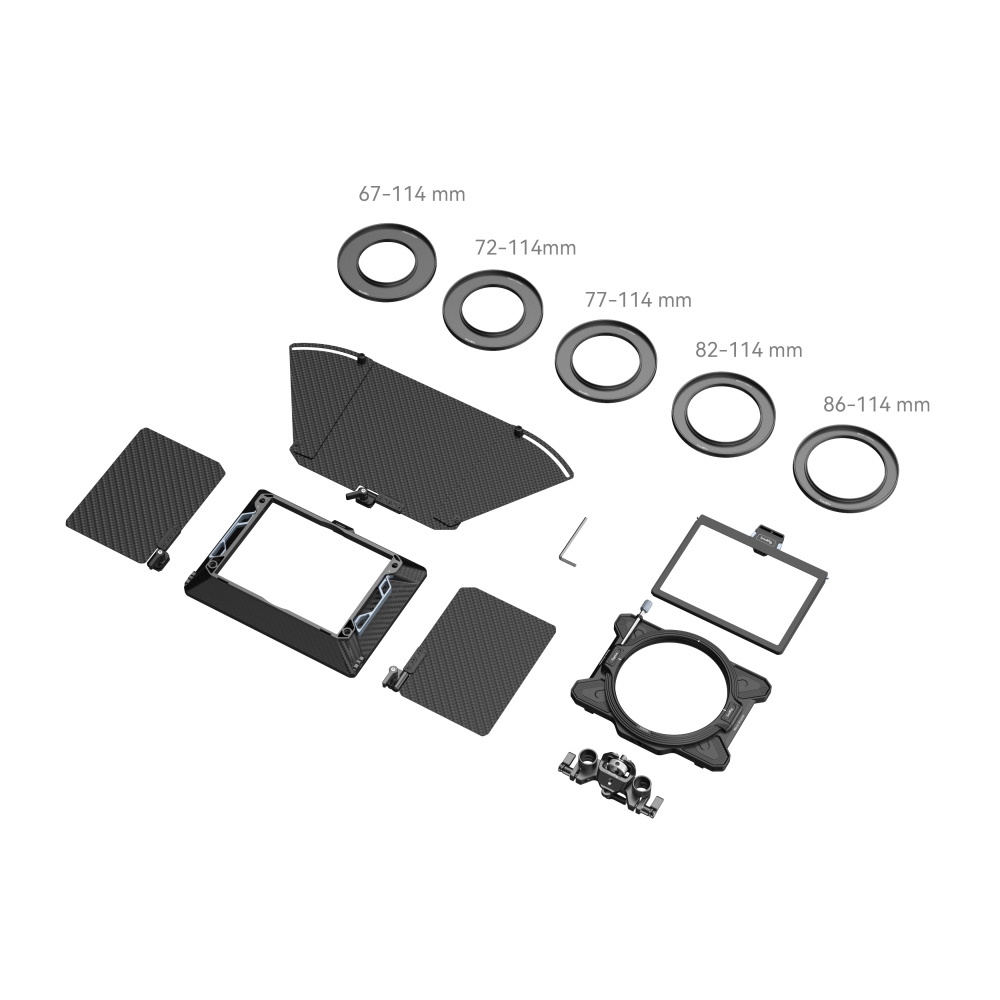

What's in the Box

• 1 x Matte Box (Φ114mm)
• 1 x Lens Hood (Φ114mm)
• 1 x Top Flag (Φ114mm)
• 2 x Side Flag（Φ114mm)
• 1 x Φ67-114mm Adapter Ring
• 1 x Φ72-114mm Adapter Ring
• 1 x Φ77-114mm Adapter Ring
• 1 x Φ82-114mm Adapter Ring
• 1 x Φ86-114mm Adapter Ring
• 1 x Filter Frame (4 x 5.65")
• 1 x Dual Rod Support
• 1 x Storage Bag

Note

1. Incompatible with 2mm thick, 100 x 100mm and 100 x 150mm slide-in filters
2. Cannot hold slide-in filter and circular filter at the same time
3. Incompatible with circular filter having outside diameter larger than 100mm
