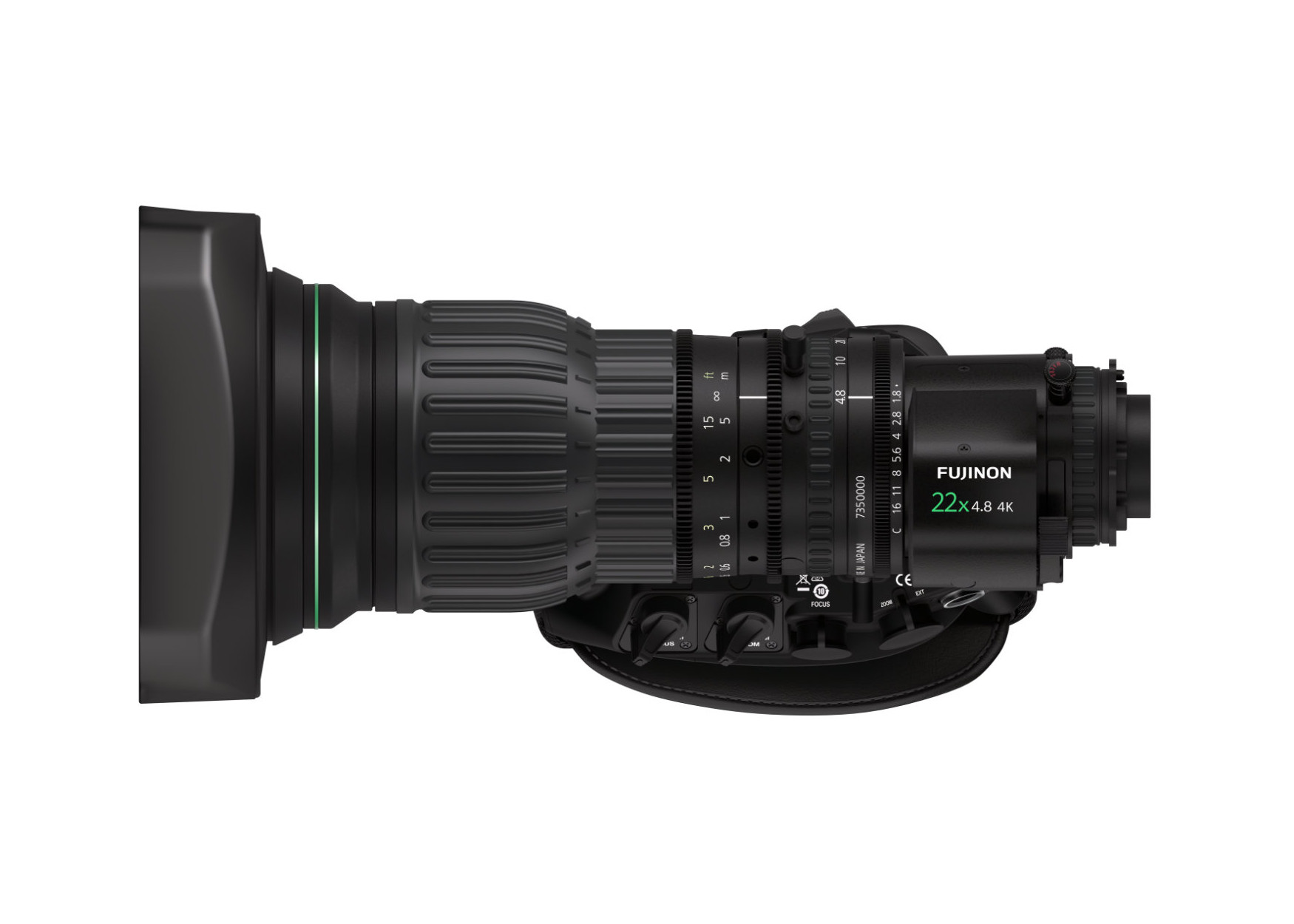

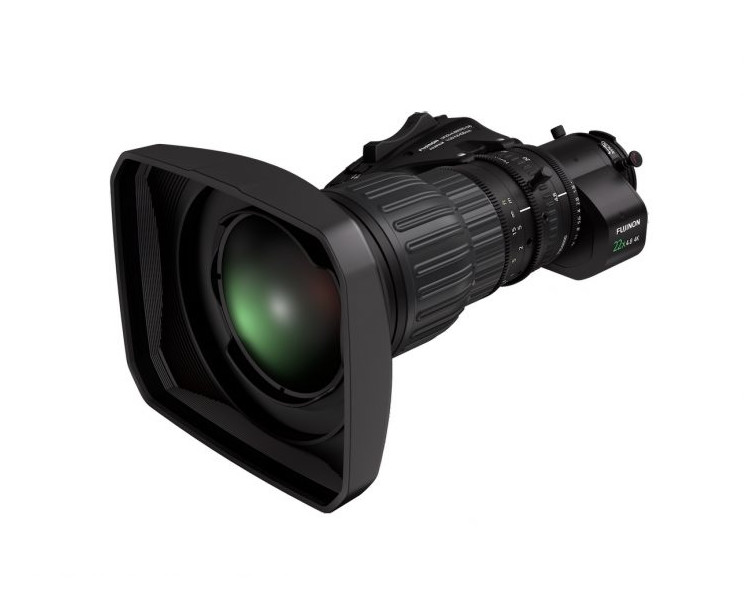

Fujinon UA22x4.8BERD Broadcast Cinema Lens

About: Fujinon UA22x4.8BERD Broadcast Cinema Lens

FUJINON UA22x4.8BERD is a versatile, lightweight broadcast zoom lens that offers both 4K image quality and impressive flexibility. Weighing just 2.17kg (4.8lb) and providing a wide angle of view within a 22x zoom range, FUJINON UA22x4.8BERD will equip crews across a range of productions to frame the image how they see fit.

• Versatile 22x zoom range from 4.8-106mm
• 4K optical performance throughout entire zoom range
  • HT-EBC coatings offer high light transmittance and accurate color reproduction
• Compact and lightweight design, measuring 251mm (9.9in) and 2.17kg (4.8lb)
• MOD capability of 0.4m from the front element of the lens across the entire zoom range
• High-resolution 16-bit encoders ensure accurate position detection for virtual and remote production

Designed to deliver a consistent, intuitive experience, FUJINON UA22x4.8BERD fits seamlessly into workflows already built around FUJINON UA lenses, featuring an optical design optimized for 4K across the entire zoom range. This lens replaces the FUJINON UA18x5.5BERD, building on its predecessor’s legacy delivering a wider angle of view and a broader zoom range. Exceptional image quality and adaptability make it a natural fit for live production environments, including news, concerts, sports, and houses of worship.

Frame Every Moment

From wide angle to telephoto, FUJINON UA22x4.8BERD covers a 4.8-106mm focal range across a versatile 22x zoom. Improving upon the core strengths of FUJINON UA18x5.5BERD and expanding the focal range at both ends, the FUJINON UA22x4.8BERD gains even further flexibility in dynamic and fast-paced environments with the welcomed wider angle of view at 4.8mm and additional reach at 106mm.

Clarity Without Compromise

FUJINON UA22x4.8BERD combines 4K performance with Fujifilm’s unique HT-EBC multi-layer coating to maximize light transmission and minimize unwanted reflections. The result is accurate colors, crisp detail, high contrast, high dynamic range, and carefully controlled aberrations in every scene.

Built to Move

Measuring 251mm (9.9in) and 2.17kg (4.8lb), FUJINON UA22x4.8BERD has a portable design suited to handheld or shoulder-mounted use. Quick to reposition, this broadcast lens effortlessly navigates tight studio corners, bustling news floors, and stadium sidelines.

Bring the Action Closer

Maintaining a minimum object distance (MOD) of just under 0.4m throughout the entire zoom range, UA22x4.8BERD offers consistent access to detailed, near-subject framing at any focal length.

Accuracy You Can Rely On

High-resolution lens data from FUJINON UA22x4.8BERD’s 16-bit encoders ensure every movement is detected with precision. This level of accuracy is what makes integration with virtual studios, robotic camera setups, and computer graphic elements truly seamless.

Specifications

• Focal Length
  • (1x) 4.8-106mm
  • (2x) 9.6-212mm
• Zoom Ratio: 22x
• Extender: 2x
• Maximum Relative Aperture
  • F1.8 (4.8-61mm)
  • F3.15 (106mm)
• Minimum Object Distance (MOD) from Front Lens: 0.4m/15.75in
• Object Dimensions at MOD (16:9 Aspect Ratio)
  • 1x
    • 4.8mm: 913mm x 491mm
    • 106mm: 40mm x 23mm
  • 2x
    • 4.8mm: 913mm x 491mm
    • 212mm: 21mm x 12mm
• Angular Field of View (16:9 Aspect Ratio)
  • 1x
    • 4.8mm: 89.9° x 58.6°
    • 106mm: 5.2° x 2.9°
  • 2x
    • 4.8mm: 53.1° x 31.4°
    • 212mm: 2.6° x 1.5°
• Filter Thread: M127 x 0.75 (filter attaches to lens hood)
• Dimensions (DxL): 3.74 x 9.9in (95 x 251mm)
• Weight (without lens hood): 4.8lb (2.17kg)
