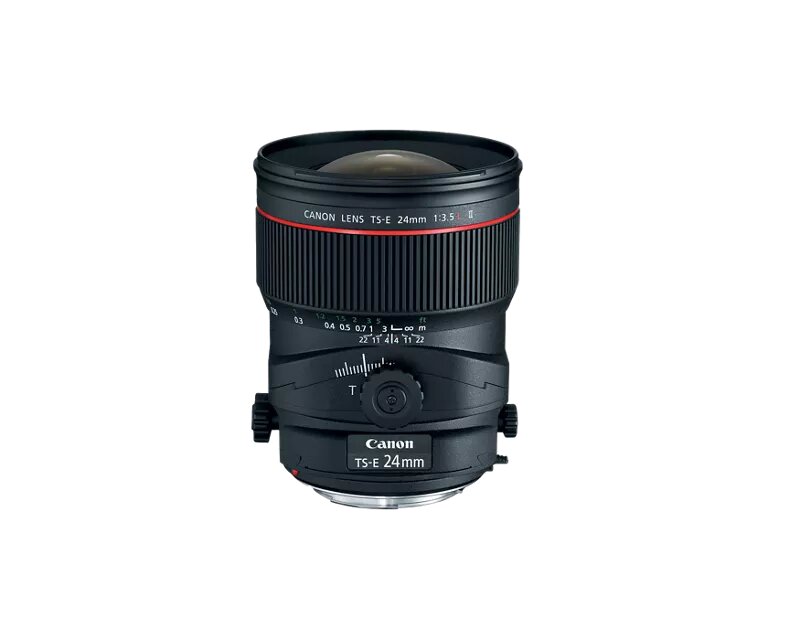

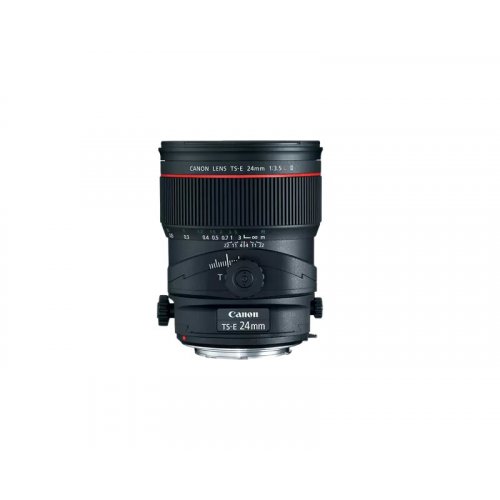

Canon TS-E 24mm f/3.5L II

About: Canon TS-E 24mm f/3.5L II

A superb refinement to a true Canon classic, the new TS-E 24mm f/3.5L II offers enhanced functionality and image quality in its most popular tilt-shift focal length. Designed with UD glass to minimize and compensate for chromatic aberrations and a specially coated aspherical element for the highest possible glare-free image quality, this tilt-shift lens features an angle of view of 84° on a full-frame camera.

New TS rotation lets users freely combine tilting and shifting within the range of +/- 90° in the direction of movement. The Tilt function has an enhanced range of movement of up to +/- 8.5°, a revolving construction for both portrait and landscape shooting modes, locking, ergonomically-designed and easily operated tilt and shift knobs, uses a circular aperture for beautiful out-of-focus areas, and is constructed using only lead-free glass and has an SWC lens coating that controls ghosting and flare to a far greater degree than earlier coating technologies.

• Focal Length & Maximum Aperture: 24mm 1:3.5
• Tilting and shifting range of +/- 90°; Enhanced range of movement of up to +/- 8.5°
• Aspherical element for glare-free image quality
• Circular aperture for beautiful out-of-focus areas
• Diagonal Angle of View: 84° (without tilt or shift)

Specifications

• Focal Length & Maximum Aperture -  24mm 1:3.5
• Minimum Aperture -  f/22
• Lens Construction -  16 elements in 11 groups
• Diagonal Angle of View -  84° (without tilt or shift)
• Image circle diameter -  67.2mm
• Focus Adjustment -  Manual focus, rear focusing system (no floating system)
• Closest Focusing Distance -  0.69 ft./0.21m (maximum close-up magnification: 0.34x)
• Aperture Control -  EMD with 8 blade iris diaphragm, circular aperture
• Filter Size -  82mm
• Max. Diameter x Length, Weight -  3.5 x 4.2 in./88.5 x 106.9mm, 27.5 oz./780g
• Lens Cap, Lens Hood and Pouch -  Provided

In The Box

• TS-E 24mm f/3.5L II Lens
• Lens Case LP1319
• Lens Hood EW-88B
• Instruction Book
• One Year Limited Warranty Card
• Unit Option Cap
