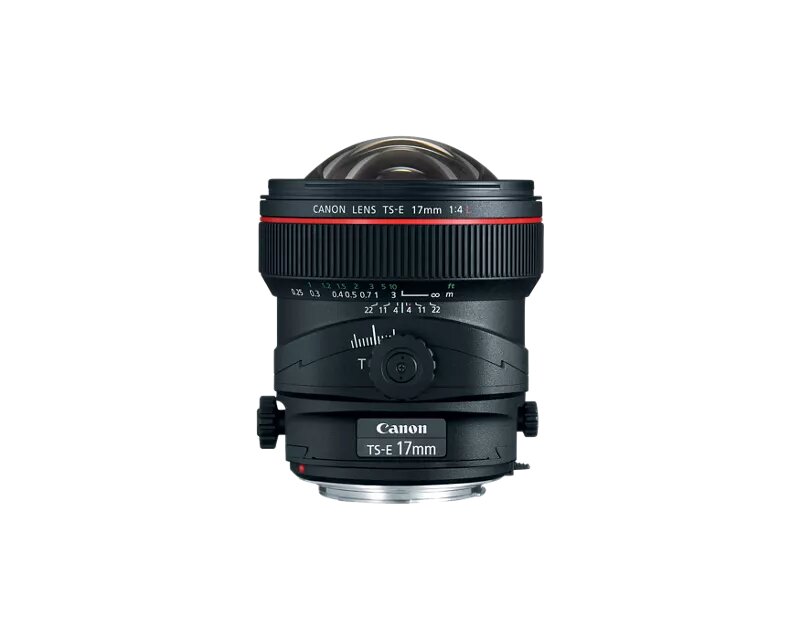

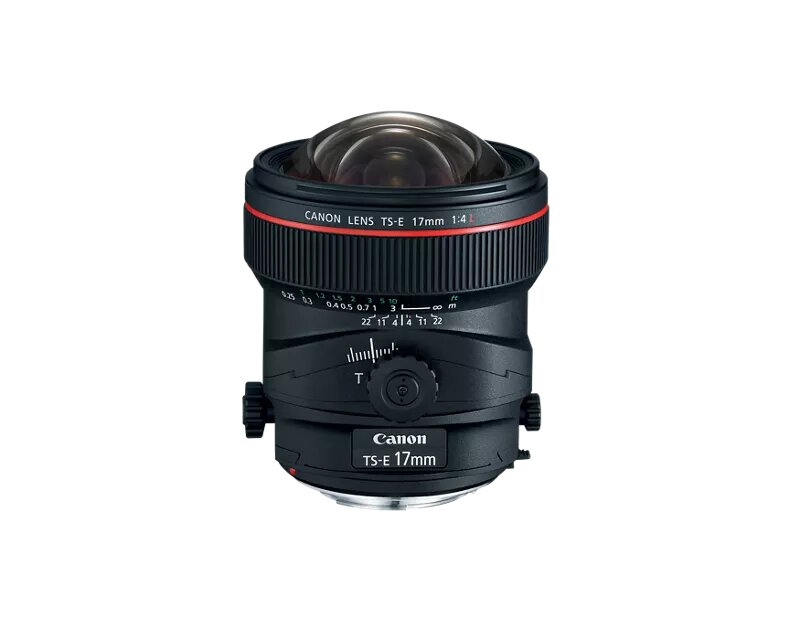

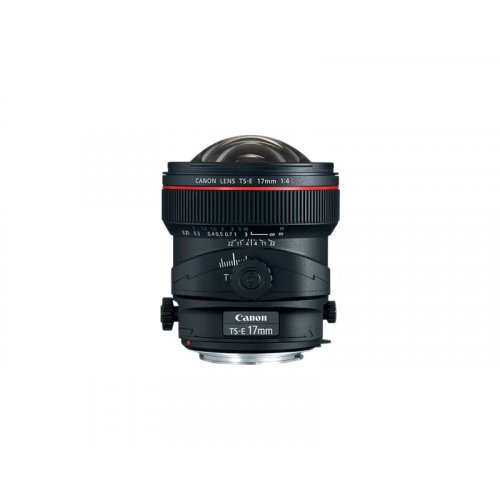

Canon TS-E 17mm f/4L

About: Canon TS-E 17mm f/4L

The widest tilt-shift lens in Canon's lineup, the new TS-E 17mm f/4L lens expands shooting possibilities exponentially on EOS Digital cameras. Designed with UD glass to minimize and compensate for chromatic aberrations, with a specially coated aspherical element for the highest possible glare-free image quality, this tilt-shift lens offers a diagonal angle of view of 104° on a full-frame SLR camera.

New TS rotation lets users freely combine tilting and shifting within the range of +/- 90° in the direction of movement. The lens also has an improved tilt & shift knob with an enhanced range of movement of up to +/- 6.5° and 12mm respectively, with a revolving function for better operability. It uses a circular aperture for beautiful out-of-focus areas and has an SWC lens coating to control ghosting and flare to a far greater degree than with earlier coating technologies.

• Focal Length & Maximum Aperture: 17mm 1:4
• Tilting and shifting range of +/- 90°
• Aspherical element for glare-free image quality
• Circular aperture for beautiful out-of-focus areas
• Diagonal Angle of View: 104° (without tilt or shift)

Specifications

• Focal Length & Maximum Aperture -  17mm 1:4
• Minimum Aperture -  f/22
• Lens Construction -  18 elements in 12 groups
• Diagonal Angle of View -  104° (without tilt or shift)
• Image circle diameter -  67.2mm
• Focus Adjustment -  Manual focus, rear focusing system with focusing cam (with floating system)
• Closest Focusing Distance -  0.82 ft./0.25m (maximum close-up magnification: 0.14x)
• Aperture Control -  EMD with 8 blade iris diaphragm, circular aperture
• Max. Diameter x Length, Weight -  3.5 x 4.2 in./88.9 x 106.7mm (maximum lens length), 28.9 oz./820g
• Lens Cap, Lens Hood and Pouch -  Lens cap and pouch provided. (No lens hood available.)

In The Box

• TS-E 17mm f/4L Lens
• Lens Case LP1219
• Unit Option Cap
• Instruction Book
• One Year Limited Warranty Card
• Wrist Strap WS-DC7
