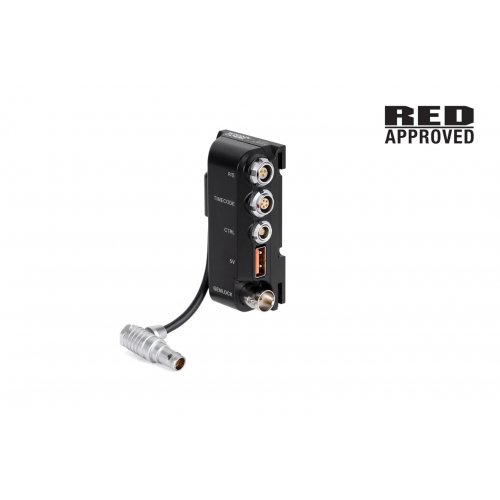

Wooden Camera B-Box (RED Komodo)

Model: 280500

Wooden Camera B-Box (RED Komodo)
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed




About: Wooden Camera B-Box (RED Komodo)

B-Box (RED® KOMODO™) attaches to the camera-right BP-9 battery slot and provides a breakout for the camera’s EXT connector. Battery Slide Pro V-Mount or Gold Mount for RED KOMODO can be used simultaneously and custom right-angle LEMO compatible connector allows for neat cable run. Canon BP-9 batteries could also be attached in camera-left slot while B-Box is used.

Available ports include:

- R/S (3pin Fischer)

  • simple run/stop for Handgrip Trigger Box, Simple 3pin Fischer Trigger Cable, etc.
  • no power available
  • devices like ARRI WCU-4 may require CTRL port interface with cable K2.0015758
  • pin1:GND, pin2:N/C, pin3:GPI

- Timecode (5pin LEMO)

  • standard wiring for timecode in/out
  • pin1:GND, pin2:LTC-IN, pin3:N/C, pin4:N/C, pin5:LTC-OUT

- CTRL (4pin LEMO)

  • standard wiring for RED CTRL
  • pin1:GND, pin2:UART-RX, pin3:GPO, pin4:UART-TX

- 5V (USB)

  • 5V available at 500mA maximum
  • power may need to be enabled in camera menu

- Genlock (BNC)

  • standard wiring for genlock
  • center:signal, shell:GND

UPC: 606184859238
