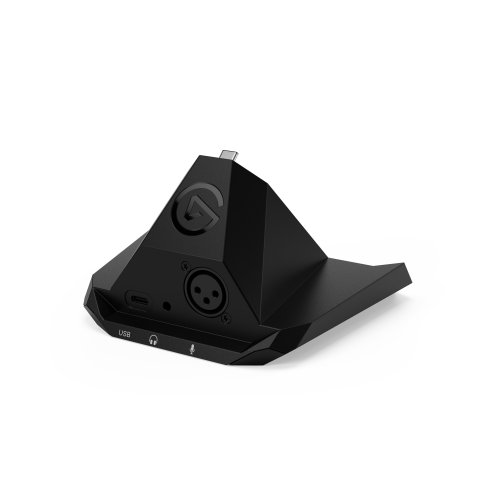

Elgato XLR Dock MK.2 for Stream Deck +

About: Elgato XLR Dock MK.2 for Stream Deck +

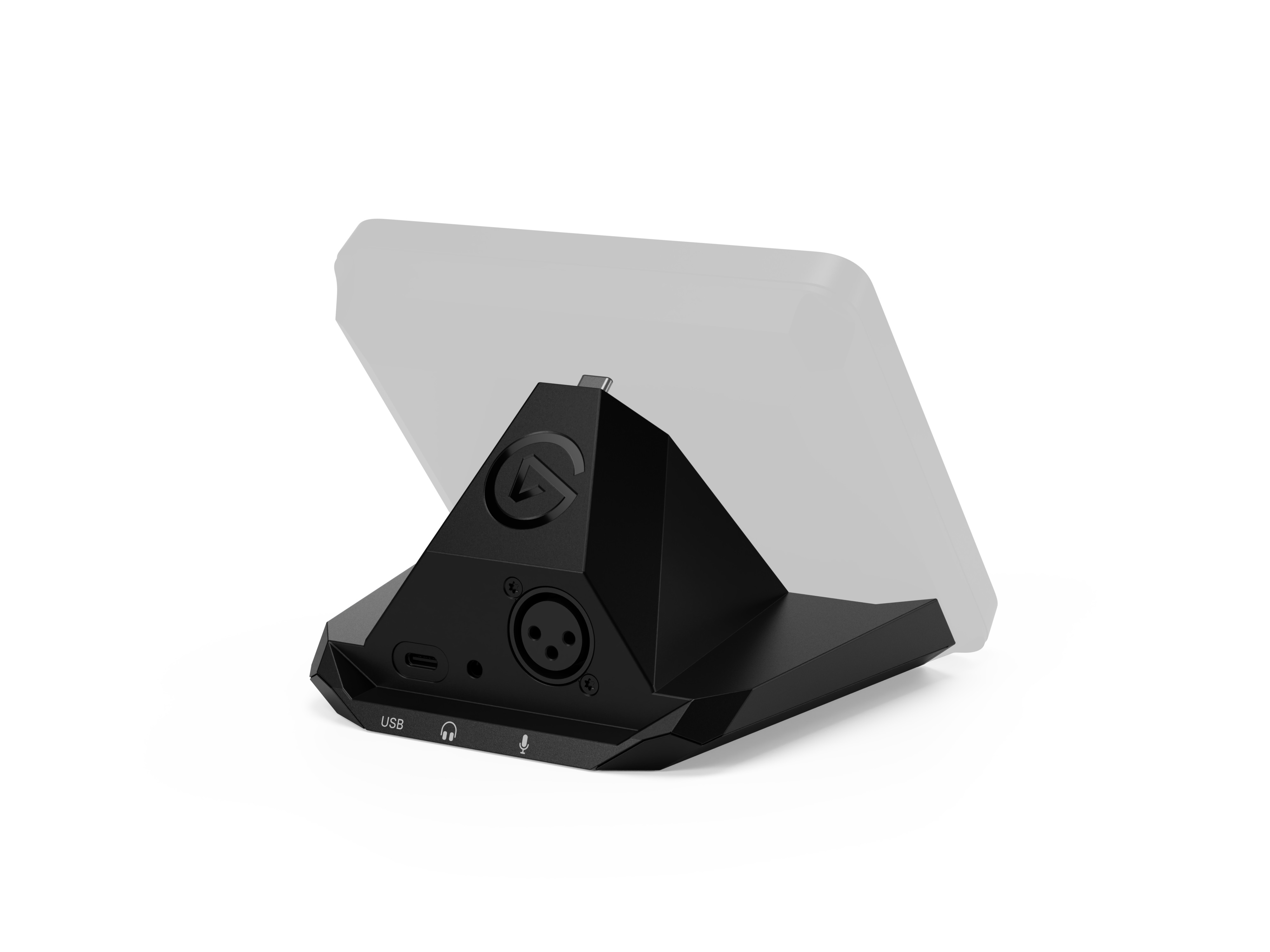

XLR Dock MK.2 transforms Stream Deck + into your complete audio station. Plug any XLR mic in back and get 80dB of ultra-low-noise gain, phantom power, and Clipguard 2.0 protection against distortion. Shape your sound with onboard effects like voice enhancer, compressor, and EQ, all powered by Wave FX Processor, which unifies DSP effects and VST plugins in one perfectly synced signal chain. Tying it all together, the Wave Link app gives you intuitive control over every audio source. The dock tucks away behind Stream Deck +, clearing your desk while putting studio-grade power at your fingertips. It's not just an audio interface—it's your entire setup at your command.

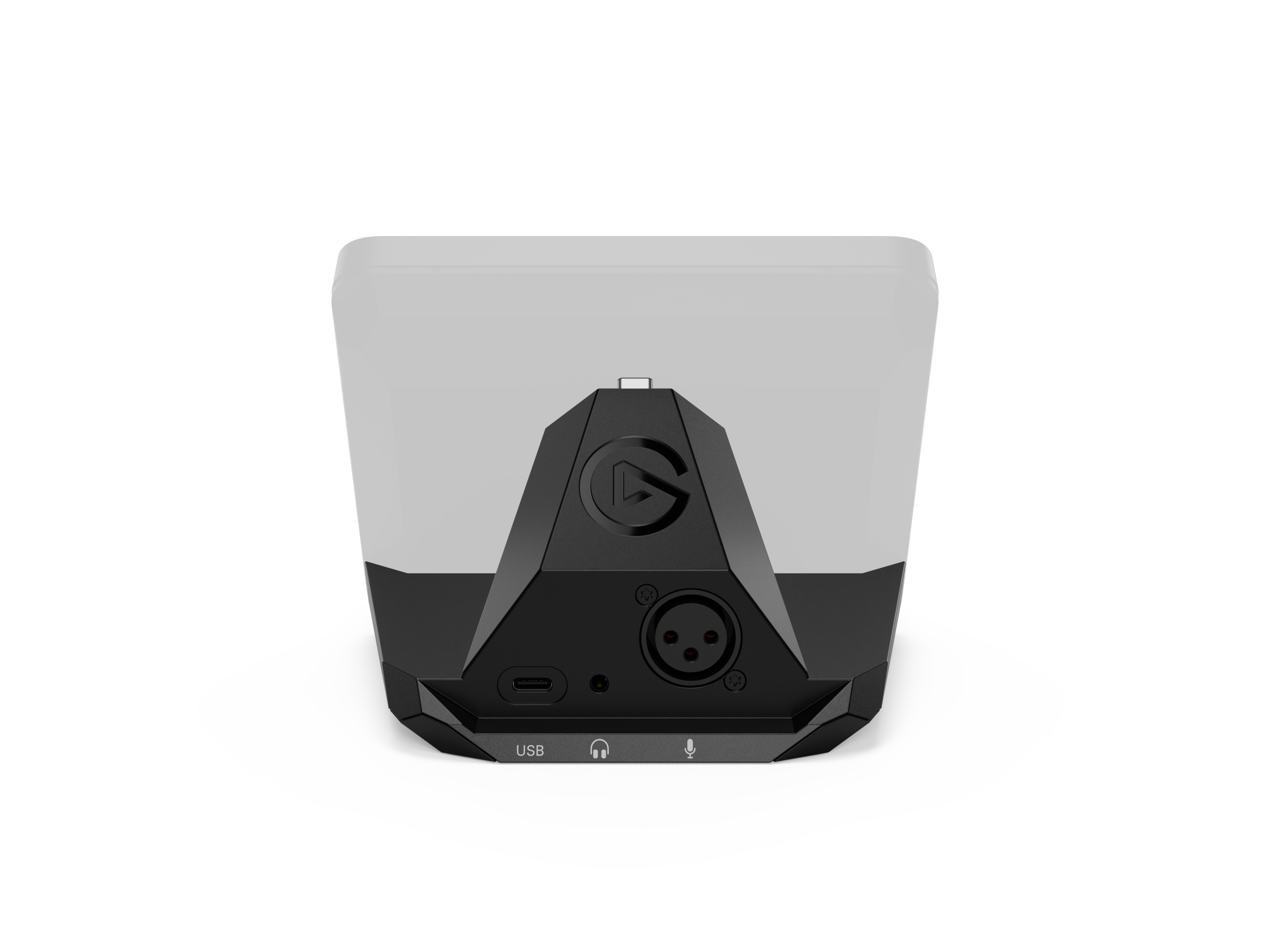

• Two Become One: Mix and monitor up front, plug your XLR mic in back.
• Elite Soundstage: 80dB gain, phantom power, and Clipguard technology.
• Onboard Effects: Built-in voice enhancer, compressor, EQ, and more.
• Wave FX Processor: Runs DSP effects and VST Inserts in one signal chain.
• Wave Link App: Natively integrated for precise routing, effects, and monitoring.
• Easy Setup: Slots in seamlessly, no additional USB cable needed.

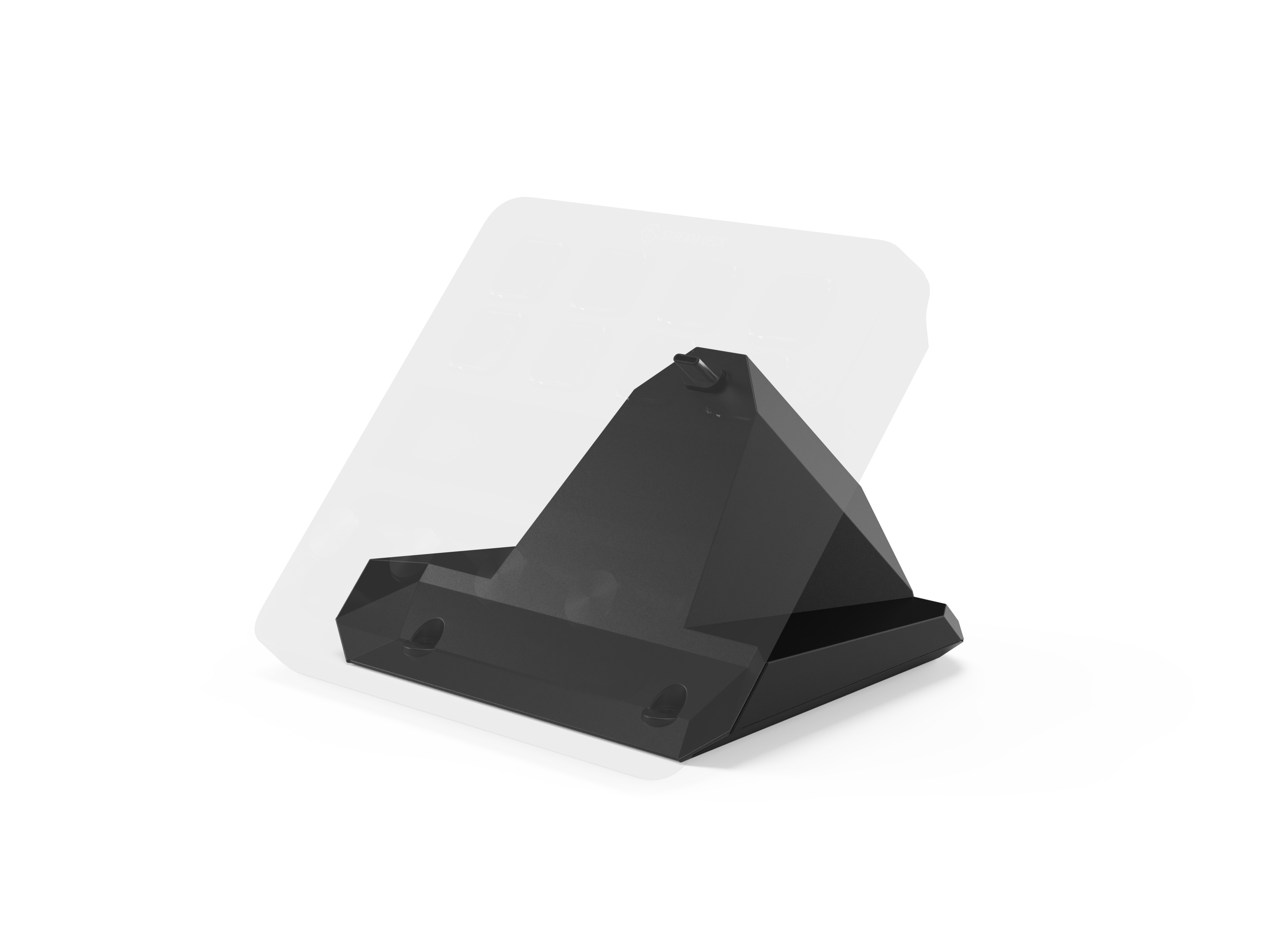

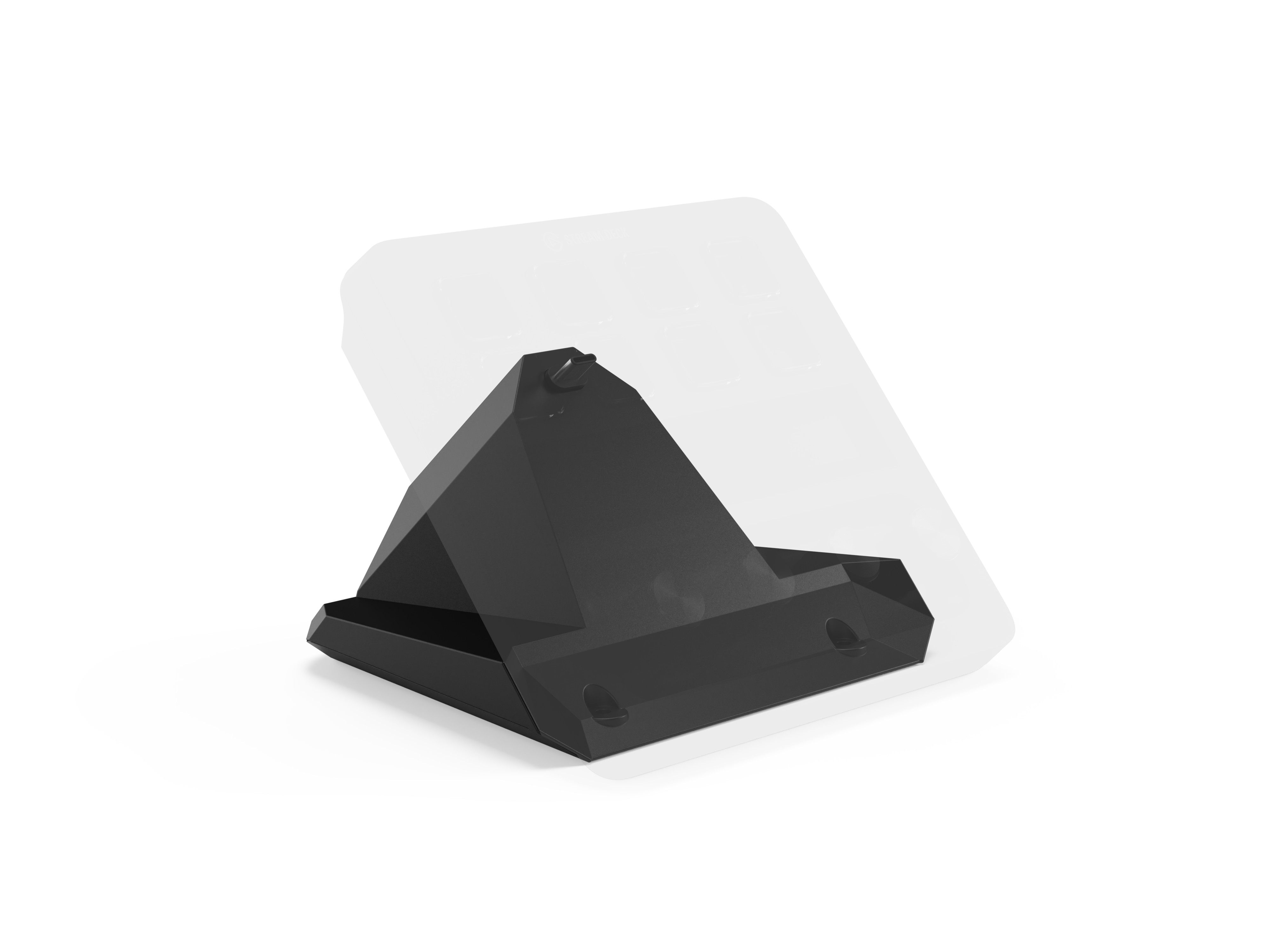

• Save Desk Space: Tucks away out of sight to clear off your workspace.
• Your Audio Station: Control hardware and apps together in one place.

Specifications

• Resolution: 32bit
• Sample rate: 48kHz
• Frequency response (XLR input): max gain deviation 20Hz - 20kHz < 0.3dB
• Frequency response (Headphone, 32 Ohm): max gain deviation 20Hz - 20kHz < 0.3dB
• Dynamic range: 137dB

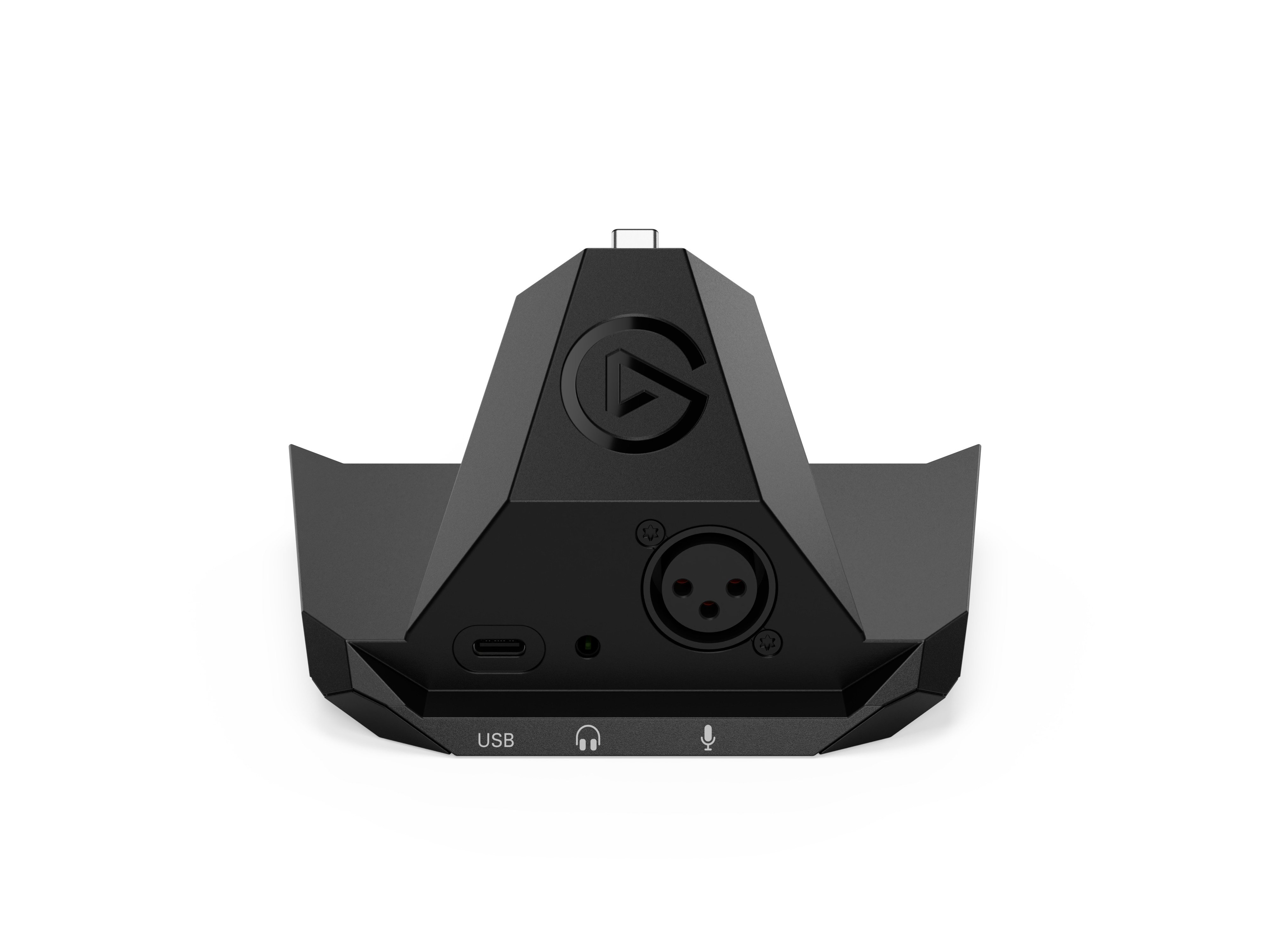

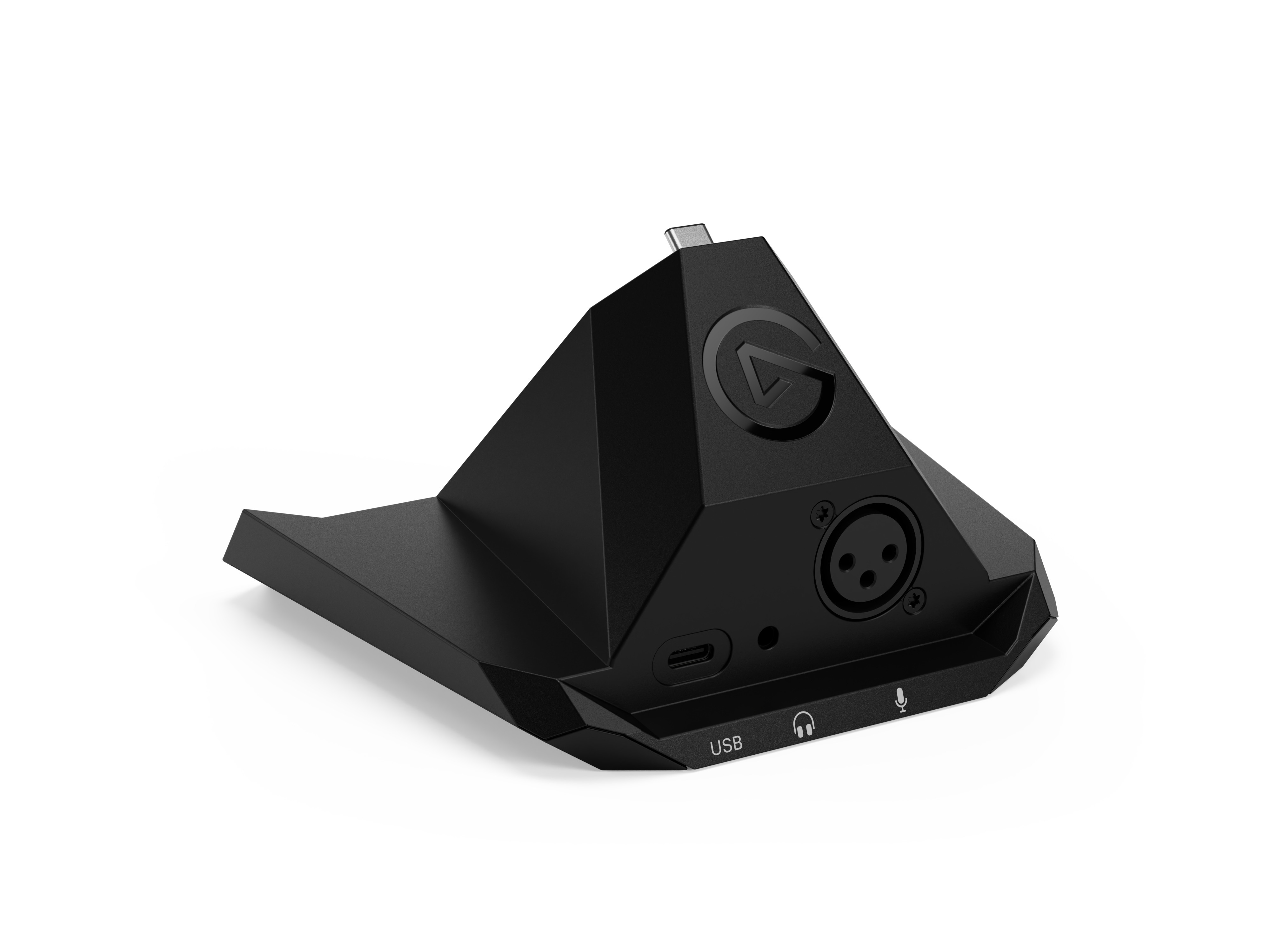

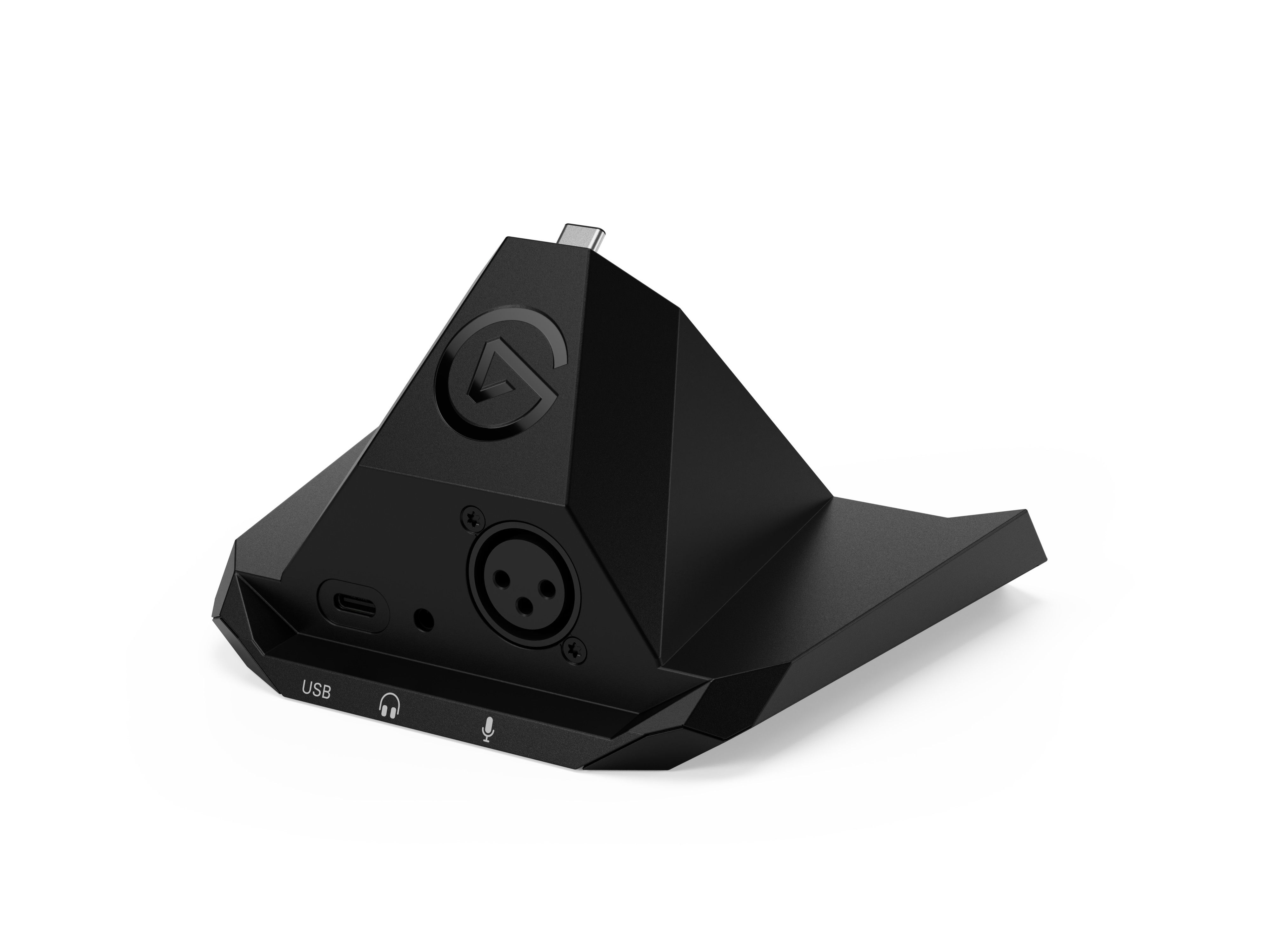

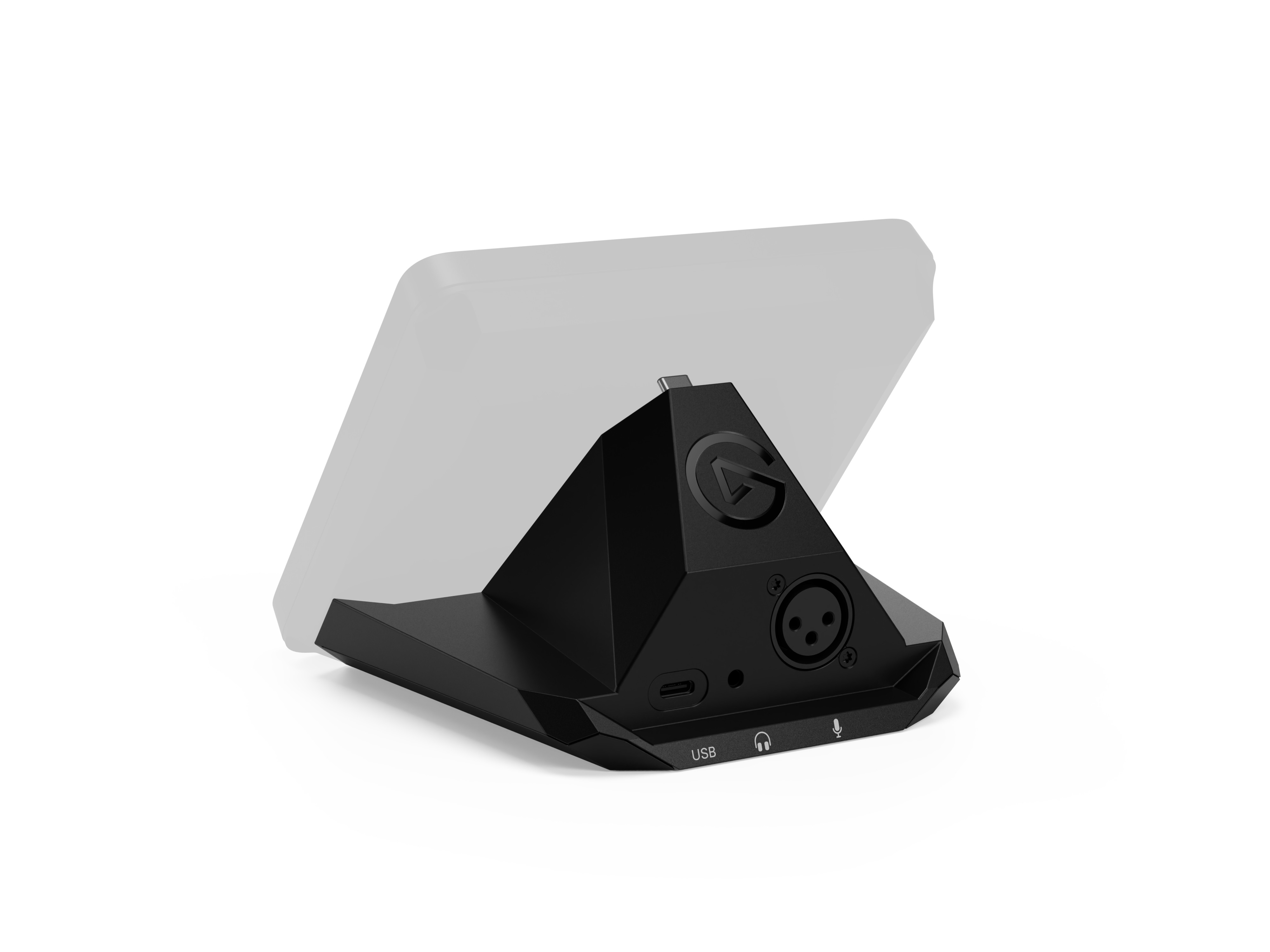

• Connectors: Microphone (XLR, Mono), Headphone (3.5 mm Jack, Stereo), Host I/O (USB-C)
• Power Consumption: rating print 900 mA max, measured 670mA max
• System Requirements
  • Windows 11 (64-bit) or newer
  • macOS Sonoma 14.2 or newer
• Dimensions (DxWxH): 4.53 x 4.39 x 2.99 in (115 x 137 x 76 mm)
• Weight: 0.40 lbs (180 g)

What's in the Box

• XLR Dock for Stream Deck +
• Quick Start Guide
