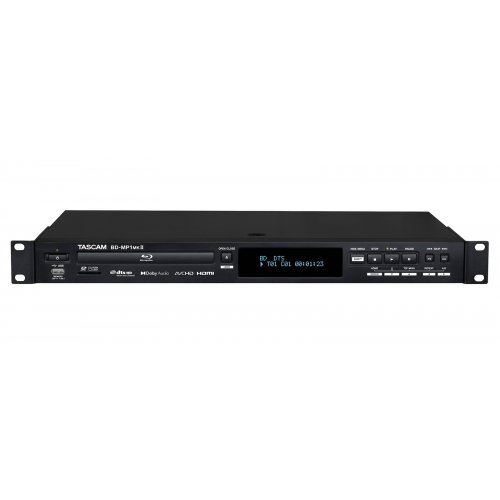

Tascam BD-MP1MKII Blu-ray Player

About: Tascam BD-MP1MKII Blu-ray Player

The TASCAM BD-MP1MKII is a professional-grade Blu-ray player that expands the legacy of TASCAM’s popular BD-01U and BD-MP1 Blu-ray players. The BD-MP1MKII is the perfect choice for a wide range of high-end residential and commercial installations, including public, educational and commercial facilities, theaters, amusement and entertainment businesses, to name a few.

DVD/CD, SD Card and USB Flash Memory Options

The versatile BD-MP1MKII can automatically play back content in a wide range of file formats via any of the three front-panel media input slots, including Blu-ray/DVD/CD, USB Flash Memory, or SD card.

Supports a Wide Range of Disc Formats
The BD-MP1MKII eliminates the need for discrete audio/video playback devices in an installation, offering single-source playback for a wide range of media and file formats, including Blue-ray (BD25, BD50, BD-ROM, BD-R, BD-RE), DVD (DVD-ROM, DVD-R, DVD-RW, DVD-+R, DVD+RW), and CD (CD-DA, CD-R, CD-RW).

Versatile File Format Playback Support
The BD-MP1MKII is the ideal single-source playback solution for commercial and residential installations, supporting an extensive range of file formats, including Video (ASF, MPEG, AV1, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, WMV), Image (JPEG, GIF, PNG) and Audio (WAV, MP3,WMA. AAC, FLAC, APE).

Power-on Play and Repeat Mode

The unique Power-on Play feature allows the BD-MP1MKII to start playing desired content immediately on power up, without having to engage the Play feature first (Disc media only). With Repeat Mode set to "on," content will automatically start, loop and play continuously until power is turned off.

Panel Lock for Secure Operation

Panel lock, IR and tray lock functions prevent accidental or user-error operation or alteration of pre-set controls in commercial installations, helping ensure consistent and reliable performance in any installation.

Hide Menu Function for Elegant Power Up Display Sequence

The monitor display can be set to show a black screen during start up rather than the manufacturer’s standard factory setup and source select menus, creating an elegant and non-distracting visual start-up environment each time the system is turned on.

Dual USB Memory Ports

Two USB Memory Ports, one front panel and one back panel, allow fixed or interchangeable access to USB memory data for playback versatility.

HDMI Output for Connecting Displays

A standard rear panel HDMI Output connection provides easy, reliable plug-and-play connection to any HDMI-compatible monitor display or television. In addition to HD video, Dolby Atmos audio can also be output.

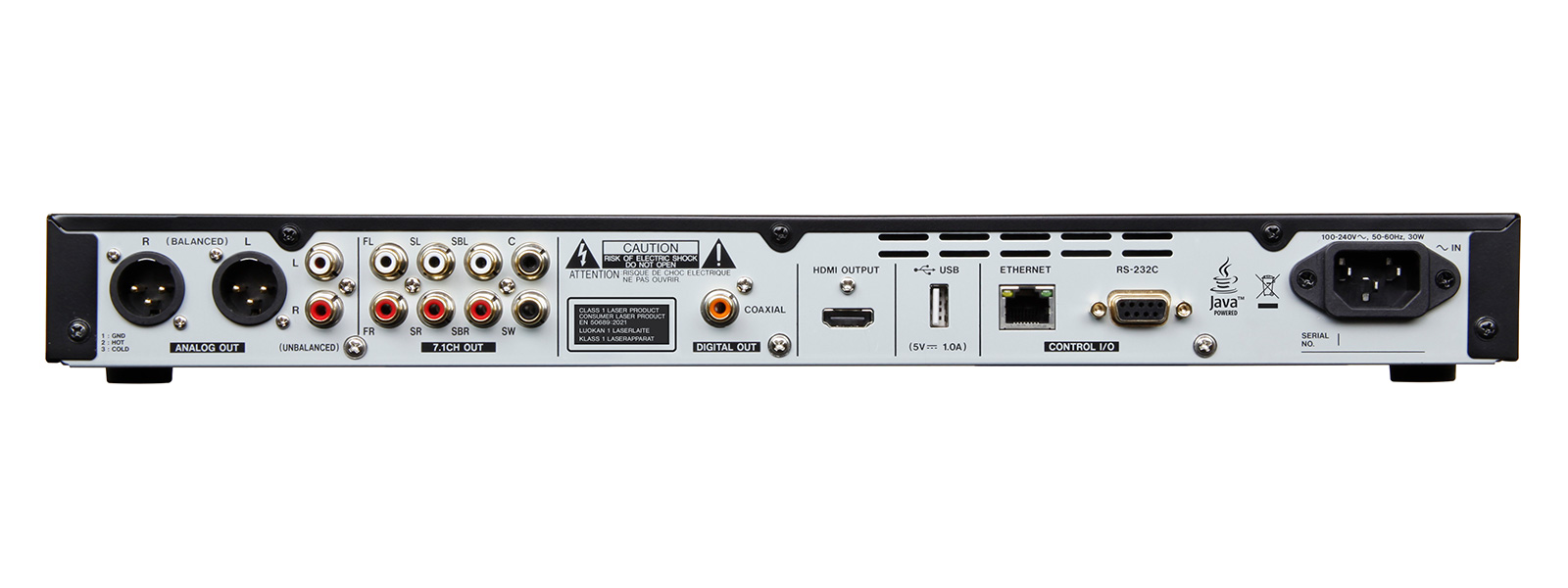

Balanced and Unbalanced Outputs

Highlighting its appeal to commercial installation environments, the BD-MP1MKII offers professional-grade XLR balanced stereo analog outputs as well as RCA unbalanced stereo outputs for versatility in audio routing, connection and setup.

Coaxial and Digital Audio Output Connection

The BD-MP1MKII provides support for professional-grade digital audio output formats including Dolby Audio, DTS, and others via back panel Coaxial and Digital Audio output connections. Playback of 2 channel linear PCM is also supported.

7.1 Surround Sound System

Immersive and full, rich audio playback for any commercial installation is provided via 7.1 Surround Sound System audio outputs — front left & right (FL/FR), Center (C), side left & right (SL/SR), surround back left & right (SBL/SBR) and subwoofer (SW).

IP and RS-232C Ports for External Remote Control

Seamless, reliable two-way device status feedback and control is offered for professional installations via back panel RS-232C and Ethernet connections, enabling the BD-MP1MKII to be integrated into more sophisticated AV setups.

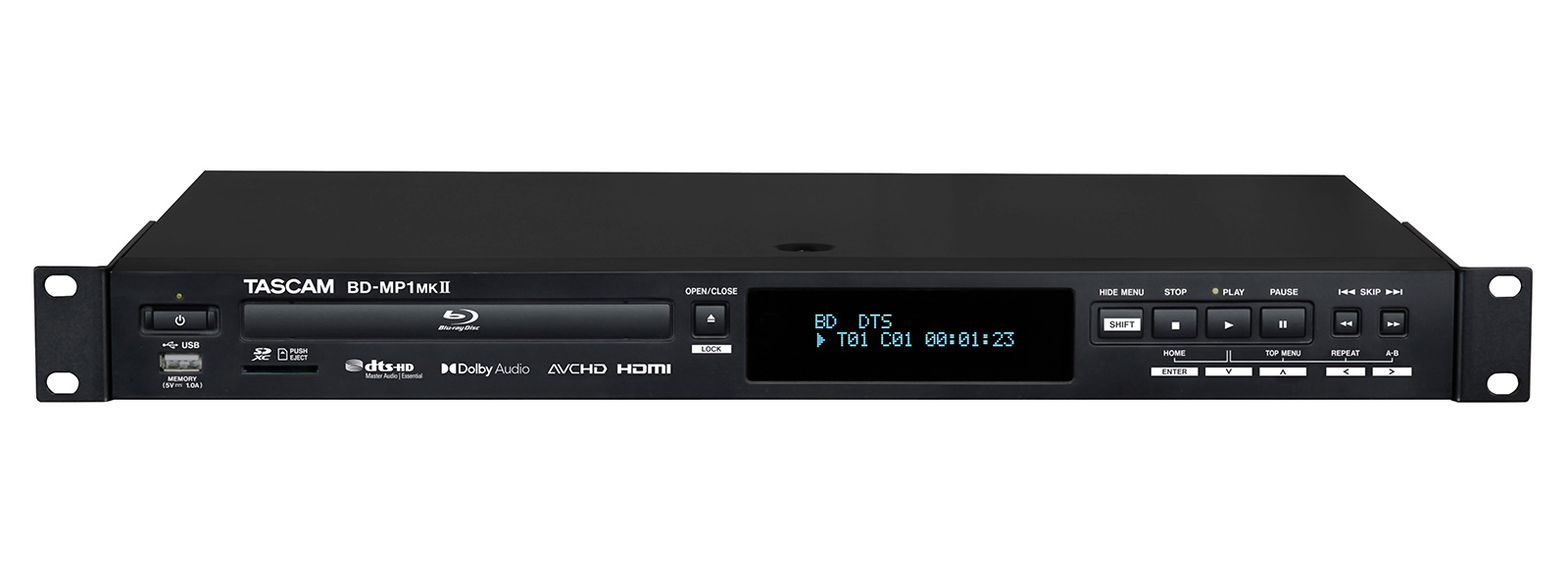

Fully Accessible Front Panel Control

Control and operation of the BD-MP1MKII's Stop, Play, Pause and Fast Forward functions as well as navigation of the MENU setup without the IR remote controller is made possible by easy accessible front panel control buttons which can be locked/unlocked as desired.

Compact 1U Rack Size

Housed in an elegant black case, the compact 1U BD-MP1MKII is constructed out of durable metal, facilitating standard, seamless integration in any commercial rack or application. The rack ears can be removed and rubber feet are included for a clean shelf top installation application and look.

Features

• Supports playback of various formats of Blu-ray, DVD, and CD discs
• Supports playback of various video, still image, and audio formats from SD cards (SD/SDHC/SDXC up to 512G) and USB memory
• Power on play function (Disc media only)
• Seamless repeat function: by chapter, title, or A-B repetition
• Hide MENU function to display only the main contents on the screen
• Lock functions: panel, IR, and tray lock
• HDMI output that can pass through audio formats such as Dolby Atmos and DTS-HD to an AV amplifier
• Dual XLR balanced and RCA unbalanced outputs
• RCA 7.1ch audio outputs
• External remote control via LAN or RS-232C
• 1U rackmount size
• Resume function
• Coaxial digital audio output supports Dolby Audio, DTS and other professional grade digital audio output formats.
• Audio output level volume adjust function (0dB to -40dB)

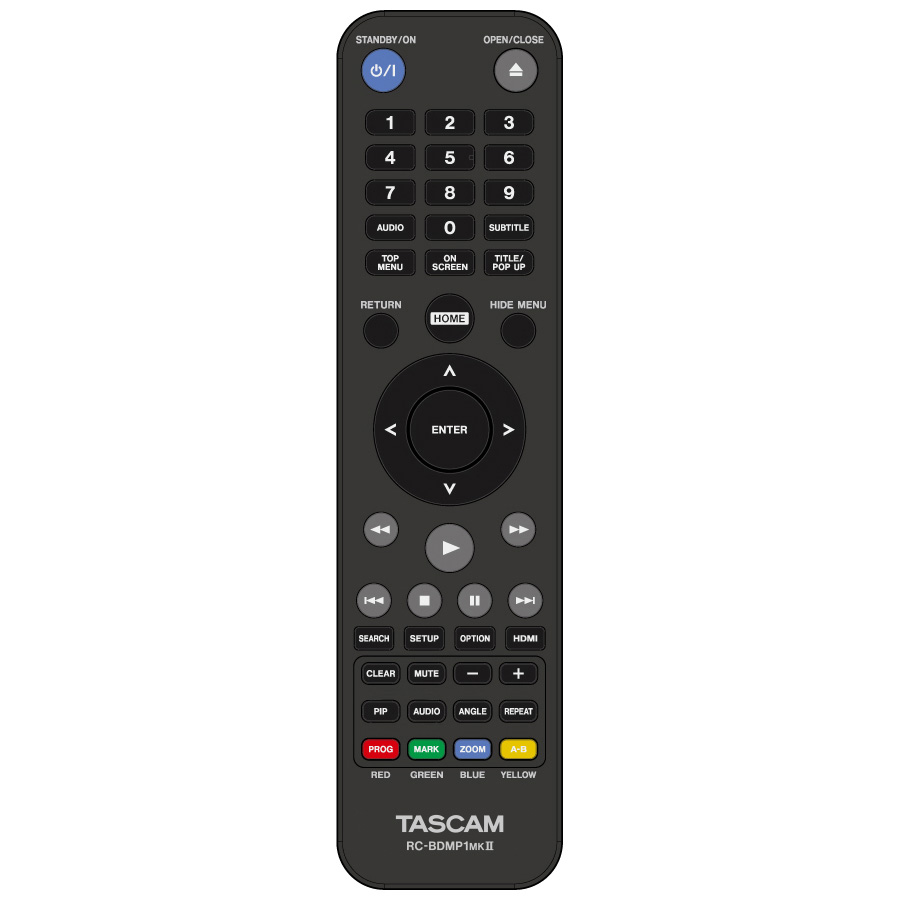

• IR remote control included (RC-BDMP1MKII)
