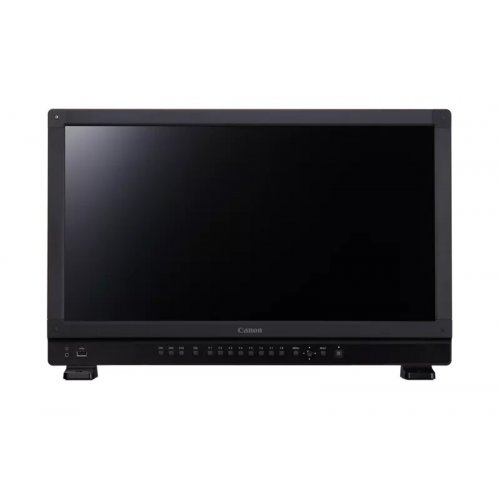

Canon DP-V2420 24-Inch 4K Reference Display

About: Canon DP-V2420 24-Inch 4K Reference Display

The Canon DP-V2420 4K Reference Display is Canon's flagship 24' model and can satisfy the High Luminance performance required for HDR workflows. Sharing many of the outstanding features of the DP-V2410 4K Reference Display, the DP-V2420 adds additional versatility and functionality. It qualifies as a Dolby Vision mastering monitor (supporting SMPTE ST 284's gamma curve) as well as the proposed HLG (Hybrid Log-Gamma) broadcast HDR standards. This display can be ideal for maximum flexibility during any stage of the production and post-production process, and essential for monitoring HDR workflows.

The innovative Canon-designed RGB LED backlight with its 1-bit IPS panel insures a wide-viewing angle, and the anti-glare coating helps improve on-set visibility. It also features a specially developed image-processing engine to help produce uniform brightness. The DP-V2420 utilizes the same high image quality technology found in Canons other reference displays so you can rely on a consistent look throughout the entire workflow, using any combination from the Canon Display line.

As post processes move on-set or near-set, the DP-V2420 works with a variety of workflows, supporting the ability to internally debayer the Canon Cinema EOS 4K RAW signal output from the Cinema EOS C500 and Cinema EOS C300 Mark II cameras for direct display while looping this signal to an external recorder. This provides a flexible companion to your other Canon equipment and allows you to build a simple but sophisticated on-set Canon workflow. Importantly, the DP-V2420 also allows you to verify the looks of the ALEXA SXT cameras made by ARRI as well supporting a linkup to ARRI's image quality settings and other features such as metadata and area markers.

The DP-V2420 features an aluminum frame design, offering rigidity and strength. Thoughtful ergonomic design including an anti-tip stand, function buttons on the front of the main unit, and built-in easy set-up transport handles, means that the DP-V2420 allows for portability and multi-purpose use, whether for on-set live 'video village' monitoring; color grading, for viewing dailies, or for use in post suites or mobile 4K broadcast production-control rooms.

The DP-V2420 is an ACES Compatible product.

• Compatible with HDR Industry Standards
• Two HDR Monitoring Modes Provided for Specific Applications
• Abundant Selection of Functions for Supporting HDR Production
• Supports Cinema and Broadcast HDR Workflows
• Integration with Canon Cinema EOS and ARRI Camera Systems
• Create a Simple but Powerful Canon Cinema EOS Workflow

Specifications

• Panel
  • Panel Type -  IPS LCD panel
  • Screen Size -  24 inch (61.1 cm)
  • Aspect Ratio -  17:9
  • Resolution -  4096 x 2160 (8.8 megapixels)
  • Active display area -  Approx. 540.7 x 285.1 mm
  • Pixel Pitch -  132 µm / 193 ppi
  • Panel Driver -  1024 gradations 10 bits for each RGB color
• Image Quality
  • Brightness (Standard) -  100 cd/m2
  • Viewing Angle (Up, Down, Left, Right) -  89° (contrast ratio 10:1 or higher)
  • Surface Treatment -  Anti glare coating
• General
  • Backlight Type -  RGB LED, direct down type
  • Power
    • Rated voltage: 100 - 240 V AC
    • Rated Frequency: 50 / 60 Hz
  • Power Consumption
    • At maximum load (including change in brightness through aging): Approx. 510 W
    • At factory shipment: Approx. 180 W
  • Environmental Conditions
    • Operating
      • Temperature and humidity: 0 to 40 °C (32 - 104 °F) (20 - 85 % RH no condensation), recommended: 15 - 30 °C (59 - 86 °F)
      • Pressure: 700 - 1060 hPa
    • Storage / Transporting
      • Temperature and humidity:
      • -20 - 40 °C (-4 - 104 °F), (20 - 85 % RH no condensation)
      • 41 - 60 °C (105 - 140 °F), (20 - 30 % RH no condensation)
    • Pressure -  700 - 1060 hPa
  • Dimensions (Width x Height x Depth)
    • With stand: Approx. 594 x 399 x 235 mm (23.4 x 15.7 x 9.3 in.)
    • Display unit only, without protruding parts: Approx. 594 x 378 x 195 mm (23.4 x 14.9 x 7.7 in.)
  • Weight -  Approx. 19 kg (41.8 lb)
  • Mounting Hole Pitch -  VESA standard 200 x 100 mm (7.9 x 3.9 in)
• Interface - Input
  • 3G/HD-SDI -  4 (1 system) BNC (75Ω)
  • Display Port -
  • HDMI -
    • 1(1 system) Type A terminal (4K 60P Support)
    • Copy protection: HDCP 2.2
• Interface - Output
  • 3G/HD-SDI -  4(1 pass-thru system)
  • Headphone -  1 stereo mini-jack. Supported impedance: 32-64Ω
• Interface - Control
  • USB -  1 USB A receptacle terminal. Universal Serial Bus Specification Revision 2.0 compliant LS (Low Speed) / FS (Full Speed) / HS (High Speed) mode compatible. Enhanced Host Controller Interface Specification for Universal Serial Bus Revision 1.0 compliant.
  • LAN -  1 RJ-45 terminal IEEE802.3 10BASE-TX / IEEE802.3u 100BASE-TX compliant
• Remote -

Supplied Accesories

• AC Power Cord
• Instruction Manual
• Instruction Manual Disc
