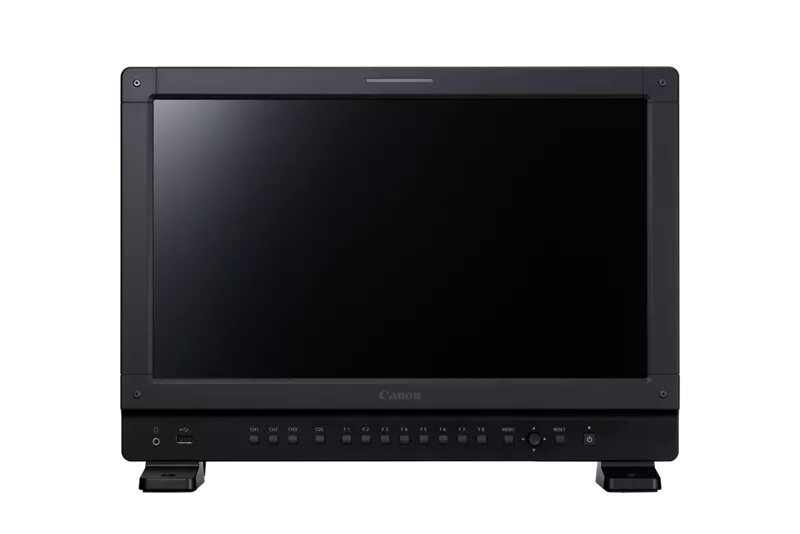

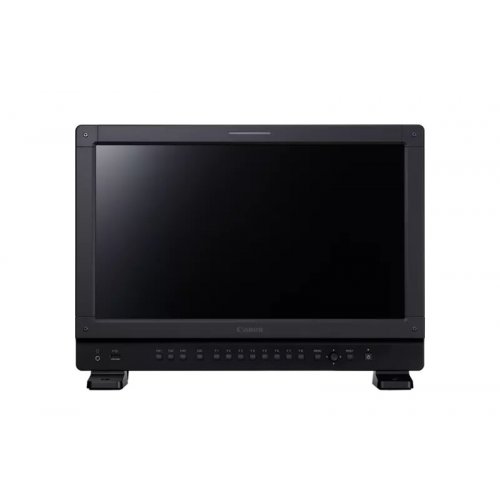

Canon DP-V1711 17-Inch UHD 4K Reference Display

Model: 3216C002

Canon DP-V1711 17-Inch UHD 4K Reference Display
Canon DP-V1711 17-Inch UHD 4K Reference Display
  • Shipping Charges Apply
  • Not In-Stock - Available to Order
  • Not yet reviewed




About: Canon DP-V1711 17-Inch UHD 4K Reference Display

The Canon DP-V1711 UHD 4K Reference Display is a compact and rugged display. It supports UHD (3840 X 2160) and 4K signals for use in broadcast and cinema workflows where high mobility is needed.

The innovative Canon-designed white LED backlight with its IPS panel facilitates a wide-viewing angle, and the anti-glare coating helps improve on-set visibility. It also features a specially developed image-processing engine to help produce uniform brightness. The DP-V1711 utilizes the same high image quality technology found in Canon's other reference displays so you can rely on a consistent look throughout the entire workflow, using any combination from the Canon Reference Display line.

The DP-V1711 works with a variety of workflows, including a link up with ARRI ALEXA SXT camera systems for cinema productions, while its size and full feature set help make it a superb choice for broadcast productions both on set and in broadcast vans and studios.

Supporting broadcast/digital cinema EOTFs, as well as Canon's own proprietary Canon Log/2/3, and the latest HDR EOTFs, Hybrid Log-Gamma (ITU-R BT.2100) and SMPTE ST 2084, the DP-V1711 is also packed with an abundant selection of functions for supporting HDR production. The DP-V1711 is also equipped with 12G-SDI terminals. As a result, 4K60P video that up till now has been received on four SDI cables can now be received on one SDI cable, thus reducing the amount of required shooting equipment and materials.

Featuring an aluminum frame design for rigidity and strength, the reference display weighs less than 18 pounds. Importantly, its EIA 19” rack mount compatibility (7U) means it can replace existing FHD displays and is considerably easier to install than other larger 4K displays. It can be powered by 100-240V AC or 12VDC for additional flexibility.

The DP-V1711 is an ACES Compatible product.

  • Broadcast Standard UHD 4K (3840 x 2160) Video on a 17" Display
  • Internal 4K RAW De-Bayering with 12G HD-SDI Input
  • Support of New Standards and Various EOTFs
  • Abundant Functions for Supporting HDR Production
  • Superb Black Levels
  • Integration with ARRI Camera Systems

Specifications

  • Panel
    • Panel Type -  IPS LCD panel
    • Screen Size -  17.3 inch (43.8 cm)
    • Aspect Ratio -  17:9
    • Resolution -  3840 x 2160 (8.3 megapixels)
    • Active display area -  Approx. 381.9 x 214.8 mm
    • Pixel Pitch -  99 µm / 255 ppi
    • Panel Driver -  8 bit for each RGB color
  • Image Quality
    • Brightness (Standard) -  100 cd/m2
    • Viewing Angle (Up, Down, Left, Right) -  89°; (contrast ratio 10:1 or higher)
    • Surface Treatment -  Anti glare coating
  • General
    • Backlight Type -  White LED, direct down type
    • Power
      • Rated voltage: AC 100 - 240 V Rated frequency: 50/60 Hz
      • DC 24 V max. 10 A, XLR terminal
    • Power Consumption
      • At Maximum Load (including change in brightness through aging): Approx. 140 W
      • At Factory Shipment: Approx. 85 W
    • Environmental Conditions
      • Operating
        • Temperature and humidity: 0 to 40° C (32 - 104 °F) (20 - 85 % RH no condensation), recommended: 15 - 30 °C (59 - 86 °F)
        • Pressure: 700 - 1060 hPa
      • Storage / Transporting
        • Temperature and humidity:
        • -20 - 40 °C (-4 - 104 °F) (20 - 85 % RH no condensation)
        • 41 - 60 °C (105 - 140 °F) (20 - 30 % RH no condensation)
      • Pressure -  700 - 1060 hPa
    • Dimensions (Width x Height x Depth)
      • With stand and handle: Approx. 435 x 356 x 194 mm (17.1 x 14.0 x 7.6 in.)
      • Display unit only, without protruding parts: Approx. 435 x 308 x 154 mm (17.1 x 12.1 x 6.1 in.)
    • Weight -  Approx. 17.6 lbs. (8 kg)
    • Mounting Hole Pitch -  VESA standard 100 x 100 mm (3.9 x 3.9 in)

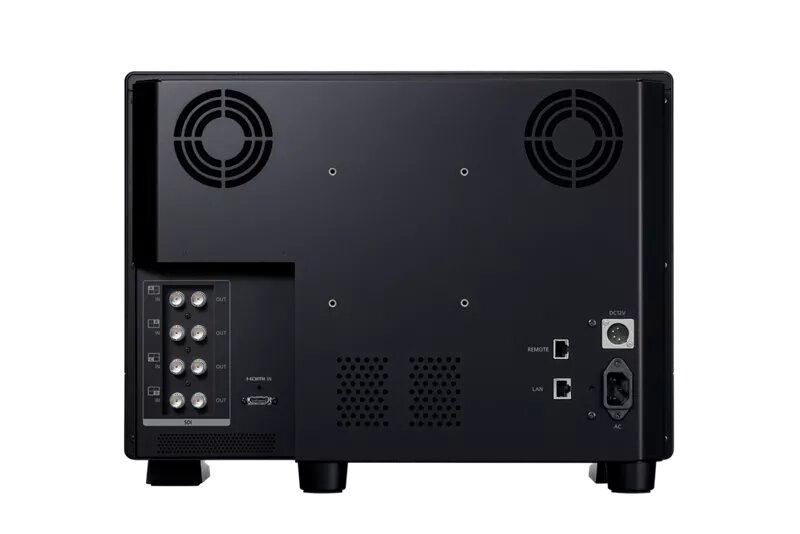

  • Interface - Input
    • 12G/6G/3G/HD-SDI -  4 (system) BNC (75Ω) receptacle terminal
    • HDMI
      • 1(1 system) Type A terminal (4K 60P Support)
      • Copy protection: HDCP 2.2
  • Interface - Output
    • 12G/6G/3G/HD-SDI -  4 (pass-through 1 system)
    • Headphone -  1 stereo mini-jack. Supported impedance: 32-64Ω
  • Interface - Control
    • USB -  1 USB A receptacle terminal. Universal Serial Bus Specification Revision 2.0 compliant LS (Low Speed) / FS (Full Speed) / HS (High Speed) mode compatible. Enhanced Host Controller Interface Specification for Universal Serial Bus Revision 1.0 compliant.
    • LAN -  1 RJ-45 terminal IEEE802.3 10BASE-TX / IEEE802.3u 100BASE-TX compliant
    • Remote -  1 RJ-45 terminal, GPI 8 pin

Supplied Accesories

  • AC Power Cord
  • Instructional Manual
  • AC Power Cord Clamp
