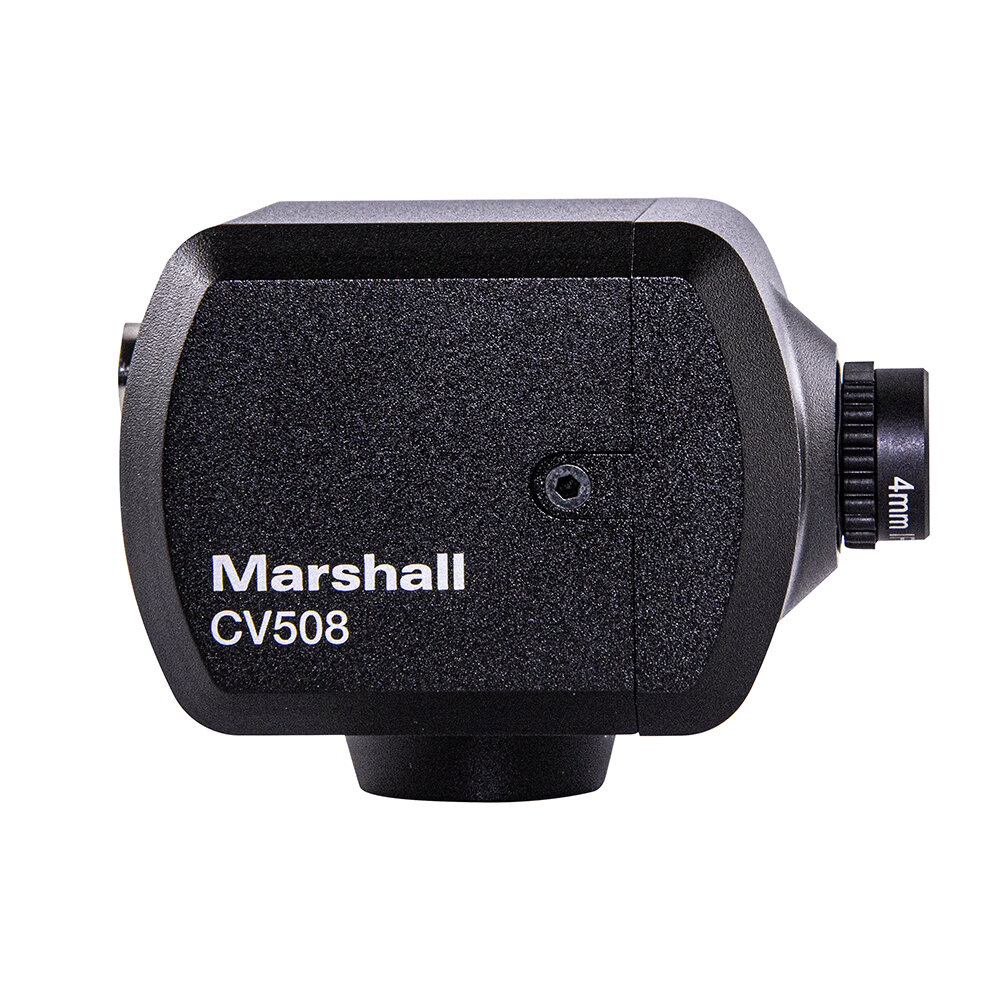

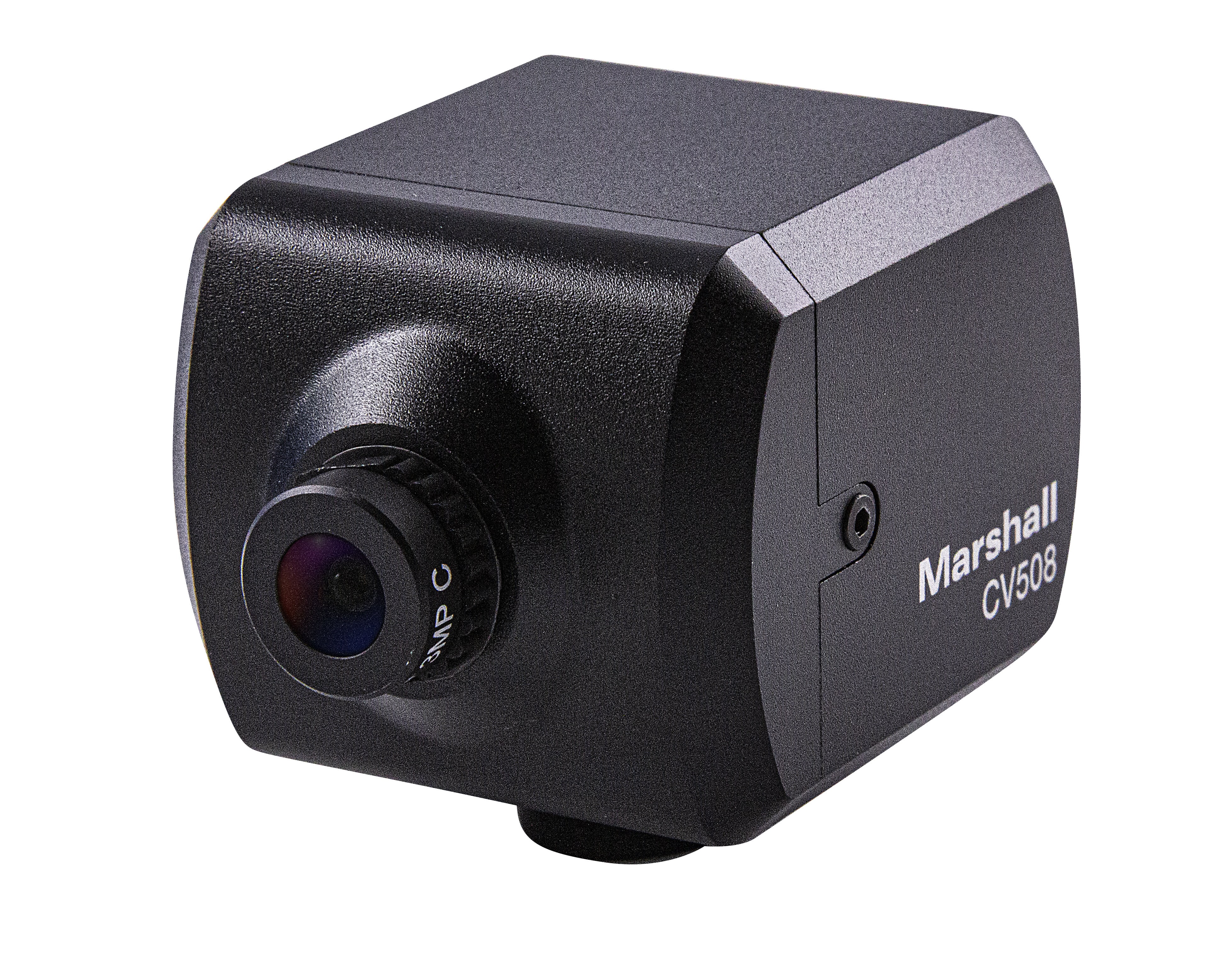

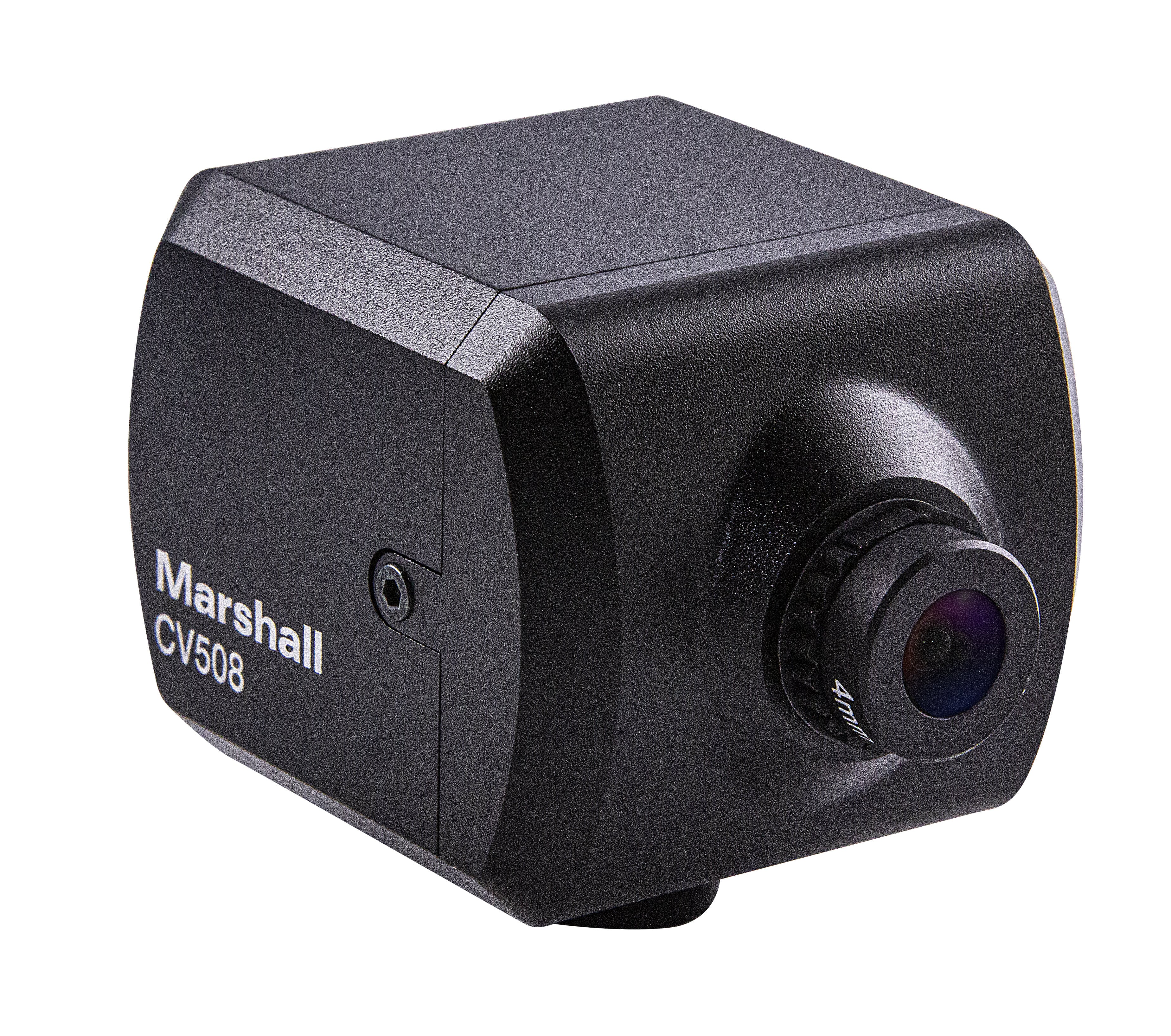

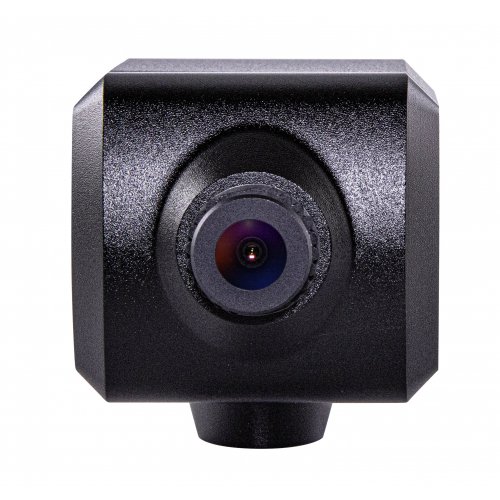

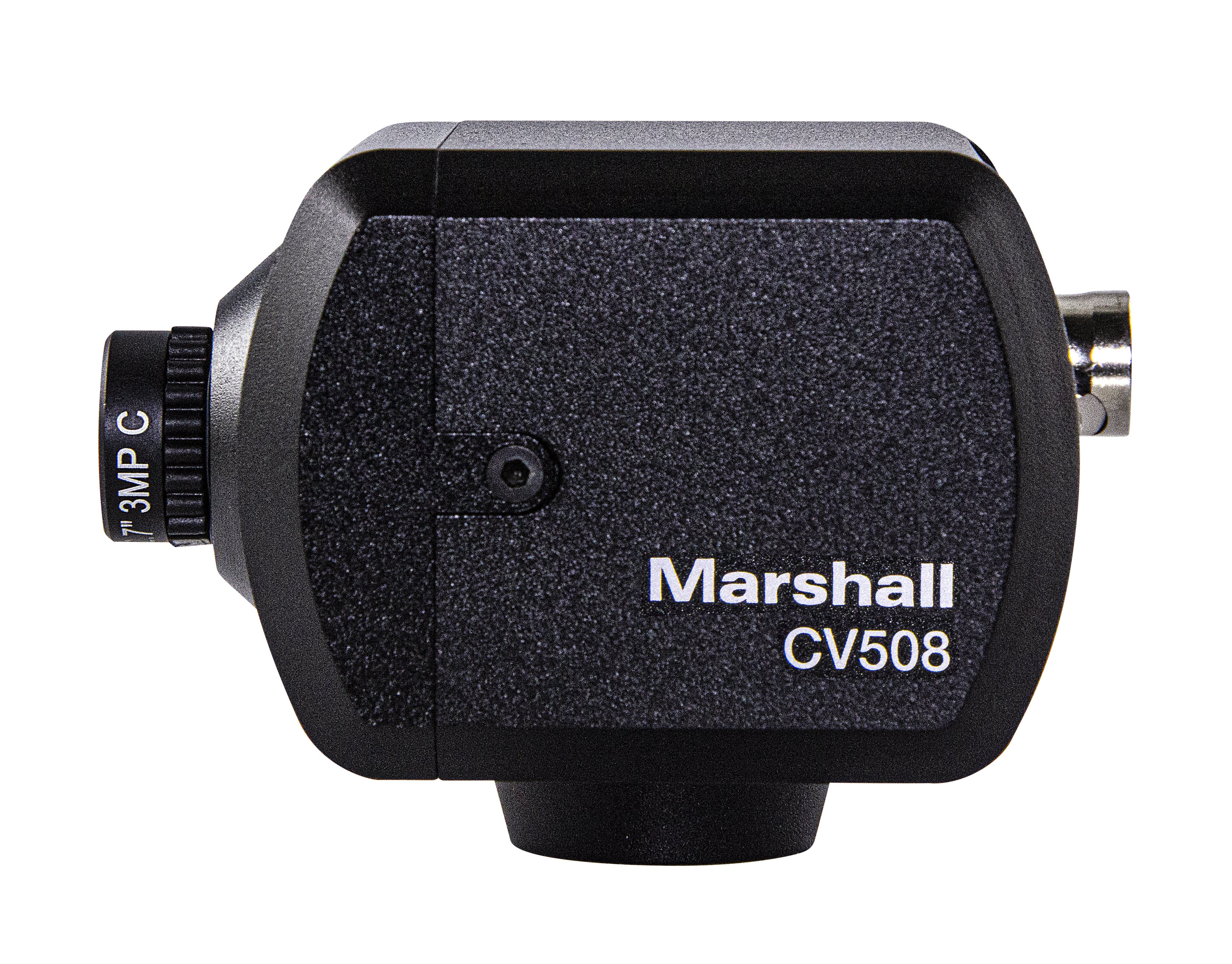

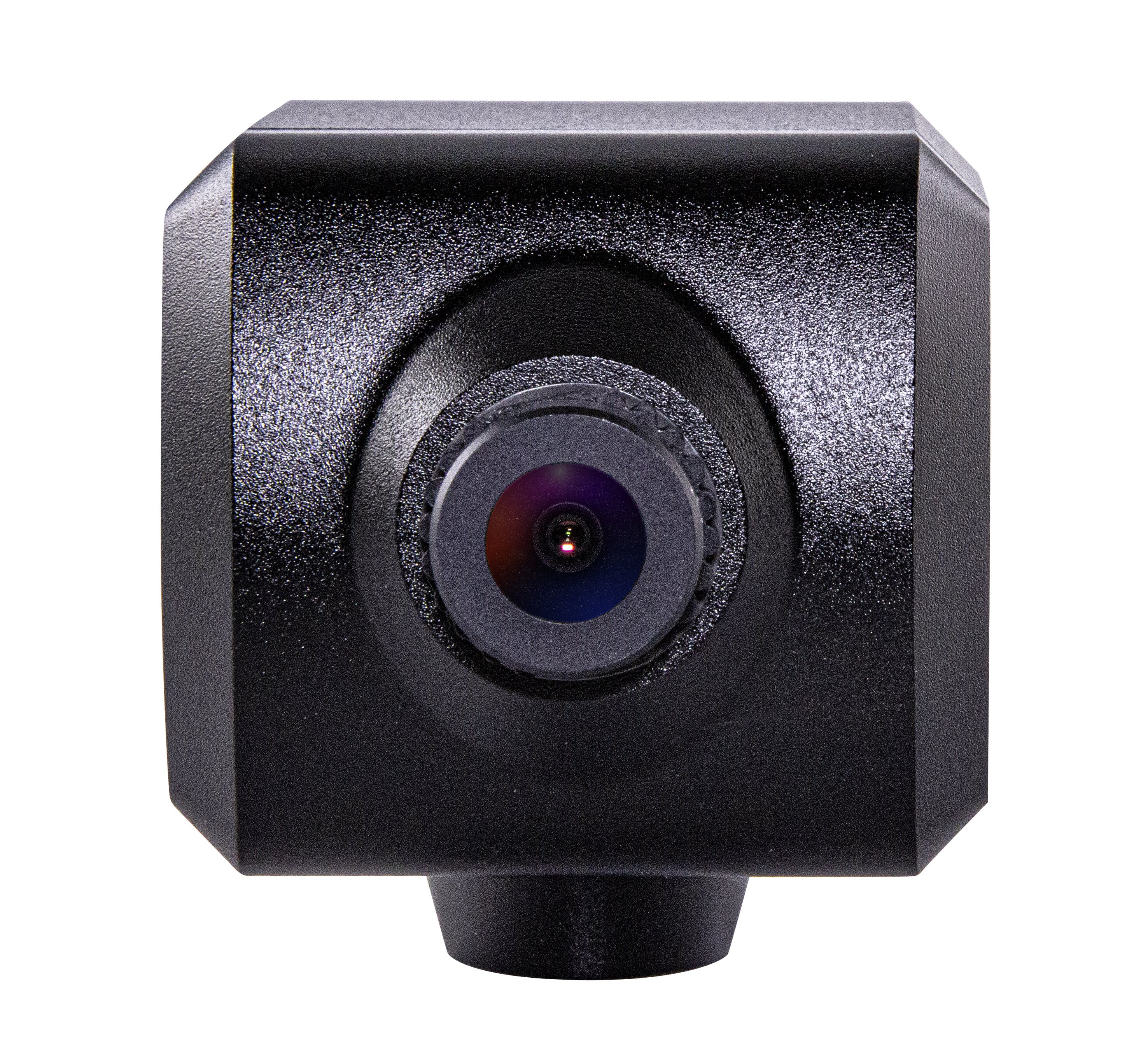

Marshall Electronics CV508 Micro POV Camera HDMI + SDI

About: Marshall Electronics CV508 Micro POV Camera HDMI + SDI

The Marshall CV508 camera is a broadcast quality POV camera delivering exceptional 10-bit HD 4:2:2 video performance (BT.709) from a durable and discreet aluminum alloy body with flexible interchangeable lenses. The new Sony sensor offers rich color accurate video with enhanced low-light sensitivity and refined remote adjust and match features making it the most powerful POV camera on the market.

• 2.2 Megapixel Sony sensor with square pixel array and larger pixels
• Interchangeable M12 lens mount; comes with a 4.0mm - 85° Horizontal AOV

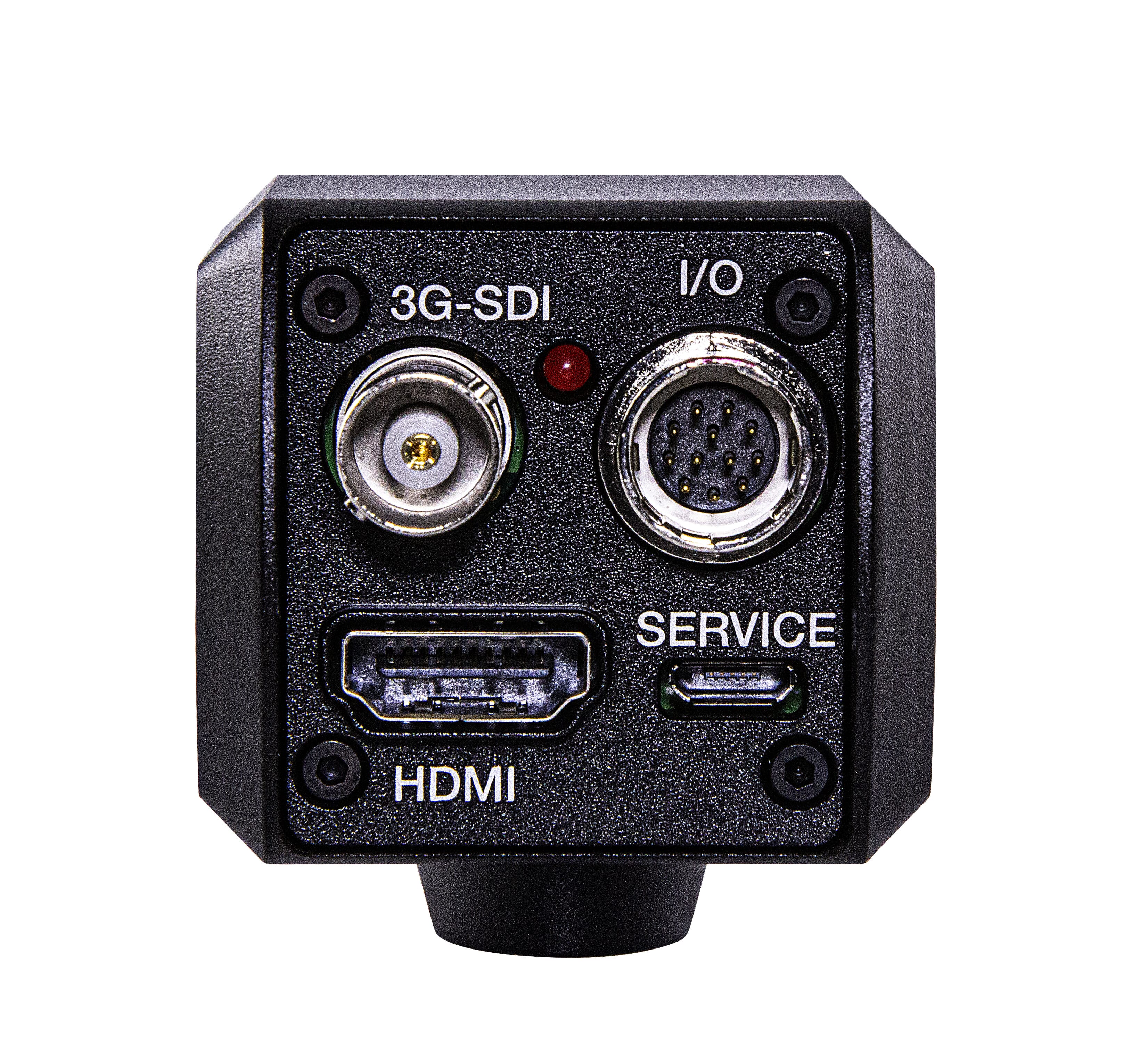

• HDMI & 3GSDI (10bit, 4:2:2, BT.709) with remote adjust & match
• 1920x1080p, 1920x1080i & 1280x720p resolutions selectable
• Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
• Control via CV-RCP-V2, Camera Control Software and/or a variety of 3rd party sources
• Micro-USB port for field upgradeable firmware via PC
• Locking Hirose cable (included) for OSD menu joystick, RS485, AUDIO and power
• Weight: 0.3lbs (0.136kg); approx dims: 40mm x 44mm x 55mm
• Power: 12V+/-10% drawing 2.76W (max 6W)

New Sony 1/2.8" (6.46mm) Solid-Sate Image Sensors

The next generation Sony sensors provide clear HD images with rich accurate 10bit (4:2:2) color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured in complete darkness.

Interchangeable M12 Lenses

Marshall CV508 cameras come with a high-quality 4.0mm (85° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application..

Durable, Flexible, Powerful

The durable CV508 body is chiseled from a block of aluminum alloy with rear panel connector protection. CV508 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability.

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
