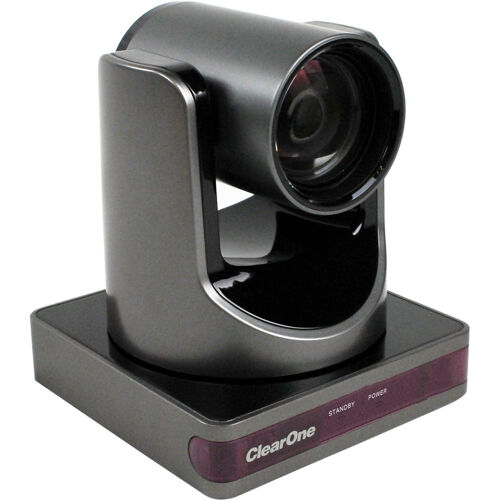

ClearOne UNITE 150 USB PTZ Camera

Model: 910-2100-004

ClearOne UNITE 150 USB PTZ Camera
  • Free Shipping!
  •  Special Order: Contact us for Lead Time
  • Not yet reviewed



About: ClearOne UNITE 150 USB PTZ Camera

Professional-grade HD USB PTZ camera for conference rooms, webconferencing, UC applications and more.

Key Highlights

  • Full HD 1080p video, 12x optical zoom, and wide-angle capability to capture all participants in the room with advanced noise reduction.
  • Compatibility with USB 3.0 and 2.0 makes it perfect for PC-based video and web conferencing applications.
  • Compatible with popular applications such as COLLABORATE® Space, Microsoft Teams,Cisco Jabber, WebEx, GoToMeeting, Google Hangouts, and more
  • Control the camera’s functions via IR remote control, RS-232, or USB control.

Applications

  • PC-based video conferencing
  • Web conferencing
  • Unified communications
  • Capture applications and more

Environments

  • Huddle spaces
  • Executive offices
  • Conference rooms
  • Boardrooms
  • Training centers

CAMERA

  • Video System : 1080p /30, 1080p /25, 720p /30, 720p /25
  • Sensor : 1/2.7 ’’, CMOS, Effective Pixel: 2.07M
  • Scanning Mode : Progressive
  • Lens : 12x, f3.5mm – 42.3mm, f1.8 – f2.8
  • Minimal Illumination : 0.05 Lux @ (F1.8, AGC ON)
  • Shutter : 1/30s – 1/10000s
  • White balance : Auto, Indoor, Outdoor, One Push, Manual
  • Backlight Compensation : Supported
  • Digital Noise Reduction : 2D & 3D Digital Noise Reduction
  • Video S/N : ≥55dB
  • Horizontal angle of view : 72.5° – 6.9°
  • Vertical angle of view : 44.8° – 3.9°
  • Horizontal Rotation Range : ±170°
  • Vertical Rotation Range : -30° – +90°
  • Pan Speed range : 1.7° – 100°/s
  • Tilt Speed Range : 1.7° – 69.9°/s
  • H & V Flip : Supported
  • Image Freezing : Supported
  • Number of Presets : 255
  • Flexible Installation : Standard Mount, upside-down mount

USB Features

  • Operating Systems: Windows 7, Windows 8, Windows 8.1, Windows 10, MacOS, Linux
  • Color System: YUV 4:2:2
  • Video Formats: usb 3.0: 1080p/30, 1080p/25, 720p/30, 720p/25
  • USB Video Communication: UVC 1.0
  • UVC PTZ: Supported

INPUT/OUTPUT INTERFACE

  • Audio Inputs: 1-ch 3.5mm Audio Interface, Line In
  • USB: 1 x USB 3.0: Type B Female jack 1 x USB2.0: Type A Female jack (reserved interface)
  • 1x RS-232 in:8-Pin Min din, Max distance:30M, Protocols:Visca/Pelco-d/Pelco-p1 x RS-232 Out:8-Pin Min din, Max distance:30M, Protocols:visca network use only 1 x RS485:share with RS232 Out, Max distance:1200M, Protocols:visca/Pelco--d/ Pelco-p

GENERIC SPECIFICATIONS

  • Power Jack : Jeita Type (DC in 12v)
  • Input Voltage : DC 12v
  • Power Consumption : 12w (MAX)
  • Operating Temperature : -10°C – 40°C
  • Storage Temperature : -40°C – 60°C
  • Dimensions : 240mm x 144mm x 160mm
  • Weight : 1.65kg (3.6lb)
  • Part Number : 910-2100-004

UPC: 671010009835

Reviews: ClearOne UNITE 150 USB PTZ Camera

There are currently no product reviews.


Warranty: ClearOne UNITE 150 USB PTZ Camera

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

ClearOne (Manufacturer) warrants that this product is free of defects in both materials and workmanship for a period of time, from the date of purchase, of duration as ClearOne has announced for particular products.

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
