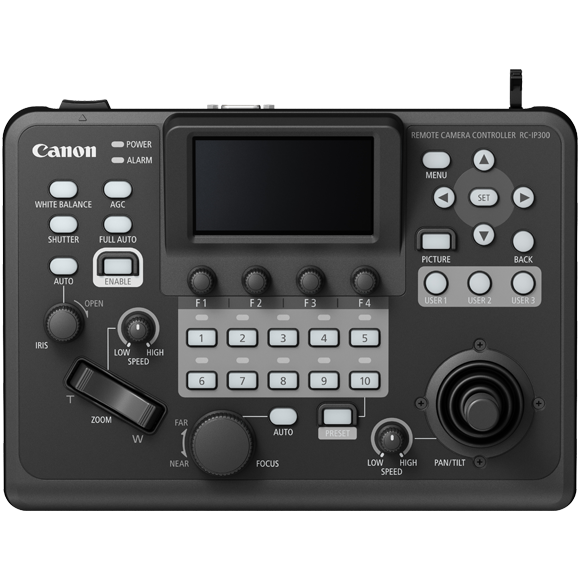

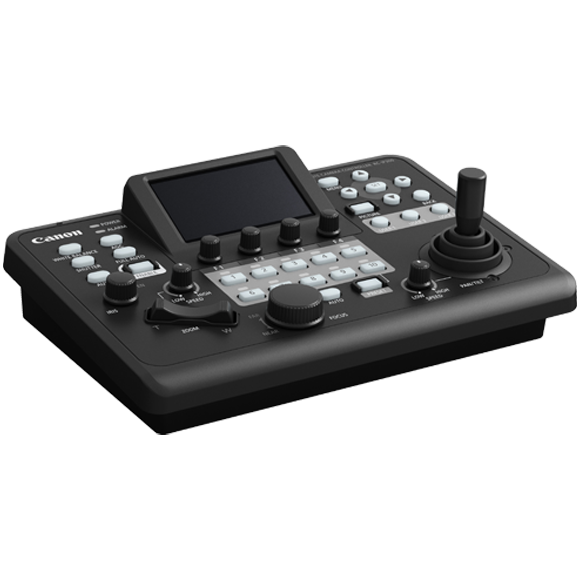

Canon RC-IP300 PTZ Camera Controller

About: Canon RC-IP300 PTZ Camera Controller

The RC-IP300 is an advanced PTZ controller enabling fast operation of multiple PTZ cameras through a tactile control interface. Featuring assignable buttons, programmable trace operation, and adjustable speed and response controls, this controller helps enable intuitive control of multiple PTZ cameras quickly and easily. With a 3.5-inch touch panel that provides clear visibility, showing operation menus and live camera video feeds, capability to control up to 200 cameras over IP, and more cutting-edge capabilities, the RC-IP300 is built for multi-camera productions.

Features

• Compact and lightweight Fully featured remote camera controller provides smooth PTZ movement and precise control
• 3.5” touch panel for a clear display of operation screens, camera configuration, live camera views, and Touch Auto Focus
• Control up to 200 supported Canon cameras
• User assignable buttons and dials allow users to customize the controller to provide easy access to their most frequently used functions
• Adjust pan, tilt, zoom and change camera function settings remotely
• Support for multiple connected cameras to be operated and configured simultaneously
• Control lever and zoom rocker with adjustable reaction rate
• Camera OSD menu from compatible cameras can be shown on the touch panel and operated using push-button controls
• Powered by Power over Ethernet or AC Adapter (included)

General

• Power
  • LAN Terminal: PoE power supply supported (IEEE802.3af Compliant)
  • DC IN 12V terminal: DC input: DC 11.4 - 12.6 V
• Power Consumption
  • PoE input: 12.4 W (max power consumption)
  • DC input: 11.4 W (max power consumption)
• Dimensions: Approx. 10.04 x 2.91 x 7.09 inches (255 × 74 × 180 mm)
• Weight: Approx.2.87 lbs (1.3kg)
• Operating Temperature: 0 °C ~ 40 °C (+32°F – +104°F)

Camera Control

• Controller Supported Cameras
  • CR-N700, CR-N500, CR-N400, CR-N350, CR-N300, CR-N100, CR-X500, CR-X300, XF605, EOS C300 Mark III, EOS C500 Mark II, EOS C70, EOS C400, EOS C80, EOS C50
• Number of Connectable Cameras: 200 (1 with serial connection)
• Number of Camera Select Buttons: 10
• Number of Camera Groups: 20 (10 cameras in 1 group)
• Supported Protocols: XC protocol (IP) NU protocol (serial), Standard (serial)
• Preset (Store/Play/Delete): Up to 100 for each camera
• Trace (Store/Play/Delete: Up to 10 for each camera
• Other Controls: Control lever, zoom rocker, focus dial, user buttons x 12 (3 Hard Buttons), dials x 7, up down left right select buttons
• Supported Add-On Applications: RA-AT001 Auto Tracking Application, RA-AL001 Auto-loop Application
• Stream Deck Support: Stream Deck Mini, Stream Deck Mk.2, Stream Deck XL*, Stream Deck Pedal
• * - External power supply required via USB Hub

Screen

• LCD Display: 3.5-inch touch panel, 1280 x 720 resolution
• Camera Video Preview: YES (IP), up to 9 cameras per page
• Touch Focus: YES (IP)
• Crop Frame Control: YES (IP - CR-N700, CR-N400, CR-N350 only)
• OSD Menu Display: YES (IP, supported cameras only)
• Assist Display: Waveform Monitor, Vector Scope, Center/Grid/Area Marker

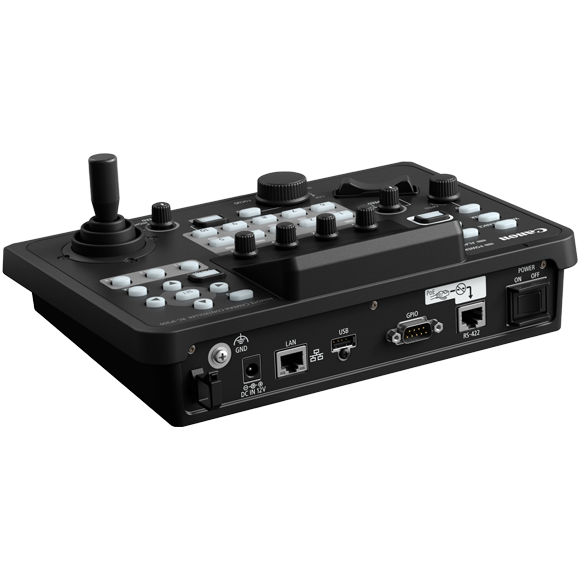

Terminal

• GPIO D-Sub 9pin x 1 port: For GPIO external control/link
• LAN / PoE+ RJ45 port: IP camera control, supports PoE
• Serial RJ45 port x 1: RS-422 Serial camera control
• 12V DC Input: DC Power - Adapter Included
• USB Type A x1: Save Settings, Firmware Updates, Stream Deck Support
