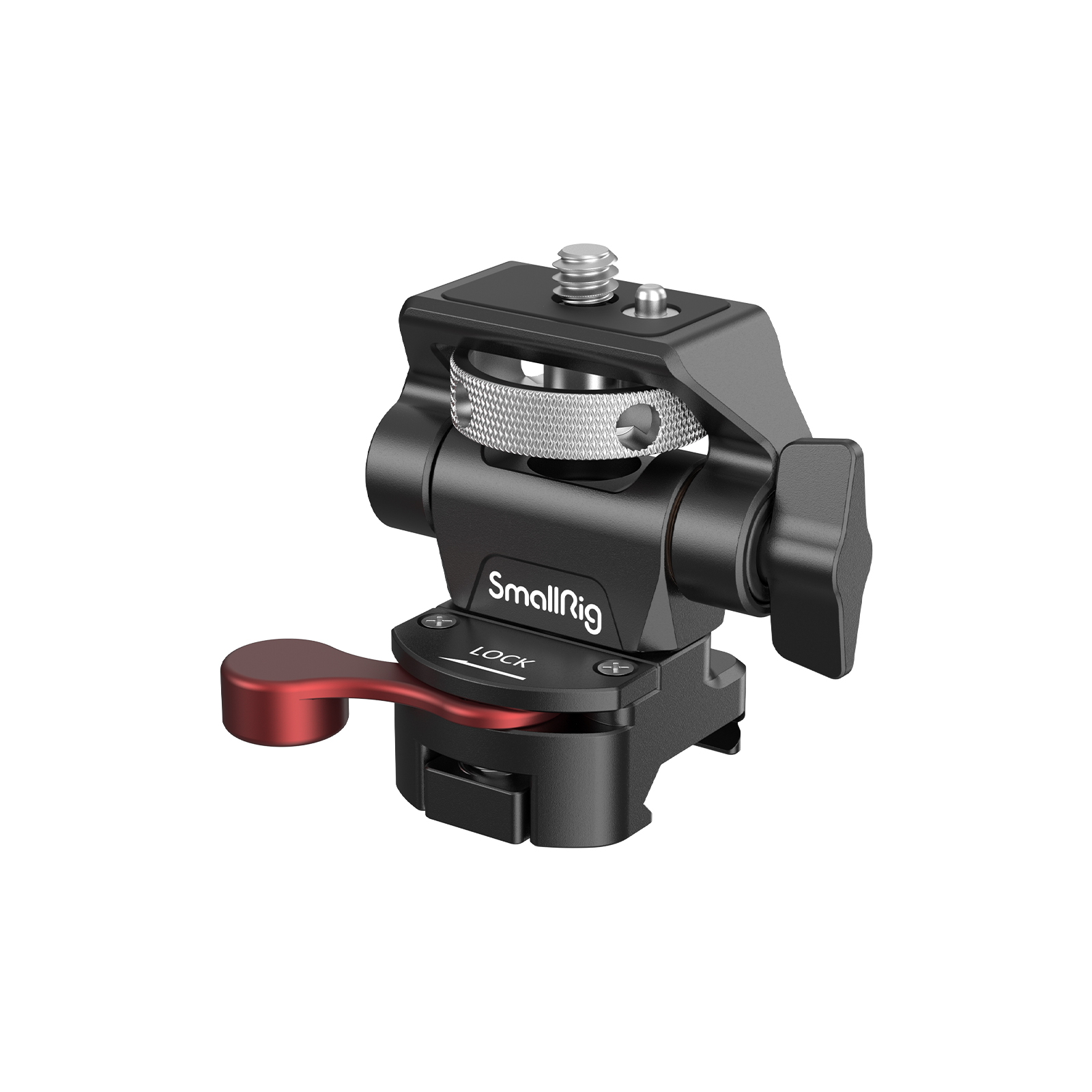

SmallRig Swivel and Tilt Adjustable Monitor Mount with NATO Clamp Mount
Model: 2906B
About: SmallRig Swivel and Tilt Adjustable Monitor Mount with NATO Clamp Mount

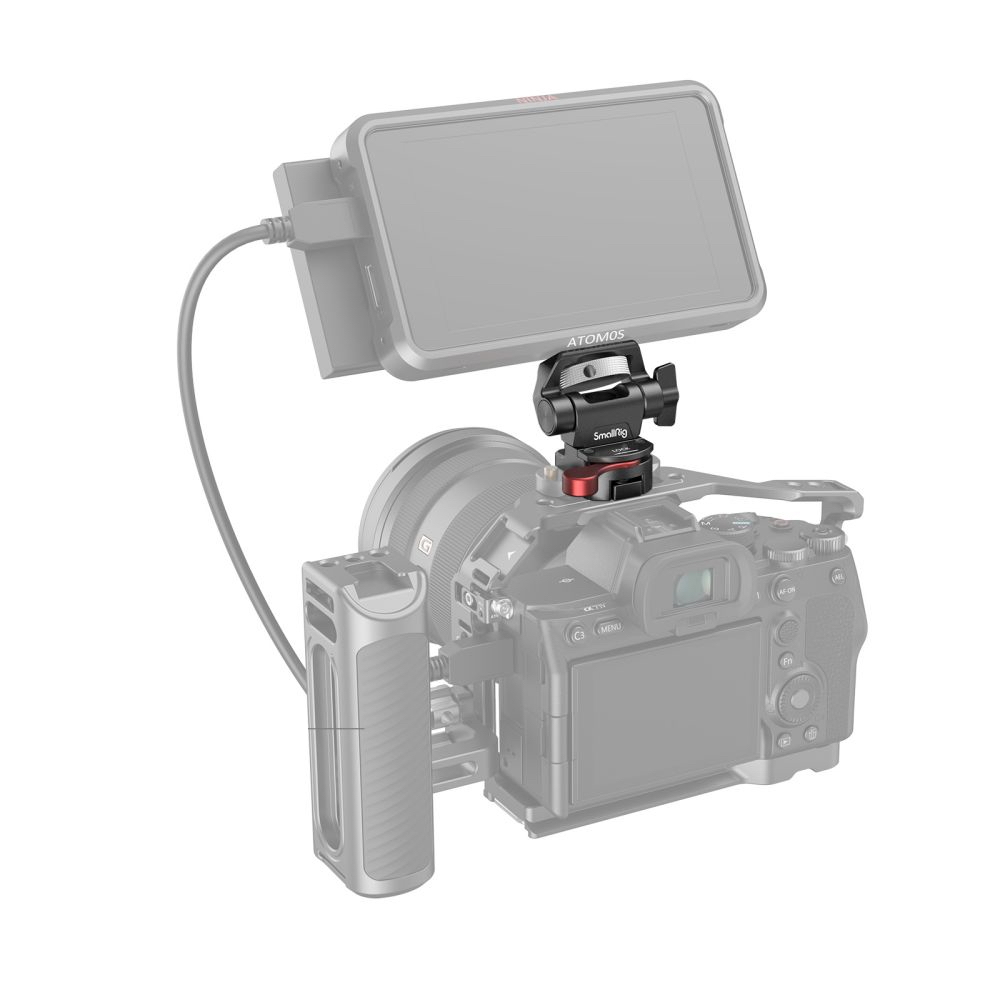

The SmallRig Swivel and Tilt Adjustable Monitor Mount with NATO Clamp Mount is designed to hold your monitor for easy monitoring. It fits standard NATO rail for quick release and comes with a top 1/4"-20 screw for monitor, microphone, light, etc. The mount can tilt 180° and and swivel 360°. Its tilt axis is quickly tightened via a knob to suit different weight and features tested durability, with tilt load capacity decreased by no more than 20% after 10,000 tilts, while its pan axis is 360° adjustable via an Allen wrench. Bouncy locating pins on the top help secure Ninja V/ V+. The thumbscrews have holes for Allen wrench to facilitate assembly and disassembly.
Features
- Supports 5" and 7" Onboard Monitor up to 1.5kg

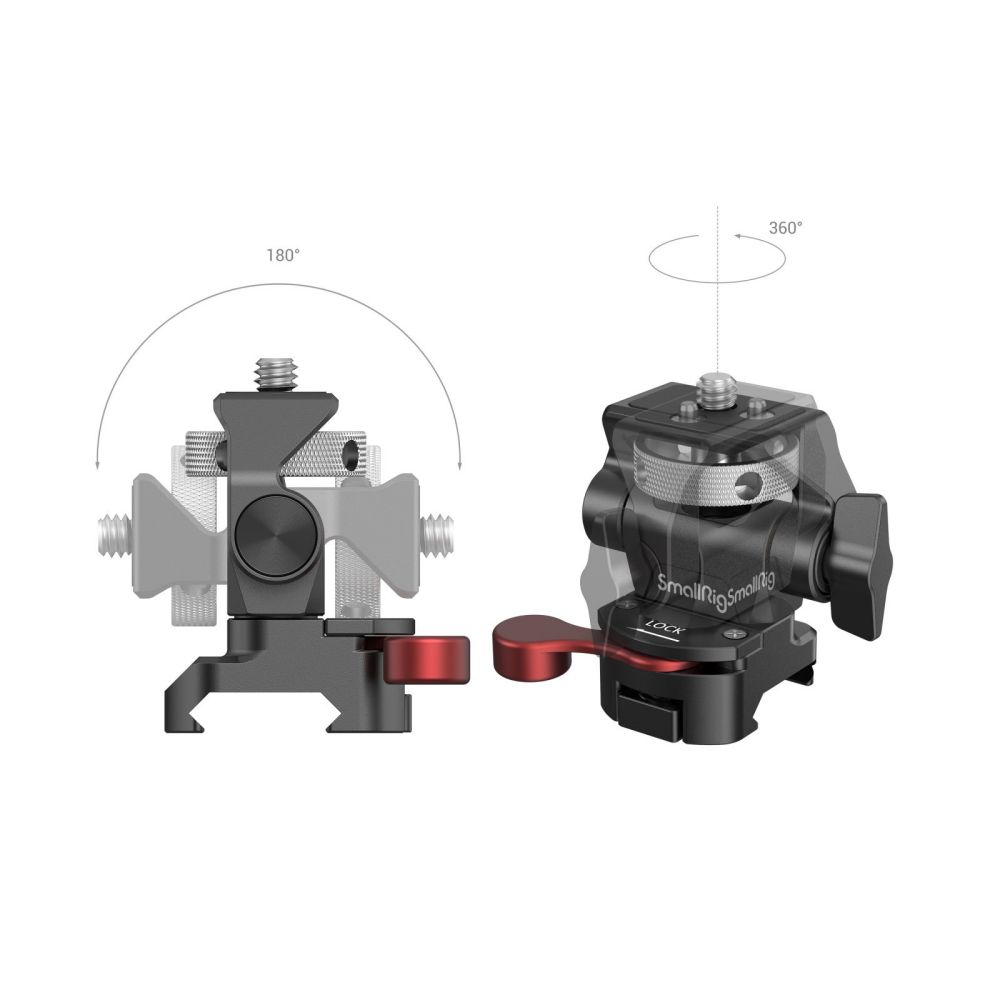

- Swivels 360° and Tilts 170°
- Tightness Adjustable on Each Axis
- Features Slots on Thumbscrews for Tightening the Mount
- Secures to Camera Cage via Quick Release NATO Clamp
Compatibility
5" and 7" monitors
Specifications
- Product Dimensions: 53.8 x 52.6 x 36mm
- Net Weight: 85g±5g
- Load Capacity
- 90° load capacity: ＜4.2kg
- 45° tilt load capacity: ＜2.5kg
- 30° tilt load capacity: ＜2.3kg
- Material(s): Aluminum Alloy, Stainless Steel
What's in the Box
- 1x Monitor Mount
- 1x Allen Wrench
Note: This product does not include NATO rail. The SmallRig 1409 or 2172 are sold separately.
