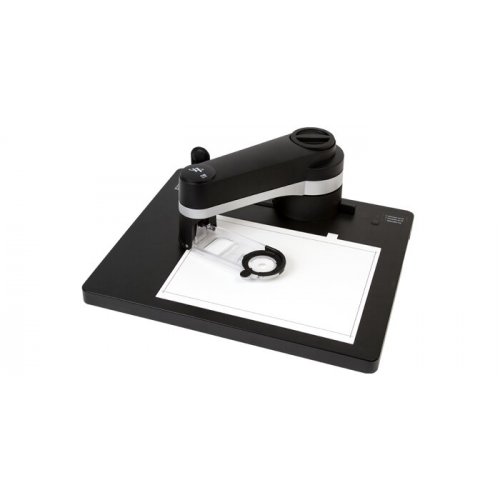

Calibrite i1iO 3 Automated Scanning Table

About: Calibrite i1iO 3 Automated Scanning Table

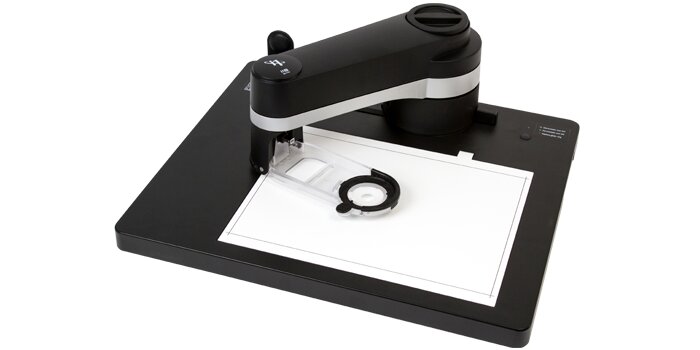

The i1iO is a robotic, automatic chart reading system designed for photographers, designers, and printers who want to eliminate manual strip reading.

Manually reading test charts for profiling and color validation is time-consuming and leaves room for human error. The new model of i1iO has been developed to accommodate the i1Pro 3 and the i1Pro 3 Plus, providing a simple way to enhance functionality, versatility, and speed up the measurement process.

Designed to accommodate the i1Pro 3 and i1Pro 3 Plus, this enhanced model features additional functionality and versatility, transmissive profiling capabilities, and faster measurements.

Simple. Quick. Versatile.

• Measures reflective test charts on a variety of substrates up to 10 mm thick, including thin polybag material, ceramics, and textiles.
• Reads more than 500 patches per minute in scanning mode under the M0 measurement condition to quickly create custom profiles.
• Offers ultimate flexibility through hands-free automation and ease-of-use.
• Supports automated transmission profiling with i1Pro 3 Plus for backlit film and materials used in signage.
• Provides more accurate and consistent profiles than created by hand.

Integration with i1Pro 3 Products

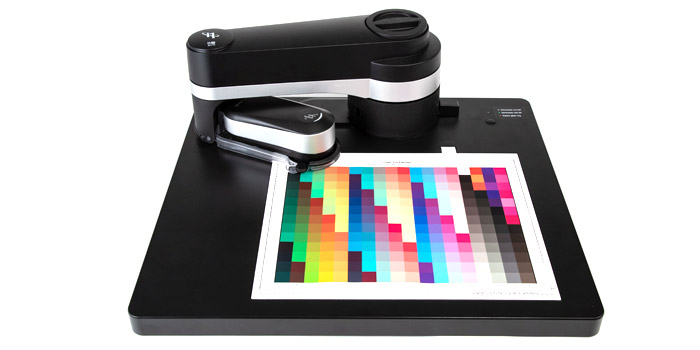

The i1iO enables hands-free chart reading for automated color profiling. Combined with the i1Pro 3 & i1Pro 3 Plus, the i1iO optimizes automated file creation allowing for a reduction of wasted time and materials during production.

Specifications

• Available Disk Space -  2GB
• Calibration -  Automatic on Integrated Calibration Reference
• Communication Interface -  USB 1.1
• Connectivity -  Powered USB port
• Dimensions (length, width, height) -  510 x 460 x 170 mm, 20 x 18.1 x 6.7 (Width x Depth x Height)
• Experience Level -  Intermediate to Advanced
• Languages Supported -  Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish
• Measurement Background -  White
• Media Thickness
  • Max. 10mm
  • Max. 33mm with optional Z Axis SpacerPatch Size Minimal Patch Size in Scanning Mode: 16 x 16 mm (0.63” x 0.63”) with i1Pro3 Plus
• Scanning Area -  Positioning Area: 32 x 23 cm, 12.6” x 9” (Width x Height)
• Scanning Capability -  Yes
• Single Pass Scan -  Yes
• Software Development Kit -  Available for OEM customers
• Software Modes -  Basic & Advanced
• Unit Color -  Black/Silver
• User Experience -  Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results
• Voltage -  100 to 240 VAC, 50 / 60 Hz
• Windows -  Windows 8.1, 10 (with latest Service Pack installed)
• Macintosh -  MacOS X 10.13x, 10.14x or 10.15x (with latest upgrades installed)
• Weight -  4.5 kg, 9.9 lb (without i1 Pro device)

What's Included

• i1iO table
• Replacement Glider Ring
• Auto rating power supply 100 – 240 VAC
• 50/60Hz
• Main power cable
• USB cable
• Quick Start Guide
