Tilta Sony FS7 Camera Rig

About: Tilta Sony FS7 Camera Rig

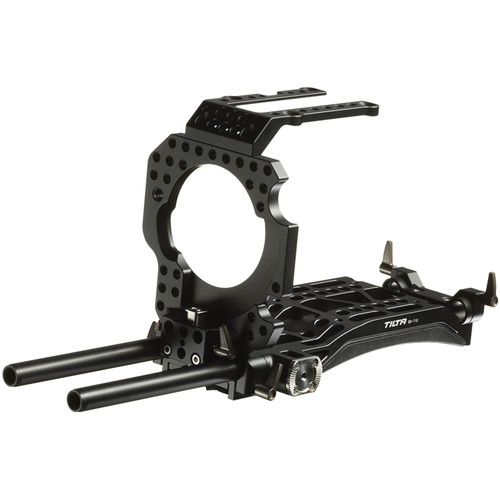

The ES-T15 from Tilta is designed to conform to the shape of the Sony FS7 and FS7 MK II. Now with a wider opening in the face plate, the ES-T15 fits both cameras securely and adds extra functionality via twin ARRI-style rosettes, an integrated 15mm rod system with rods included, and a VCT-14 mounting wedge on the underside of the rig. It also has an built-in shoulder pad for comfort, and extra 15mm rods can be added to the rear of the rig for mounting battery plates and other accessories.

Features

• New Faceplate is Now Compatible with the FS7 MK II
• 15mm VCT-14 Shoulder Pad Baseplate with 2 Arri-Standard Rosettes
• Camera Front Plate with Built in Lens Adapter Support
• Top Plate Designed to Fit Around Existing FS7 Top Handle
• 15mm Rod Clamps Located on the Front and Back of Base Plate
• Two 200mm Long, 15mm Rods Included
• Constructed of Precision Machined Anodized Aluminum

Rig Specifications:

Cage Assembly w/ Rods:

• Weight: 2.23 lbs
• Weight (Metric): 1.01 kg
• Configured w/ Includes: VCT Baseplate, 15mm Rods, Lens Support
• Rod Compatibility 15mm
• Rod Spacing 60mm
• Rod Material Aluminum
• Rig Material Aluminum
• 1/4"-20 Threaded Holes 25
• 3/8"-16 Threaded Holes 1
• Camera Compatibility Sony PXW-FS7

Baseplate

• Dimensions: 9.6 x 4.75 x 1.6"
• Dimensions (Metric): 243.8 x 120.6 x 40.6mm
• Weight: 1.49 lbs
• Weight (Metric): .678 kg
• Baseplate Type: V-Lock (VCT-U14)
• Rod Compatibility: 15mm
• Rod Spacing: 60mm
• Rosette Mounts 2
• Tripod Mounting 1/4"-20 and 3/8"-16
• Camera Mounting 1/4"-20 and 3/8"-16
• Camera Compatibility Sony PXW-FS7
• Material: Aluminum

Rods

• Rod Type: Tapered (Single-Sided)
• Rod Diameter: 15mm
• Rod Length: 7.8"
• Rod Length (Metric): 200mm
• Weight: .12 lbs
• Weight (Metric): .056 kg
• Thread Type: Female
• Quantity: 2
• Material: Aluminum

WHAT'S INCLUDED:

• 2 X 7.8" 15mm Rods
• 2 X Long 3mm Socket Cap Screws
• 2 X Short 3mm Socket Cap Screws
• 3 X Lens Adapter Support Screws
• 3/16 Hex Key
• 3mm Hex Key
• Front Plate W/ Lens Adapter Support
• Quick Release Baseplate
• Top Plate

Camera not included
