Shape BP12 REVOLT VCT Baseplate with Telescopic Handles

Model: BP12

Shape BP12 REVOLT VCT Baseplate with Telescopic Handles
Shape BP12 REVOLT VCT Baseplate with Telescopic Handles
Shape BP12 REVOLT VCT Baseplate with Telescopic Handles
Shape BP12 REVOLT VCT Baseplate with Telescopic Handles
Shape BP12 REVOLT VCT Baseplate with Telescopic Handles
Shape BP12 REVOLT VCT Baseplate with Telescopic Handles
  • Free Shipping!
  • Not in-Stock: Estimated Lead Time 2-3 Days
  • Not yet reviewed




About: Shape BP12 REVOLT VCT Baseplate with Telescopic Handles

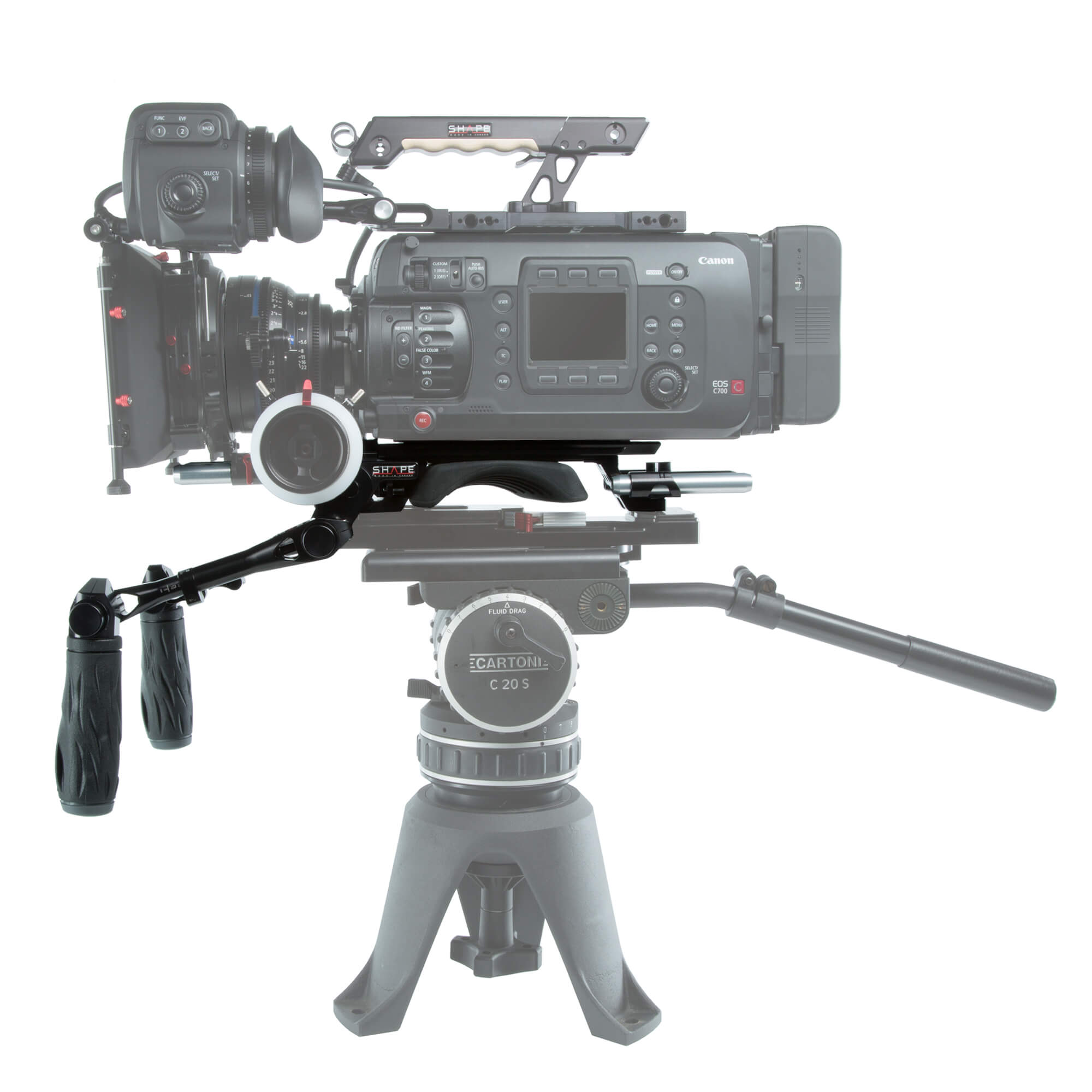

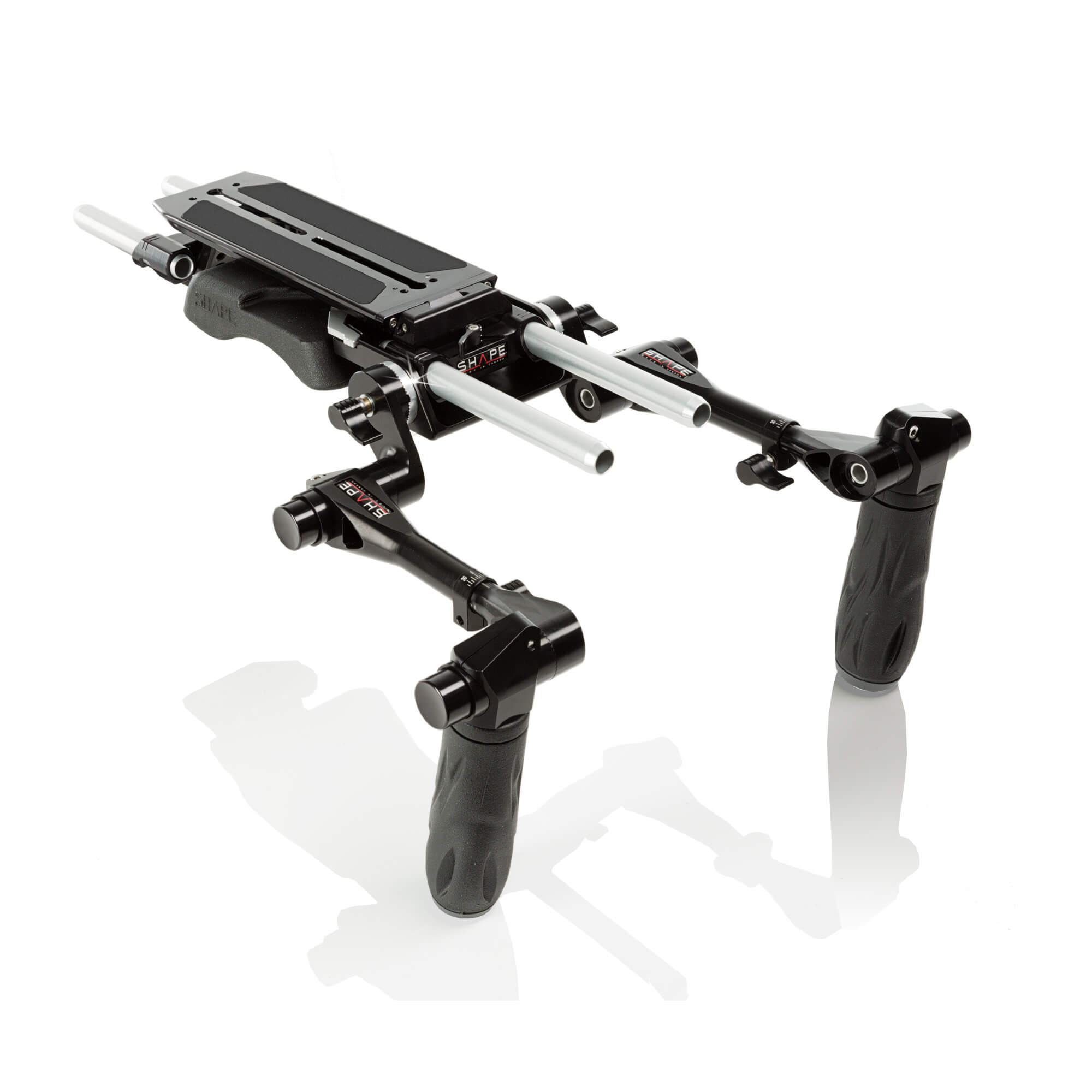

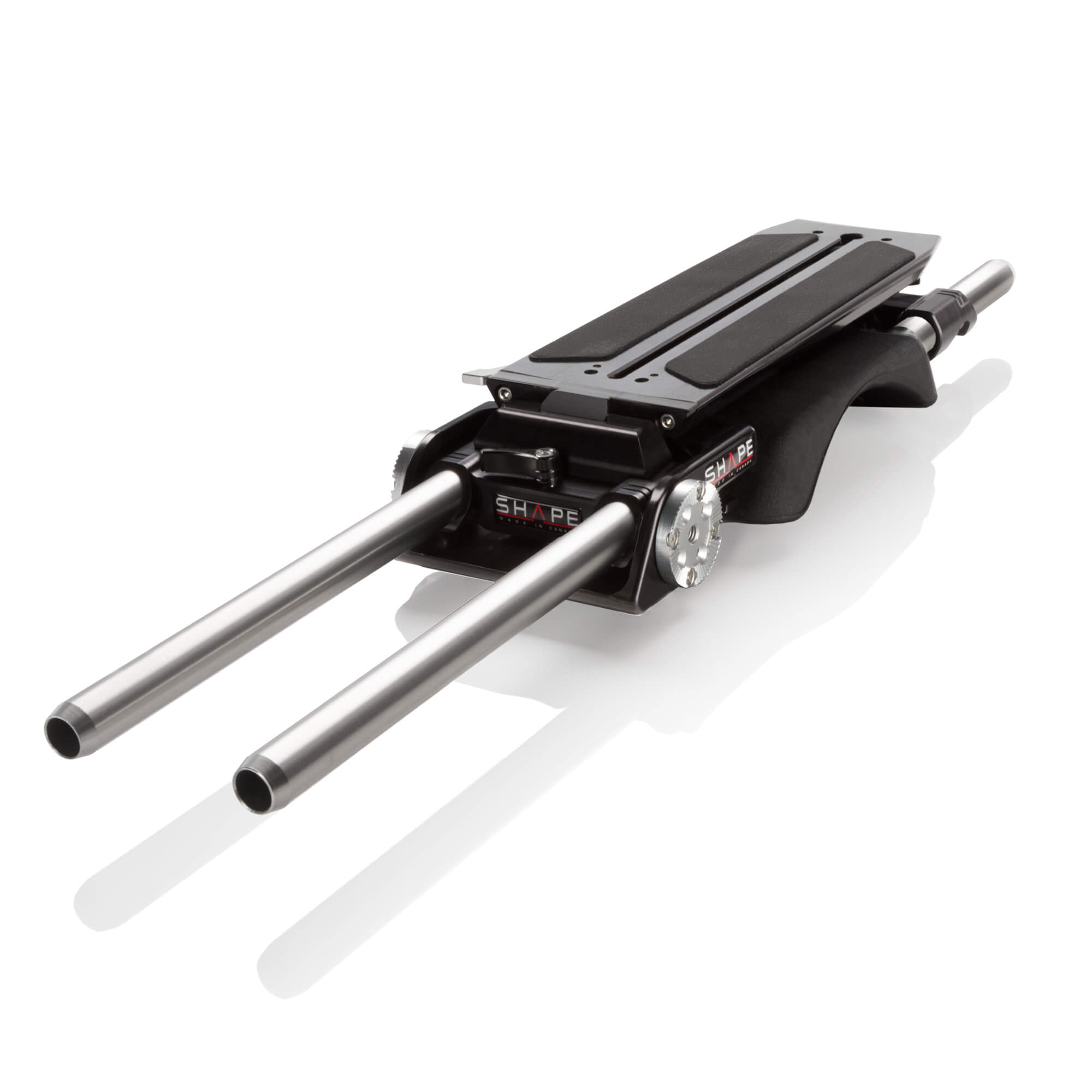

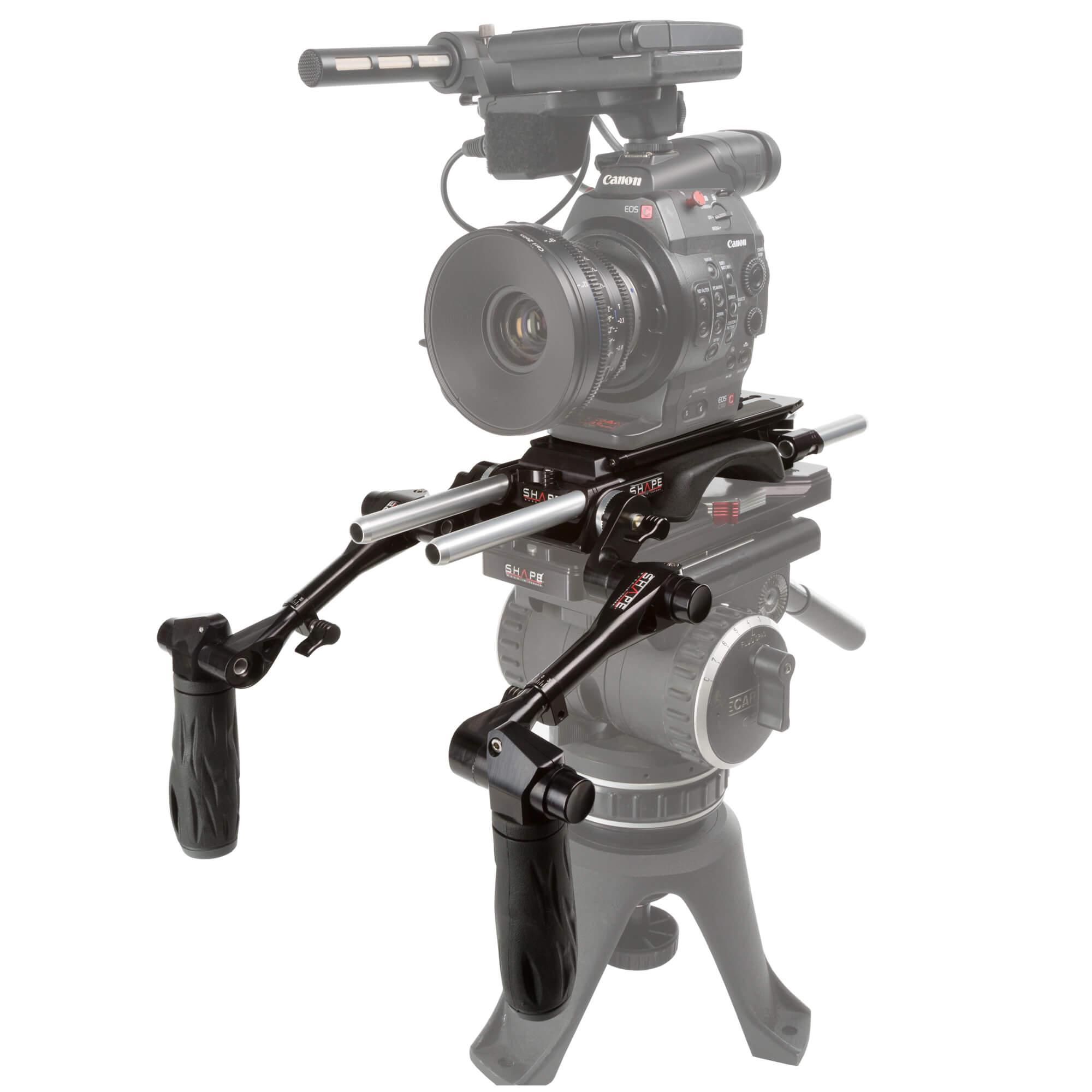

The REVOLT VCT Universal Baseplate (BP10) offers a unique design, created for both amateur and professional filmmakers seeking camera supports & stabilizers of high-quality. It features a front to back sliding plate allowing quick positioning of your camera accessories for an optimal adjustment of your camera’s center of gravity and weight distribution. It is designed with 2 standard Arri rosettes for handles mount and there is a standard quick release adapter plate compatible with most VCT tripod plate. There is also a protective rubber pads on top of the plate to protect your camera.

Two 15 mm lightweight rod blocs can be fixed to the front and rear of the baseplate, allowing you to install more camera accessories. It comes with 2 pairs of 15 mm rods (8”and 4”) made of reliable aluminum coated with a clear finish. The safety ratchet knobs are built in a way to apply an optimal pressure to the rods. The thick shoulder pad produces maximum comfort and is made of gel padding and slip-free material. The baseplate is also designed with a sophisticated tool box to store your extra screws and Allen key. Quick access to your extra screws and Allen key can be a time saver, even more so, when you are in the middle of a shoot. The shoulder plate is equipped with 1/4-20 & 3/8-16 threaded holes allowing extra screws to be stored and there is a magnet at the back to attach your Allen key.

  • Front to back sliding plate for quick positioning of your camera accessories and an optimal adjustment of your camera’s weight distribution.
  • Match your camera’s optical center. Being able to adjust the height of your rod bloc to match your camera’s optical center is exactly what you can do.
  • Comfortable and moveable shoulder pad made of slip-free material and gel padding (BP-0100).
  • Front and rear 15 mm lightweight rod blocs with 2 pairs of 15 mm rods (8”, 4”) to mount more camera accessories.
  • Safety pins prevents the upper plate from sliding.
  • Ratchet knob applies an optimal pressure to the rods.
  • Sophisticated tool box to store your extra screws and Allen key

Compatible with the following cameras:

  • RED (DSMC2)
  • Arri (Amira and Alexa Mini)
  • Sony (Venice, FS7, FS7M2, F5, F55, EX1, EX3)
  • Canon (C200, C300, C300M2, C700)
  • Panasonic (EVA1, Cinema Varicam LT 4k S35, Panasonic Ag-af100, Panasonic Ag-af101 Varicam LT, Panasonic P2)
  • Blackmagic (Ursa Mini)
  • and many other camera models with interchangeable lenses

15 mm 4" rods (15TUBE4)

This pair of SHAPE 15 mm Aluminum Rods (4″) connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15 mm in diameter, 4 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

15 mm 8" rods (15TUBE8)

Pair of 15 mm rods 8″ long that fit studio and LWS 15 mm rod clamps, allowing you to use available rod mounted accessories. The rods are machined from hollow aluminum tubes and feature chamfered ends that make it easier to insert into 15 mm rod clamps, even if the rod isn’t perfectly aligned or is at a slight angle to the rod clamp.

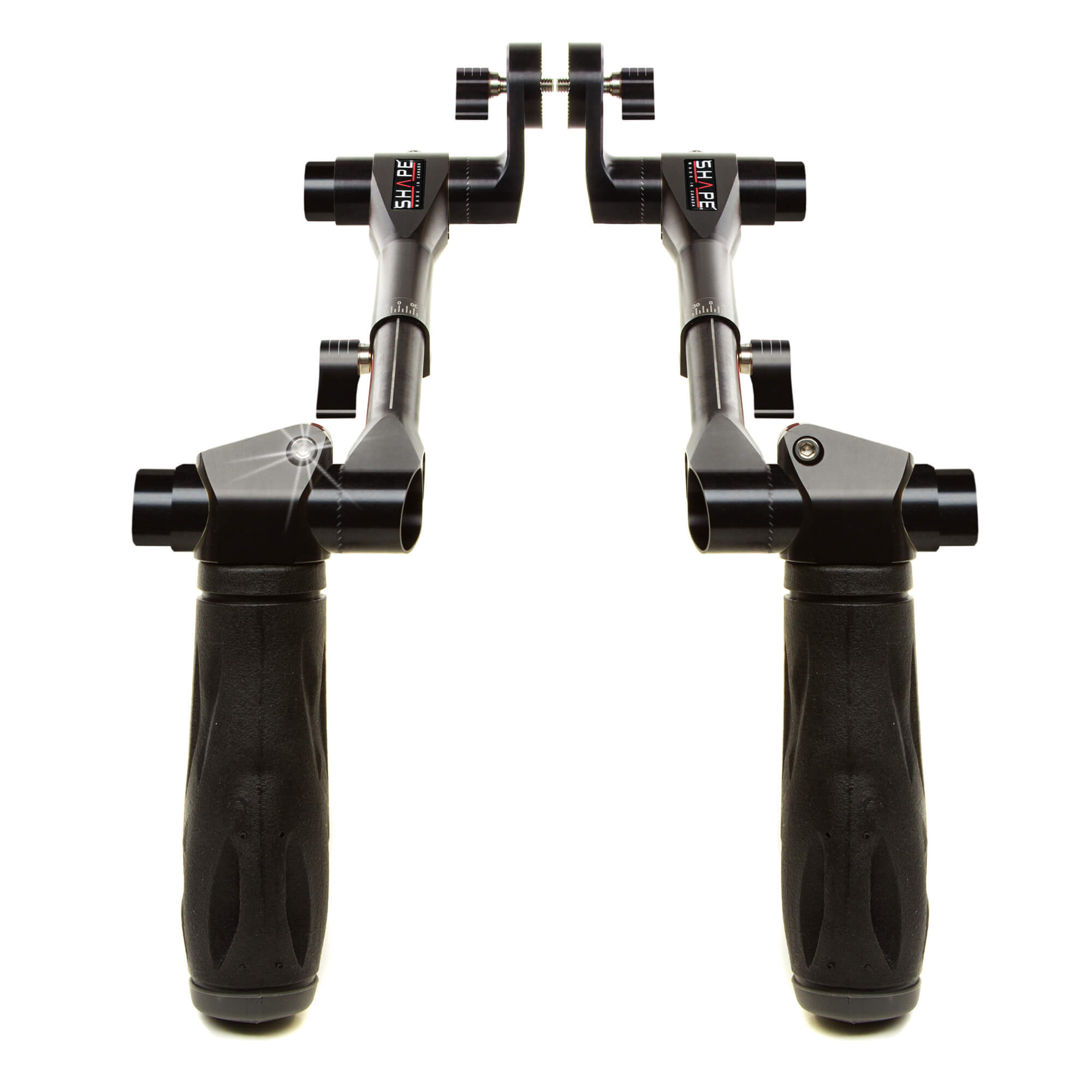

Telescopic SHAPE black handle Arri rosette (HAND12SHADOW)

Left and right telescopic handgrips with ARRI rosettes that can be attached to cameras or camera support hardware that has standard ARRI rosettes, which allow you to lock your arms in place. Each arm features four points of articulation (2 Push-button and 2 ratchet knob) to adjust the arms position. The ratchet knob along the arms allows you to extend the arms up to 2 inches and rotate the handgrips throughout 360°. The one near the rosette gives you more option to position the arm for your comfort.

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while the second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.


UPC: 629266006795

AVShop.ca is a Canadian authorized Shape retailer.

Reviews: Shape BP12 REVOLT VCT Baseplate with Telescopic Handles

There are currently no product reviews.


Warranty: Shape BP12 REVOLT VCT Baseplate with Telescopic Handles

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

LIFETIME MANUFACTURER WARRANTY

All SHAPE products and accessories are covered by a manufacturer's warranty solely on CNC machined parts.

All calls for service or repairs should be referred and sent directly to SHAPE. For an out of box failure, you may contact SHAPE by email sales@shapewlb.com or call 1-888-968-9810 (Canada/U.S.) or 1-450-447-4444.
