FeiyuTech SCORP-C Gimbal for DSLR and Larger Mirrorless Cameras

About: FeiyuTech SCORP-C Gimbal for DSLR and Larger Mirrorless Cameras

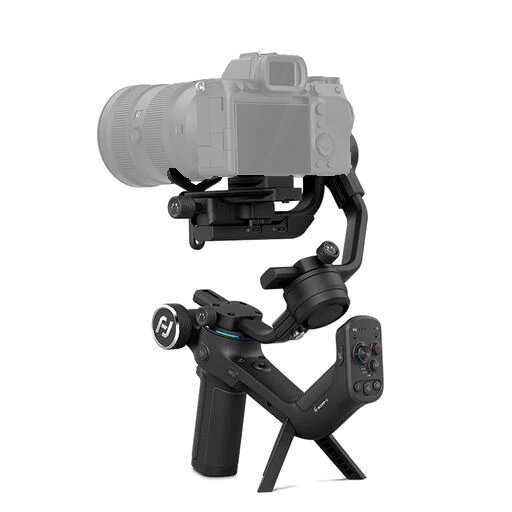

Scorp-C is Feiyu-Tech’s next generation 3-axis gimbal designed for DSLR and larger mirrorless cameras.

With a payload capacity of up to 2.5kg, a 12-hour battery life, and a unique dual handle design, the Scorp makes it quick and easy to get creative shots.

FEATURES

• Central Keyboard -  For quick control of major functions
• Side Wheel -  Adaptable speed control over zooming / focusing / 3-axis motor control
• A & B Buttons -  Allow quick focus pulls between 2 points or quick zooming between 2 points
• Enlarged 3-Axis Motor Lock -  Locks for easy balancing
• Dual Handle Design -  For easy and light hand holding
• 3-Axis Memory Block -  For quick setup, no rebalancing necessary

SPECIFICATIONS

• Battery Capacity -  2500mAh, built-in battery cannot be removed, charge it via the USB-C port which below the multifunction knob,support all the normal charger and quick charger which charging power≤18W
• Operating Voltage -  6.8V-8.4V
• Theoretical Battery Life -  13h
• Charging Time -  About 1.6h (Using 18W fast charger)
• Materials In Main Body -  Synthetic macromolecular resin, aluminum alloy
• Weight -  About 1200g/2.65 lb (including quick release plate, not included other accessories and camera)
• Payload -  About 2.5kg/5.51 lb (well balanced)
• Water-Proof Grade -  Not Water-proof
• Dimensions -  314.4*210.7*243.3mm(Gimbal balancing position)
• Compatible Cameras -  Sony, Canon, Nikon, Panasonic camera etc (Check Camera Compatibility Lists for more details)
• Operating Temperature -  -10~45℃
• Rotatable Range
  • Tilt: 320°(With limitation)
  • Roll: 320°(With limitation)
  • Pan: 360°(Unlimited)
• Controllable Range
  • Tilt: +110°~-45°
  • Roll: +20°~-20°
  • Pan: 360°(Unlimited)
• Quick Release Plate
  • Quick release plate (115x38x10mm) and optional camera backing base (50x38x10mm) are compatible with ARCA quick release system.
  • Can be removed from the gimbal together with the camera, and fast switch between popular quick release systems without re-assembling the camera.
• Follow Mode
  1. PF: Pan follow, only the pan axis follows the movement of user's hand
  2. PTF: Pan and tilt follow, where both the pan and tilt axes follow the movement of user's hand, but roll axis does not
  3. FPV: Pan, tilt and roll follow, where all 3 axes follow the movement of user's hand
  4. Lock: All 3 axes do not follow the movement of user's hand, gimbal keeps the direction of the camera fixed
  5. FFW: flash follow, where all 3 axes follow the movement of user's hand in high follow speed
• APP Feiyu SCORP
• How To Control The Camera
  • While connecting gimbal and cameras with cable (standard accessories for SONY, CANON, NIKON, Panasonic), users can control picture-taking/recording with shutter button and set aperture, shutter, ISO and other camera parameters (see Camera Compatibility List for more).
• Motor Power Auto Tune
  • Use motor auto tune button or choose Auto Tune in motor power settings on APP to tune the motor power automatically according to the camera you install.
  • Auto Tune operation: Put gimbal on the table, start the motor power tuning progress through motor auto tune button or APP,and wait for the progress complete.
  • Gimbal will vibrate slightly while Auto Tune to weigh the camera, it’s a normal phenomenon.
• Extended Ports
  • At the bottom of the handle: 1/4 inch thread hole*1, which can mount Tripod;
  • Below the multifunction knob: Type-C charging port*1;
  • In front of fixed plate: Type-C extension port*2 to connect focus motors;
  • At the back of fixed plate: Type-C camera control port*1, Type-C image transmission port*1;
  • In front of quick release plate: 1/4 inch thread hole*1, for installation of lens holder;
  • On the top of vertical cross arm: 1/4 inch thread hole*1, for installation of ARRI Rosettes Expansion Accessory;

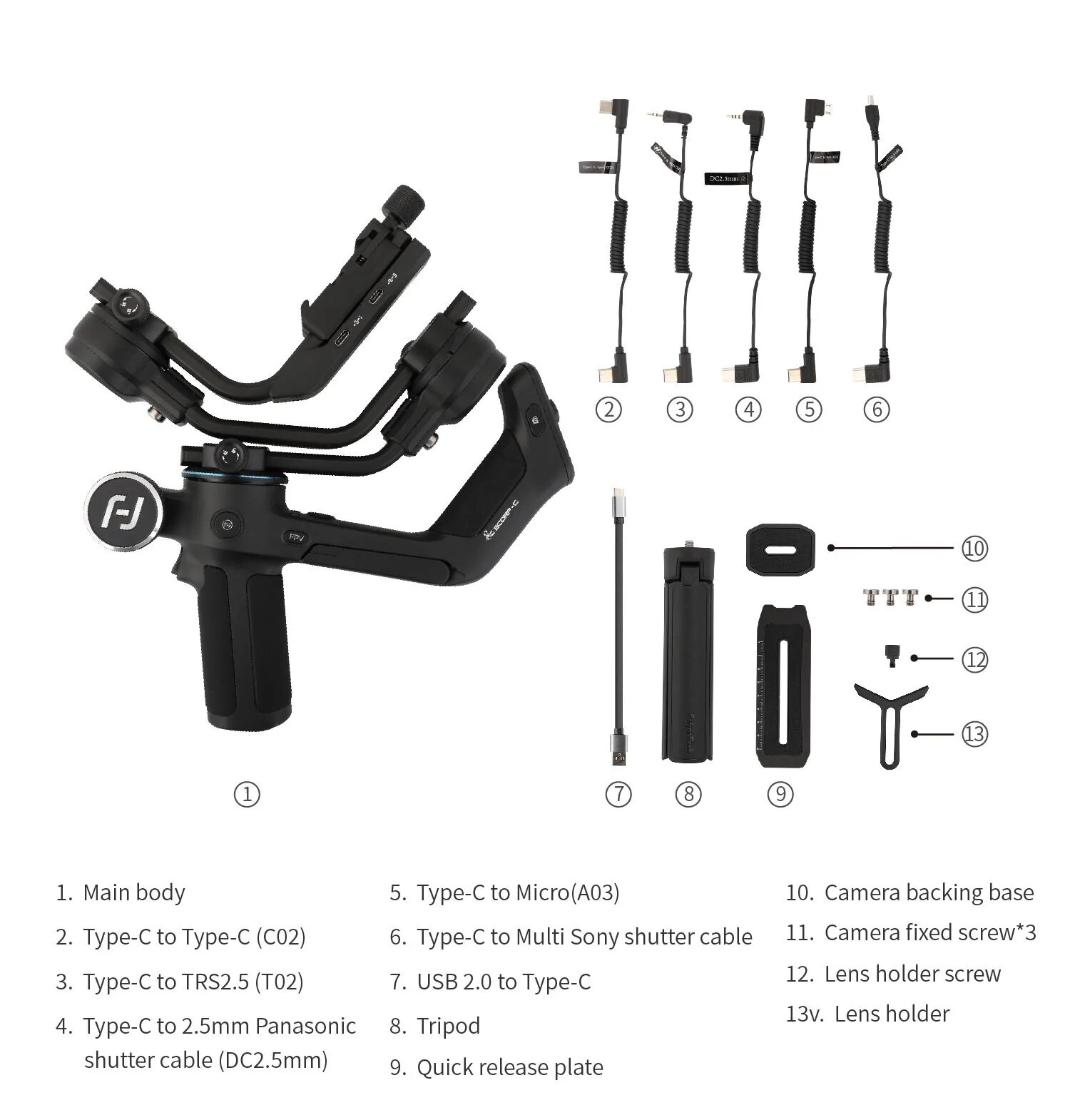

• Standard Accessories
  • Feiyu SCORP-C*1
  • Data cable USB 2.0 to Type-C*1
  • Shutter cable Type-C to Micro (A03)*1
  • Shutter cable Type-C to Type-C (C02)*1
  • Shutter cable Type-C to TRS2.5 (T02)*1
  • Sony shutter cable Type-C to Multi*1
  • Panasonic shutter cable (DC2.5mm) Type-C to 2.5mm*1
  • Tripod*1
  • Quick release plate*1
  • Camera backing base*1
  • Lens holder*1
  • Lens holder screw*1
  • Camera fixed screw*3
