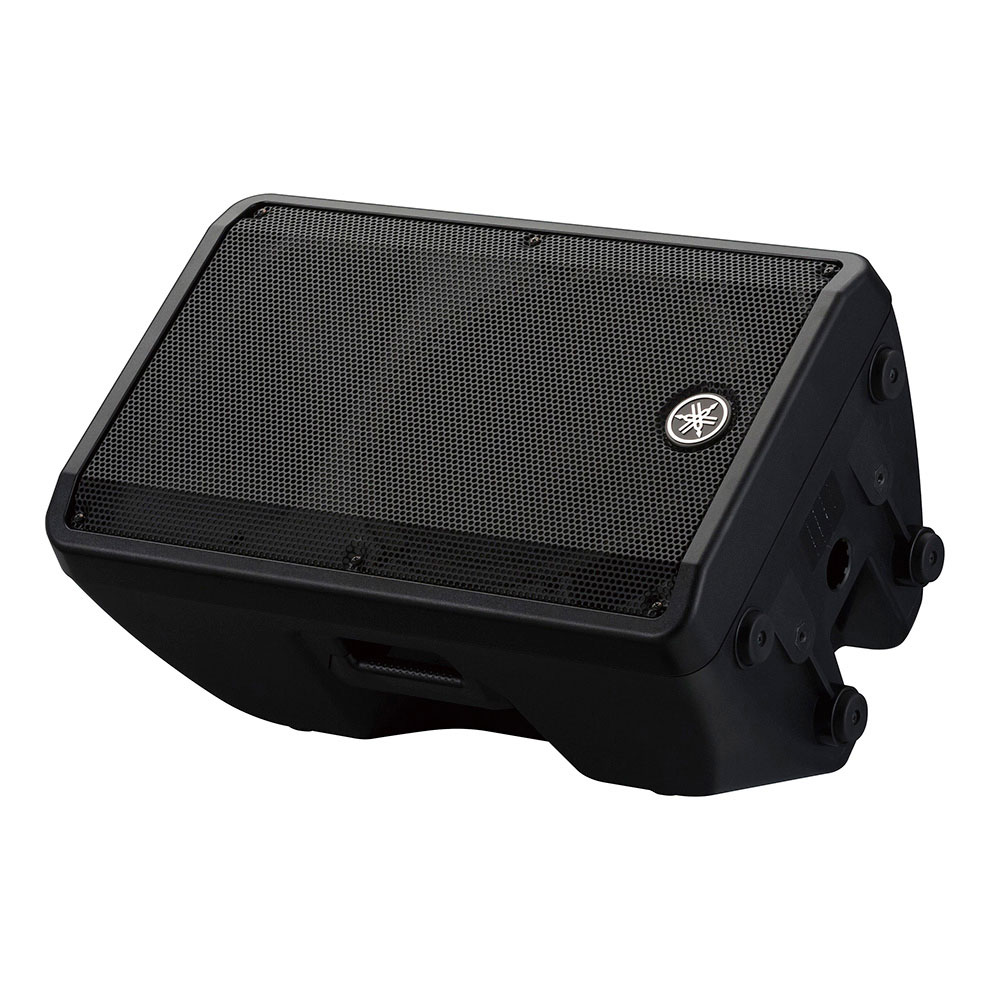

Yamaha DBR12 12in Powered Speaker

About: Yamaha DBR12 12in Powered Speaker

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10”, 12” and 15” models, each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

The DBR12 represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications.

DBR12 Specifications:

• System Type: 2-way, Bi-amp Powered Speaker, Bass-reflex Type
• Frequency Range: (-10dB) 52 Hz-20 kHz
• Coverage Angle: (Horizontal x Vertical) H90" x V60" Constant Directivity Horn
• Measured Maximum SPL (Peak) IEC Noise@1m: 131 dB SPL
• Crossover: 2.1 kHz
• Power Rating Dynamic: 1000 W (LF: 800 W, HF: 200 W)
• Power Rating Continuous: 465 W (LF: 400 W, HF: 65 W)
• Power Consumption: 74 W
• Components LF: 12" Cone, 2" Voice Coil
• Components HF: 1.4" Voice Coil, Compression Driver
• Dimensions: (W x H x D, Including Rubber Feet) 376 x 601 x 348 mm (14.8" x 23.7" x 13.7")
• Net Weight: 15.8 kg (34.8 lbs)
• I/O Connectors:
• Input INPUT1: Combo x1, INPUT2: Combo x 1 + RCA-pin x 2
• Output XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Input Sensitivity: (Level: Center) INPUT1: LINE: +10 dBu, MIC: -22 dBu, INPUT2: +10 dBu
• Maximum Input Level: INPUT1: LINE: +24 dBu, MIC: -8 dBu, INPUT2: +24 dBu
