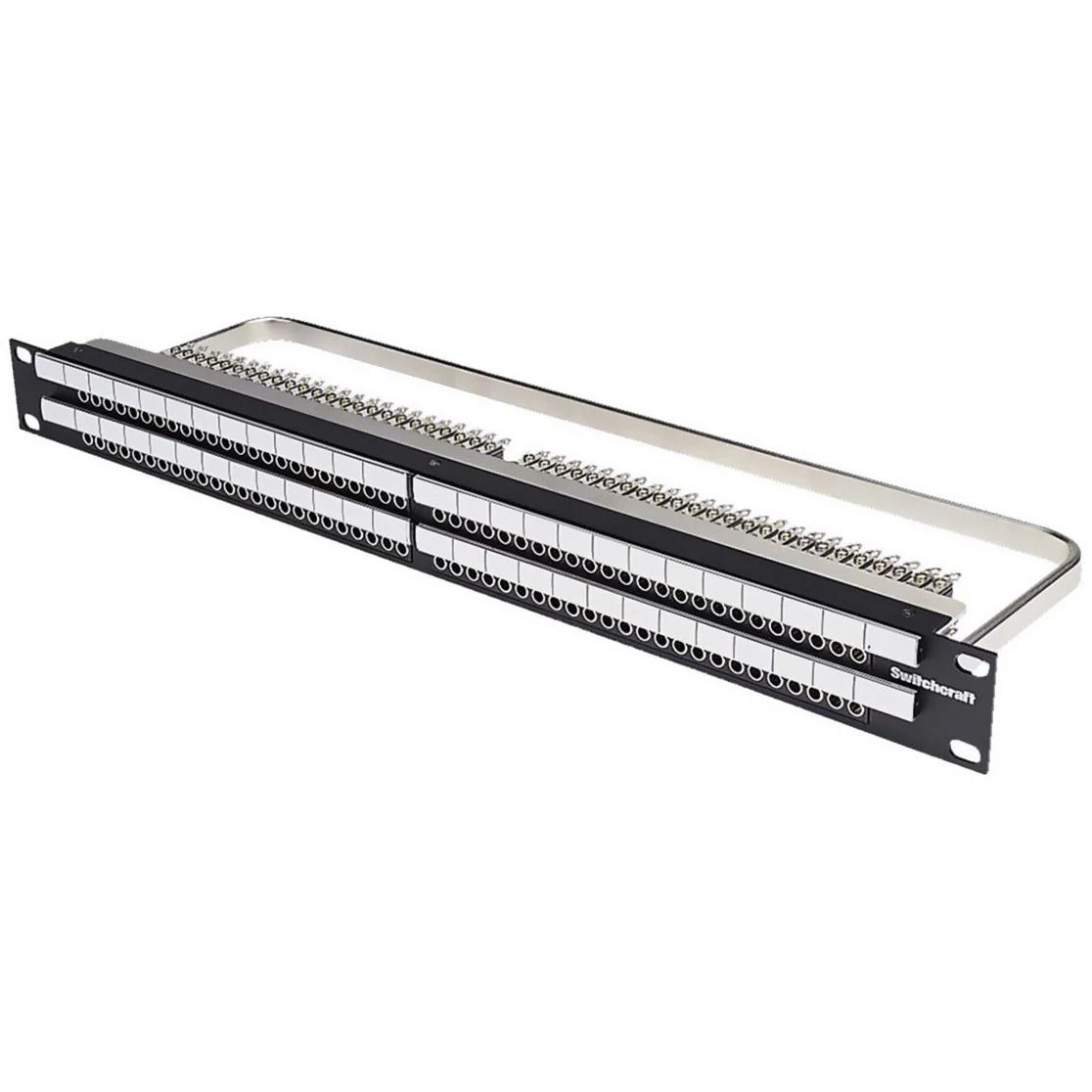

Switchcraft 2X48 Bantam TT Bay, Solder Terminals
Model: TTP96ASFNX
About: Switchcraft 2X48 Bantam TT Bay, Solder Terminals
1RU, 2X48 Bantam TT Bay, Solder Terminals - Full Normals Brought Out
Configuration
- Number of Conductors: 3
- Termination Style: Solder Cup
- Contact Plating: Gold
- Color: Black
- Packaging Type: Box
- Number of Stations: 96
- Rack Spaces: 1
- Standard Connector Type: TT/Bantam Jacks & Plugs
- Normalling: Full
- Special Feature: Cable Tie Bar
- Front Connector: TT/Bantam
- Jack Layout: 2x48
Electrical
- Contact Resistance: 0.03 Ohms
- Dielectric Withstanding Voltage: 500 Volts
- Insulation Resistance: 10000 MOhms
- Voltage Rating: 140 Volts
- Current Rating: 0.1 Amps
Mechanical
- Life Cycle: 30000 Cycles
- Operating Force: 7 lbs
Environmental
- Maxiumum Temperature: 50 C
Compliance
- RoHS Compliant: Compliant
- REACH Compliant: Compliant
- Brand: Switchcraft
Material
- Contact Material: Gold Alloy
- Terminal Material: Steel
- Spring Material: Copper Alloy
