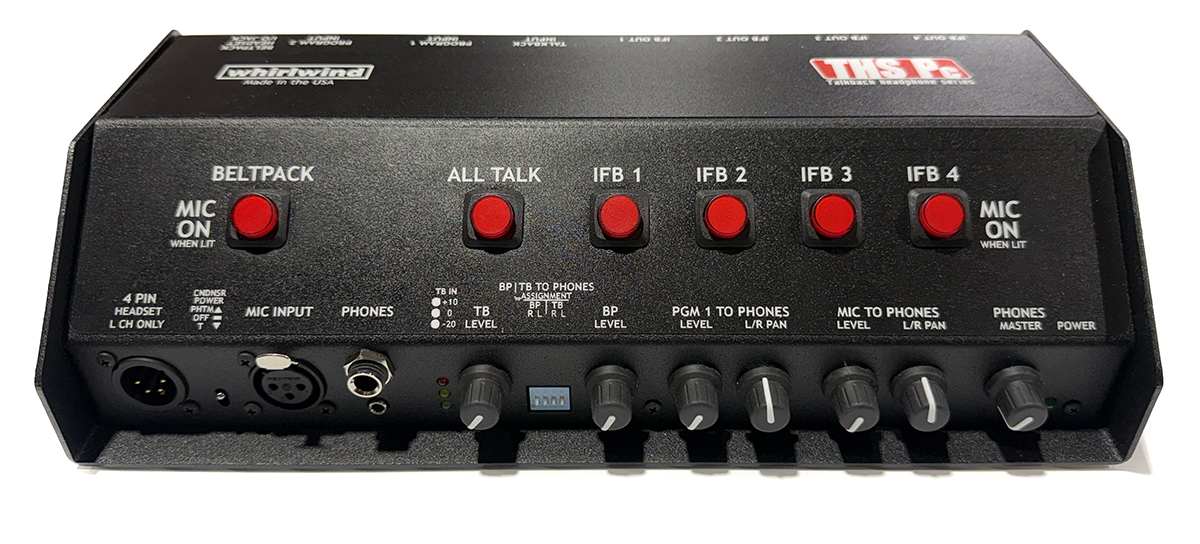

Whirlwind THS P Talkback Headphone System
Model: THSPC
About: Whirlwind THS P Talkback Headphone System

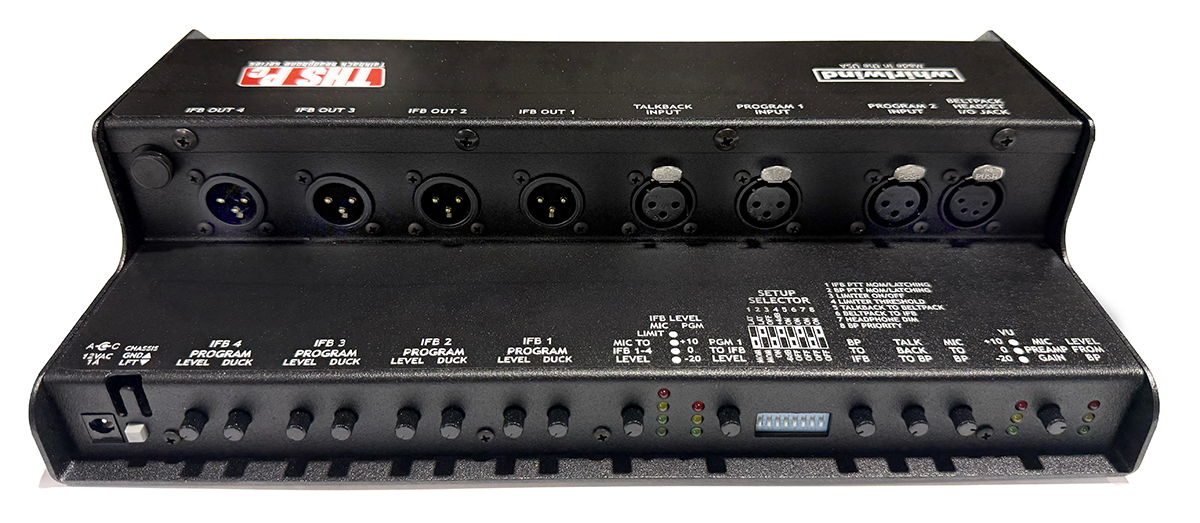

Comprehensive I/O Configuration
Microphone and headset input, 2 Program inputs, dedicated talkback input, 4 IFB outputs, and belt pack I/O for RTS® intercom integration
Flexible Talkback Routing
Talkback input can be routed to the headphone mix and optionally sent to the RTS belt pack system.
Program Audio Management
- Program 1 feeds IFB lines and headphones with adjustable level and pan.
- Individual IFB ducking control allows the microphone input to duck Program 1 per line.
- Program 2 can be summed with belt pack audio and routed to headphones or IFB lines.
Microphone Control & Protection
Selectable phantom or T power via recessed switch. Inline limiter with selectable 4:1 or ∞:1 ratio. Adjustable mic level and pan in headphones.
RTS® Belt Pack Integration
Full send/receive connectivity with configurable routing via DIP switches. Individual trim control for belt pack levels.
IFB Distribution Control
Send audio to individual IFB lines or activate ALL TALK to address all four lines simultaneously. Each IFB line outputs its own program mix.
Typical Applications
- Producer positions in live sports broadcast booths
- Remote production and satellite operations
- Integrated RTS® intercom environments requiring flexible IFB management
UPC: 692465030304
Reviews: Whirlwind THS P Talkback Headphone System
Warranty: Whirlwind THS P Talkback Headphone System
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Medusa/Custom:
- Cables: 5 yrs.
- Connect Series: 3 yrs.
US Audio / Digital Products:
- All AC Powered Equipment: 5 yrs.
Imp Interface Boxes:
- Passive: 3 yrs.
- Active: 2 yrs.
- EDB1: 90 days
- Tester Boxes: 3 yrs.
- MCT-7: 90 days
- Q-Box: 1 yr.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Whirlwind do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
