Sescom 2-Channel Stereo Mic Pad with Adjustable Attenuation

About: Sescom 2-Channel Stereo Mic Pad with Adjustable Attenuation

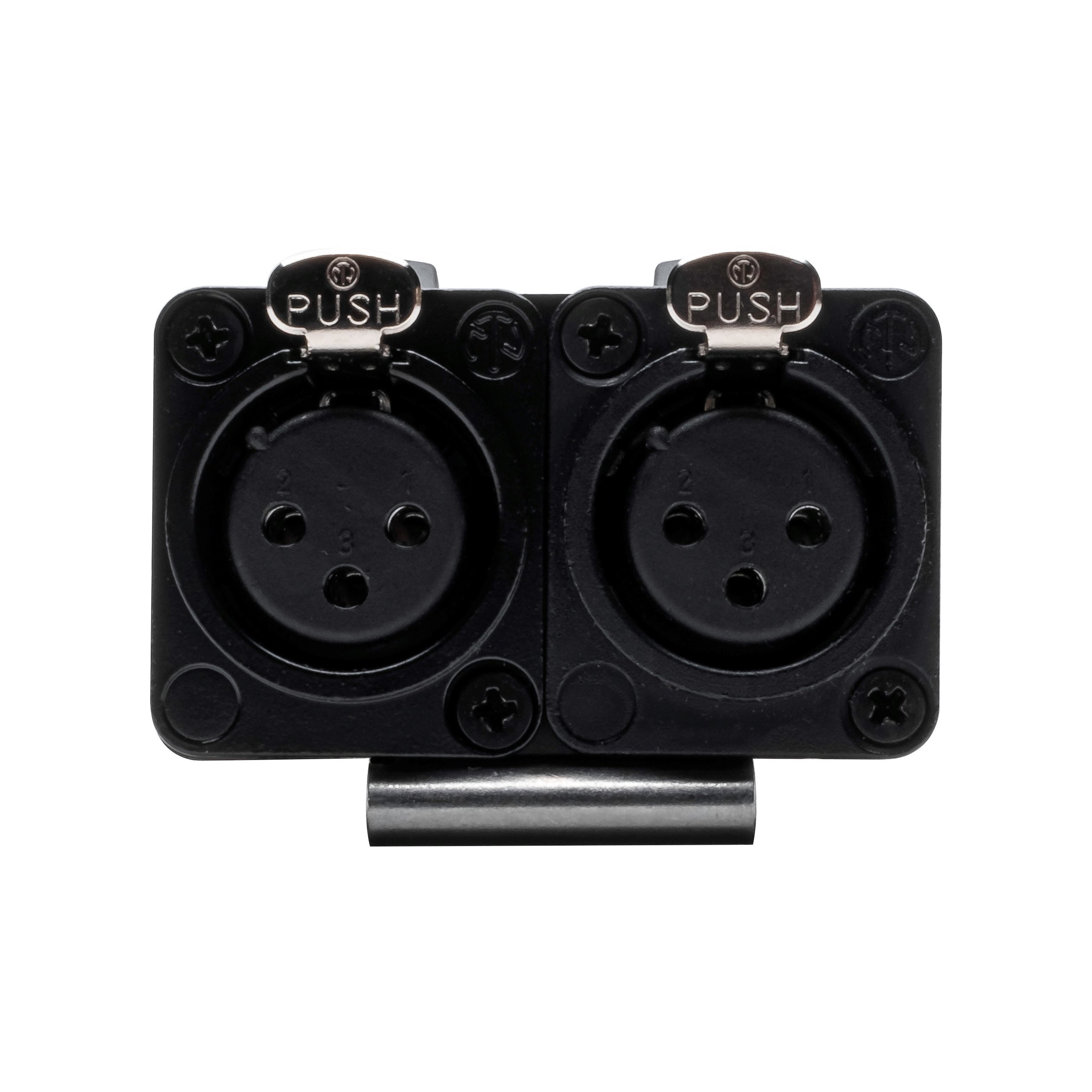

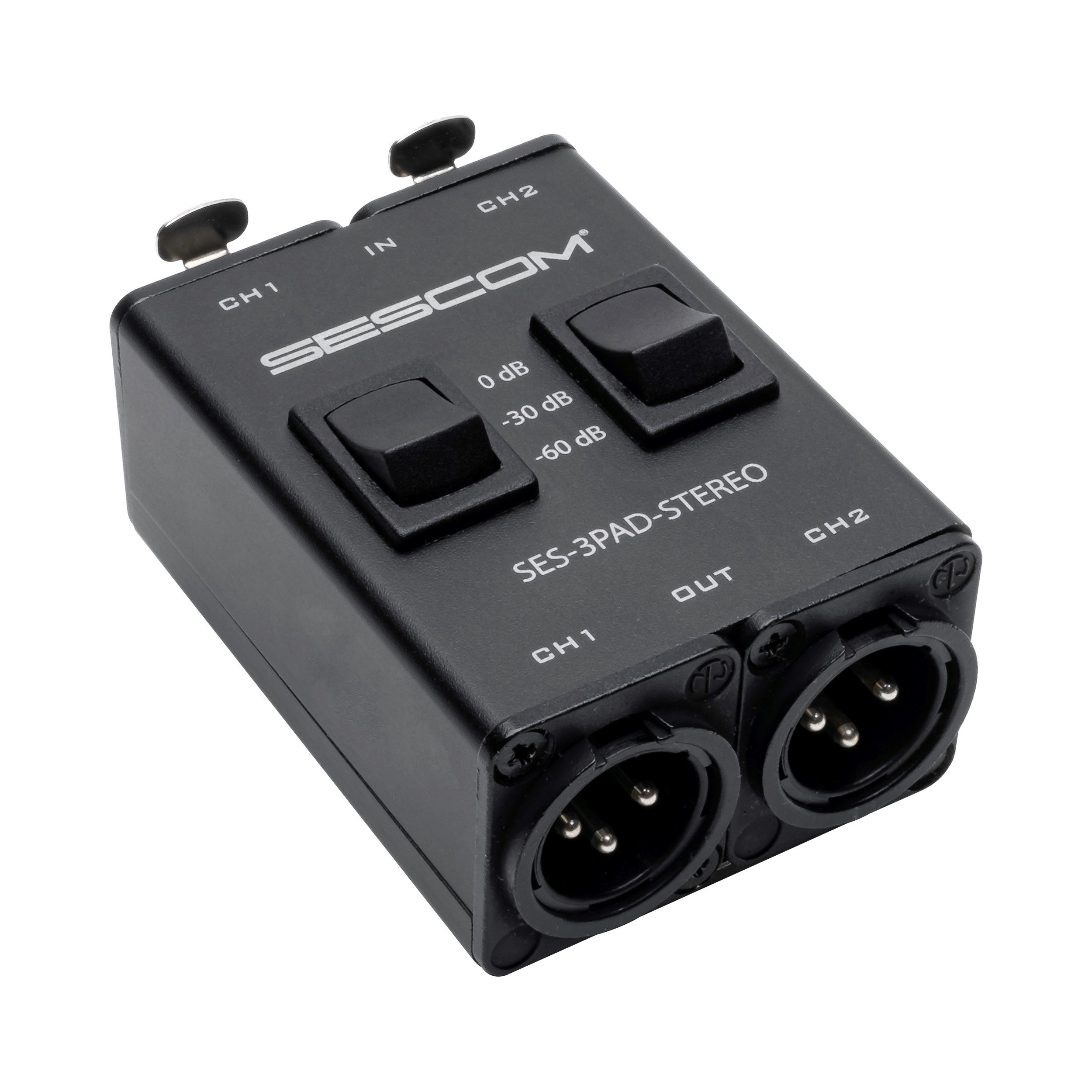

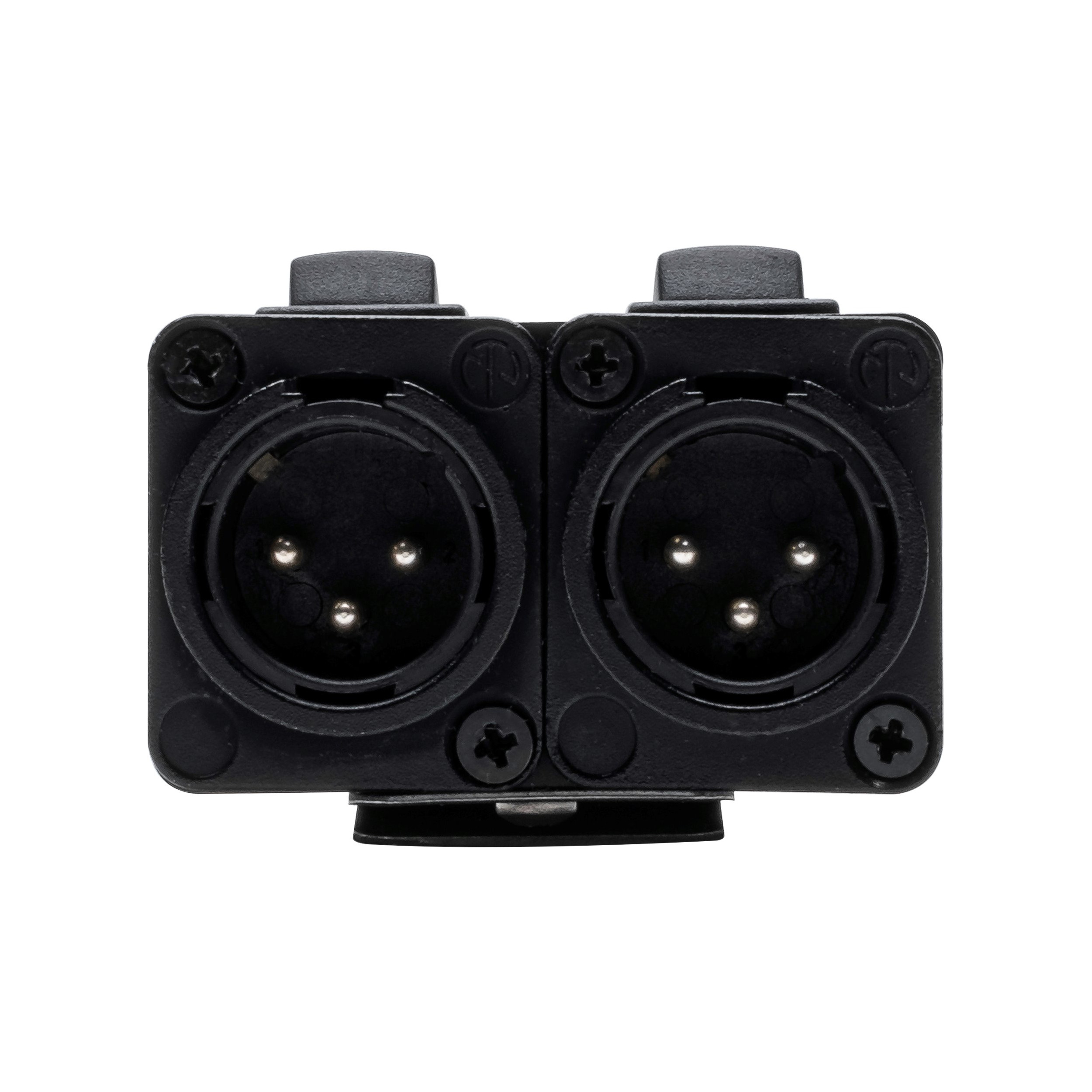

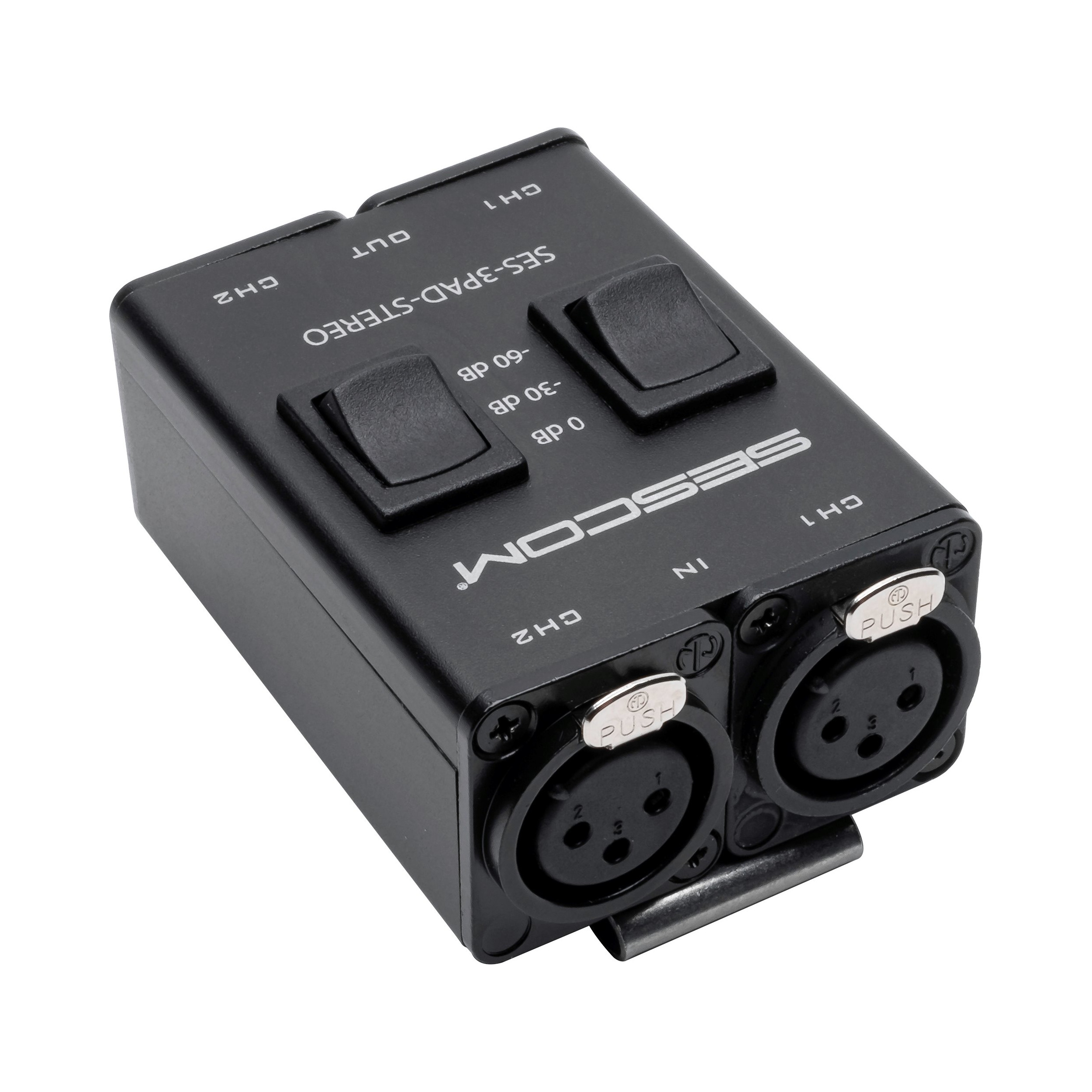

The Sescom SES-3PAD-STEREO, also known as the WuPad, is a 2-channel balanced audio attenuator equipped with two Neutrik XLR male and two Neutrik XLR female connectors, and two three-position selectable switches for fast and precise attenuation adjustments of 0dB, -30dB, and -60dB of each channel independently. Through proper utilization the SES-3PAD-STEREO can help eliminate distortion and overloading peaks when recording loud noises and provides a full-bandwidth level cut to your signal. The SES-3PAD-STEREO uses a rugged metal housing that is equipped with a durable metal clip, which makes this ideal for use in the field or live events.

• 3 precision attenuation amounts of 0dB, -30dB, & -60dB
• Low-profile 3-position rocker switches to easily and quickly adjust attenuation
• 2 channels support Mono or Stereo operation
• Equipped with Neutrik male and female XLR connectors

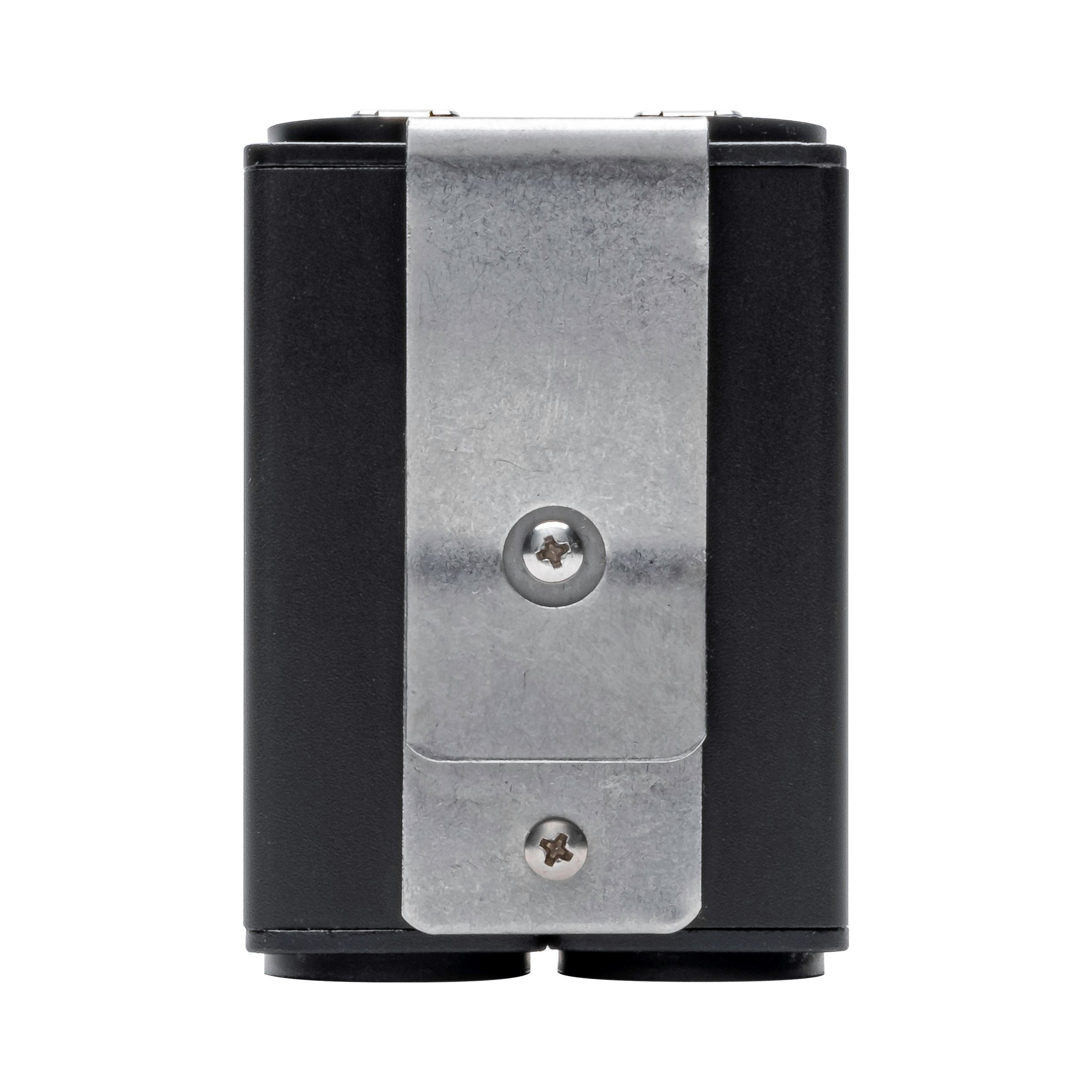

• Durable clip for field recorder bag or belt
• Rugged metal housing
• Stops overloading peaks and distortion - provides totally flat, full-bandwidth across-the-board level cut; lowering the signal to the level you need
• 100% assembled and quality controlled in the USA

Specifications

• At 0dB Attenuation
  • Frequency Response Deviation (20Hz-20kHz): +/-0.048dB
  • Signal to Noise Ratio at 0dBFS, A-weighted: -117.8dB
  • Total Harmonic Distortion at 1kHz, 0dBFS: 0.00036%
  • Maximum Input Level: > 24dBV
  • Maximum Output Level: > 24dBV
  • Dynamic Range: >141.8dB
  • Gain: -.986dB
  • Crosstalk (2-channel devices only): -119dB
  • Input Impedance (ohms): 10K Ω
  • Output Impedance (ohms): 970 Ω
• At -30dB Attenuation
  • Frequency Response Deviation (20Hz-20kHz): +/-0.050dB
  • Signal to Noise Ratio at 0dBFS, A-weighted: -89.4dB
  • Total Harmonic Distortion at 1kHz, 0dBFS: 0.0044%
  • Maximum Input Level: > 24dBV
  • Maximum Output Level: > -6dBV
  • Dynamic Range: >113.4dB
  • Gain: -29dB
  • Crosstalk (2-channel devices only): -79.7dB
  • Input Impedance (ohms): 7.15K Ω
  • Output Impedance (ohms): 970 Ω
• At -60dB Attenuation
  • Frequency Response Deviation (20Hz-20kHz): +/-0.06dB
  • Signal to Noise Ratio at 0dBFS, A-weighted: -58.2dB
  • Total Harmonic Distortion at 1kHz, 0dBFS: 0.16%
  • Maximum Input Level: > 24dBV
  • Maximum Output Level: > -36BV
  • Dynamic Range: >88dB
  • Gain: -61dB
  • Crosstalk (2-channel devices only): -74.3dB
  • Input Impedance (ohms): 7.06K Ω
  • Output Impedance (ohms): 22 Ω
• Dimensions (LxWxH): 3.09 x 2.05 x 1.65 in (78.48mm x 52.07mm x 41.91mm)
