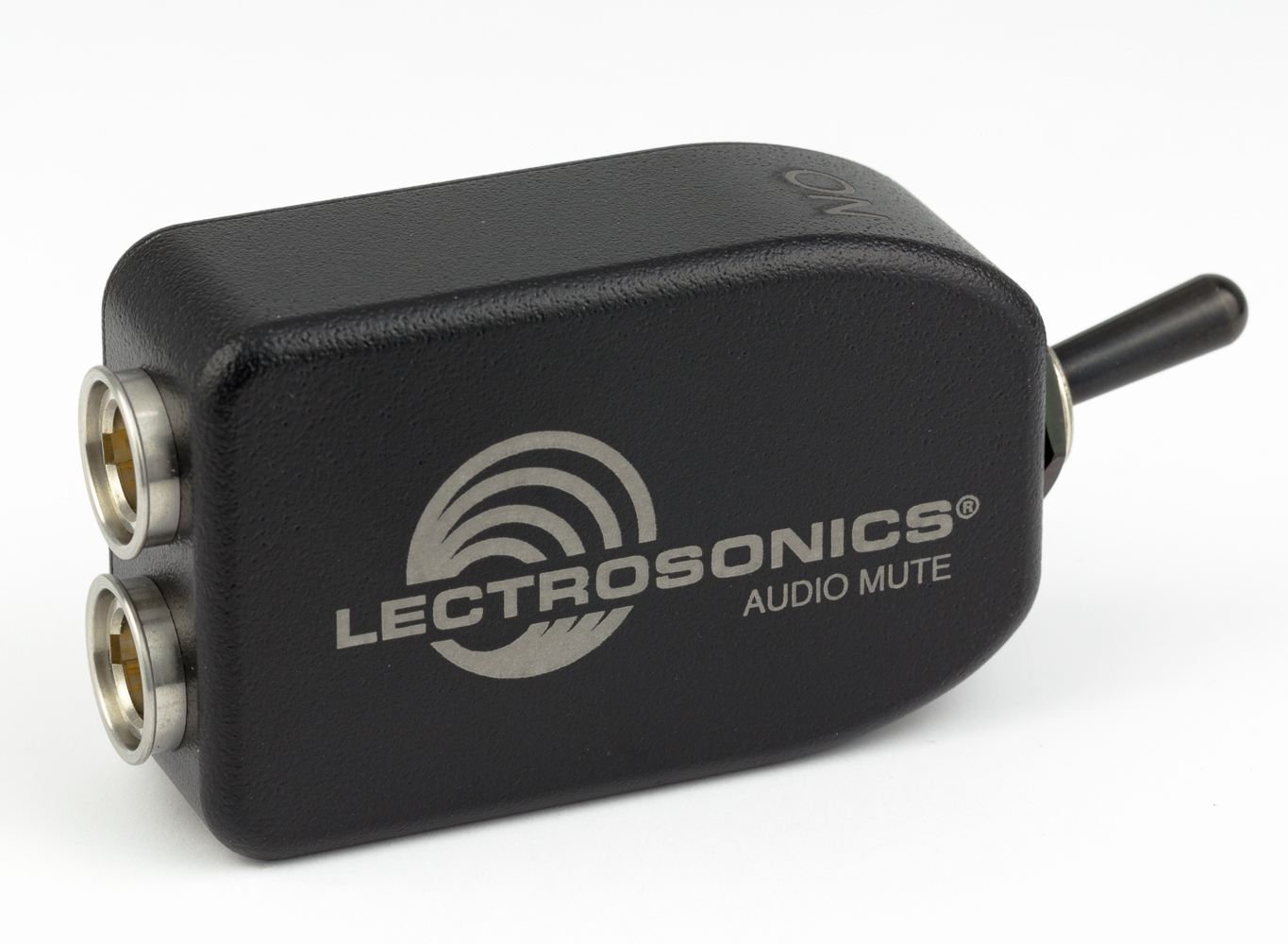

Lectrosonics MUTE Belt Worn Audio Muting Switch
Model: MUTE
About: Lectrosonics MUTE Belt Worn Audio Muting Switch
The MUTE switch is an active device that is powered by the bias voltage on any Lectrosonics transmitter with a TA5M input connector. The switch is inserted between the microphone and transmitter with the supplied cable, and worn in a convenient location for easy access to the toggle switch.
- Inline “no pop” audio muting for a Lectrosonics wireless microphone system
- Compatible with all Lectrosonics transmitters with TA5M (5-pin) input jacks
- Rugged machined aluminum construction
- Weather sealed design
The design uses an optically coupled switch to mute the audio signal without any clicks or pops in the audio. It does not affect the RF output of the connected trans- mitter. The toggle switch is weather resistant and the included cable has weather resistant vinyl boots at each end. A wiring kit is included that provides a 5 pin connec- tor, strain reliefs, and an additional water resistant vinyl boot to protect the lavaliere mic connector from moisture.

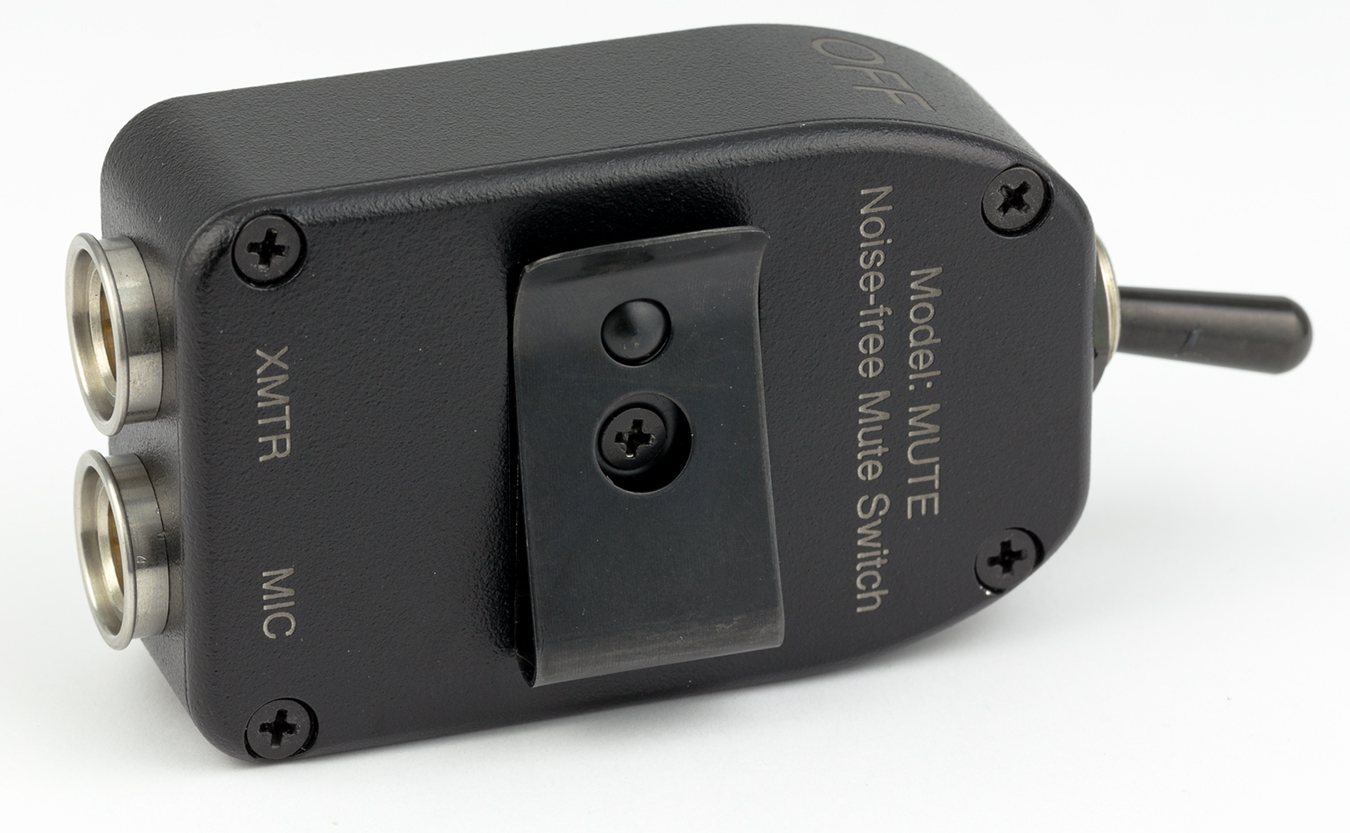

The MUTE switch is well suited for sporting events out- doors because of its weather sealed toggle switch, pow- der coated housing and anodized belt-clip. The toggle switch can easily be operated under garments, and offers very positive action. The reversible belt clip helps to position the switch according to the user’s preference.

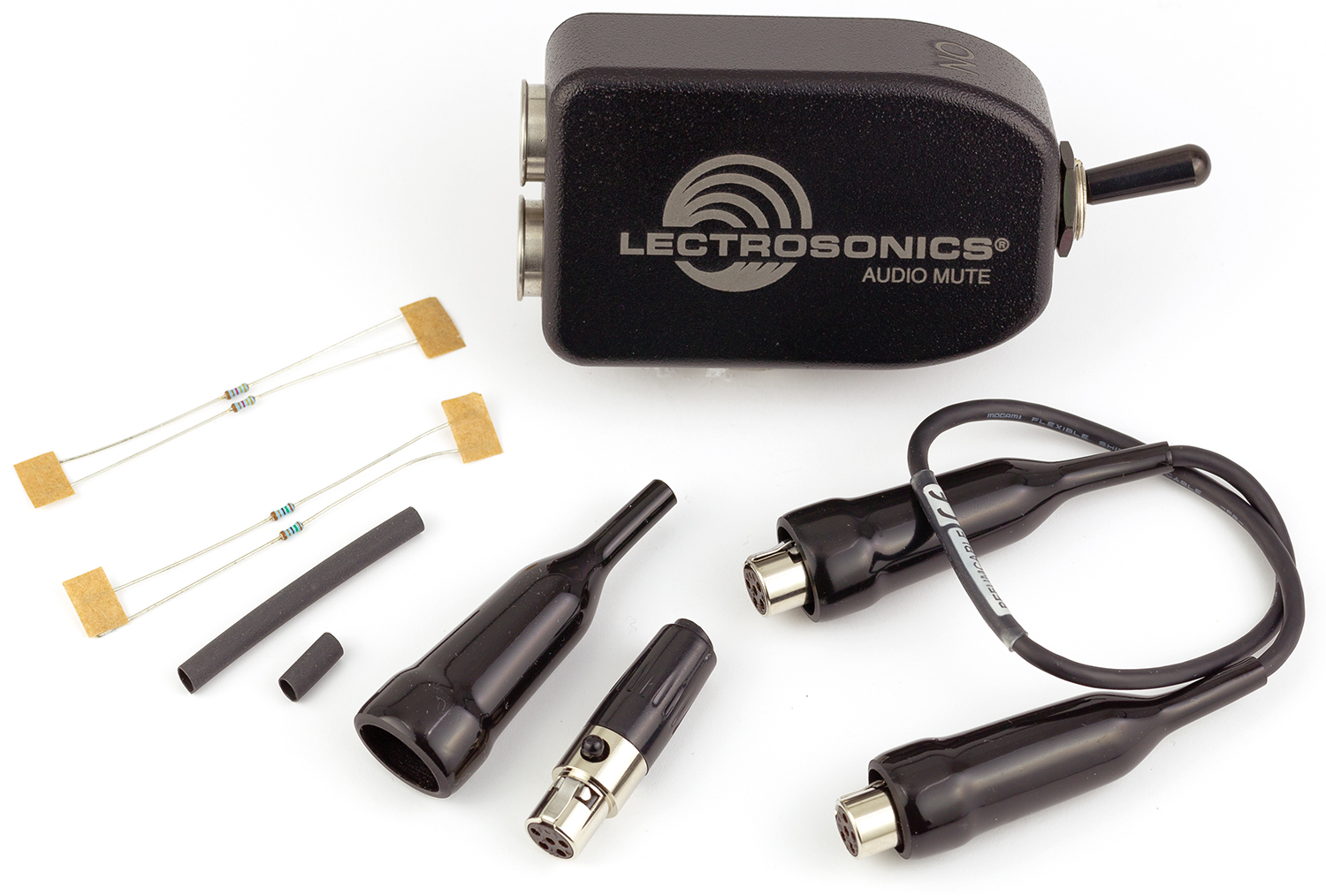

What's Included
- MUTE switch
- SMKITTA5 5 pin connector kit with spare sleeve
- REFUMCABLE cable
NOTE: Does not work with MM400 or WM Models.
