Hosa CBT-500 Audio Cable Tester
Model: CBT-500
About: Hosa CBT-500 Audio Cable Tester

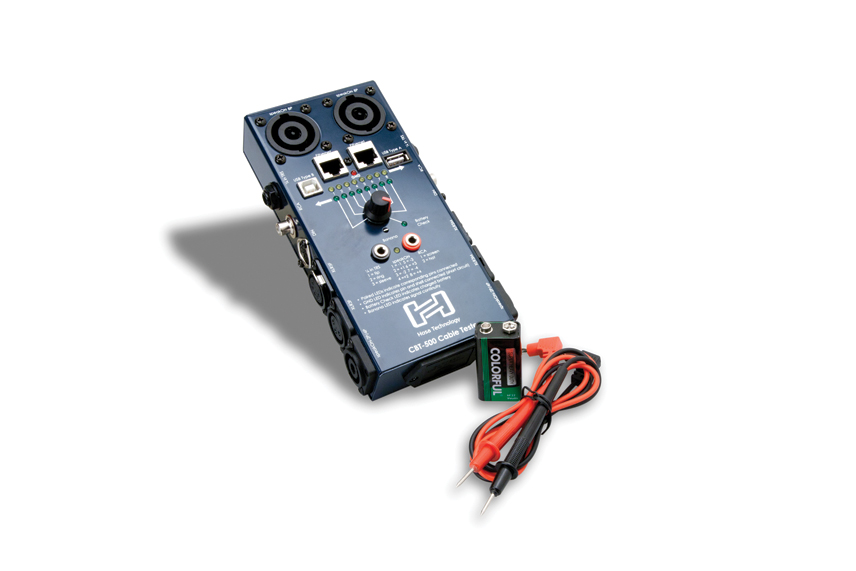

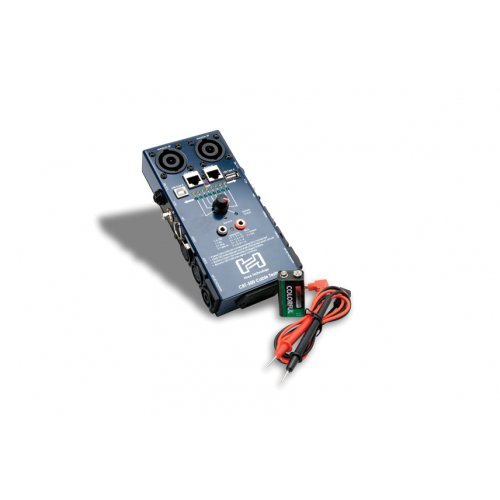

The CBT-500 Cable Tester by Hosa Technology diagnoses signal failure in cables terminated with any combination of XLR, Phone, Phono, and speakON® connectors, as well as DIN, Ethernet, and USB Type A to Type B cables. It is also equipped with removable leads to verify continuity of additional connectors and jacks. Operation requires one 9-volt battery (included).
Cable Test:
• Turn knob to position 1
• Plug one connector into corresponding jack on left side of tester
• Plug other connector into corresponding jack on right side of tester
• Turn knob to each position to check wiring of each contact
Continuity Test:
• Apply the tip of each lead to the corresponding contacts
• If continuity exists, the center LED will illuminate and tester will beep
Battery Check:
• Turn knob to Battery Check
• LED will illuminate if the battery is charged
UPC: 728736053939
Reviews: Hosa CBT-500 Audio Cable Tester
Warranty: Hosa CBT-500 Audio Cable Tester
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All Hosa cables and adaptors are warranted to be free of defects in material and workmanship for the lifetime of the original purchaser.
All other Hosa products, including but not limited to headphones, hard-wired stage boxes, patch bays, footswitches, equipment racks, microphone stands, console lamps, and electronic components, are warranted to be free of defects in material and workmanship for one year from date of purchase.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
