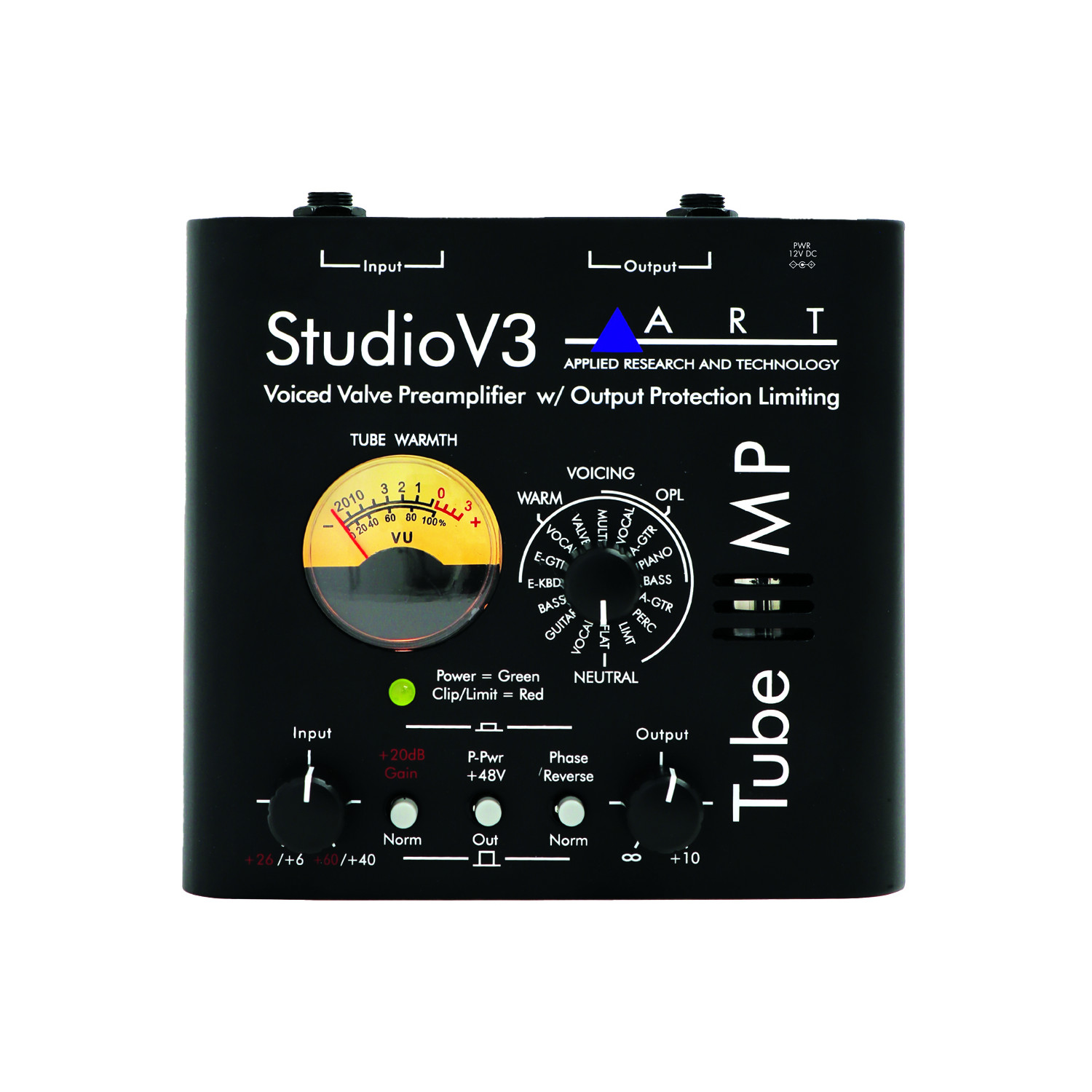

ART Tube MP Studio V3 Tube Preamp
Model: TUBEMPSTV3U
About: ART Tube MP Studio V3 Tube Preamp
The Studio V3 offers all of the features of the original Tube MP with versatile onboard presets to easily dial in a great tone.
- 16 Preset Voicings
- 12AX7A Tube
- Up to 60 dB of Input Gain
- Switchable Boost, Phantom Power, and Phase Reverse
- Output Protection Limiting
- Analog VU Meter
- Clipping Indicator LED
- XLR and 1/4" Connections
V3 stands for Variable Valve Voicing, and refers to the sixteen presets in three overlapping groups: Neutral, Warm, and OPL. Each has a precisely voiced EQ curve, Warm presets add tube saturation, and OPL presets engage Output Protection Limiting for dynamic control of loud signals and big transients.
Each preset has a suggested application, but they all have a unique character, so any could be an inspiring match for your performance. Theres also a Flat preset for the classic sound of the original Tube MP.
Like the original, the Tube MP Studio V3 has XLR and 1/4 connections with variable gain and switchable boost, phantom power, and phase reversal.
Fast and flexible, the Tube MP Studio V3 is a mic preamp and instrument DI designed for maximum tone with minimum tweaking.
Need more connectivity? Check out the rackmount TPS II.
Specifications
- Inputs: XLR (Balanced), 1/4" TS
- Outputs: XLR (Balanced), 1/4" TS
- Input Impedance: 2 kΩ XLR, 840 kΩ 1/4”
- Output Impedance: 600Ω XLR, 300Ω 1/4"
- Maximum Input Level: +14 dBu XLR, +22 dBu 1/4"
- Maximum Output Level: +14 dBu XLR, +22 dBu 1/4"
- Maximum Gain: 50 dB - 60 dB
- Frequency Response: 10 Hz - 30 kHz, +/- 0.5 dB
- Total Harmonic Distortion: <0.1% (typical)
- Equivalent Input Noise: -129 dBu to -105 dBu
- CMRR: >75 dB (Typical @ 1 kHz)
- Power Requirements
- Input: 100-240V AC~50/60Hz
- Output: 12V DC @ ≥ 800mA
- Dimensions: 5 x 5.5 x 2 inch (12.7 x 14 x 5.1 cm)
- Weight: 1 lbs (454 g)
UPC: 840402049289
Videos: ART Tube MP Studio V3 Tube Preamp
Reviews: ART Tube MP Studio V3 Tube Preamp
Warranty: ART Tube MP Studio V3 Tube Preamp
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
3 Year Manufacturers Defect
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
