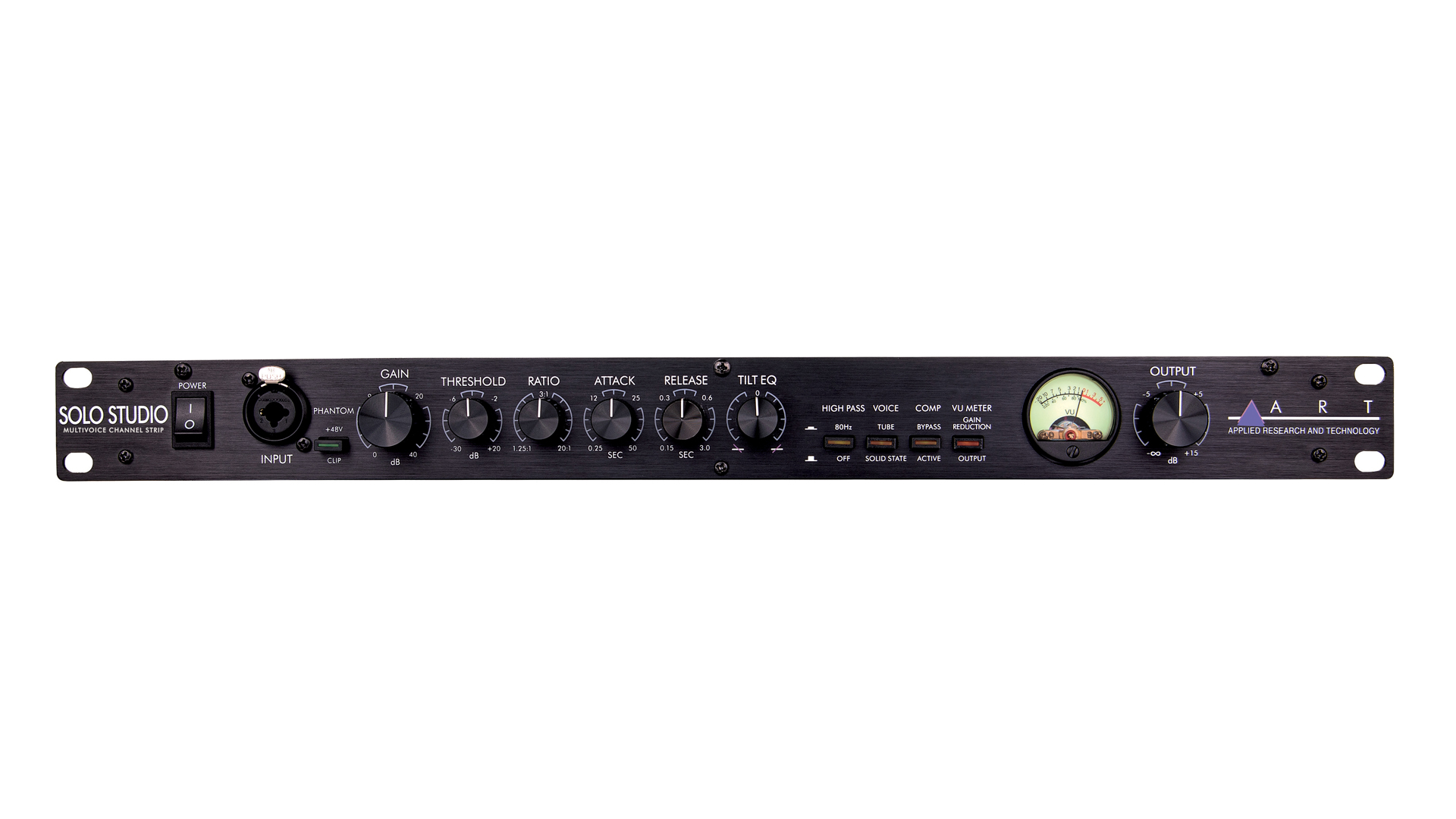

ART SOLO STUDIO Single-Channel Rackmount Multi-Voice Channel Strip

About: ART SOLO STUDIO Single-Channel Rackmount Multi-Voice Channel Strip

Combining the best of both worlds, the SOLO STUDIO Multi-Voice Channel Strip allows users to choose between a pristine low-noise/low-distortion solid state transistor circuit and a warmer Class-A tube mic preamp. Along with the flexible Tilt EQ control, users can voice the SOLO Studio to create their own signature sound.

Featuring 48V phantom power, a front Microphone/Line balanced input or a high impedance Instrument input, users can tailor the SOLO Studio to suit any sound source. A Low-Cut control allows vocals to be sculpted for clarity while the Tilt EQ can be used to emphasize high presence or low-end warmth.

The SOLO Series of single channel rackmount units have been developed for the recording enthusiast with a preference for simplicity.

Features

• 48 Volt Switchable Phantom Power
• Selectable Multi-Voice Tube/Solid State Control
• Hand selected 12AT7 Tube
• OPTO – Analog Optical Isolators (AOI)
• Optical Controlled Compression
• Pre-Compression Insert Loop
• Flexible Tilt EQ
• Selectable Low Cut Filter (HPF)
• Variable Threshold and Ratio controls
• Variable Attack and Release controls
• Variable Blend (Compression)
• Variable Output Level Control

Specifications

• Frequency Response -  15 Hz to 50 kHz (+0, -1dB)
• Dynamic range - >110dB (“A” weighted)
• CMRR - >90dB
• THD - <0.005% (typical)
• Equivalent Input Noise -  -129dBu (XLR, “A” weighted)
• Maximum Input Level -  +19dBu (XLR)
• Maximum Instrumen -t Input +17dBu
• Input Impedance
  • 47k ohms (XLR),
  • >800k ohms (Instrument)
• Maximum Output Level -  +27dBu (XLR
• Output Impedance -  < 47 ohms (XLR)
• Maximum Gain -  55dBMeter
• Attack Time -  0.25msec. to 50msec. variable
• Release Time - 150msec. to 3sec. variable
• CMRR -  >90dB THD <0.005% (typical
• Calibration
  • 0VU = +4dBu output (+4dBu mode)
  • 0VU = -10dBV output (-10dBV mode)
• Low Cut Filter -  single pole, 80Hz
• Tilt EQ - +/- 3dB adjustable
• Power Requirements -  100-240V 50Hz/60Hz rear mounted switch and IEC connector
• Dimensions:  (HxWxD) - 1.75 x 19 x 6.0 inch (4.45 x 48.3 x 15.2 cm)
• Weight -  5.6 lb / 2.5kg
  • Note: 0 dBu = 0.775Vrms
