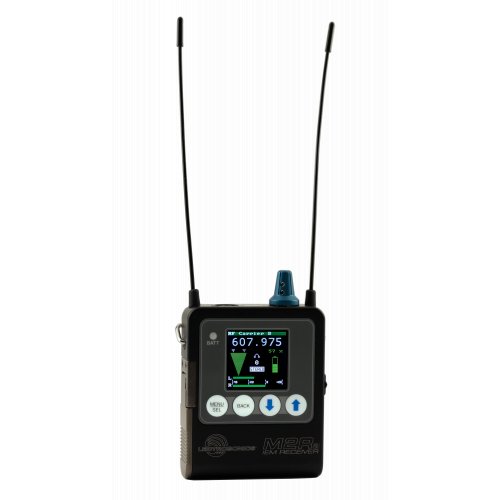

Lectrosonics M2Ra Receiver
Model: M2Ra-A1B1
About: Lectrosonics M2Ra Receiver
The Lectrosonics M2Ra bodypack receiver employs advanced antenna diversity switching during digital packet headers for seamless audio. The 24 bit digital audio stream guarantees high resolution sound quality with wide dynamic range, low noise floor, and rock-solid stereo image. The receiver can select from stereo, mono from left channel only, or mono from right channel only, giving the unit flexibility in terms of the application. The headphone jack is fed from a high-quality stereo amplifier with 250 mW available to drive headphones or earphones to sufficient levels for stage performance or other environments with significant background noise. A high-resolution, color LCD allows for a wide range of menu options, including precise limiter settings, using detailed graphics. The M2Rs runs on two AA batteries for an operating time of over 4 hours with alkaline cells.
- IEM (Wireless Monitor) receiver with digital RF
- IR (infrared) port for fast setup
- High resolution, color LCD
- Stereo or mono operation
- Low latency of 1.4 ms with analog inputs
Improvements in this new M2Ra:
- Phantom power protection on the headphone jack (good for using this model as a camera hop receiver)
- Improved IFB analog compatibility mode (sounds better than the older version)
- Beefed up internal power supply (allows for headphones with impedances as low as 9 ohms to be used)
- Improved menu structure (similar to DCR822 & DSQD)
- Decreased overall RF noise floor and less RF gain in the front end (reduces overload from strong interference sources and out-of-band signals)
- Increased IP3 and 1dB RF compression points (improves handling of high signal levels)
- Black anodized finish – lower visual profile
