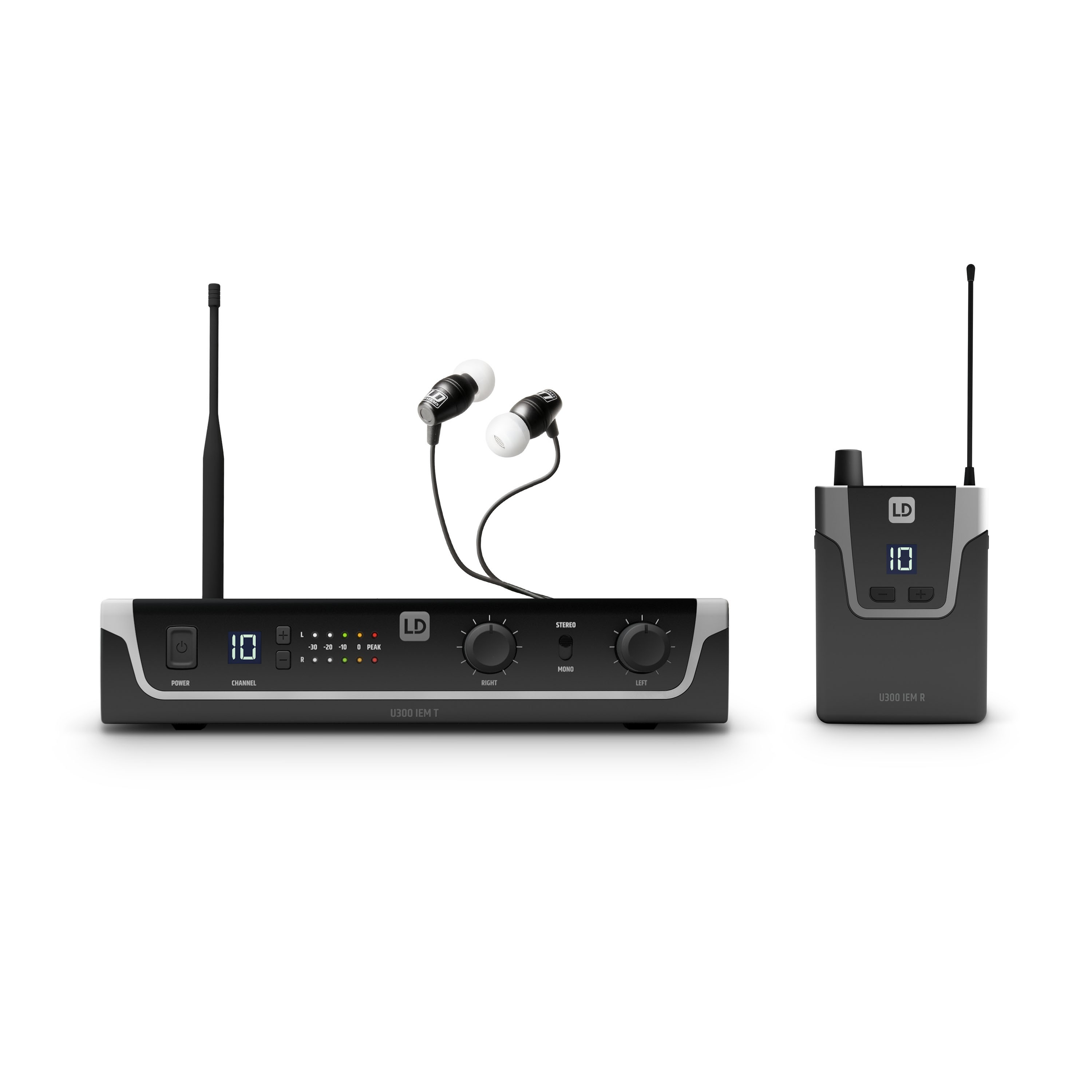

LD Systems U300 IEM In-Ear Monitoring System w/ Earphones - 470 - 490 MHz

About: LD Systems U300 IEM In-Ear Monitoring System w/ Earphones - 470 - 490 MHz

We have developed the wireless U300 in-ear monitoring systems for unlimited freedom of movement on the stage with perfect in-ear monitor sound at all times. Developed in Germany, their clear, modern design and straightforward operation make them the perfect choice – not just for beginners. Their reliable range of up to 100 m and their low-reaching frequency band of 50 Hz to 16 kHz ensure professional performance. U300 in-ear sets are available for operation in 5 frequency bands: 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz+ 863 MHz - 865 MHz, 470 MHz - 490 MHz or 514 MHz - 542 MHz. Six systems can be used simultaneously in each case.

• Reliable wireless transmission with a range of up to 100 m
• Low-reaching frequency response
• 12 selectable channels
• Choice of stereo or mono mode
• Up to 6 systems can be used simultaneously
• 10-hour bodypack operating time with two AA batteries
• Unlimited number of bodypacks can be set to the same transmission frequency
• Channel and RF reception displayed on bodypack
• Transmitter in rugged metal casing with stereo level display
• Removable antenna with BNC connection
• 19” rack assembly kit included.
• Earphones included

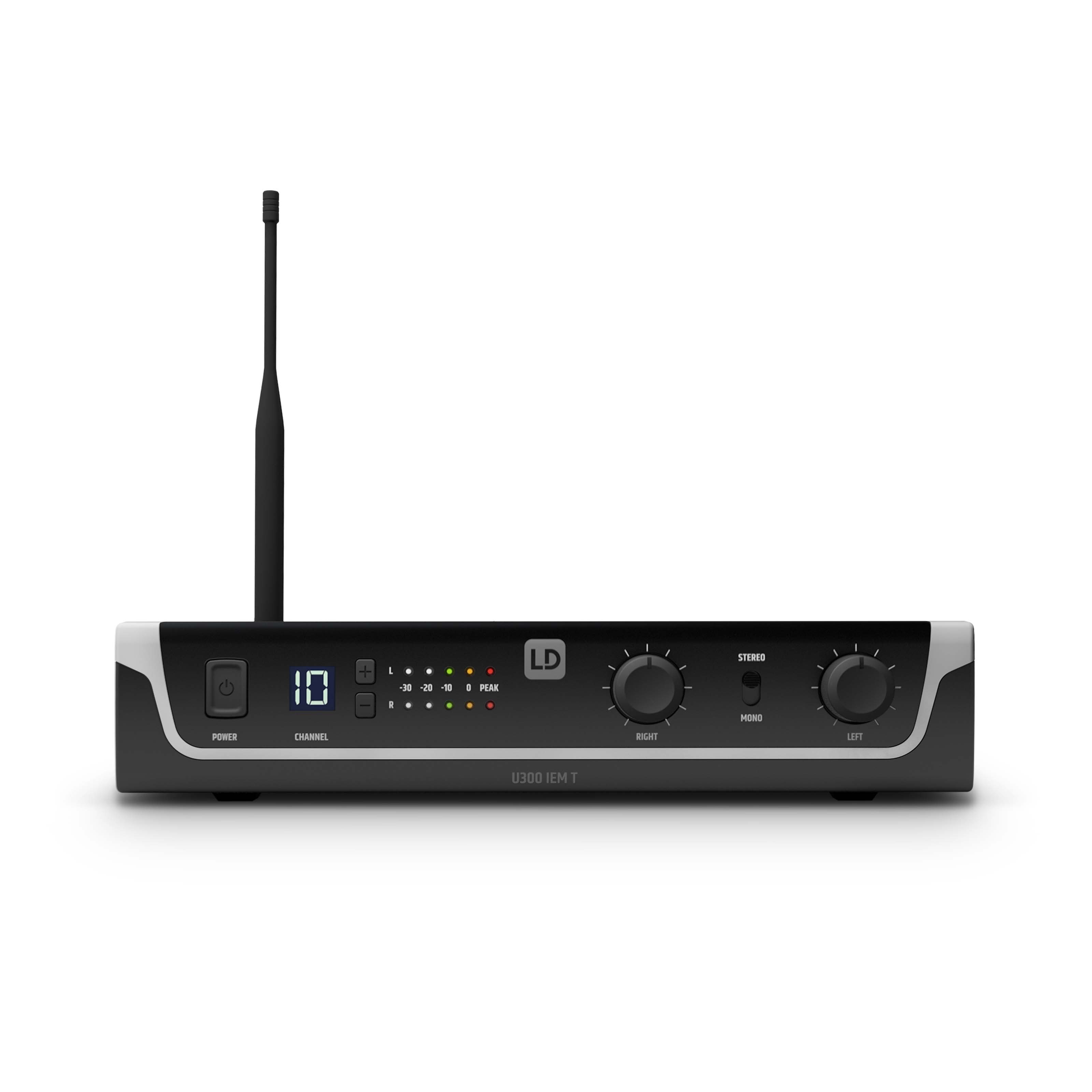

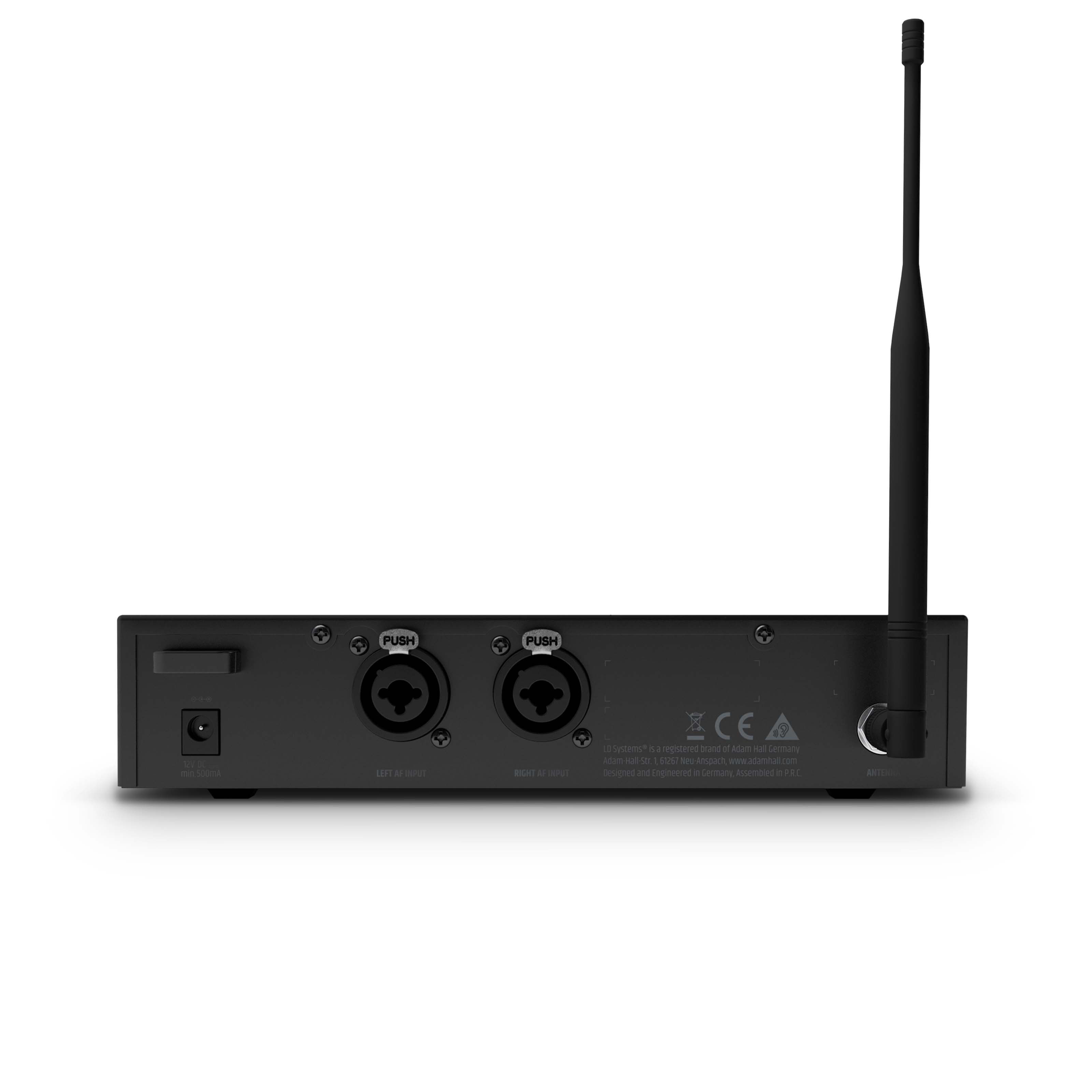

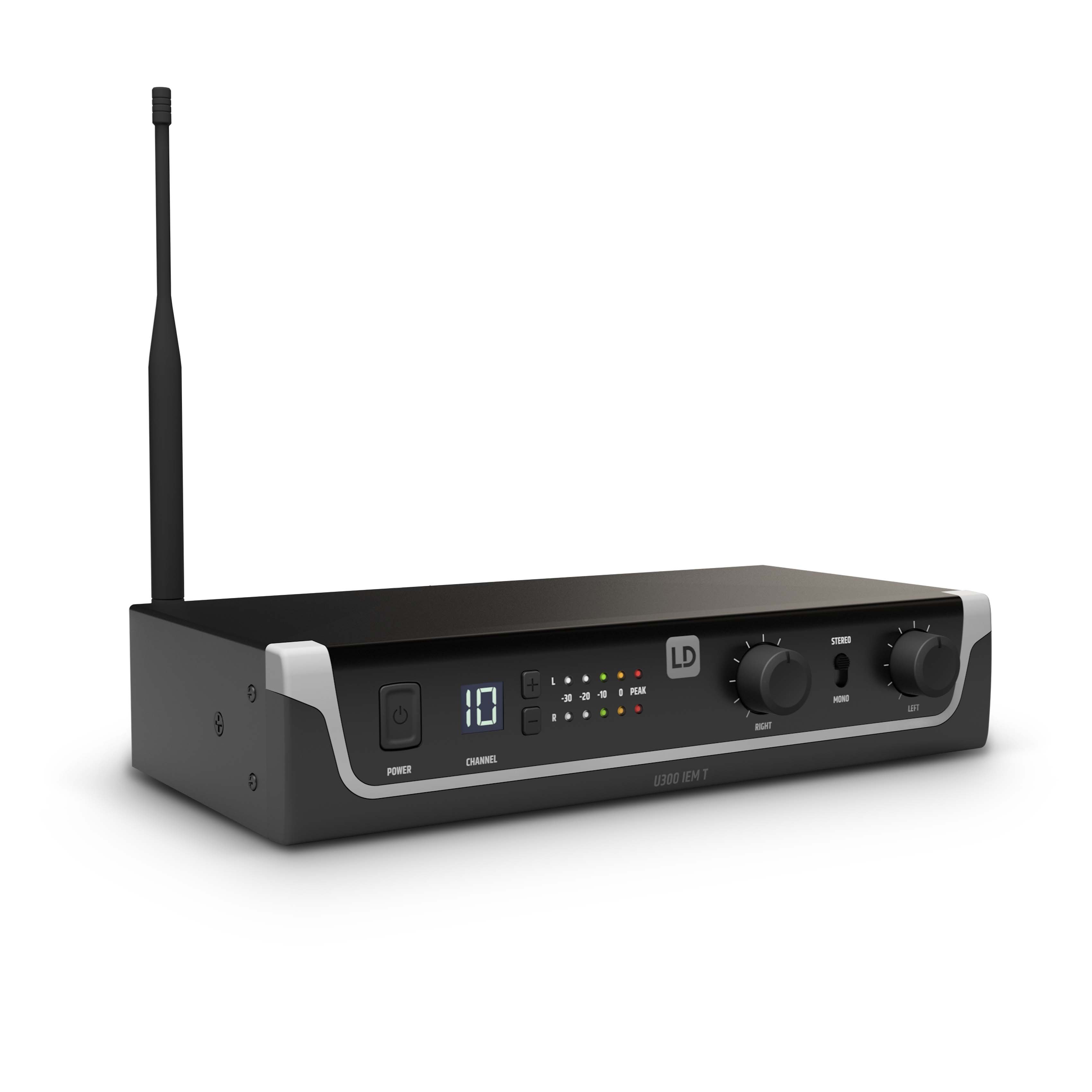

The U300 in-ear transmitters offer a choice of 12 transmission channels and an RF transmission power of 10 mW. They can also be operated in mono or stereo mode. Combo sockets serve as symmetrical XLR and asymmetrical 6.35 mm jack inputs. Left and right input levels can be controlled separately, while two LED chains indicate audio signal strength.

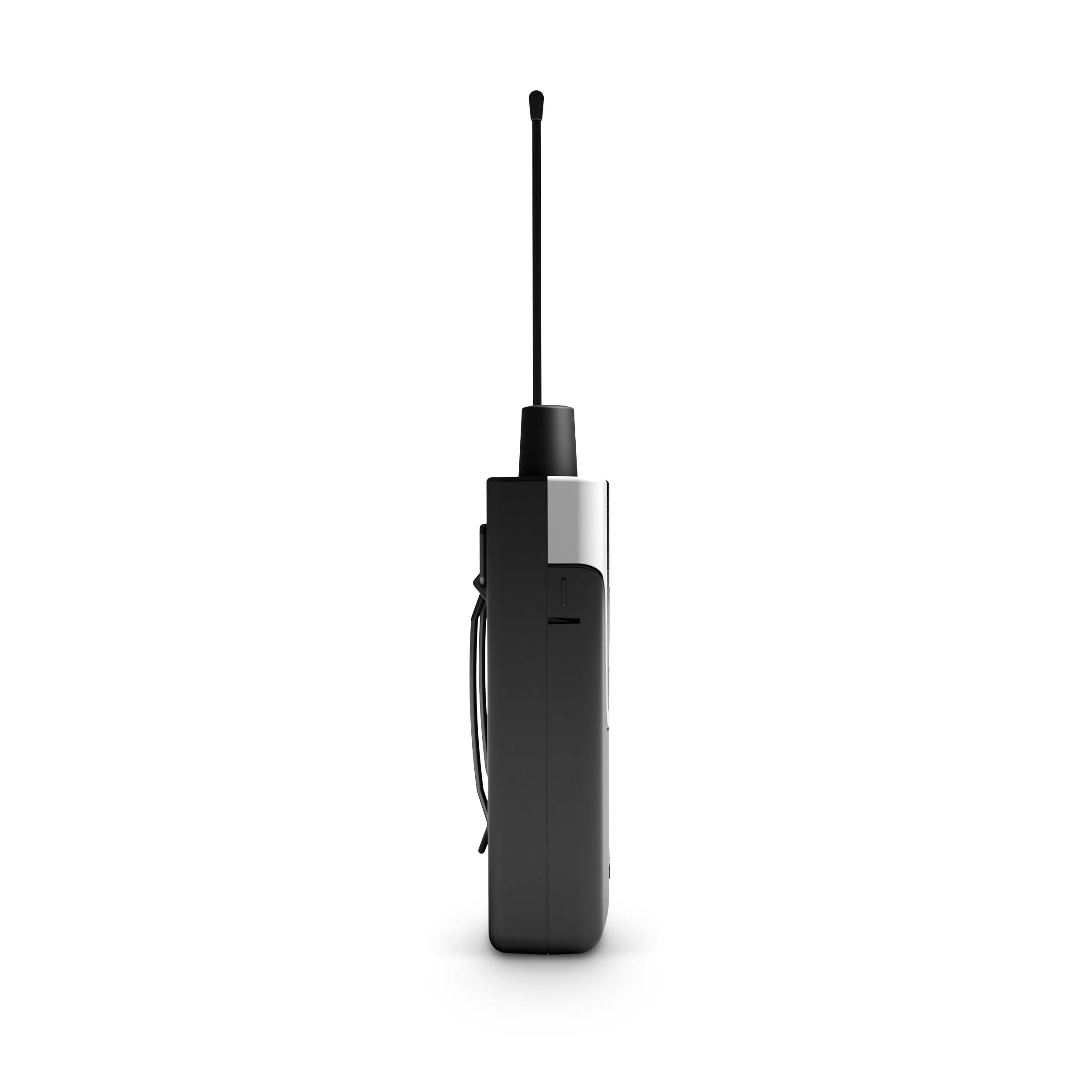

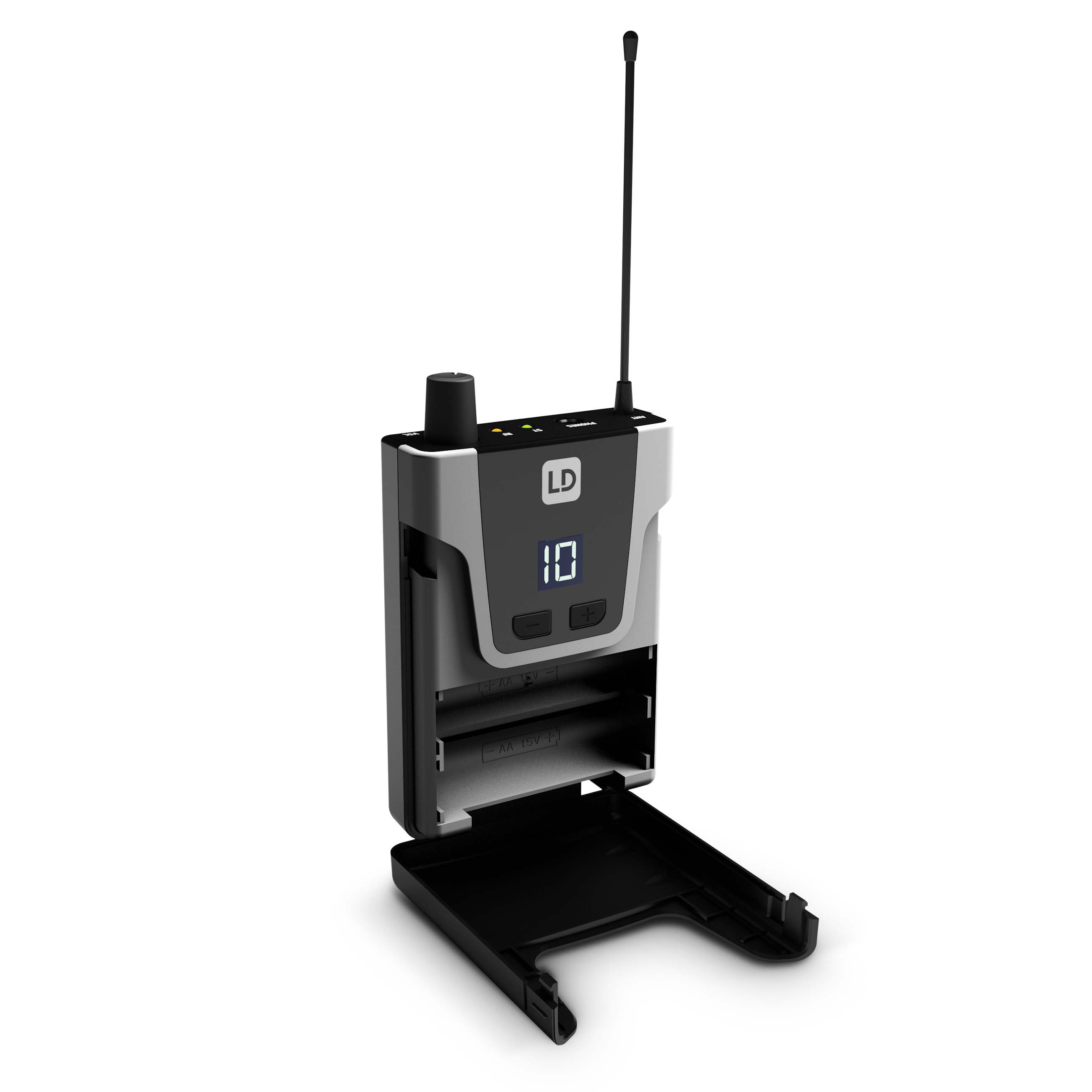

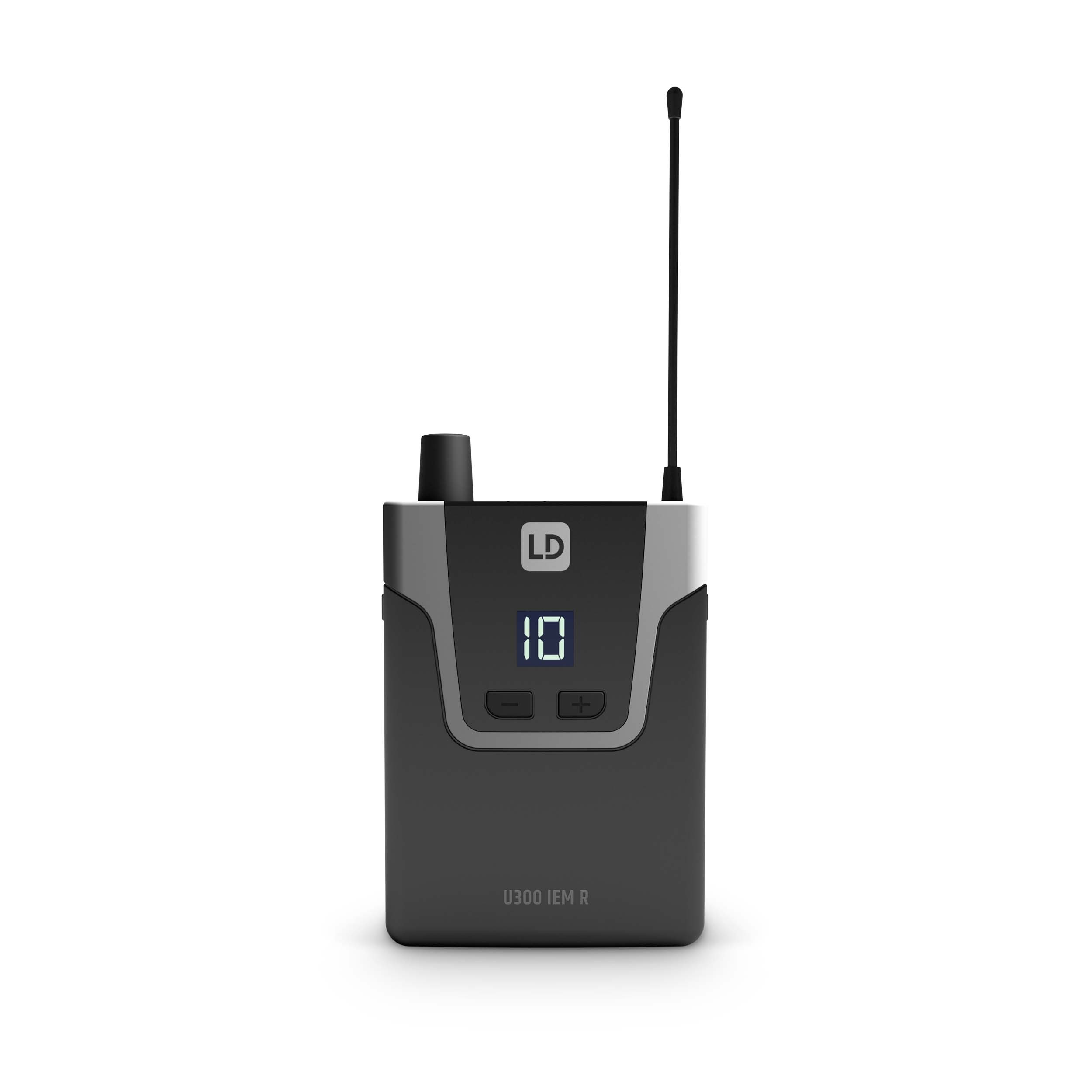

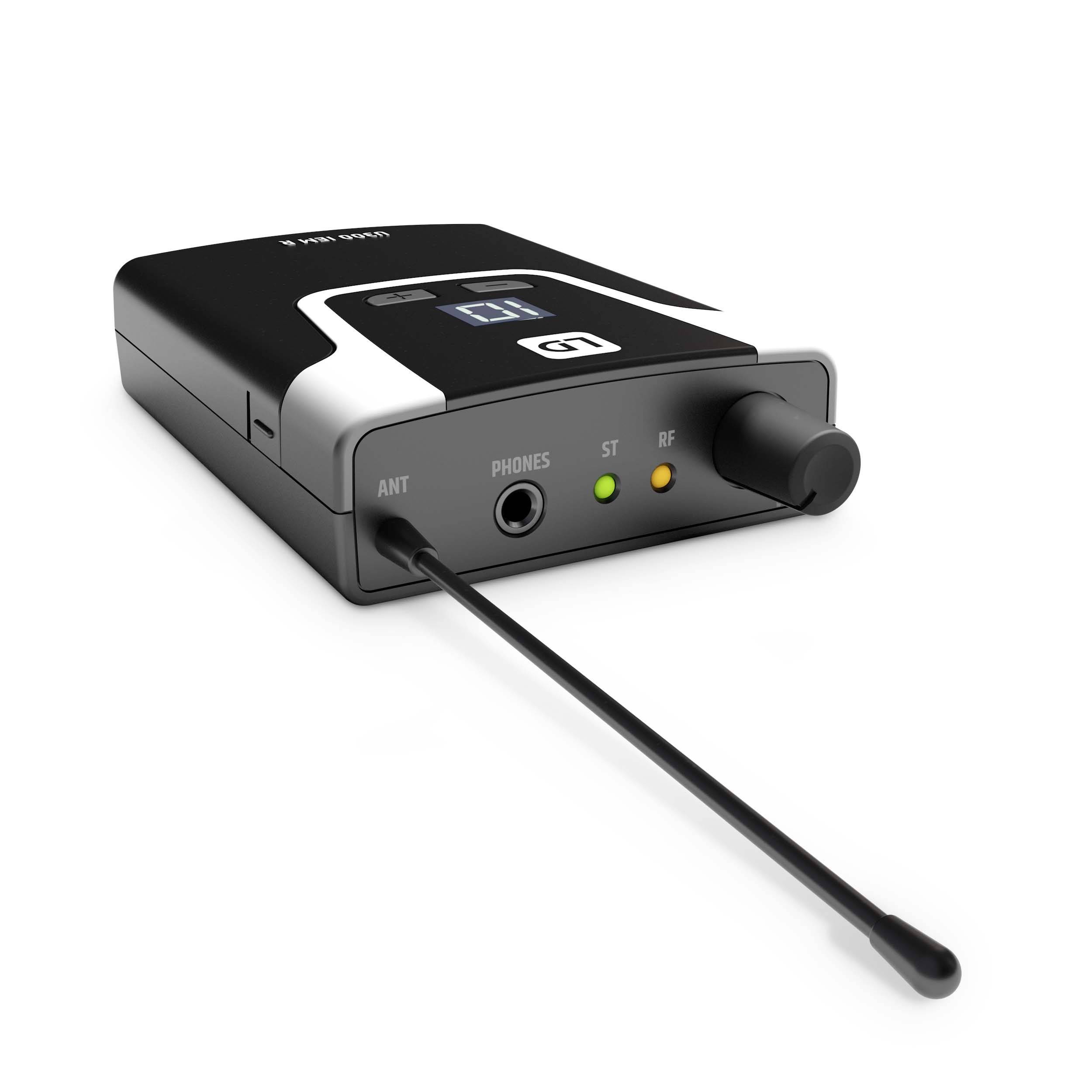

The U300 bodypack receiver has a mini jack socket to connect the earphones as well as displays for channel, stereo mode and low battery status. Running on two AA batteries, it has an operating time of 10 hours. A practical controller allows individual adjustment of the monitoring volume during performance. 19" rack assembly kit included.

Specifications

• General
  • Product type - In-ear Monitoring
  • Type - Set
  • Frequency range - 470 - 490 Hz

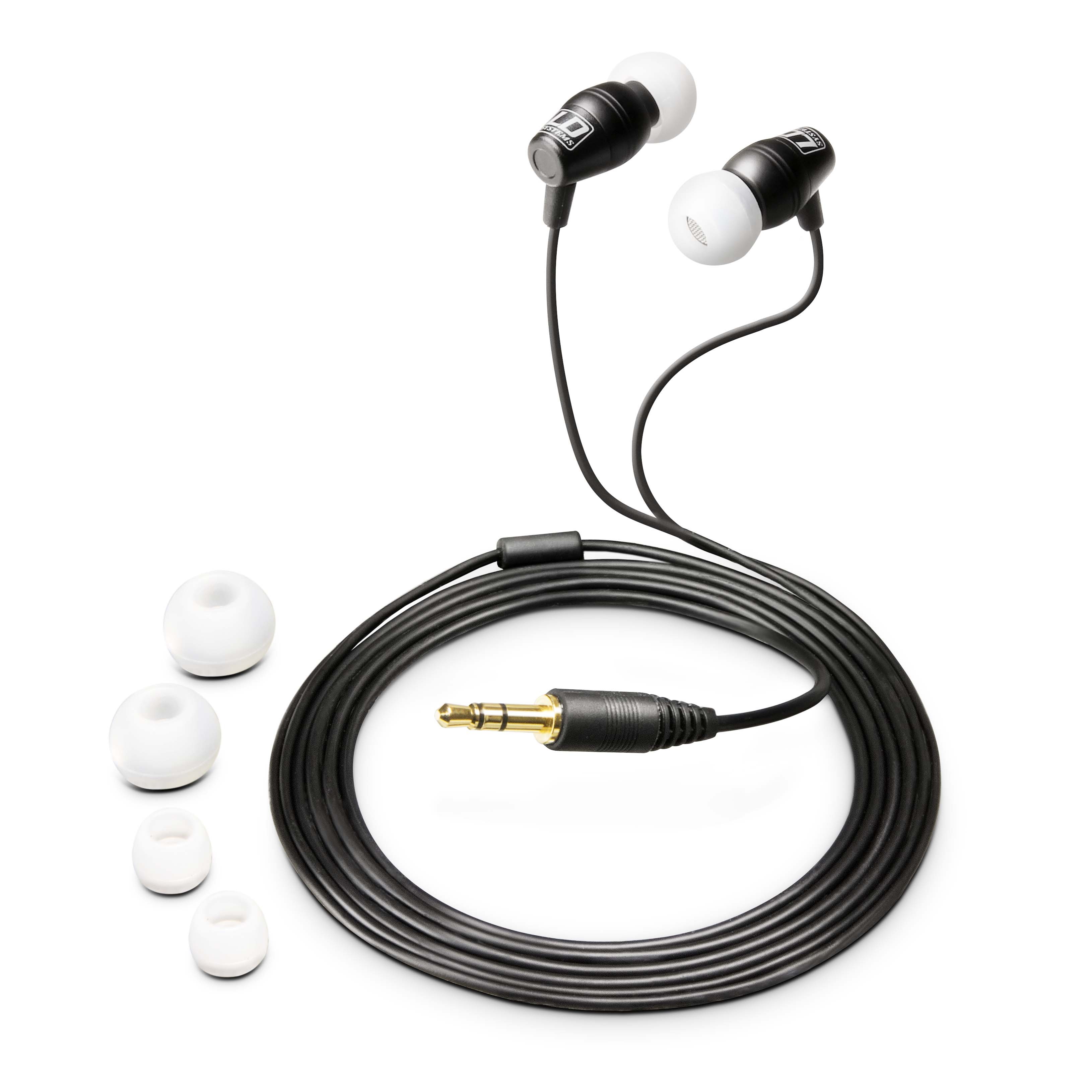

• IEHP 1 Professional In-Ear Headphones (black)
  • Product type - Stereo In-Ear headphones
  • Frequency response - 30 - 20.000
  • Impedance - 16 Ohm(s)
  • Connection type - 3.5 mm TRS
  • Accessories included - 3 pairs of ear pads (S, M, L)
  • Cable length - 1.5 m
  • Weight - 0,12 kg

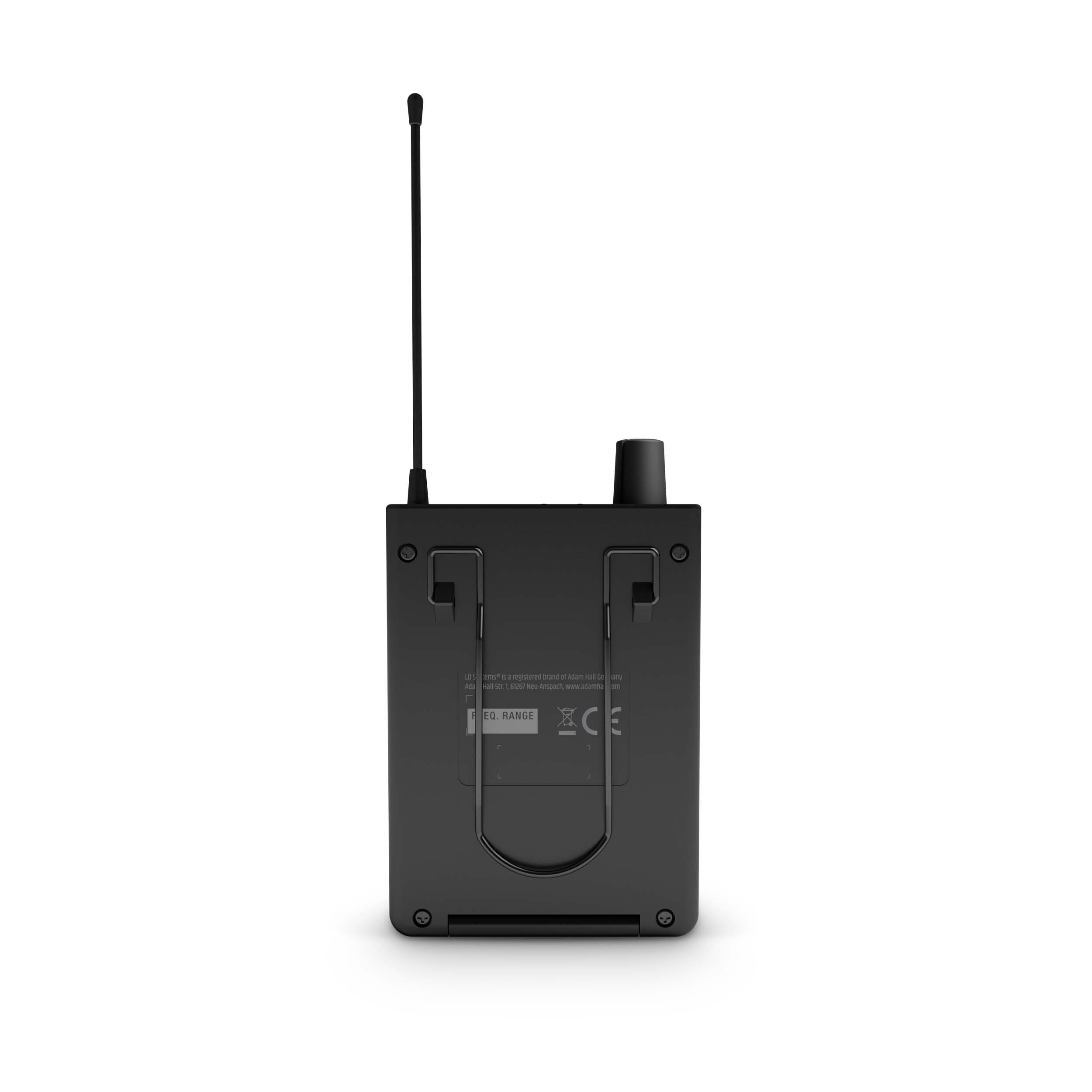

• U304.7 IEM Receiver
  • Product type - In-ear Monitoring
  • Type - Bodypack receiver, non-diversity
  • Transmission frequency range - 470 - 490 MHz
  • Frequency response - 50Hz – 16000 Hz
  • RF Channels - 12
  • Transmission method - FM, mono/stereo
  • Audio output - 3.5 mm TRS
  • Phones minimum impedance - 16 Ohm(s)
  • Phones max output level - 73 mW @ 33ohm load / 100 mW @ 16 ohm load
  • Antenna connector - Fixed to housing
  • Controls - On/off/volume, channel +, channel -
  • Indicators - 2 Digit backlit LC-Display (channel number), ST-LED, RF-LED
  • Power Consumption (nominal) - 0.5 W
  • Operating Voltage: - 2x 1.5 VDC AA-Batteries
  • Operating time - < 10 hours
  • ​Weight - 0,085 kg
  • Dimensions (W x H x D, without antenna) - 64 x 103 x 24 mm
  • Features - Battery status indication LED
• U304.7 IEM Transmitter - 470 - 490 MHz
  • Product type - In-ear Monitoring
  • Type - Transmitter
  • Transmission frequency range - 470 - 490 MHz
  • Frequency response - 50 Hz – 16000 Hz
  • Channels - 12
  • Transmission method - FM, mono/stereo
  • Rated HF output power - 10 mW
  • Total Harmonic Distortion (THD) - <0,5%
  • Signal-to-noise ratio - 90 dB
  • Dynamic range - 88 dB
  • Antenna connector - BNC
  • Inputs - 2
  • Input connectors - XLR (balanced) / Combo TRS 6.3 mm
  • Controls - Input level L + R controls, mono/stereo –switch, power on-off -button
  • Indicators - 2 Digit backlit LC-display (channel number), 2x 5 segment LED VU Meter
  • Input impedance (kOhms) - 8.5 kOhm
  • Input sensitivity - -4.5 dBu (all gain controls full, stereo mode)
  • Power supply - 12 - 18 V DC
  • Power consumption - 1.7 W
  • Accessories (included) - 19" Rack mount kit , BNC-Antenna , Power supply
  • Dimensions (W x H x D) - 212 x 43 x 123 mm
  • Weight - 0,66 kg
