Audio Technica 3000 Series Wireless In-ear Monitor Receiver

About: Audio Technica 3000 Series Wireless In-ear Monitor Receiver

Want to share the same mix to multiple performers? Simply add additional ATW-R3250 receivers to your transmitter.

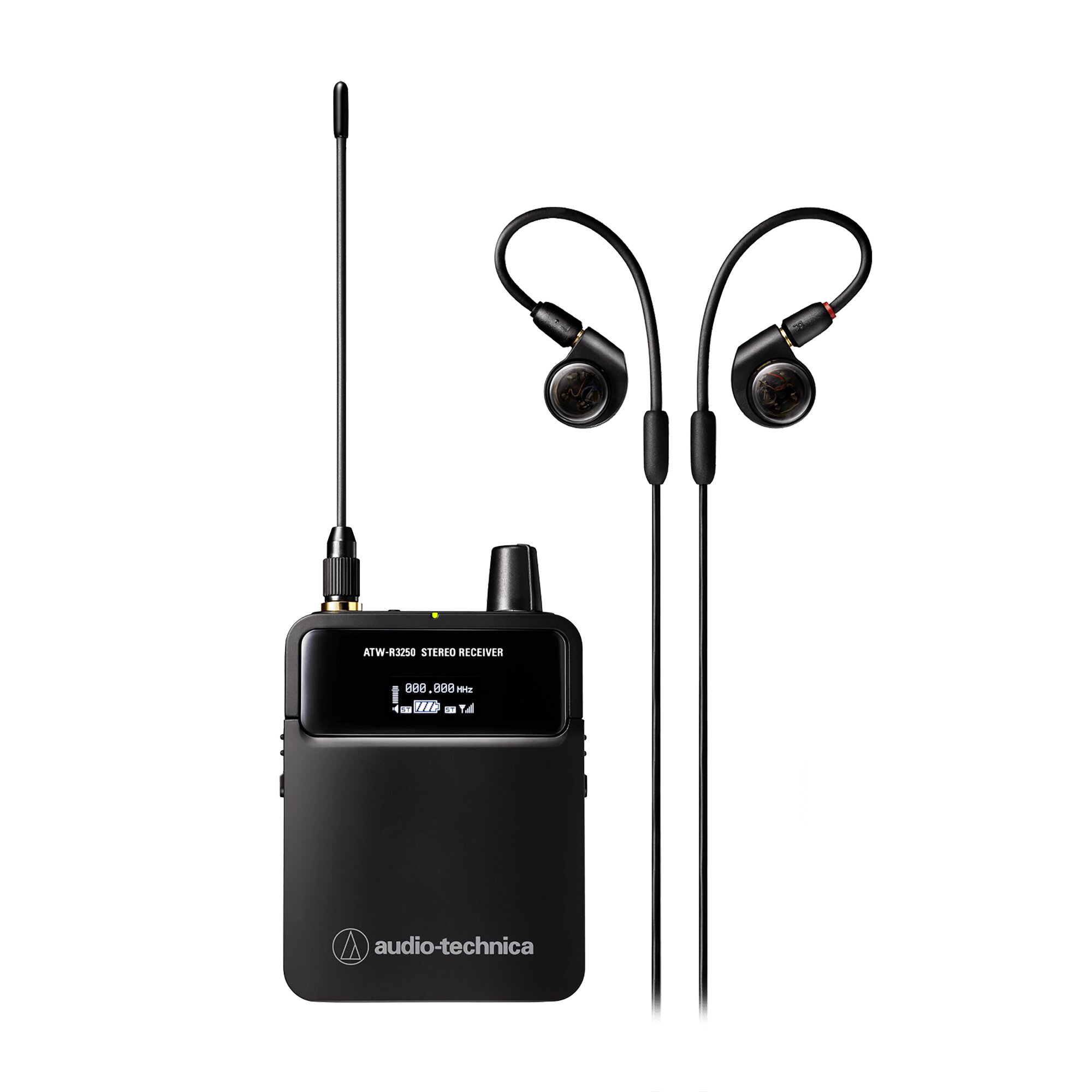

Each ATW-R3250 comes equipped with ATH-E40 professional in-ear monitor headphones.

Features

• Durable wireless in-ear monitor system delivers high-quality sound and stable RF
• Ideal for use in houses of worship and performance venues
• Optimized internal digital signal processing provides exceptional stereo separation
• Wide UHF tuning bandwidth of 138 MHz for maximum versatility in an increasingly congested RF environment; available in frequency bands DF2 (470 – 608 MHz) and EG2 (580 - 714 MHz)
• Shares design elements with the 3000 Series UHF Wireless Systems for easy integration and compatibility
• Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
• Offers network monitoring and control via Wireless Manager software
• A channel plan can be deployed to all network-connected transmitters via an RF scan from a single receiver, with no interference or third-order intermodulation
• Body-pack receiver operates continuously for up to 7 hours when powered by NiMH batteries and charged in the ATW-CHG3 or ATW-CHG3N charging station (sold separately)
• Stereo or mono operation with pan/personal mix controls
• Receiver is equipped with an efficient headphone amp to ensure clear, natural sound quality
• Custom audio settings include EQ, limiter, gain control and balance
• Receiver’s antenna diversity improves RF stability
• Included ATH-E40 professional in-ear monitor headphones feature propriety dual phase push-pull drivers for exceptional accuracy and clarity
• Transmitter is equipped with balanced XLR inputs and loop output, plus network port

Specifications

• Receiving System* -  Antenna diversity
  • * Audio output cable performs as a secondary antenna to ensure stable RF performance.
• Image Rejection -  >80 dB, typical
• RF Sensitivity -  20 dBuV at 60 dBA S/N ratio (50 ohms termination)
• Headphone Output Jack -  3.5 mm (1/8") TRS stereo mini-jack
• Headphone Output -  40 mW (at 12 ohms)
• EQ
  • Low: 80 Hz / 160 Hz / 320 Hz / ±9 dB in 3 dB step
  • High: 6 kHz / 8 kHz / 10 kHz / ±9 dB in 3 dB step
• Limiter -  Selectable: -30dB to OFF (0 dB) in 6 dB steps
• Antenna Input -  SMA type, 50 ohms
• Batteries -  3 V DC (two 1.5 V AA) (not included)
• Operating Temperature Range** -  -5℃ to +45℃ (23℉ to 113℉)
  • ** Battery performance may be reduced at very low temperatures.
• Battery Life***
  • 4 to 6 hours (alkaline)
  • 5 to 7 hours (Ni-MH, 1900 mAh)
  • 11 to 13 hours (Lithium)
    • *** Depending on battery type, usage, volume level and environmental conditions.
• Dimensions -  64 mm (2.5")×23 mm (0.91")×82 mm (3.2") (W×D×H)
• Weight (Without Batteries) -  102 g (3.6 oz)
• Included Accessories -  ATH-E40
