Audix ADX20iP Condenser Instrument Microphone

Model: ADX20IP

Audix ADX20iP Condenser Instrument Microphone
  • Free Shipping!
  •  Special Order: Estimated Lead Time 3-4 Weeks
  • Not yet reviewed

About: Audix ADX20iP Condenser Instrument Microphone

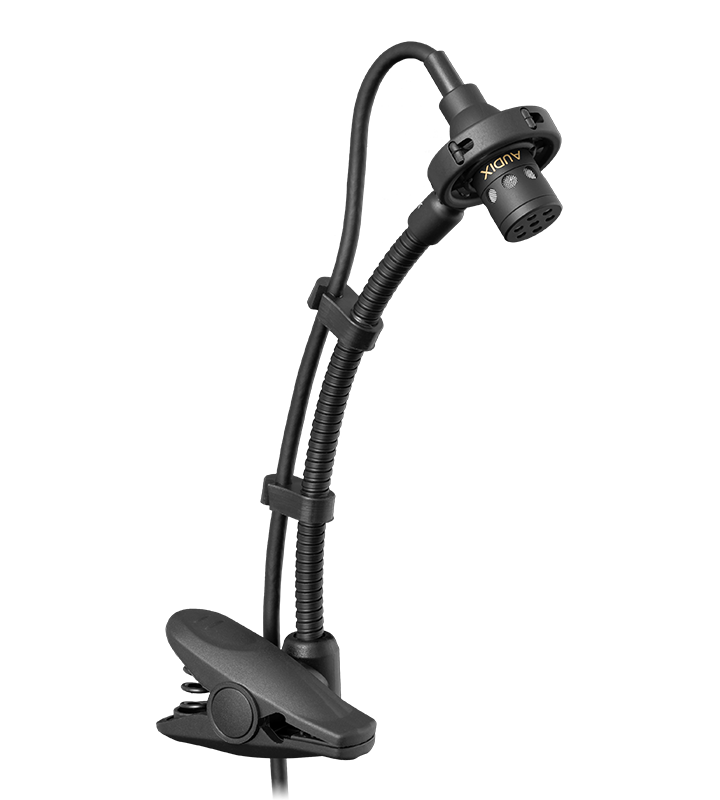

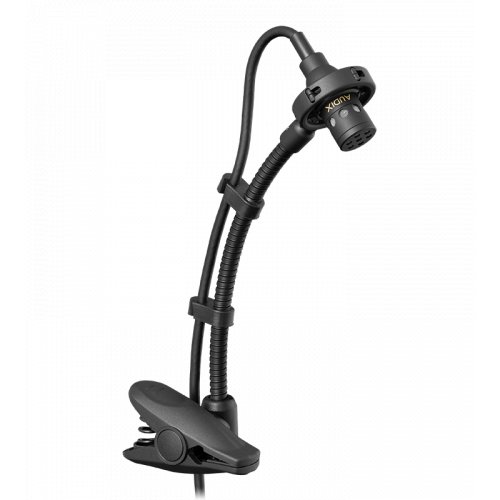

The ADX20iP miniature condenser microphone is applicable for professional stage and studio applications. This microphone is primarily used for miking most reed and brass instruments.

The ADX20iP has a uniformly controlled cardioid polar pattern, which provides excellent isolation and feedback control on stage with natural sound reproduction at very close distances.

The ADX20iP condenser instrument microphone is lightweight, compact, and simple to use. Included with the ADX20iP is a gooseneck clip with spring tension for easy mounting to the bell of an instrument.

Designed, machined, assembled, and tested by Audix in the USA.


  • Transducer Type: Pre-Polarized Condenser
  • Frequency Response: 40 Hz – 20 kHz
  • Polar Pattern: Cardioid
  • Output Impedance: 250 ohms
  • Sensitivity: Cardioid – 6 mV / Pa @ 1k Hypercardioid – 5.6 mV / Pa @1k
  • Equivalent Noise Level: <29 dB (A-weighted)
  • Signal to Noise Ratio: >65 dB
  • Maximum SPL: ≥135 dB
  • Power Requirements: 9-52 V phantom
  • Connector: Shielded 6’ terminating to a miniature 3 pin XLRf
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
  • Materials / Finish: Machined Brass Capsule / Black Finish
  • Weight: 48 g / 1.7 oz
  • Length: 29 mm / 1.14 in


  • 1x ADX20iP Instrument Microphone
  • 1x MC20i Microphone Clip
  • 1x WS20 External Windscreen
  • 1x P1 Carrying Pouch
  • 1x APS910 Phantom Power Adapter

UPC: 687471221389

Reviews: Audix ADX20iP Condenser Instrument Microphone

There are currently no product reviews.

Warranty: Audix ADX20iP Condenser Instrument Microphone Warranty:

30 Days

Manufacturer's Warranty:

1 year limited warranty
