Crown XLC 2800 800W Power Amplifier

Model: XLC2800

Crown XLC 2800 800W Power Amplifier
Crown XLC 2800 800W Power Amplifier
  • Free Shipping!
  •  Special Order: Estimated Lead Time 3-4 Weeks
  • Not yet reviewed




About: Crown XLC 2800 800W Power Amplifier

Available in two models, the XLC2500 and XLC2800 incorporate Crown’s proprietary DriveCore™ Technology, which significantly reduces the amplifiers’ size, while yielding much more energy efficient operation – without sacrificing performance. Compact, powerful and cost-effective, the XLC Series provides ease of installation, outstanding sound quality and the unwavering reliability inherent in every Crown product. These amplifiers are powerful, affordable options for both the cinema and install markets.

  • Two models of 500W (XLC2500) and 800W (XLC2800) per channel at 4-ohms
  • XLC Amplifiers are compatible with CXM2000 for monitor, fault detection and crossover functions
  • XLC Amplifiers are compatible with Crown Monitor System DSi-8M for monitor function
  • Power for 2-ohm, 4-ohm and 8-ohm outputs, supporting stereo and bridge outputs
  • Support parallel connection of cinema surround speaker
  • Indicators provide accurate diagnostics: Power, Signal, Clip and Fault

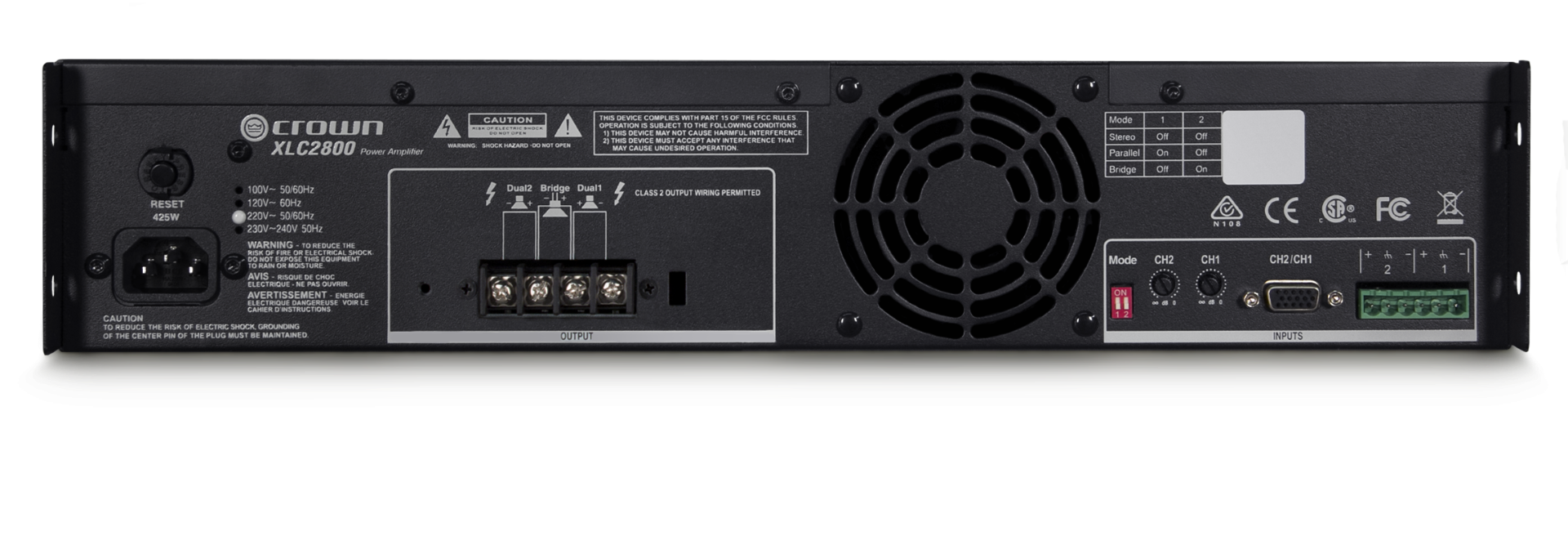

  • Volume control on rear panel of amplifiers
  • High performance, light weight
  • DriveCore  based amplifier – weighs less than 14lbs (6 kgs)
  Channels 2 Ohm 4 Ohm 4 Ohm Bridge 8 Ohm 8 Ohm Bridge
XLC2500 2 775W 500W 1550W 300W 1000W
XLC2800 2 1200W 775W 2400W 400W 1550W

Specifications

  • AC Line Voltage and Frequency Configurations Available: (+/- 10%) 100VAC 50/60 Hz, 110VAC 60 Hz, 220 and 230~240VAC 50 Hz
  • Voltage Gain: 42
  • Sensitivity: 1.4V (for full rated power at 4 ohms)
  • Signal to Noise Ratio (ref. rated power, 8 ohms, 1 kHz): > 103 dB
  • THD: <0.5%
  • Damping Factor (8 ohms, 10 Hz to 400 Hz): >200
  • Intermodulation Distortion (from full rated output to -30 dB): <0.3%
  • Frequency Response (at 1W, 20 Hz - 20 kHz): -1 dB
  • Crosstalk: >85 dB (below rated 8 ohms power, at 1 kHz); >55 dB (below rated 8 ohms power, at 20 kHz)
  • Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced
  • Load Impedance: 2~8 ohms per channel in Stereo; 4~8 ohms in Bridge
  • Dimensions: 19" x 3.5" x 10.4" (48.3cm x 8.9cm x 26.4cm)
  • Weight: 10.4 lbs (4.72 kg)
  • Shipping Weight: 13.2 lbs (6 kg)
  • IEC Power Connector: 15A

UPC: 871015007809

Reviews: Crown XLC 2800 800W Power Amplifier

There are currently no product reviews.


Warranty: Crown XLC 2800 800W Power Amplifier

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Most Crown amplifiers are guaranteed by Crown's 3 year no-fault full warranty. With this No-Fault protection your new Crown amplifier is guaranteed to meet or exceed original specifications for the first three years of ownership. During this time, if your amplifier fails for any reason it will be repaired or replaced at our expense. This includes parts, labor, and round-trip shipping (ground transport). This also applies to IQ System and PIP products.

Exceptions:

  • iTHD, MAi and CTsB (current modified version in production since August 2010) will offer a 5 year standard warranty.
  • LPS series, 135MA, 160MA, and 140MAx pack have a 1 year limited warranty.


NOTE: for a modest fee Crown will extend that protection for an additional three years with our 3+3 No-Fault Extended Full Warranty (amplifiers only).
