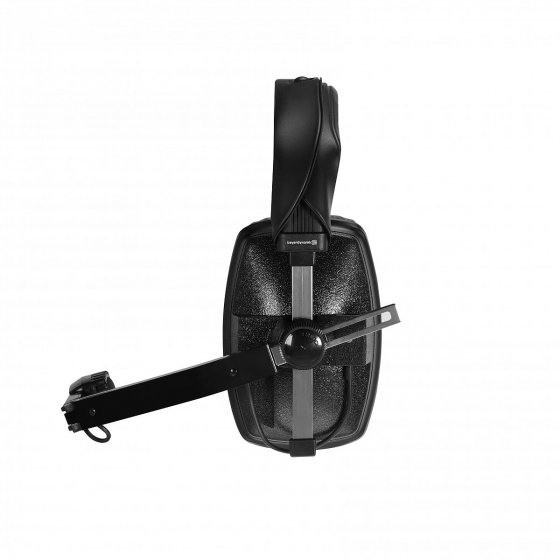

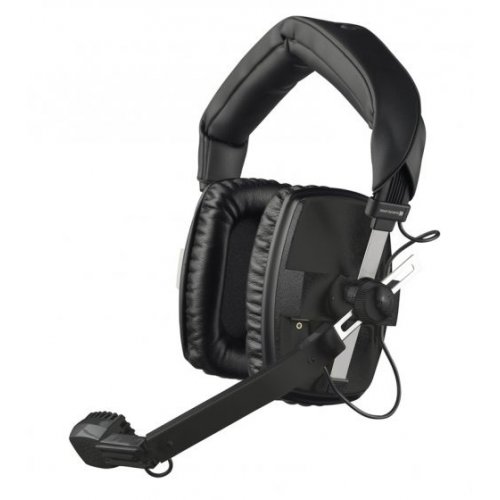

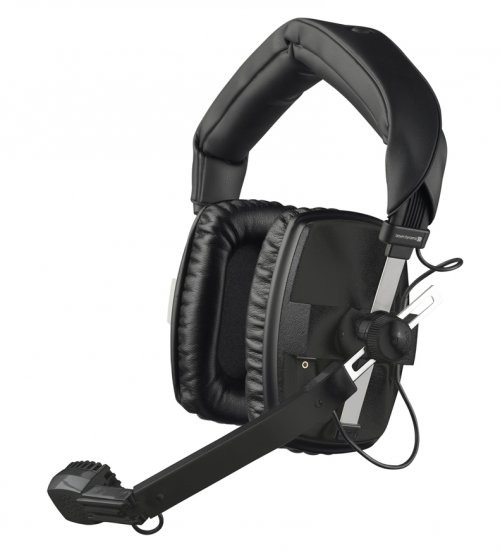

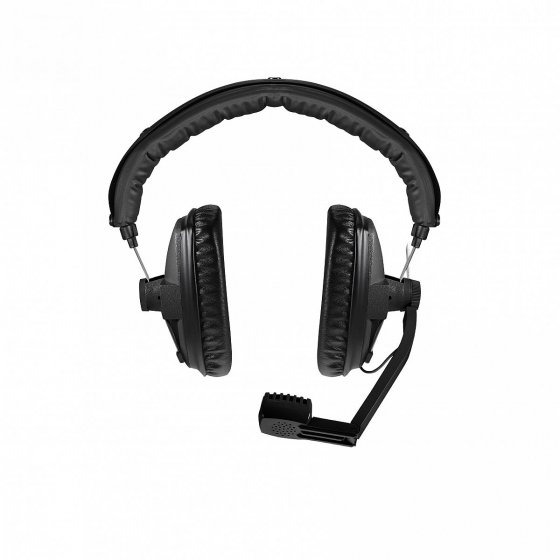

Beyerdynamic DT 109 Dual-Ear Headset w/ Dynamic Microphone (200/50 Ohm)

About: Beyerdynamic DT 109 Dual-Ear Headset w/ Dynamic Microphone (200/50 Ohm)

The headset DT 109 is ideal for use in radio, television, reports, cameras, sound and light mixing consoles and intercom systems. The soft, circumaural ear cushions offer high wearing comfort and excellent isolation from external noise. The padded headband and microphone boom can be individually adjusted.

This headset is also available as a one-ear version (DT 108).

• Excellent isolation from ambient noise (suitable for high sound pressure levels)
• High-quality hearing and microphone systems
• Single-sided, detachable connection cable
• Made in Germany

IMPEDANCE VARIANTS

• 50 OHMS INTERCOM - The 50 Ohm version is ideal for intercom use.
• 400 OHMS KAMERA - The 400 Ohm version is perfectly suited for camera use.

MADE IN GERMANY

The broadcast headphones and headsets are and always have been handcrafted in Germany. The materials and component parts used are painstakingly made by hand and can be replaced if necessary.

Specifications

• Headphone
  • Transducer type - Dynamic
  • Operating principle - Closed
  • Frequency response - 30 - 20,000 Hz
  • Nominal impedance - 50 Ω ± 10% per cartridge
  • Nominal SPL at 1 kHz - 94 dB
  • T.H.D. - < 1%
  • Power handling capacity - 1000 mW 124 dB
  • Ambient noise attenuation - approx. 20 dBA
  • Sound coupling to the ear - Circumaural
  • Headband pressure - approx. 4.5 N
  • Weight (without cable) - 390 g
• Microphone
  • Transducer type - Dynamic
  • Operating principle - Pressure gradient
  • Frequency response - 40 - 12,000 Hz
  • Polar pattern - Hypercardioid
  • Output voltage - approx. 2.5 mV (at a distance of 5 cm)
  • Nominal impedance - 200 Ω
  • Load impedance - ≥ 1000 Ω

NOTE: All versions of the DT 109 are supplied without a connection cable. Please order the desired connection cable at the same time.
